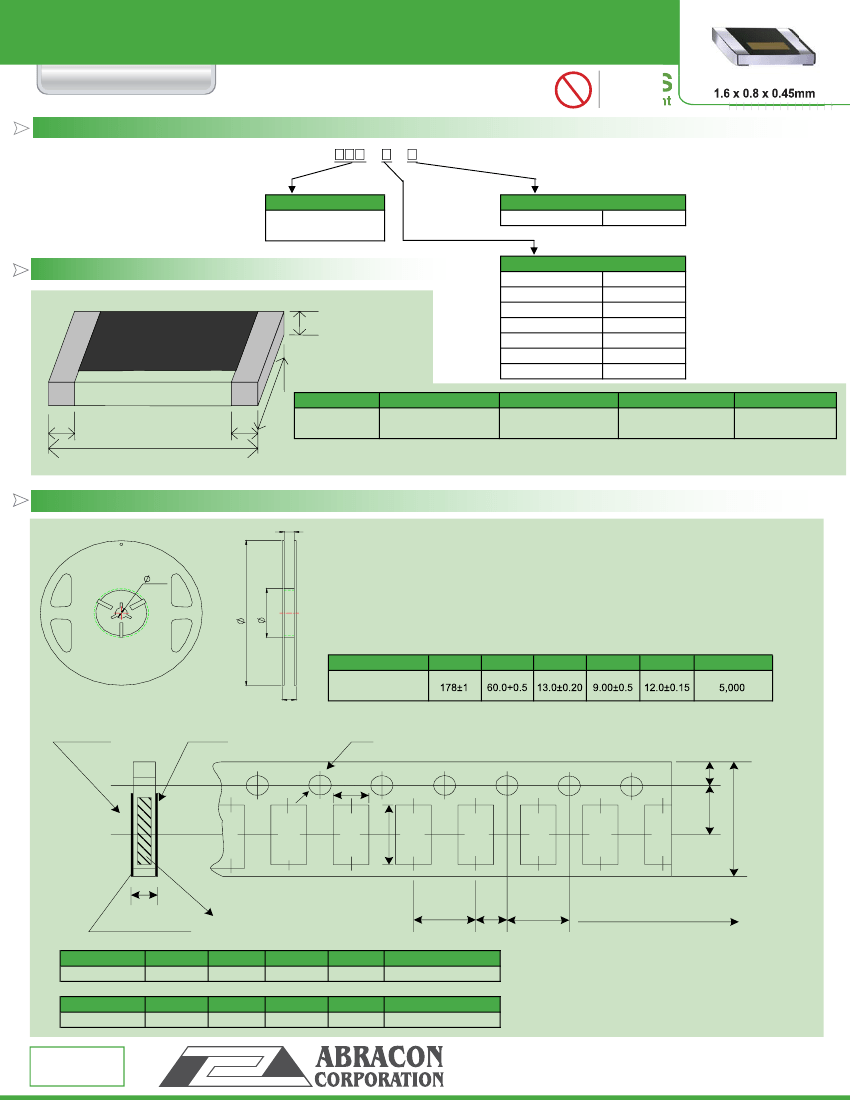

THIN FILM CHIP INDUCTOR
ATFC-0603
FEATURES:
• A photo-lithographic single layer ceramic chip
• High SRF; Excellent Q
• Superior Temperature Stability
• Tight Tolerance of
±
1% or
±
0.1nH
• Self Resonant Frequency Controlled within 10%
• Stable Inductance in High Frequency Circuit
• Highly Stable Design for Critical Needs
APPLICATIONS:
• Cellular Telephones
• Pagers and GPS Products
• Wireless LAN
• Communication Appliances
• Bluetooth Module
• VCO,TCXO Circuit and RF Transceiver Modules
Pb
RoHS
Compliant
1.6 x 0.8 x 0.45mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage temperature:
ABRACON
Inductance
p/n
(nH)
ATFC-0603-1N0
1. 0
1. 2
ATFC-0603-1N2
ATFC-0603-1N5
1.5
ATFC-0603-1N8
1.8
ATFC-0603-2N2
2.2
2.7
ATFC-0603-2N7
ATFC-0603-3N3
3.3
ATFC-0603-3N9
3.9
ATFC-0603-4N7
4.7
ATFC-0603-5N6
5.6
ATFC-0603-6N8
6.8
ATFC-0603-8N2
8.2
ATFC-0603-10N
10
ATFC-0603-12N
12
15
ATFC-0603-15N
ATFC-0603-18N
18
ATFC-0603-22N
22
ATFC-0603-27N
27
ATFC-0603-33N
33
39
ATFC-0603-39N
ATFC-0603-47N
47
ATFC-0603-56N
56
ATFC-0603-68N
68
ATFC-0603-R10
100
ATFC-0603-xxx Series
-25°C to + 85°C
25±3; Humidity <80%RH
Standard Tolerance
Quality Factor (Q)
(% or nH)
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
±0.1nH
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
2%
min
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
15 / 300MHz
Resistance
DC/Max (Ohm)
0.35
0.35
0.35
0.35
0.35
0.45
0.45
0.45
0.55
0.65
0.75
0.95
0.95
1.05
1.35
1.65
1.95
2.35
2.75
3.00
3.00
5.00
5.00
7.50
Current
DC/Max (mA)
800
800
800
300
300
300
300
300
300
300
300
300
300
300
300
300
250
250
250
200
200
150
150
100
Self Resonant
Frequency /min (GHz)
13
13
10
10
8
6
6
6
5
5
5
4
4
3
3
2
2
2
1.5
1.5
1.5
1
1
1
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.24.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
THIN FILM CHIP INDUCTOR
ATFC-0603
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
Pb
RoHS
Compliant
ATFC - 0603 -
-
-
Packaging
T
Tape & Reel
1.6 x 0.8 x 0.45mm
| | | | | | | | | | | | | | |
Inductance Code
Please refer to the
Table above.
OUTLINE DRAWING:
C
Inductance Tolerance
J
H
G
F
S
C
B
Series
±5%
±3%
±2%
±1%
±0.3 nH
±0.2 nH
±0.1 nH
C
0.018±0.004
(0.45±0.10)
D
0.012±0.008
(0.3±0.20)
D
D
B
ATFC-0603
A
0.063±0.004
(1.6±0.10)
B
0.031±0.004
(0.8±0.10)
A
Dimensions: Inches
(mm)
TAPE & REEL:
W
C
A
B
ABRACON P/N
ΦA
ΦB
ΦC
W
T
Paper Tape (EA)
T
ATFC-0603
B o tto m T a p e
Top Tape
ψ
D
0
A
B
E
F
W
T
P
1
P aper T ape
Codes
A
P
2
P
0
Abracon Part
B
W
E
F
d ire c tio n o f u n re e lin g
ATFC-0603
Codes
1.10±0.05
P
0
1.90±0.05
P
1
8.00±0.10
P
2
1.75±0.05
ΦD
0
3.5±0.05
T
ATFC-0603
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
4.00±0.10
4.00±0.10
2.00±0.05
1.55±0.05
0.60±0.03
Dimensions: mm
Revised: 08.24.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
