REVISION AH
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: .5 LBs.
MOLC-1XX-XX-XX-Q-XX
"C"
No OF POSITIONS
-05 THRU -50
LEAD STYLE (SEE TABLE 1)
-01: THROUGH HOLE
-11: THROUGH HOLE
-31: THROUGH HOLE
-61: THROUGH HOLE
OPTION
-LC: LOCKING CLIP
USE 2 LC-05-TM
(SEE FIGURE 2)
IN-PROCESS
(NO OF POSITIONS X .050[1.27])
+ .100[2.54] REF
(NO OF POSITIONS X .050[1.27])
+ .030[.76] REF
(NO OF POSITIONS X .050[1.27])
- .050[1.27]
"A"
C
L
BODY SPECIFICATION
-Q: FOUR ROW
AH
AH
PLATING SPECIFICATIONS
-P: SELECTIVE, GOLD FLASH PALLADIUM NICKEL
WITH TIN ON THE TAIL(SEE TABLE 1)
-S: SELECTIVE GOLD/TIN (SEE TABLE 1)
-SM: HEAVY GOLD SELECTIVE, MATTE TIN TAIL (SEE TABLE 1)
-L: LIGHT SELECTIVE GOLD, MATTE TIN TAIL (SEE TABLE 1)

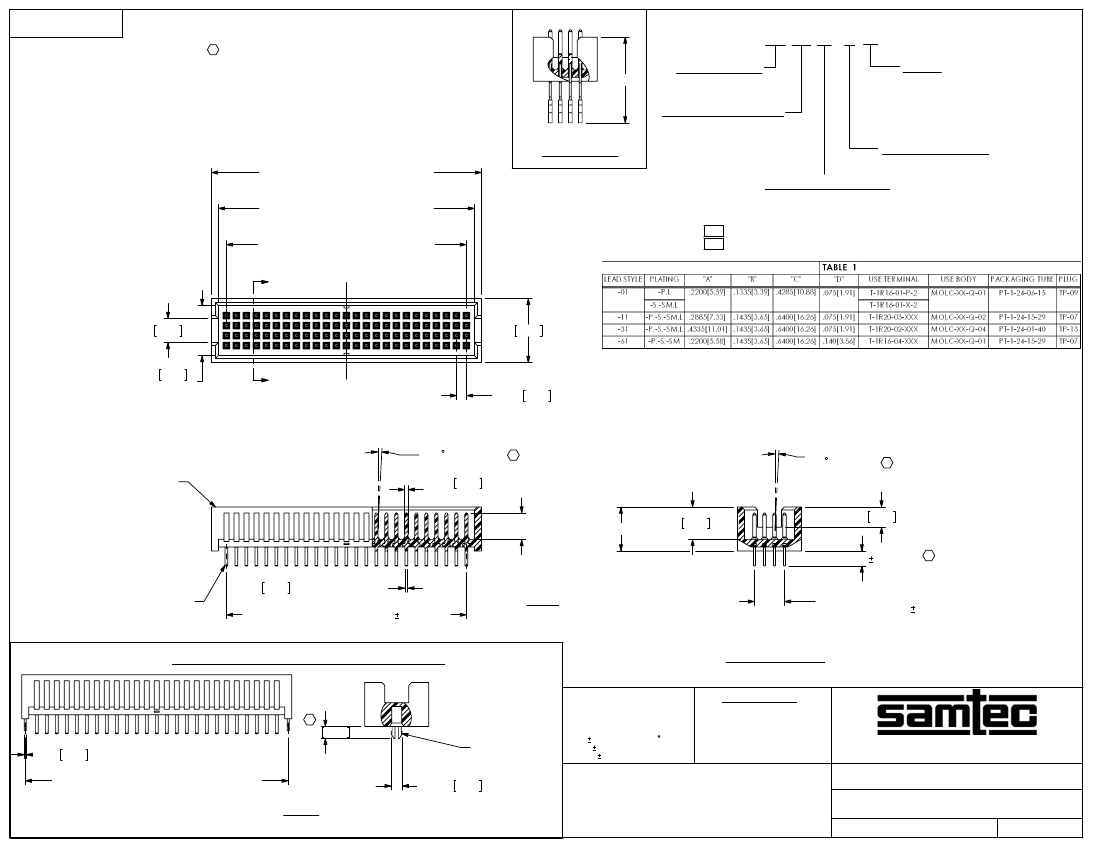

.120 3.05 REF
.320 8.13 REF
.250 6.35
REF
"A"
.050 1.26 REF
2 MAX SWAY
( TYP )
MOLC-XX-X
.018 0.46
DIA REF
C1
2 MAX TOE
( YTP )
C3
"B" REF
"A" REF
.1635 4.15 REF
.102 2.59 REF
"D"
TERMINAL
(SEE TABLE 1)
.014 0.36 X .0100[2.54] REF
XX EQ SPACES @ .0500[1.27] .006[.15]
.007[.18]
.005[.13]
C2
FIG 1
C
L
C
L
3 EQ SPACES @ .0500[1.27] =
.150[3.18] .003
SAME AS FIG. 1 UNLESS OTHERWISE SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
SECTION "A"-"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
C4
.060 1.52
.010 0.25 REF
(NO OF POS X .050[1.27]) + .065[1.651]
LC-05-TM
2 REQ'D
.0560 1.42
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: VECTRA E130, COLOR: BLACK
CONTACT OR TERMINAL:
THROUGH HOLE .050 X .050
FIG. 2
c:\enterprisevault\DWG\MISC\MKTG\MOLC-1XX-XX-XX-Q-XX-MKT.SLDDRW
MOLC-1XX-XX-XX-Q-XX
SHEET
1
OF
2
BY:
T WHELAN 05/23/05
REVISION AH
PACKAGING VIEWS
( REF SHEET 1, TABLE 1)
MOLC-1XX-01-XX-Q-X
MOLC-1XX-11(61)-XX-Q-X
PT-1-24-06-15
PT-1-24-15-29
MOLC-1XX-31-XX-Q-X
PT-1-24-01-40
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: VECTRA E130, COLOR: BLACK
CONTACT OR TERMINAL:
MAX FLASH ALLOWED: .002[.05]
MAX GATE VESTIGE: .002[.05]
c:\enterprisevault\DWG\MISC\MKTG\MOLC-1XX-XX-XX-Q-XX-MKT.SLDDRW
THROUGH HOLE .050 X .050
MOLC-1XX-XX-XX-Q-XX
SHEET
2
OF
2
BY:
T WHELAN 05/23/05
