Futurebus+ is a registered trademark of the Institute of Electrical and Electronic Engineers, Inc. (IEEE)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373

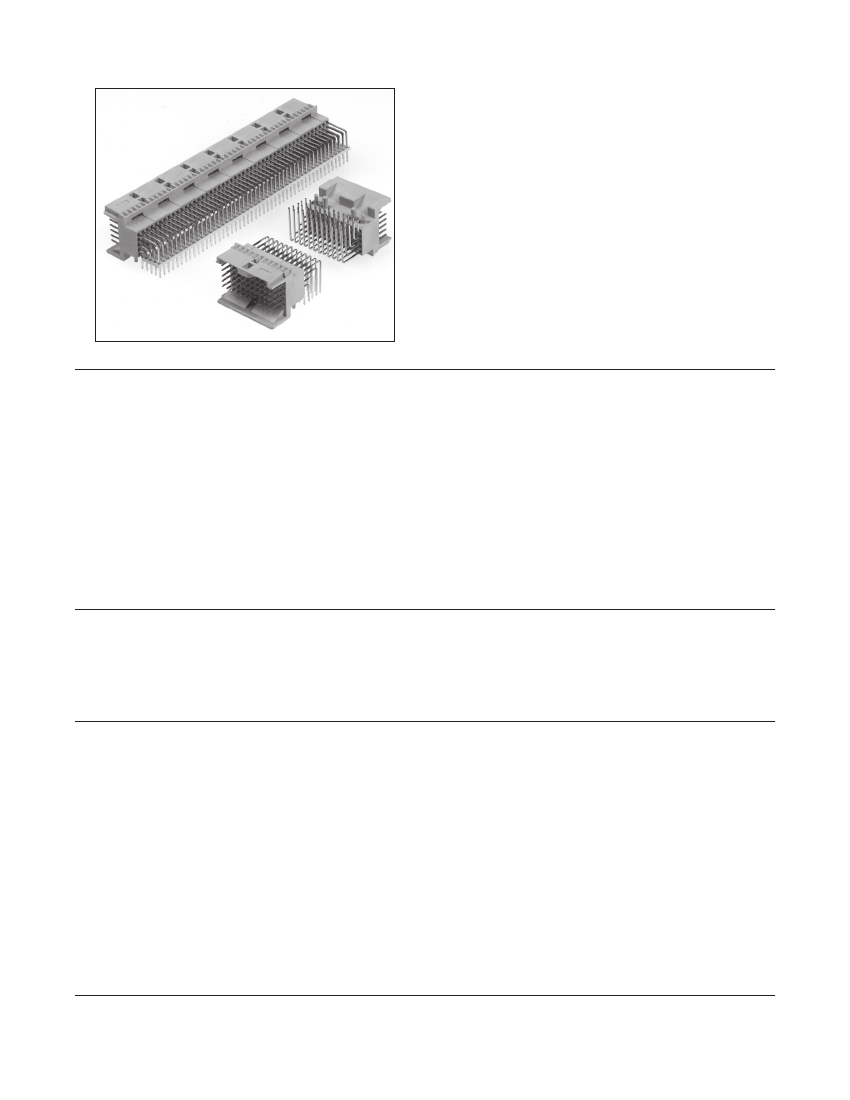

3M
™
MetPak
™
2-FB Inverse Header

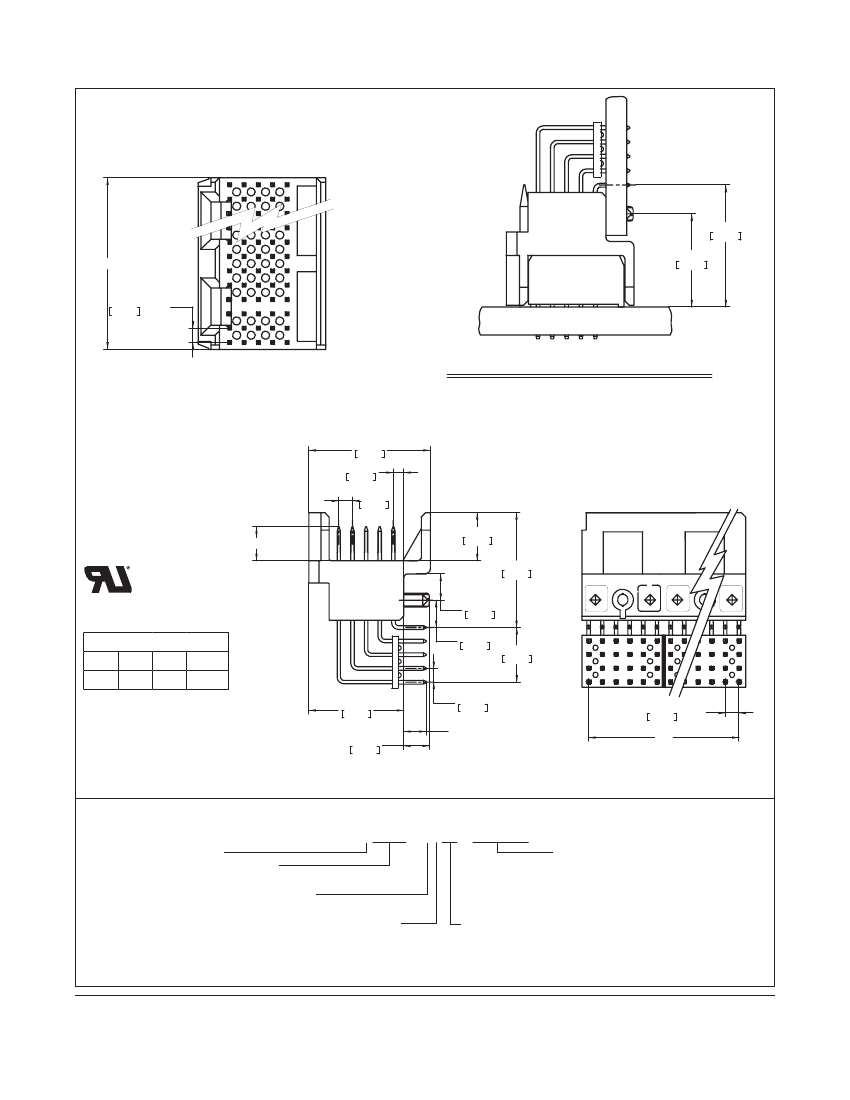

2 mm 5-Row, Right Angle, Solder Tail
MP2 Series
POSITION 1
POSITION 2
17.00
.669
"A"
2.00
.079
13.00
.512
TYP.
POSITION X
E D C B A
ROW
MATED WITH MP2-RXXX-5XXX-XXXX
17.80
.701
1.50
.059
2.00
.079
4X
MATING LENGTH
7.00
.276
16.80
.662
mm
[inch]
Tolerance Unless Noted
0
mm
±3
0.0
±0.3
0.00
±0.13
13.90
.547
3.75
.148
3.86
.152
4.00
.157
8.00
.315
[ ] Dimensions for Reference
Only
Notes:
1. Refer to IEC 61076-4-104 Futurebus+
®
global standard.
2. For special pin arrangements, contact 3M.
2.00
.079
4X
2.00
.079
"B"
TYP.
TAIL LENGTH
Ordering Information
MP2 - PXXX - 5XM1 - XXXXX
P = Right Angle Header
Inversed
Pin Count
(See Table 1)
Rows
5 = 5 Rows
Loading Pattern and Tail
Length (See Table 2)
Termination Style
M = Solder Tail
TS-1122-B
Sheet 2 of 4
Plating Options
(See Table 3)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Inverse Header
2 mm 5-Row, Right Angle, Solder Tail
Table 1 - Connector & Row Lengths
Pin Count
030
060
090
120
150
180
210
240
270
300
420
Dim. “A” mm
[inch]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.889]
59.95 [2.36]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
107.95 [4.251]
119.95 [4.722]
167.95 [6.612]
Dim “B” mm
[inch]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
106.00 [4.173]
118.00 [4.646]
166.00 [6.535]
Rows
5
5
5
5
5
5
5
5
5
5
5
MP2 Series
Table 2 - Mate & Tail Lengths, mm vs. Loading Pattern
Loading
Pattern Code
1
2
3
4
5
6
7
8
9
A
B
C
D
E
G
Description
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
Rows A, B, C and D Filled
Rows A, B, C and D Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
Rows A, B, C and D Filled
Mate
Length
Row A
5.00
4.25
3.50
4.25
5.00
5.00
4.25
4.25
5.00
3.75
3.75
5.75
4.25
5.00
5.00
Mate
Length
Row B
5.00
5.00
4.25
5.00
5.00
4.25
5.00
4.25
3.50
4.50
4.50
5.75
5.00
5.75
4.25
Mate
Length
Row C
5.00
5.00
4.25
4.25
5.00
4.25
4.25
4.25
3.50
5.25
3.75
5.75
5.75
5.75
4.25
Mate
Length
Row D
5.00
5.00
5.00
4.25
5.00
5.00
5.00
4.25
3.50
4.50
4.50
5.75
5.00
5.75
5.00
Mate
Length
Row E
5.00
5.00
5.00
4.25
NA
NA
4.25
4.25
4.25
3.75
3.75
5.75
4.25
5.00
NA
Tail
Length
Row A
3.30
4.05
4.80
4.05
3.30
3.30
4.05
4.05
3.30
4.55
4.55
2.55
4.05.
4.05
3.30
Tail
Length
Row B
3.30
3.30
4.05
3.30
3.30
4.05
3.30
4.05
4.80
3.80
3.80
2.55
3.30
4.05
4.05
Tail
Length
Row C
3.30
3.30
4.05
4.05
3.30
4.05
4.05
4.05
4.80
3.05
4.55
2.55
2.55
4.05
4.05
Tail
Length
Row D
3.30
3.30
3.30
4.05
3.30
3.30
3.30
4.05
4.80
3.80
3.80
2.55
3.30
4.05
3.30
Tail
Length
Row E
3.30
3.30
3.30
4.05
NA
NA
4.05
4.05
4.05
4.55
4.55
2.55
4.05
4.05
NA
Table 3 - Plating
Plating Suffix
TG30
(RIA E3 & C2 apply)
Plating Composition
0.76 µm [30 µ”] Min. Au Contact Area
2.54 µm [100 µ”] Min. SnPb Tail Area
1.27 µm [50 µ”] Min. Ni all over
0.08 µm [3 µ”] Min. Au Contact Area
TR30
(RIA E3 & C2 apply)
0.67 µm [27 µ”] Min. PdNi Contact Area
2.54 µm [100 µ”] Min. SnPb Tail Area
1.27 µm [50 µ”] Min. Ni all over
LR
(RIA E1 & C1 apply)
KR
(RIA E1 & C1 apply)
Plating Suffix
Plating Composition
0.76 µm [30 µ”] Min. Au Contact Area
2.54 µm [100 µ”] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ”] Min. Ni all over
0.08 µm [3 µ”] Min. Au Contact Area
0.67 µm [27 µ”] Min. PdNi Contact Area
2.54 µm [100 µ”] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ”] Min. Ni all over
TS-1122-B
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Inverse Header
2 mm 5-Row, Right Angle, Solder Tail
8.00
.315
2.00
.079
2.00
.079
TYP.
4X
4.00
.157
1.00
.039
MP2 Series
A1
4.00
.157
12.00
.472
"B"
2.05
.081
+.05
-.00
+.002
-.000
Ø
TYP. UNPLATED THRU HOLE
Ø
.10
Ø
1.50
.059
+.10
-.00
+.004
-.000
TYP. UNPLATED THRU HOLE
Ø
"D" PLATED THRU HOLE
Ø
.10
3.00
.118
.10

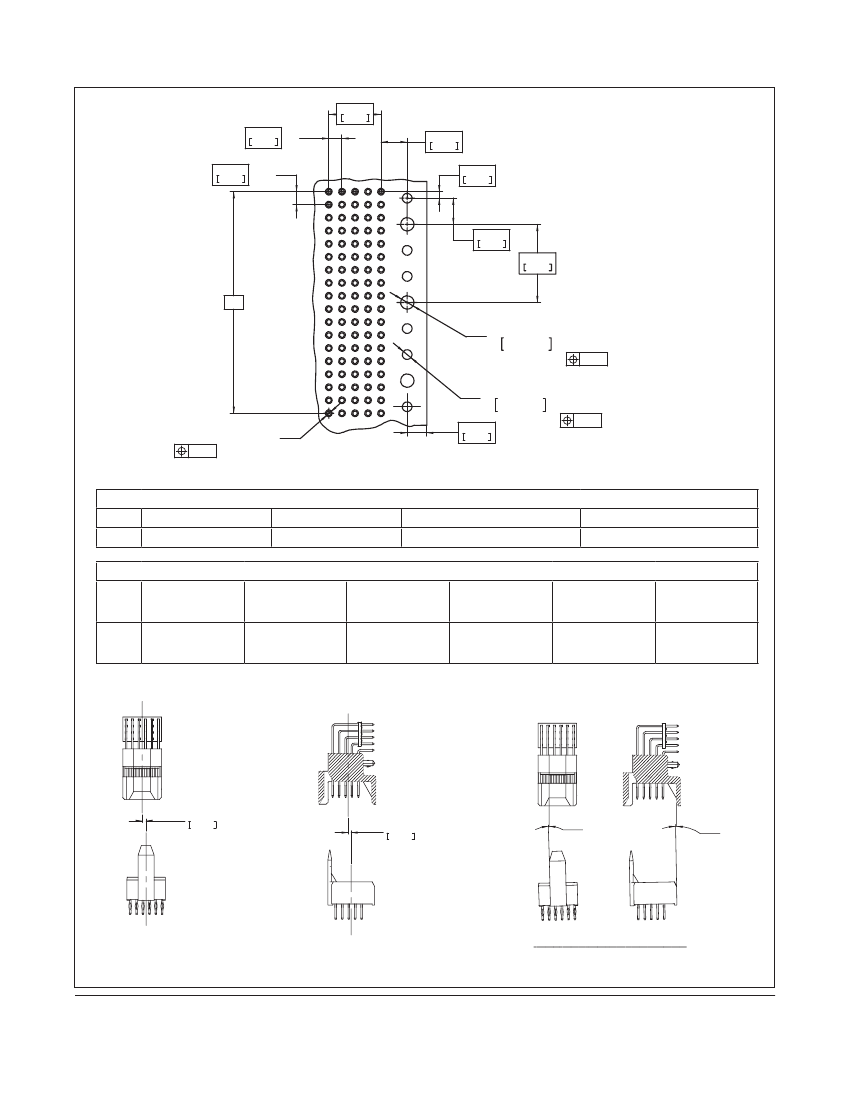

RECOMMENDED PCB HOLE MOUNTING PATTERN
Table 4 – HOLE PLATING For TG30, TR30 FINISHES ONLY
HOLE
“D”
Finished Dia. MM [in]
0.65-0.80 [.0256-.0315]
Cu Thickness [mm [in]
0.025 [.001] min.
SnPb Thickness microns [µ"]
15 [600] max.
Drilled Hole Dia. mm [in]
0.81-0.86 [.0319-.0339]
Table 5 – HOLE PLATING For KR and LR FINISHES ONLY
HOLE
Finished Dia.
MM [in]
0.700-0.800
[.0276-.0315]
Cu Thickness [mm
[in]
0.025-0.045
[0.001-0.002]
Immersion Matte
Sn Thickness
microns [µ”]
0.5 - 2.5
[20 - 100]
Electrolytic Au
Thickness
microns [µ"]
0.1 - 0.5
[4 - 20]
OSP ENTEK
Thickness
microns [µ”]
0.2 - 0.5
[8 - 20]
Drilled Hole
Dia. mm [in]
0.830-0.860 [.0330-
.0340] or 0.85 mm
[#66] TWIST DRILL
“D”
1.25 INITIAL
.049
OFFSET ALLOWABLE
1.00 INITIAL
.039
OFFSET ALLOWABLE
1.5°
1°
INCLINATION TOLERANCES
TS-1122-B
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of
ninety (90) days
from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
