EM256513VL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> EM256513VL

EM256513VL: Description15 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector; File Size142KB，1 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

EM256513VL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM256513VL	-	-	View	Buy Now

EM256513VL Overview

15 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

EM256513VL Parametric

Parameter Name	Attribute value
Maker	Cooper Industries
Objectid	1740797957
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	71110716
Other features	POLYAMIDE 6/6, 94V-0
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	13
Rated current	15 A
Rated voltage	300 V
safety certificate	UL; CSA; CE
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	12 AWG

Preview

Download Datasheet

View All

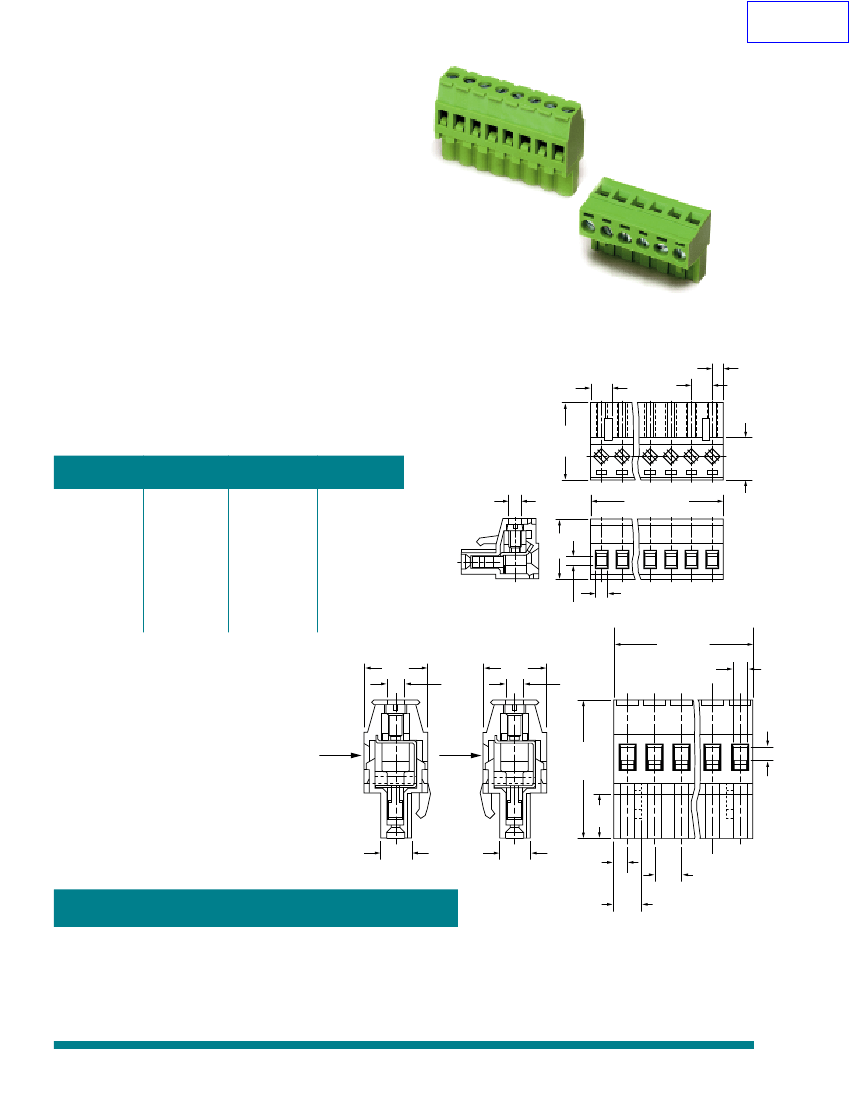

INDEX

EM2565 Series

Euro-Mag Terminal Blocks

Depluggable Block (Mates with EM2575

Header), 5.08 Centers

SPECIFICATIONS

Rating: 15A, 300V

Center Spacing: .200” (5.08 mm)

Consult factory for .400” (10.16 mm)

Wire Size: #12-22 AWG

Housing Material: Green Polyamide Type 6/6, 94VO

Contact Material: Brass Tin Plated

Screw Size: M 3x5 Zinc Plated Steel

Operating Temperature: 105°C (221°F) max., -40°C

(-40°F) min.

Torque Rating: 4.5 in-lb.

Construction: Mold to Length

Approvals: UL E62622; CSA LR701941; CE Certified

TABLE A

Position

L (mm)

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

Position

L (mm)

71.12

76.20

81.28

86.36

91.44

96.52

101.60

106.68

111.76

116.84

121.92

EM256508VR

EM256506H

EM2565 Series

HORIZONTAL

.197

(5.00)

.200

(5.08)

.10

(2.54)

.72

(18.3)

.39

(10.0)

.13

(3.3)

"L"

(SEE TABLE A)

.57

(14.5)

.11

(2.8)

.08

(2.1)

VERTICAL

"L"

(SEE TABLE A)

.47

(12.0)

.13

(3.3)

.47

(12.0)

.13

(3.3)

.11

(2.8)

To convert to inches, divide by 25.4

WIRE

ENTRY

WIRE

ENTRY

1.02

(26.0)

.09

(2.4)

.33

(8.3)

.23

(5.8)

.23

(5.8)

1.0

(2.54)

RIGHT

LEFT

.200

(5.08)

.200

(5.08)

Part Numbering System

Series

# of Positions

Orientation

Wire Entry

(Vertical Only)

EM 2 5 6 5

nnnnnn n n

02 to 24

H - horizontal

V - vertical

L - left

R - right

Cooper Bussmann

7300 W. Wilson Ave

Chicago, IL 60656-4708

Fax: 708-867-2211

Phone: 708-867-4600

Website: http://www.busscc.com
