UPD78C12AG(A)-36 datasheet, PDF

UPD78C12AG(A)-36: DescriptionMicrocontroller, 8-Bit, MROM, 15MHz, CMOS, PQIP64, PLASTIC, QUIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size718KB，32 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric View All

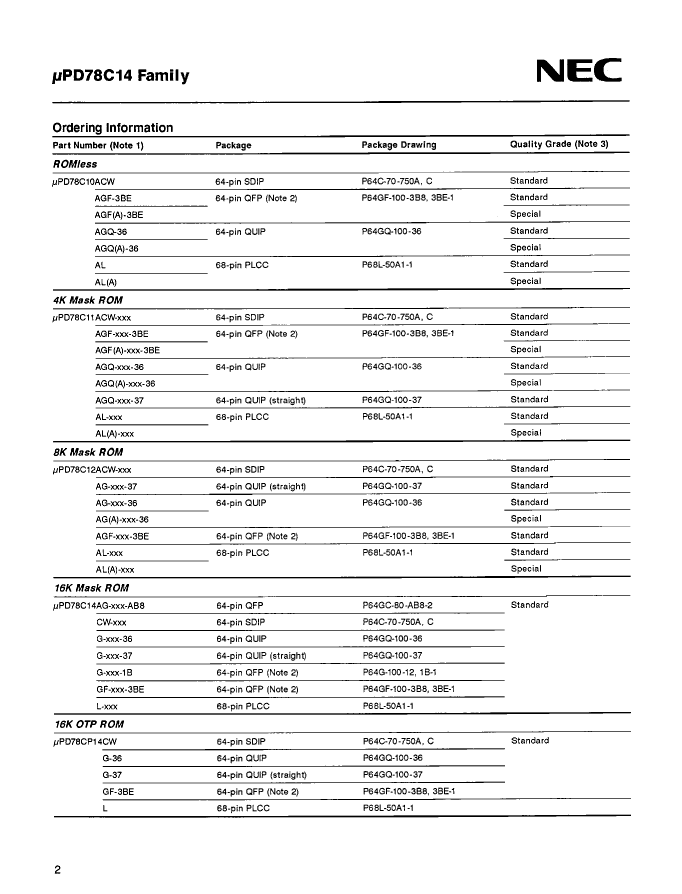

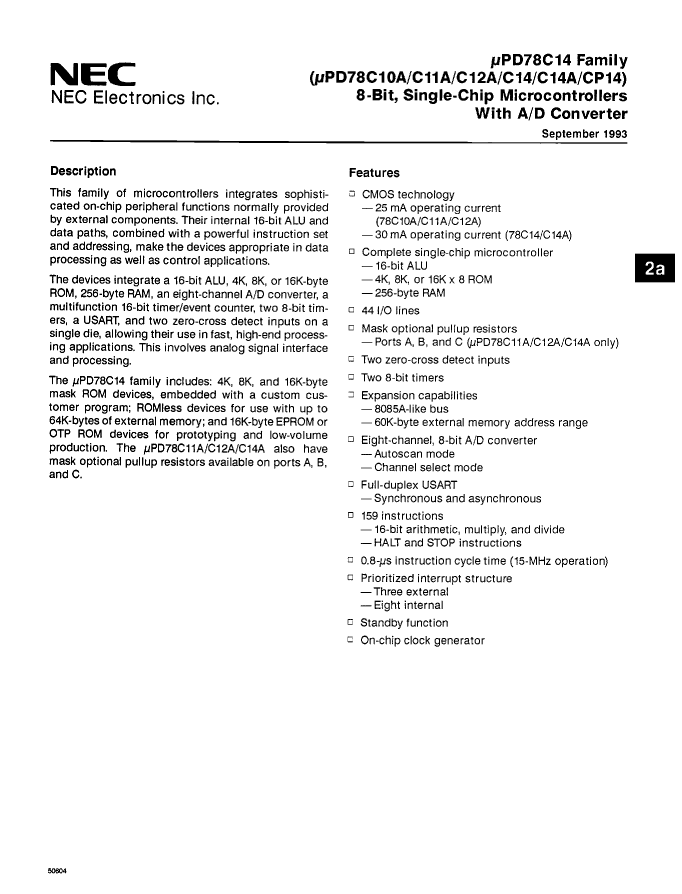

UPD78C12AG(A)-36 Overview

Microcontroller, 8-Bit, MROM, 15MHz, CMOS, PQIP64, PLASTIC, QUIP-64

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	PLASTIC, QUIP-64
Reach Compliance Code	compliant
Has ADC	YES
Other features	2 ZERO CROSS DETECT INPUTS
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	15 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQIP-T64
JESD-609 code	e0
length	41.5 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of I/O lines	40
Number of serial I/Os	1

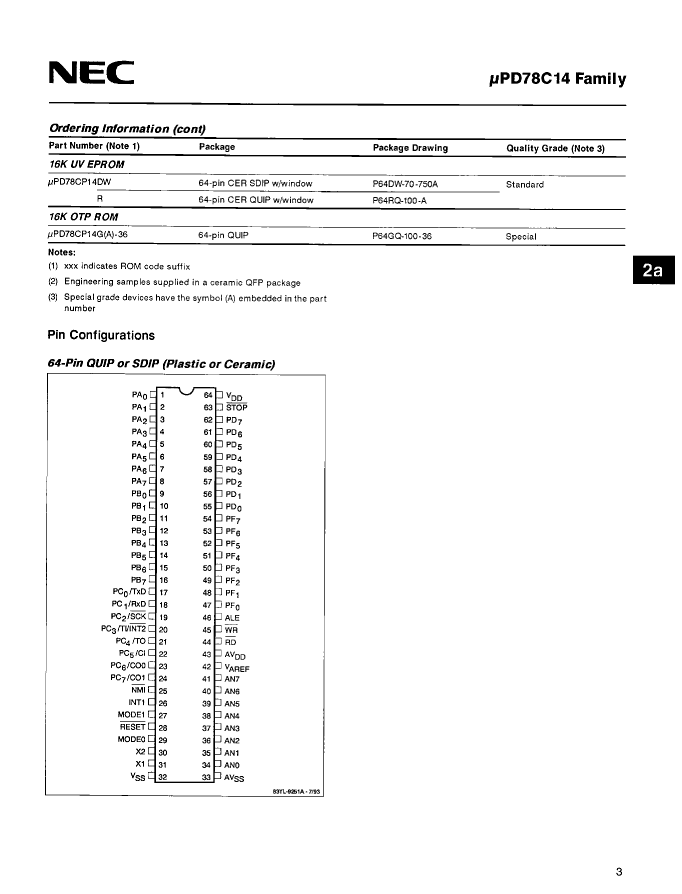

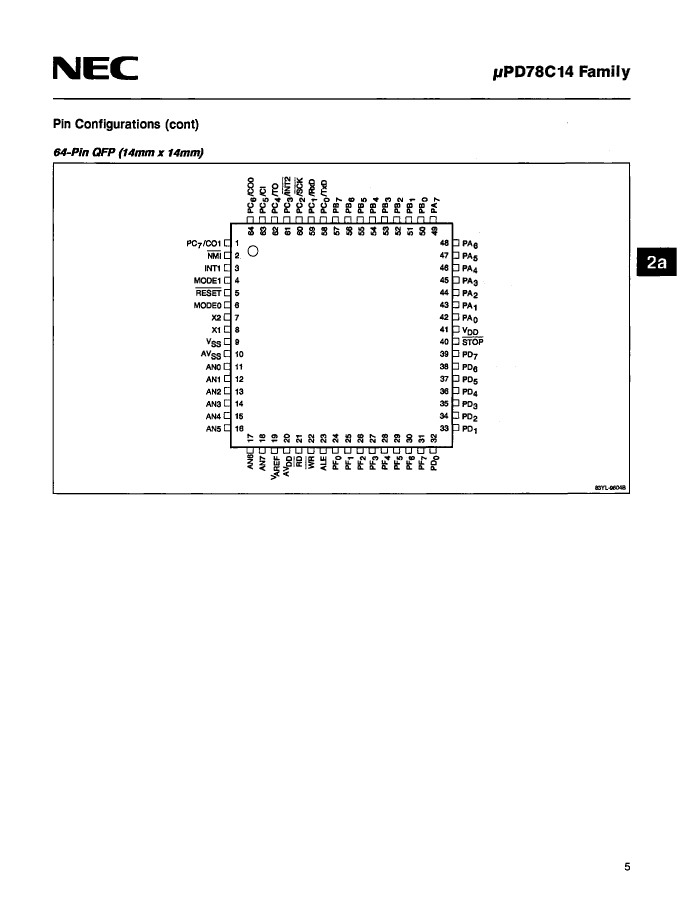

Number of terminals	64
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	8192
ROM programmability	MROM
Maximum seat height	3.7 mm
speed	15 MHz
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24.13 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
