Chip Dielectric Filters
チップ誘電½フィルタ
TDF Series

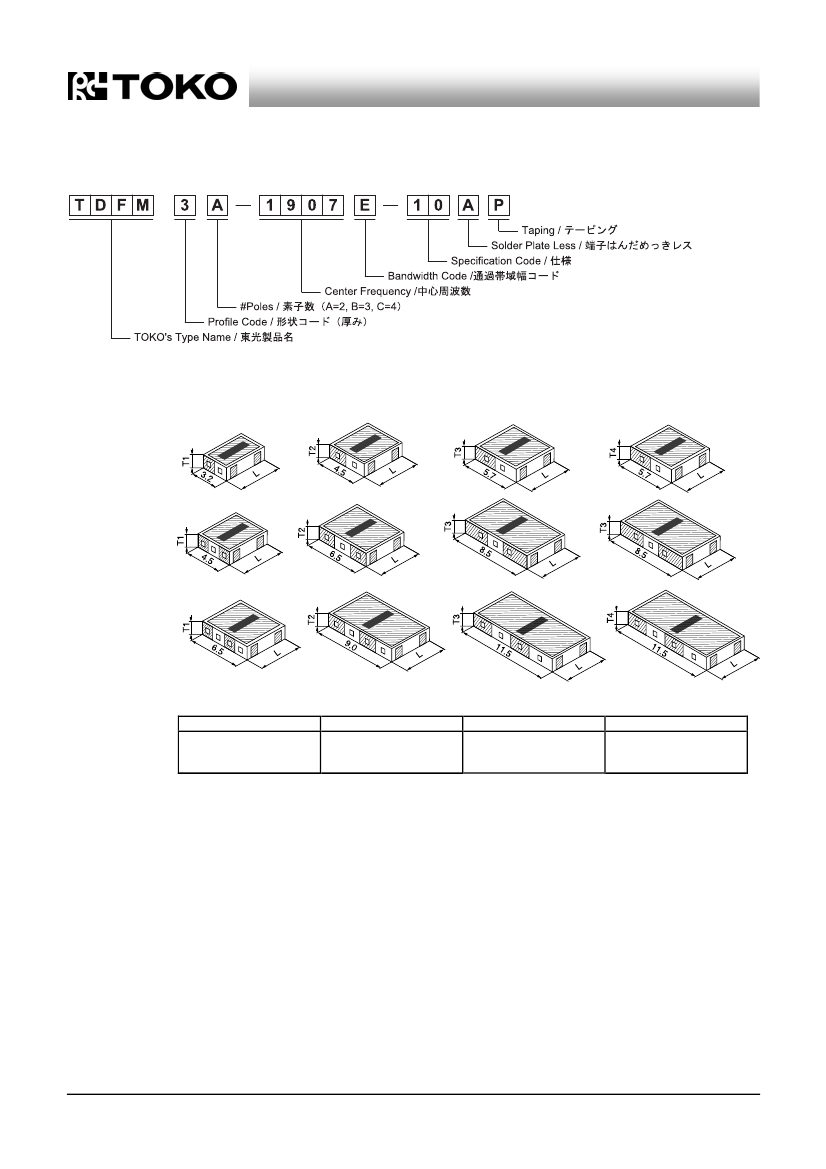

■Part
numbering system /
品番構成
■Dimensions
/
外½寸法
TDFS Type
TDFM Type
TDF Type
TDFH Type
2 Poles
3 Poles
4 Poles
Unit: mm
T1
T2
2.25 Max.
2.8 Max.
2.0 Max.
2.25 Max.
1.8 Max.
2.0 Max.
The length, L, is different depending on the part number.
Refer to the separate table.
長さ(L)は品番毎に異なります。
T3
3.0 Max.
2.25 Max.
2.0 Max.
T4
5.5 Max.
4.0 Max.
For the details of shapes regarding individual part numbers, contact us separately.
個別品番に関する½状の詳細につきましては、別途お問い合わせ下さい。
■The
packing quantity /
梱包数量について
The taping quantity per reel in Part Number tables is the quantity of standard packing.
Please consult our sales or representative office when you hope for a different amount.
品番一覧表に記載のテープリール毎の梱包数量は標準梱包数です。
異なる数量をご希望の場合は弊社営業部または販売窓口にご相談下さい。
Chip Dielectric Filters
チップ誘電½フィルタ
TDF series for Wireless Broadband Communication
SELECTION GUIDE FOR STANDARD DEVICES
The Part Numbers shown in the table below are standard devices, which
are readily available. TOKO will design and manufacture modified and
custom devices with specific characteristics to meet your requirements.
If you do not find the device for your application in this catalog, please
contact our sales or representative office.
RoHS compliant
下記の表に示す½品番号は、標準品です。TOKOは、お客様のご要望に合わせ設計、
½½いたしますので、お客様の用途に適合する仕様が見½らない場合は、½社営業所
または代理店にご連絡ください。
RoHS指令対応
TDF Series
東光品番
中心周波数
TOKO
Center
Part
Frequency
Number
(MHz)
TDF2A-2450T-10AP
2450.0
TDFM1A-2450T-10AP
2450.0
TDFM1B-2450T-10AP
2450.0
TDFM1C-2450T-10AP
2450.0
TDFS8A-2450T-13AP
2450.0
TDF2A-2484E-11AP
2484.0
TDF2A-2484E-12AP
2484.0
TDFM1A-2484E-10AP
2484.0
TDFM1A-2484E-11AP
2484.0
TDFM1B-2350T-11AP
2350.0
TDFM1B-2546S-10AP
2546.0
TDFM1B-2639S-10AP
2639.5
TDFM3B-2593X-10A-01P 2593.0
TDFH4C-2593X-10AP
2593.0
TDFM3B-2596X-10AP
2596.0
TDFM1B-2639S-10AP
2639.5
TDFS1C-3449T-10AP
3449.75
TDFM2A-3549T-10AP
3549.75
TDFM2A-4995X-10A-01P 4995.0
TDFM2C-4995X-10AP
4995.0
TDFS8A-5075Z-10AP
5075.0
TDFM2C-5250X-10AP
5250.0
TDFS8A-5250X-10AP
5250.0
TDFS8A-5437Z-10AP
5437.5
TDFS8A-5500Z-10AP
5500.0
TDFM2A-5775T-10A-01P 5775.0
TDFM2A-5775V-11AP
5775.0
帯域幅
Bandwidth
(MHz)
Fo
50.0
Fo
50.0
Fo
50.0
Fo
50.0
Fo
50.0
Fo
13.0
Fo
13.0
Fo
13.0
Fo
13.0
Fo
50
Fo
46.5
Fo
46.5
Fo
97
Fo
97
Fo
96
Fo
46.5
Fo
50.25
Fo
50.25
Fo
95.5
Fo
95.5
Fo
175.0
Fo
100.0
Fo
100.0
Fo
287.5
Fo
350.0
Fo
50.0
Fo
75.0
挿入損失
V.S.W.R.
選択度
Insertion V.S.W.R.
Selectivity
Loss
in BW
(dB) Max. Max.
(dB) Min. (MHz)
2.00
2.00
20, 16 (Fo
−
280, + 280)
2.00
2.00
20, 16 (Fo
−
280, + 280)
2.30
2.00
35, 30 (Fo
−
430, + 350)
3.00
2.00
21, 32 (Fo
150,
−
200)
2.00
2.00
40 (Fo
−
500)
3.00
1.60
35, 30 (Fo
350,
700)
2.00
1.60
25, 30 (Fo
350,
700)
2.00
2.00
25, 30 (Fo
350,
700)
3.00
2.00
35, 30 (Fo
350,
700)
2.30
2.00
35,30(1920,2700)
1.80
2.00
44, 40 (Fo
412.5,
868.5)
1.50
2.00
33, 35 (Fo
410.5,
866.5)
2.00
2.00
25(2275)
2.00
2.00
55,40, 30 (1393,2041,2377)
2.00
2.00
24,20(2200,3200)
1.50
2.00
33, 35 (Fo
410.5,
866.5)
1.50
2.00
40, 45 (Fo
−
862,
−
406)
1.40
2.00
31, 33 (Fo
−
882,
−
406)
1.50
2.00
20 (Fo
−
795)
3.10
2.00
35, 50 (Fo
−
560, Fo + 560)
1.25
2.00
20 (4200)
3.00
2.00
35 (Fo
−
400)
1.50
2.00
20 (Fo
−
800)
1.20
2.00
25 (Fo
−
1937.5)
1.00
2.00
25 (3500)
3.30
2.70
28 (5225.0~5325.0)
1.50
2.00
7,8 (Fo
−
425, + 515)
外½寸法
Dimension (mm)
W × L × T (Max.)
5.7 × 5.1 × 2.25
4.5 × 5.2 × 2.0
6.5 × 5.1 × 2.0
9.0 × 5.15 × 2.0
3.2 × 3.0 × 1.8
5.7 × 5.1 × 2.25
5.7 × 5.1 × 2.25
4.5 × 5.1 × 2.0
4.5 × 5.2 × 2.0
6.5 × 5.35 × 2.0
6.5 × 4.05 × 1.90
6.5 × 4.75 × 1.90
6.5 × 4.5 × 2.5
11.5 × 5.9 × 3.8
6.5 × 4.5 × 2.5
6.5 × 4.75 × 1.90
6.5 × 4.4 × 2.0
4.5 × 4.5 × 2.25
4.5 × 3.3 × 2.25
9.0 × 3.3 × 2.25
3.2 × 3.25 × 1.8
9.0 × 3.1 × 2.25
3.2 × 3.2 × 1.8
3.2 × 3.05 × 1.87
3.2 × 3.05 × 1.8
4.5 × 2.9 × 2.25
4.5 × 2.9 × 2.25
用途
個数/リール
Application Pcs/Reel
2.4G-LAN
2.4G-LAN
2.4G-LAN
2.4G-LAN
2.4G-LAN
2.4G-LAN
2.4G-LAN
2.4G-LAN
2.4G-LAN
WiMAX
WiMAX
WIMAX
WiMAX
WiMAX
WiMAX
WiMAX
Wi MAX
Wi MAX
5G-LAN
5G-LAN
5G-LAN
5G-LAN
5G-LAN
5G-LAN
5G-LAN
5G-LAN
5G-LAN
2000
2000
1500
1500
2000
2000
2000
2000
2000
1500
2000
2000
1500
500
1500
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000

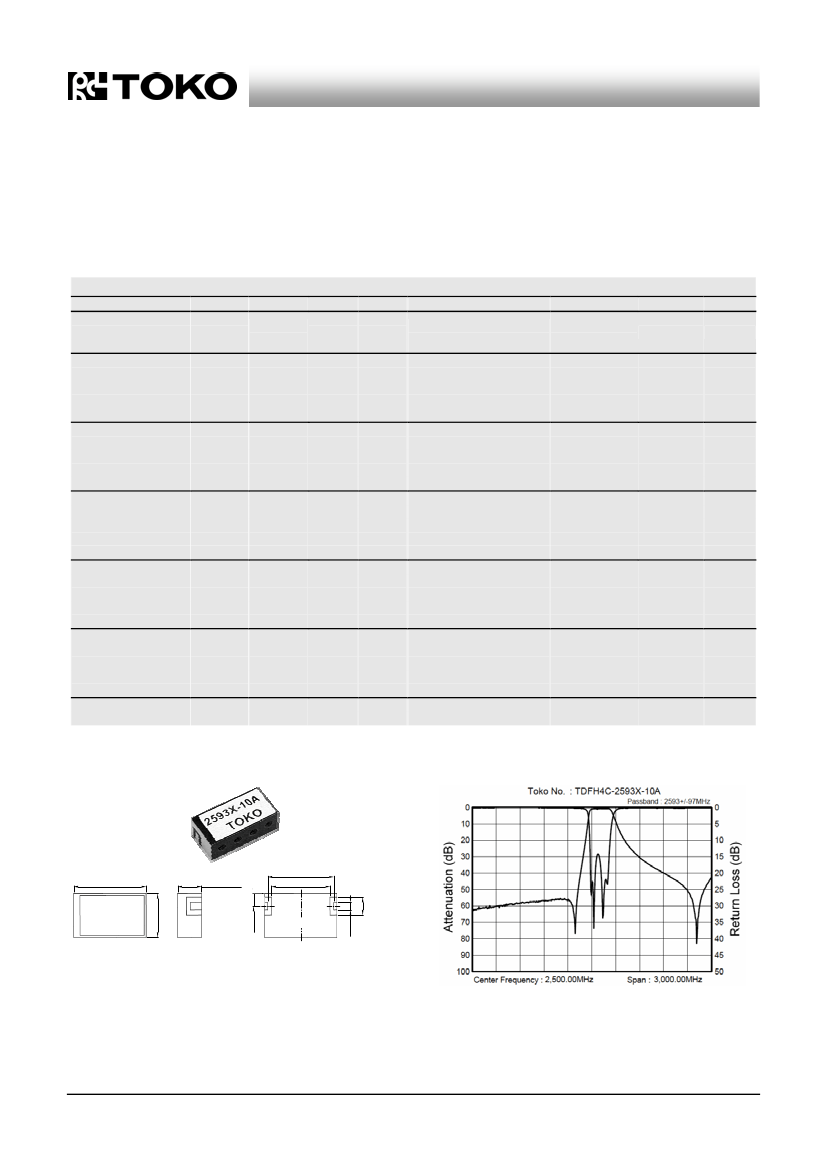

½品例
TDFH4C-2593X-10AP
Typical Characteristics
代表特性例
5.9+/-0.5
2593X-10A
③
Tolerance:±0.3
①
OUT
③
IN
②
GND
Unit:mm
1.0
TOKO
1.7
②
GND
(Unit: mm)
2.4
①
IN
11.5
3.8+/-0.1
OUT
10.5
9.3
17
Chip Dielectric Filters
チップ誘電½フィルタ
TDF series for Mobile & Cordless Phone
SELECTION GUIDE FOR STANDARD DEVICES
The Part Numbers shown in the table below are standard devices, which
are readily available. TOKO will design and manufacture modified and
custom devices with specific characteristics to meet your requirements.
If you do not find the device for your application in this catalog, please
contact our sales or representative office.
RoHS compliant
下記の表に示す½品番号は、標準品です。TOKOは、お客様のご要望に合わせ設計、
½½いたしますので、お客様の用途に適合する仕様が見½らない場合は、½社営業所
または代理店にご連絡ください。
RoHS指令対応
TDF Series
東光品番
中心周波数 帯域幅
挿入損失
V.S.W.R.
選択度
TOKO
Center
Insertion V.S.W.R.
Bandwidth
Selectivity
Part
Frequency
Loss
in BW
Number
(MHz)
(dB) Max. Max.
(MHz)
(dB) Min. (MHz)
TDF2A-836E-10AP
836.5
Fo
12.5
2.70
2.00
6 (Fo
32.5)
TDF2A-881E-10AP
881.5
Fo
12.5
2.70
2.00
6 (Fo
32.5)
TDFS8A-904A-11AP
904.0
Fo
1.0
3.00
2.00
40 (Fo
140)
TDFM2A-915E-10AP
915.0
Fo
13.0
3.00
2.00
12 (Fo
50)
TDFM2B-915E-10AP
915.0
Fo
13.0
3.50
2.00
18 (Fo
50)
TDFS1B-915E-10AP
915.0
Fo
13.0
4.50
2.00
32, 25 (Fo
−
77.5, + 77.5)
TDFS8A-915E-10AP
915.0
Fo
13.0
3.20
2.00
25, 17 (Fo
−
77.5, + 77.5)
TDFM1A-930A-12AP
930.5
Fo
1.5
3.50
2.00
40 (Fo
−
90)
TDFM2A-1090C-11AP
1090.0
Fo
7.0
5.50
2.50
35, 33 (Fo
−
80, + 80)
TDFM1B-1747O-11AP
1747.5
Fo
37.5
3.00
2.00
8, 25 (Fo
80,
160)
TDFM1B-1842O-11AP
1842.5
Fo
37.5
3.00
2.00
8, 25 (Fo
80,
160)
TDFM2C-1870L-11AP
1870.0
Fo
30.0
2.00
2.00
10(Fo
−
120)
TDFM1B-1880L-11AP
1880.0
Fo
30.0
3.00
2.00
34, 39 (Fo
190,
240)
TDFM3C-1880L-11AP
1880.0
Fo
30.0
4.00
2.00
12 (Fo + 50)
TDF3B-1900H-11AP
1900.0
Fo
20.0
1.10
1.80
20 (Fo
−
480, + 210)
TDFM3A-1900H-10AP
1900.0
Fo
20.0
1.70
1.60
12, 20 (Fo
−
140, + 241)
TDF3A-1907E-18AP
1907.0
Fo
12.5
0.75
1.50
45, 15 (Fo
−
486,
−
237)
TDF3A-1907E-19AP
1907.0
Fo
12.5
0.65
1.50
35, 13 (Fo
−
486,
−
237)
TDFM3A-1907E-11AP
1907.0
Fo
12.0
1.60
1.50
35, 40 (Fo
−
486,
−
237)
TDFM1B-1920V-10AP
1920.0
Fo
70.0
2.00
2.00
25, 25 (Fo
−
350, + 780)
TDFM1B-1950L-10A-01P 1950.0
Fo
30.0
3.30
2.00
25 (Fo
−
230, + 160)
TDFM3C-1950L-10A-01P 1950.0
Fo
30.0
4.00
2.00
10(Fo
50)
TDFM1B-1960L-11AP
1960.0
Fo
30.0
3.00
2.00
34, 39 (Fo
190,
240)
TDFM3B-1960L-13AP
1960.0
Fo
30.0
3.30
2.00
20 (1850~1910)
TDFM3C-1960L-10AP
1960.0
Fo
30.0
4.00
2.00
12 (Fo
−
50)
TDFM1B-2140L-10AP
2140.0
Fo
30.0
3.30
2.00
25 (Fo
160)
TDFM2C-2140L-10AP
2140.0
Fo
30.0
2.00
2.00
10(Fo
−
160)
TDFM2C-2140L-11A-01P 2140.0
Fo
30.0
3.00
1.50
20(Fo
160)
TDFS8B-2140L-10AP
2140.0
Fo
30.0
3.00
2.00
32(Fo
−
160)
TDFM1B-2350X-12A-01P 2350.0
Fo
90.0
2.10
2.00
12(Fo - 240, +200)
TDFS1C-3500X-11A-02P 3500.0
Fo
100.0
2.00
2.00
40(Fo - 400)

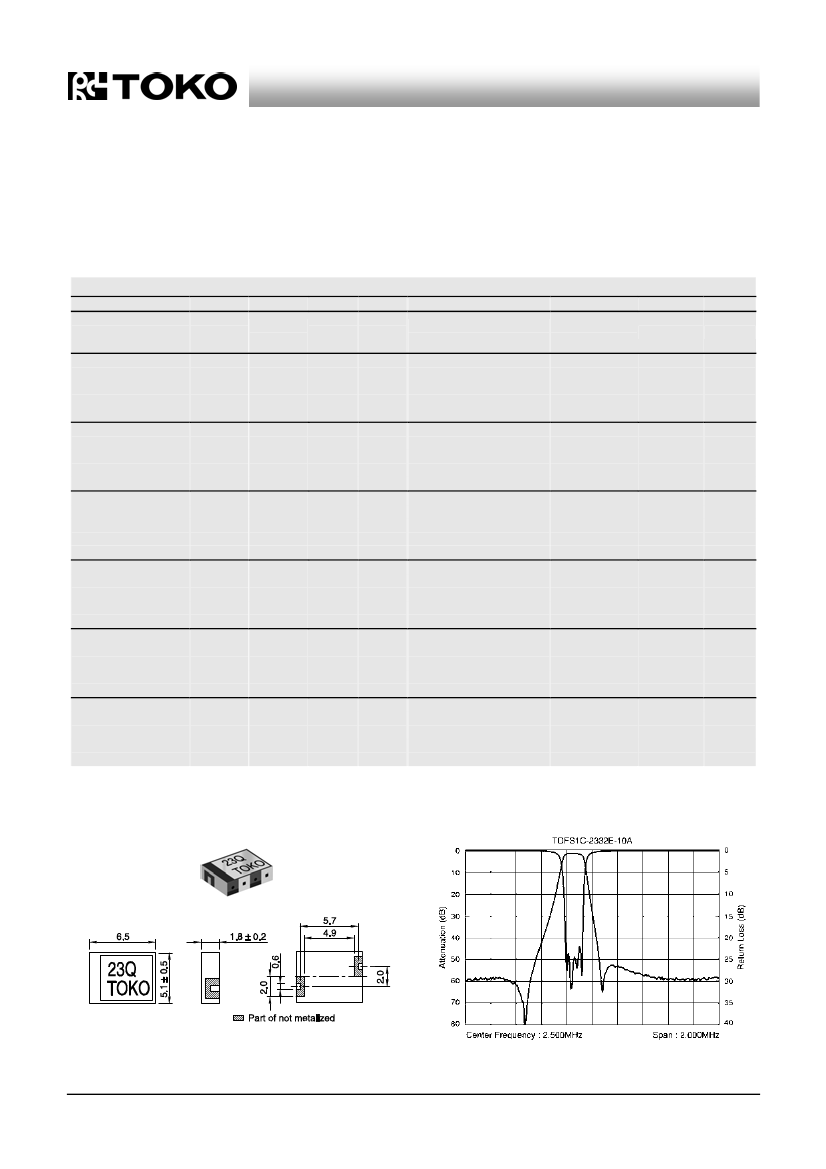

Input Output impedance／入出力インピーダンス: 50
外½寸法
Dimension (mm)
W × L × T (Max.)
5.7 × 9.9 × 2.25
5.7 × 9.4 × 2.25
3.2 × 8.5 × 1.8
4.5 × 7.7 × 2.25
6.5 × 7.9 × 2.25
4.5 × 8.3 × 2.0
3.2 × 8.4 × 1.8
4.5 × 7.5 × 2.0
4.5 × 7.6 × 2.25
6.5 × 4.75 × 2.0
6.5 × 4.5 × 2.0
9.0 × 6.25 × 2.1
6.5 × 4.4 × 2.0
9.0 × 6.8 × 2.8
6.5 × 5.3 × 3.0
4.5 × 3.8 × 2.8
5.7 × 6.1 × 3.0
5.7 × 5.9 × 3.0
4.5 × 3.8 × 2.8
6.5 × 4.1 × 2.0
6.5 × 4.2 × 2.0
9.0 x 6.55 x 2.6
6.5 × 4.2 × 2.0
6.5 × 6.0 × 2.8
9.0 × 6.4 × 2.8
6.5 × 5.85 × 2.0
9.0 × 6.4 × 2.1
9.0 x 5.8 x 2.1
4.5 × 3.65 × 1.7
6.5 x 5.4 x 1.9
6.5 x 4.3 x 1.9
用途
個数/リール
Application Pcs/Reel
Cellular
Cellular
900M-CT
900M-CT
900M-CT
900M-CT
900M-CT
PAGER
CATV
Cellular
Cellular
Cellular
Cellular
Cellular
PHS
PHS
PHS
PHS
PHS
Cellular
Cellular
Cellular
Cellular
Cellular
Cellular
Cellular
Cellular
Cellular
Cellular
Cellular
Cellular
1500
1500
2000
1500
1500
1500
1500
1500
1500
1500
1500
1500
2000
1500
1500
2000
2000
2000
2000
2000
2000
1500
2000
1500
1500
1500
1500
1500
2000
1500
2000

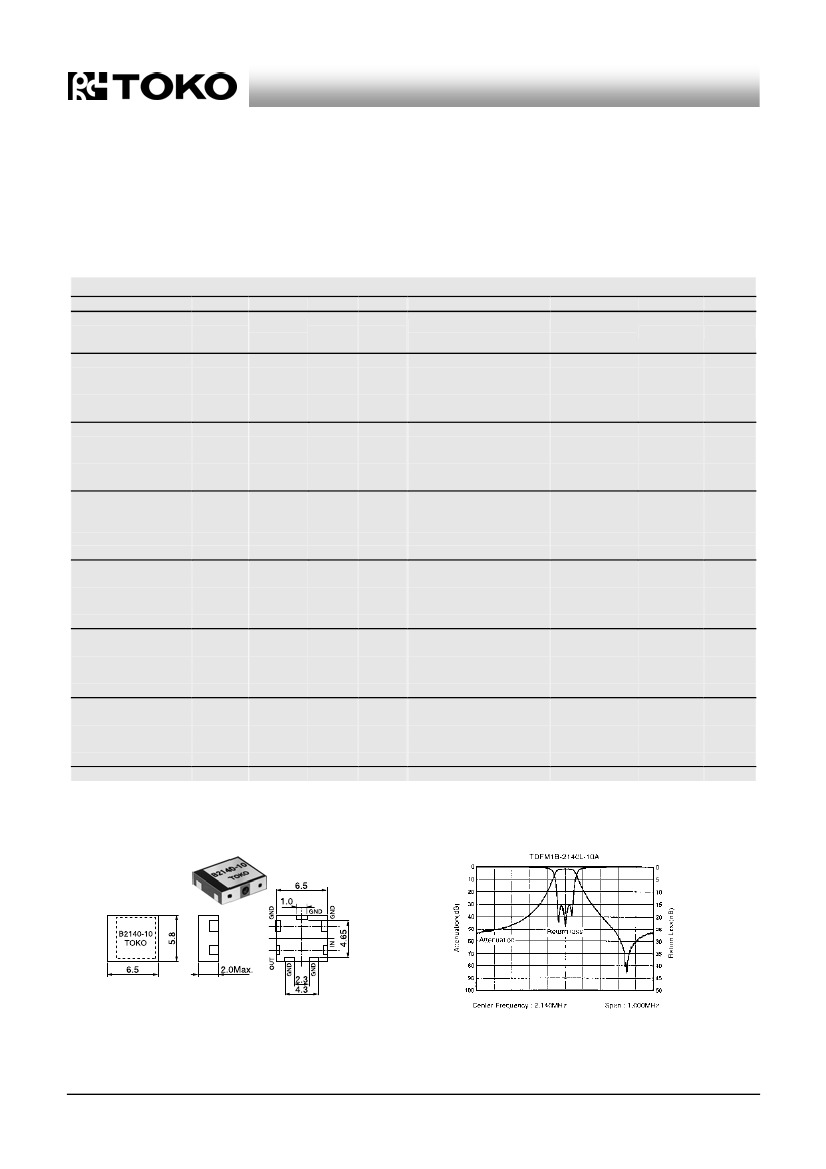

½品例
TDFM1B-2140L-10AP
Typical Characteristics
代表特性例
(Unit: mm)
Chip Dielectric Filters
チップ誘電½フィルタ
TDF series for Other Applications
SELECTION GUIDE FOR STANDARD DEVICES
The Part Numbers shown in the table below are standard devices, which
are readily available. TOKO will design and manufacture modified and
custom devices with specific characteristics to meet your requirements.
If you do not find the device for your application in this catalog, please
contact our sales or representative office.
RoHS compliant
下記の表に示す½品番号は、標準品です。TOKOは、お客様のご要望に合わせ設計、
½½いたしますので、お客様の用途に適合する仕様が見½らない場合は、½社営業所
または代理店にご連絡ください。
RoHS指令対応
TDF Series
東光品番
中心周波数
帯域幅
挿入損失
V.S.W.R.
選択度
TOKO
Center
Insertion V.S.W.R.
Bandwidth
Selectivity
Part
Freq.
Loss
in BW
Number
(MHz)
(dB) Max.
(MHz)
(dB) Min. (MHz)
TDFS8A-1472H-10AP
1472.0
Fo
20.0
1.50
2.00
30,19(Fo - 567,Fo + 248)
TDFM2B-1472H-10AP
1472.0
Fo
20.0
3.00
2.00
34, 36 (Fo
215,
−
450)
TDFM3A-1472H-10AP
1472.0
Fo
20.0
1.80
2.00
38 (Fo
−
422)
TDFM3A-1472H-14AP
1472.0
Fo
20.0
1.50
2.00
42 (Fo
−
230)
TDFM3A-1238I-10AP
1238.5
Fo
21.5
1.80
2.00
10 (Fo
140)
TDFM3A-1590J-10AP
1590.0
Fo
25.0
2.00
2.00
10 (Fo
140)
TDFM3C-1590H-10AP
1590.0
Fo
16.0
3.20
2.00
25(Fo
50)
TDF3A-1227B-10AP
1227.0
Fo
5.0
1.20
2.00
20 (Fo
140)
TDF2A-1575B-11AP
1575.4
Fo
5.0
5.50
2.30
22 (Fo
−
50)
TDF2A-1575B-12AP
1575.4
Fo
5.0
2.70
2.00
30, 28 (Fo
−
140, + 140)
TDF2A-1575B-13AP
1575.4
Fo
5.0
1.00
2.00
7 (Fo
140)
TDF3A-1575B-10AP
1575.4
Fo
5.0
2.70
2.00
30, 28 (Fo
−
140, + 140)
TDFM1A-1575A-13AP
1575.4
Fo
1.0
4.00
2.00
18 (Fo
50)
TDFM1B-1575A-10AP
1575.4
Fo
1.0
5.50
2.00
30.5 (Fo
50)
TDFM2A-1575A-10AP
1575.4
Fo
1.0
3.20
2.00
30, 28 (Fo
−
140, + 140)
TDFM2A-1575A-11AP
1575.4
Fo
1.0
5.50
2.30
22 (Fo
−
50)
TDFS8A-1575A-10AP
1575.4
Fo
1.0
1.00
2.00
25, 5 (Fo
−
726.5, + 275)
TDFS1C-2326C-10AP
2326.0
Fo
7.0
2.00
2.00
10, 6 (Fo
−
100, + 100)
TDFS1C-2326C-11AP
2326.0
Fo
7.0
3.00
2.00
30, 25 (Fo
−
100, + 100)
TDFS8A-2326C-10AP
2326.0
Fo
7.0
2.80
2.00
20 (Fo
−
200, + 200)
TDFS8B-2326C-10A-01P 2326.0
Fo
7.0
4.50
2.00
24, 19 (Fo
−
100, + 100)
TDFM1B-2332E-10AP
2332.5
Fo
12.5
2.80
2.00
32, 32 (Fo
−
226, + 239)
TDFS1C-2332E-10AP
2332.5
Fo
13.0
2.00
2.00
37, 37 (Fo
−
222.5, + 227.5)
TDFS8A-2338B-11AP
2338.5
Fo
6.25
3.80
2.00
30 (Fo
200)
TDFS8A-2338E-10AP
2338.5
Fo
12.5
3.40
2.00
37, 25 (Fo
−
200, + 200)
TDFS8A-2338C-12AP
2338.5
Fo
7.0
3.00
2.00
28 (Fo
230)
TDFS1C-2338B-11AP
2338.75 Fo
6.25
3.50
2.00
20 (Fo
56.5)
TDF2A-2500A-12AP
2500.0
Fo
2.0
5.00
2.00
20, 25 (Fo
60,
90)
TDFM2A-5800B-11AP
5800.0
Fo
5.0
3.00
2.00
20 (Fo
400)
TDFS8A-5810P-10AP
5810.0
Fo
40.0
2.50
2.00
20 (5400)
Input Output impedance／入出力インピーダンス: 50
外½寸法
Dimension (mm)
W × L × T (Max.)
3.2 x 5.6 x 1.7
6.5 × 5.55 × 2.25
4.5 × 5.3 × 2.8
4.5 × 5.25 × 2.8
4.5 × 6.6 × 2.8
4.5 × 5.1 × 2.8
9.0 x 6.8 x 2.5
5.7 ×7.5 × 3.0
5.7 × 5.4 × 2.25
5.7 × 5.2 × 2.25
5.7 × 5.2 × 2.25
5.7 × 5.4 × 3.0
4.5 × 5.4 × 1.9
6.5 × 5.1 × 1.9
4.5 × 5.25 × 2.25
4.5 × 5.2 × 2.25
3.2 × 5.3 × 1.8
5.0 × 4.6 × 2.0
5.0 × 4.6 × 2.0
3.2 × 3.5 × 1.8
4.5 × 3.4 × 1.8
6.5 × 5.35 × 2.0
6.5 × 5.1 × 2.0
3.2 × 3.55 × 1.8
3.2 × 3.3 × 1.8
3.2 × 3.5 × 1.8
5.9 × 4.4 × 2.0
5.7 × 5.2 × 2.25
4.5 × 2.9 × 2.25
3.2 × 2.9 × 1.8
用途
個数/リール
Application Pcs/Reel
DAB
DAB
DAB
DAB
GPS+GLONASS
GPS+GLONASS
GPS+GLONASS
GPS(L2)
GPS(L1)
GPS(L1)
GPS(L1)
GPS(L1)
GPS(L1)
GPS(L1)
GPS(L1)
GPS(L1)
GPS(L1)
SDARS
SDARS
SDARS
SDARS
SDARS
SDARS
SDARS
SDARS
SDARS
SDARS
VICS
ETC/DSRC
ETC/DSRC
2000
1500
2000
2000
2000
2000
1500
1500
2000
2000
2000
2000
2000
1500
2000
2000
2000
2000
2000
2000
2000
1500
1500
2000
2000
2000
2000
2000
2000
2000
½品例
TDFS1C-2332E-10AP

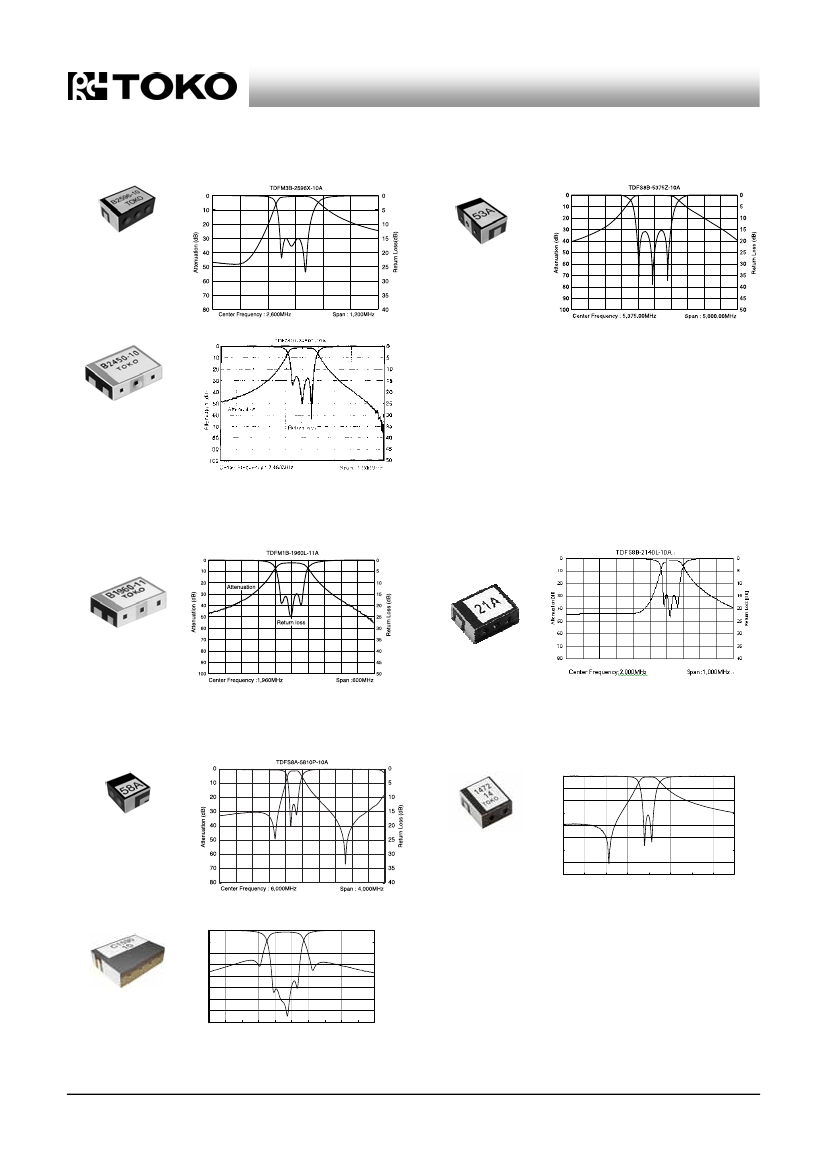

Typical Characteristics
代表特性例
OUT
GND
(Unit: mm)
IN
19
Chip Dielectric Filters
チップ誘電½フィルタ
½品例
TDF for Wireless Broadband Communication
6.5×4.5×2.5mm Max.
4.5×3.05×1.8mm Max.
6.5×5.1×2.0mm Max.
½品例
TDF for Mobile & Cordless Phone
6.5×4.2×2.0mm Max.
4.5×3.65×1.7mm Max.
½品例
TDF for Other Applications
TDFM3A-1472H-10A
0
10
20
Attenuation (dB)
30
40
50
60
70
80
Center Frequency=1472.0MHz SPAN=1000MHz
0
5
10
15
20
25
30
35
40
Return Loss (dB)
3.2×2.9×1.8mm Max.
4.5×5.25×2.8mm Max.
TDFM3C-1590H-10A
0
10
Attenuation [dB]
20
30
40
50
60
70
80
1450
1480
1510
1540
1570 1600 1630
Frequency [MHz]
1660
1690
1720
0
5
Retrun Loss [dB]
10
15
20
25
30
35
40
1750
9.0x6.8x2.6mm Max.
京公网安备 11010802033920号
EEWORLD
