KP4F-820 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> KP4F-820

KP4F-820: DescriptionParabolic Antenna, 820MHz Min, 960MHz Max, 17.5dB Gain, 17.2deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size108KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

KP4F-820 Overview

Parabolic Antenna, 820MHz Min, 960MHz Max, 17.5dB Gain, 17.2deg 3dB Beamwidth

KP4F-820 Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	15.9 deg
Beamwidth-H	17.2 deg
diameter	1.2 mm
front to back ratio	24 dB
Gain	17.5 dB
Omnidirectional	NO
Maximum operating frequency	960 MHz
Minimum operating frequency	820 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-50 °C
polarization	CIRCULAR
RF/Microwave Device Types	PARABOLIC ANTENNA
Maximum transmission power	150 W
Maximum voltage standing wave ratio	1.4
Commentary	125 mph

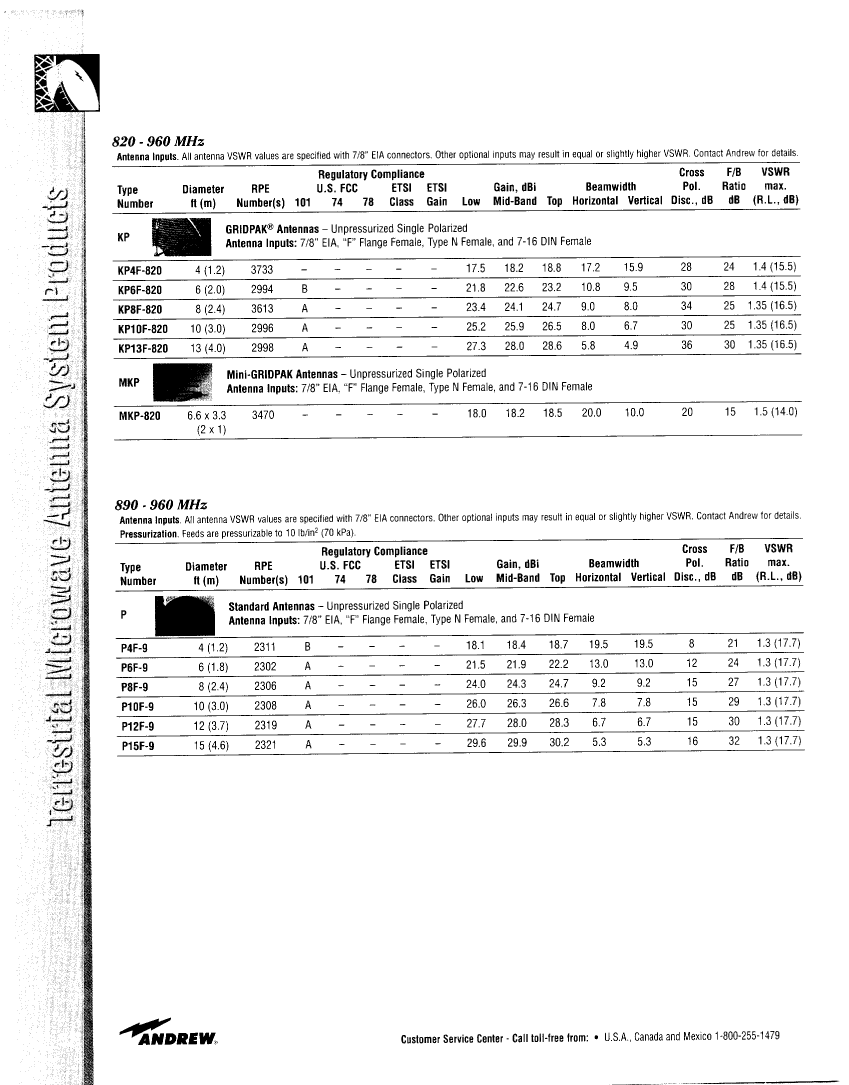

Preview

Download Datasheet

View All

KP4F-820 Related Products

	KP4F-820	KP8F-820	KP6F-820	KP13F-820	KP10F-820	P8F-9	P4F-9	P15F-9	MKP-820
Description	Parabolic Antenna, 820MHz Min, 960MHz Max, 17.5dB Gain, 17.2deg 3dB Beamwidth	Parabolic Antenna, 820MHz Min, 960MHz Max, 23.4dB Gain, 9deg 3dB Beamwidth	Parabolic Antenna, 820MHz Min, 960MHz Max, 21.8dB Gain, 10.8deg 3dB Beamwidth	Parabolic Antenna, 820MHz Min, 960MHz Max, 27.3dB Gain, 5.8deg 3dB Beamwidth	Parabolic Antenna, 820MHz Min, 960MHz Max, 25.2dB Gain, 8deg 3dB Beamwidth	Parabolic Antenna, 890MHz Min, 960MHz Max, 24dB Gain, 9.2deg 3dB Beamwidth	Parabolic Antenna, 890MHz Min, 960MHz Max, 18.1dB Gain, 19.5deg 3dB Beamwidth	Parabolic Antenna, 890MHz Min, 960MHz Max, 29.6dB Gain, 5.3deg 3dB Beamwidth	RF/Microwave Antenna, 820MHz Min, 960MHz Max, 18dB Gain, 20deg 3dB Beamwidth
Maker	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Beam Width-E	15.9 deg	8 deg	9.5 deg	4.9 deg	6.7 deg	9.2 deg	19.5 deg	5.3 deg	10 deg
Beamwidth-H	17.2 deg	9 deg	10.8 deg	5.8 deg	8 deg	9.2 deg	19.5 deg	5.3 deg	20 deg
front to back ratio	24 dB	25 dB	28 dB	30 dB	25 dB	27 dB	21 dB	32 dB	15 dB
Gain	17.5 dB	23.4 dB	21.8 dB	27.3 dB	25.2 dB	24 dB	18.1 dB	29.6 dB	18 dB
Omnidirectional	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maximum operating frequency	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz
Minimum operating frequency	820 MHz	820 MHz	820 MHz	820 MHz	820 MHz	890 MHz	890 MHz	890 MHz	820 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
RF/Microwave Device Types	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	ANTENNA-OTHER
Maximum transmission power	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W
Maximum voltage standing wave ratio	1.4	1.35	1.4	1.35	1.35	1.3	1.3	1.3	1.5
Commentary	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph
diameter	1.2 mm	2.4 mm	2 mm	4 mm	3 mm	2.4 mm	1.2 mm	4.6 mm	-
polarization	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	-
