KP13F-335 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> KP13F-335

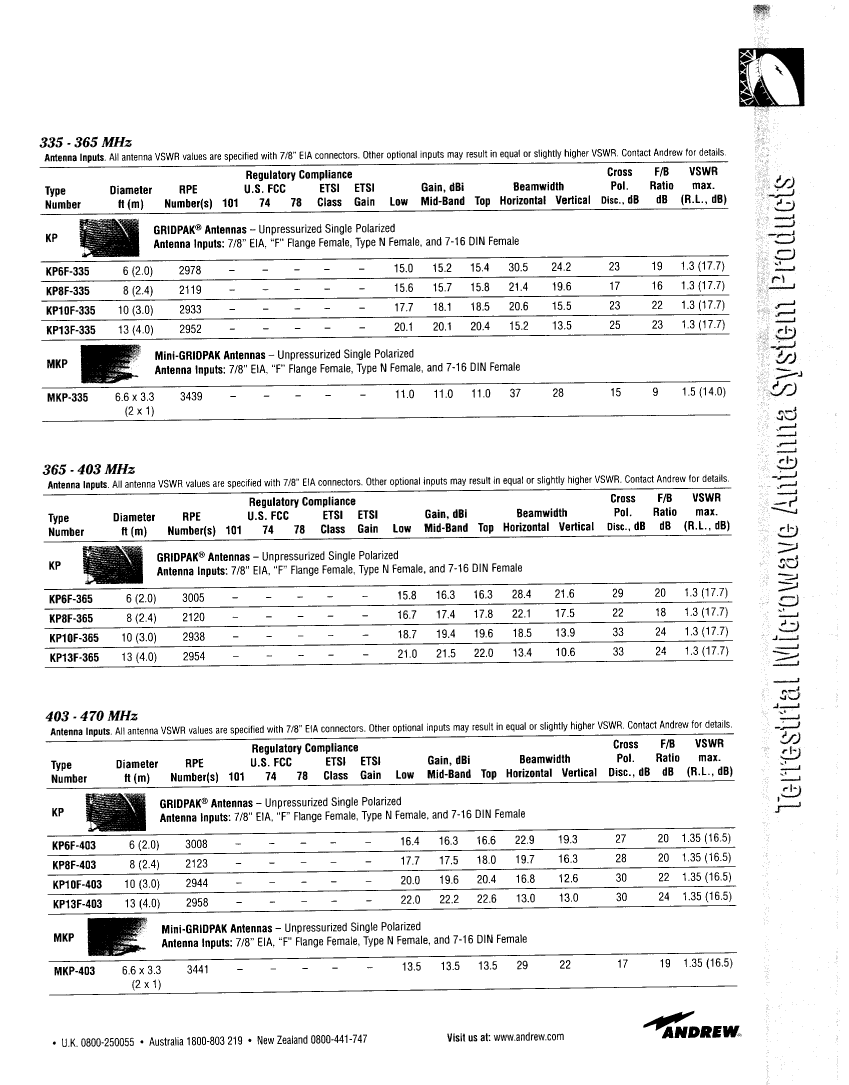

KP13F-335: DescriptionParabolic Antenna, 335MHz Min, 365MHz Max, 20.1dB Gain, 15.2deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size95KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

KP13F-335 Overview

Parabolic Antenna, 335MHz Min, 365MHz Max, 20.1dB Gain, 15.2deg 3dB Beamwidth

KP13F-335 Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	13.5 deg
Beamwidth-H	15.2 deg
diameter	4 mm
front to back ratio	23 dB
Gain	20.1 dB
Omnidirectional	NO
Maximum operating frequency	365 MHz
Minimum operating frequency	335 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-50 °C
polarization	CIRCULAR
RF/Microwave Device Types	PARABOLIC ANTENNA
Maximum transmission power	150 W
Maximum voltage standing wave ratio	1.3
Commentary	125 mph

Preview

Download Datasheet

View All

KP13F-335 Related Products

	KP13F-335	KP13F-403	KP10F-403	KP6F-335	KP8F-335	KP6F-403	MKP-403	MKP-335
Description	Parabolic Antenna, 335MHz Min, 365MHz Max, 20.1dB Gain, 15.2deg 3dB Beamwidth	Parabolic Antenna, 403MHz Min, 470MHz Max, 22dB Gain, 13deg 3dB Beamwidth	Parabolic Antenna, 403MHz Min, 470MHz Max, 20dB Gain, 16.8deg 3dB Beamwidth	Parabolic Antenna, 335MHz Min, 365MHz Max, 15dB Gain, 30.5deg 3dB Beamwidth	Parabolic Antenna, 335MHz Min, 365MHz Max, 15.6dB Gain, 21.4deg 3dB Beamwidth	Parabolic Antenna, 403MHz Min, 470MHz Max, 16.4dB Gain, 22.9deg 3dB Beamwidth	RF/Microwave Antenna, 403MHz Min, 470MHz Max, 13.5dB Gain, 29deg 3dB Beamwidth	RF/Microwave Antenna, 335MHz Min, 365MHz Max, 11dB Gain, 37deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Beam Width-E	13.5 deg	13 deg	12.6 deg	24.2 deg	19.6 deg	19.3 deg	22 deg	28 deg
Beamwidth-H	15.2 deg	13 deg	16.8 deg	30.5 deg	21.4 deg	22.9 deg	29 deg	37 deg
front to back ratio	23 dB	24 dB	22 dB	19 dB	16 dB	20 dB	19 dB	9 dB
Gain	20.1 dB	22 dB	20 dB	15 dB	15.6 dB	16.4 dB	13.5 dB	11 dB
Omnidirectional	NO	NO	NO	NO	NO	NO	NO	NO
Maximum operating frequency	365 MHz	470 MHz	470 MHz	365 MHz	365 MHz	470 MHz	470 MHz	365 MHz
Minimum operating frequency	335 MHz	403 MHz	403 MHz	335 MHz	335 MHz	403 MHz	403 MHz	335 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
RF/Microwave Device Types	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	ANTENNA-OTHER	ANTENNA-OTHER
Maximum transmission power	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W
Maximum voltage standing wave ratio	1.3	1.35	1.35	1.3	1.3	1.35	1.35	1.5
Commentary	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph
Maker	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	-	CommScope Inc
diameter	4 mm	4 mm	3 mm	2 mm	2.4 mm	2 mm	-	-
polarization	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	-	-
Base Number Matches	-	1	1	1	1	1	1	-
