32A7165F: DescriptionRF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm; CategoryWireless rf/communication Radio frequency and microwave; File Size93KB，2 Pages; ManufacturerEMC Technology RF Labs; Environmental Compliance

Download Datasheet Parametric Compare View All

32A7165F Overview

RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm

32A7165F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EMC Technology RF Labs
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	50 dBm
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

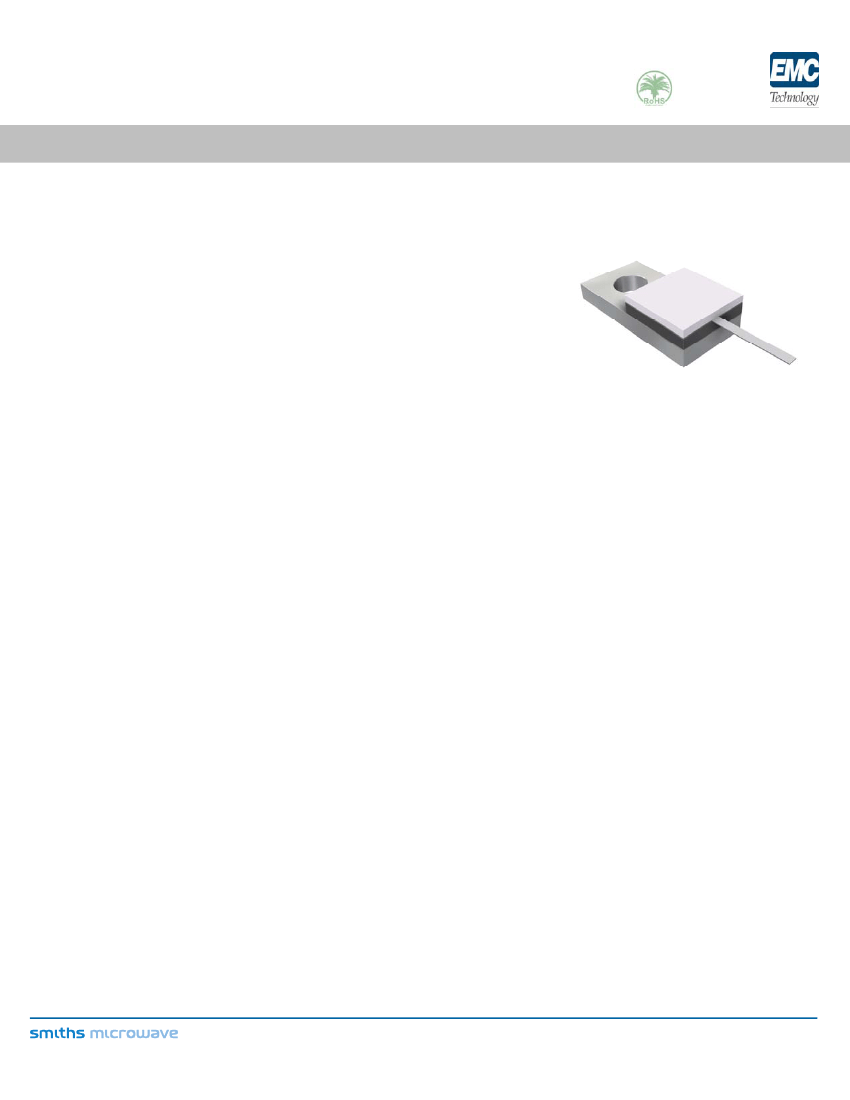

TERMINATION

FLANGE MOUNT 100 WATT

DATA SHEET

FEATURES

Tab Launch

High Power

Integrated Heat Sink

Low VSWR

Easy Installation

PART SERIES: 32A7165F

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 32A7165F

EN 13-3517

Revision-

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flange mount terminations worldwide.

High power flange components offer excellent performance and the convenience of

bolt on installation.

ORDERING INFORMATION

Part Identifier:

32A7165F

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

VSWR:

Input Power CW:

Peak Power:

DC Resistance:

50 ohms

DC - 4.0 GHz

DC - 2.0 GHz 1.08:1 Max

2.0 - 4.0 GHz 1.20:1 Max

100 Watts @ 100°C heat sink, derated linearly to zero power and 150°C

1000 Watts (based on 10us pulse width and 1% duty cycle)

50

Ω

±5%

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM /

˚C

max

3.0 MARKING

Unit Marking:

Logo and Part Number, legibility and permanency per MIL-STD-130

4.0 QUALITY ASSURANCE

Visual and Mechanical Inspection:

DC Resistance Check:

Data Retention:

Per 824W107

100% DC Resistance Check

Standard

5.0 PACKAGING

Standard Packaging:

Tray Packaging

Form 423F101

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
