LM348J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM348J

LM348J: DescriptionOperational Amplifier, 4 Func, 7500uV Offset-Max, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size570KB，12 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

LM348J Overview

Operational Amplifier, 4 Func, 7500uV Offset-Max, BIPolar, CDIP14,

LM348J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raytheon Company
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.2 µA
frequency compensation	YES
Maximum input offset voltage	7500 µV
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum slew rate	9 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	15000

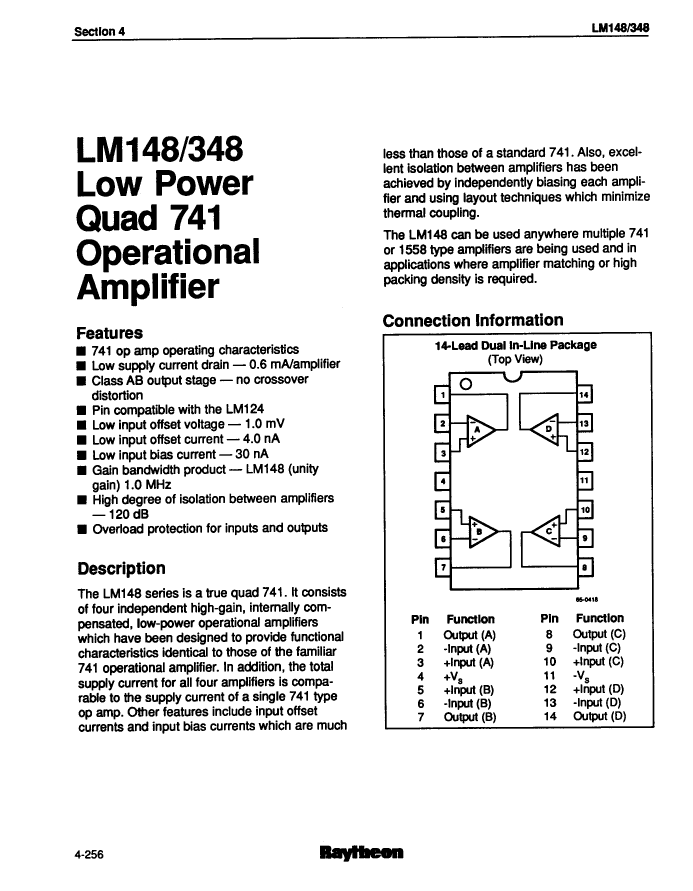

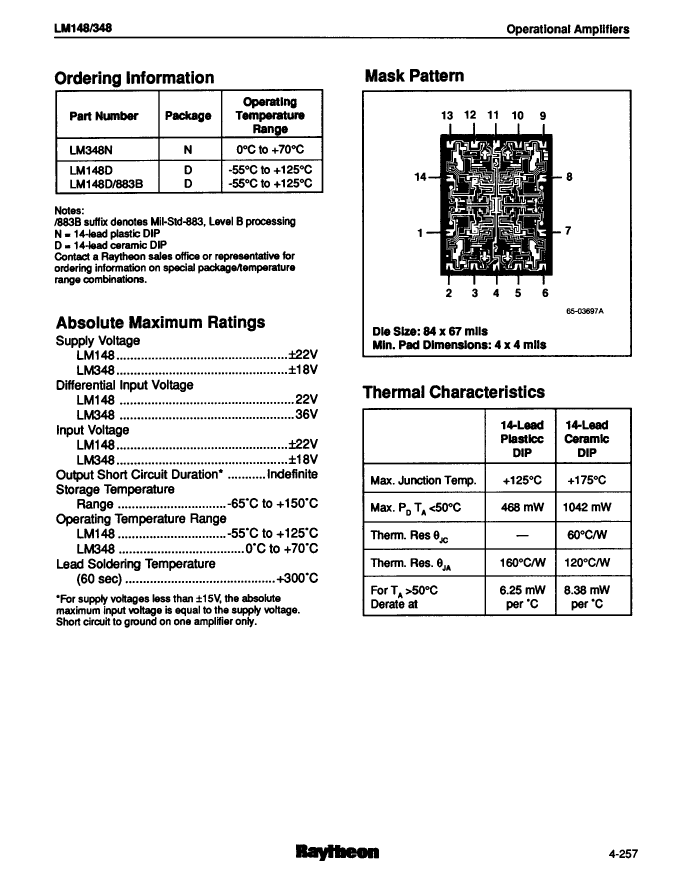

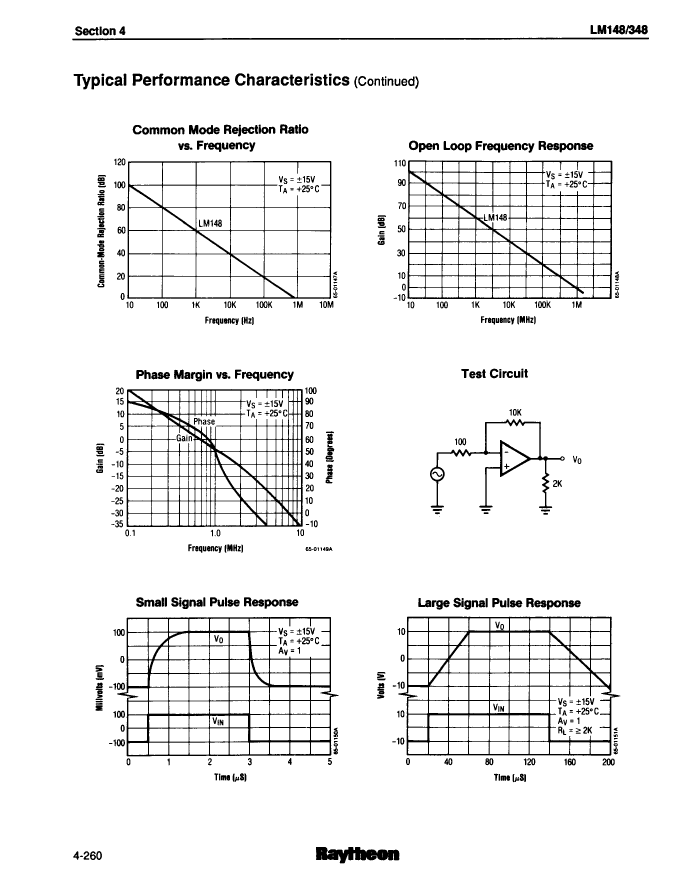

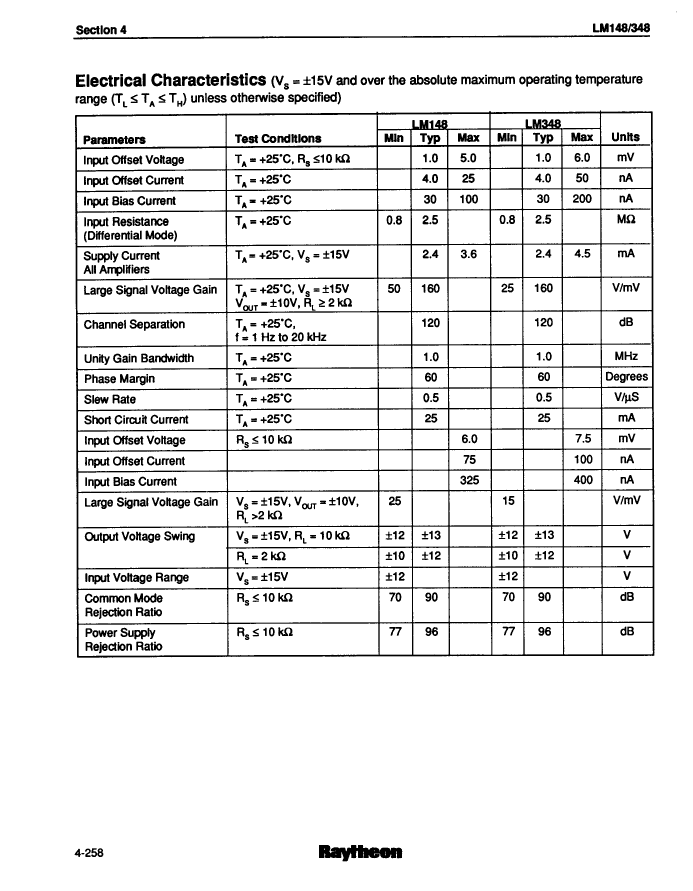

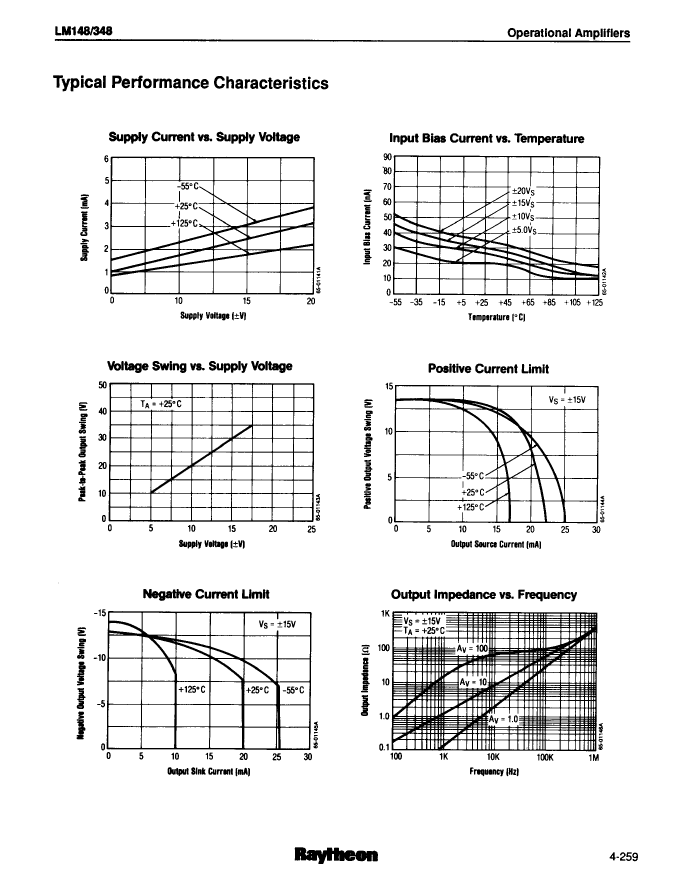

Preview

Download Datasheet

View All

LM348J Related Products

	LM348J	LM348J03	LM348N	LM348N01
Description	Operational Amplifier, 4 Func, 7500uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 4 Func, 7500uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14	Operational Amplifier, 4 Func, 7500uV Offset-Max, BIPolar, PDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.2 µA	0.2 µA	0.2 µA	0.2 µA
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	7500 µV	7500 µV	6000 µV	7500 µV
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	4	4	4	4
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Maximum slew rate	9 mA	9 mA	4.5 mA	9 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Minimum voltage gain	15000	15000	15000	15000
package instruction	DIP, DIP14,.3	-	DIP, DIP14,.3	DIP, DIP14,.3
Certification status	Not Qualified	-	Not Qualified	Not Qualified
