GMSM1-35P-8K5-18B datasheet, PDF

Datasheet> All Categories > The connector> The connector> GMSM1-35P-8K5-18B

GMSM1-35P-8K5-18B: DescriptionD Microminiature Connector, 35 Contact(s), Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size321KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

GMSM1-35P-8K5-18B Overview

D Microminiature Connector, 35 Contact(s), Male, Crimp Terminal, Plug,

GMSM1-35P-8K5-18B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Glenair
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83513
body width	0.218 inch
subject depth	0.358 inch
body length	2.198 inch
Body/casing type	PLUG
Cable type	M22759/11
Connector type	D MICROMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	32 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.67 N
Insulation resistance	5000000000 Ω
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .087-.098
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	WITH CABLE ASSEMBLY
Rated current (signal)	3 A
Guideline	MIL
Shell surface	CADMIUM
Shell material	ALUMINIUM
Total number of contacts	35
Maximum wire diameter	28 AWG
Evacuation force-minimum value	0.14 N

Preview

Download Datasheet

View All

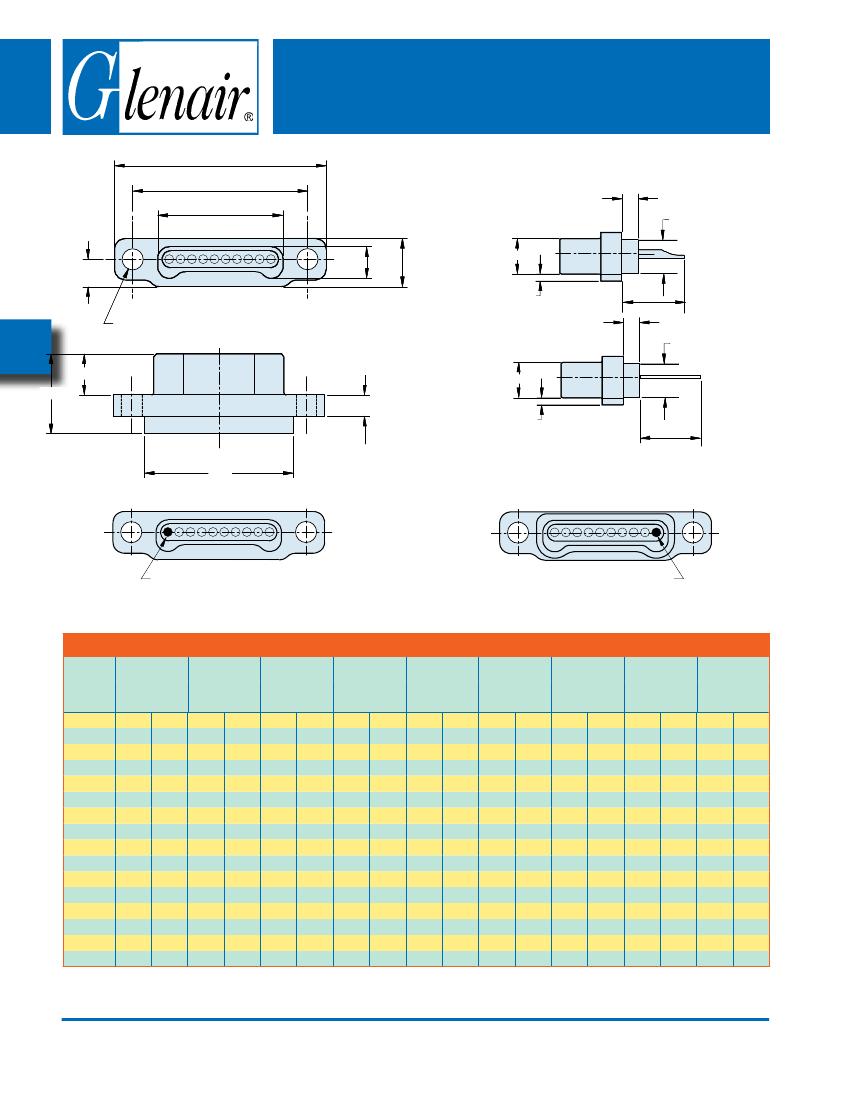

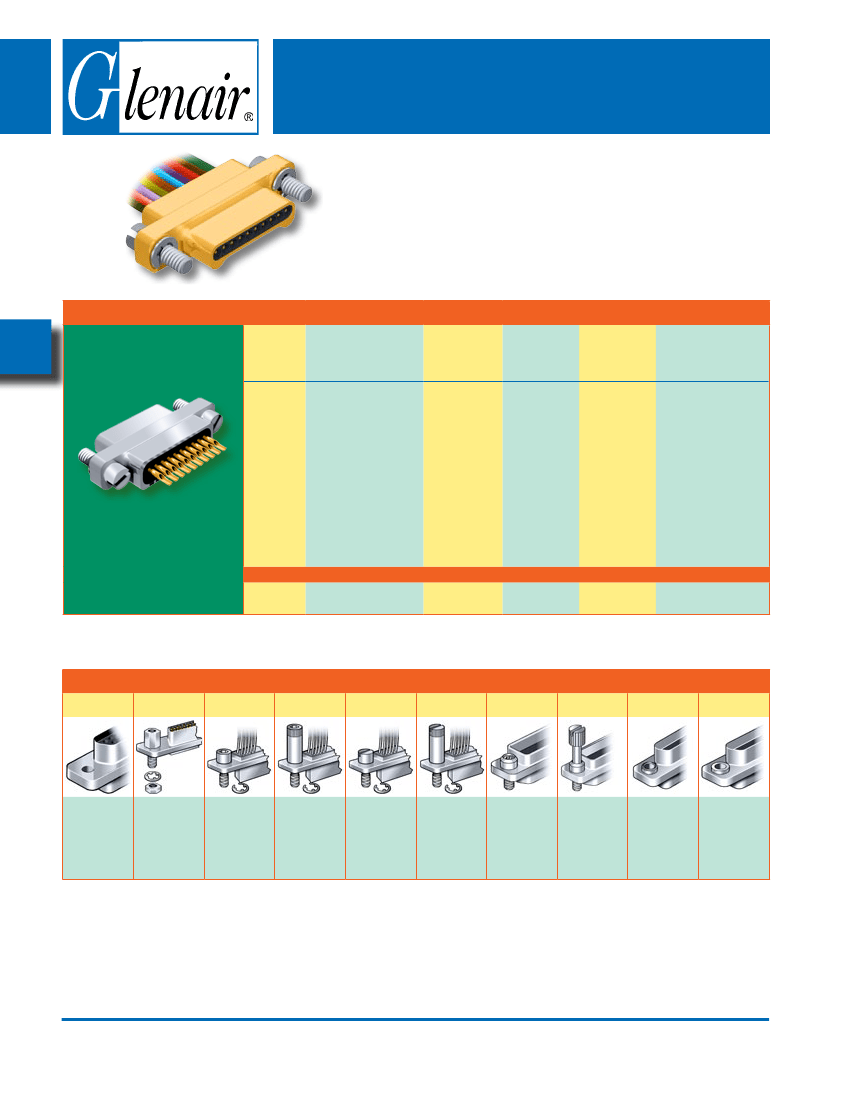

Micro-D

Single Row

Solder Cup and Pre-Wired Connectors

GMSM Connectors

offer mil spec design and performance in a

smaller form factor. These GMSM single row connectors are

reduced in height compared to two-row Micro-D connectors.

GMSM Connectors

feature gold plated TwistPin contacts, machined

aluminum shells, and are fully potted with epoxy. Choose

from 4 to 35 contacts. Available in a variety of finishes, socket

connectors are fitted with Fluorosilicone interfacial seals.

GMSM Low Profile Single Row

Metal Shell Microminiature

HOW TO ORDER GMSM SOLDER CUP CONNECTORS

Series

GMSM

Shell Finish

– Cadmium

– Nickel

– Black Anodize

– Gold

– Chem Film

Number of

Contacts

Contact

Type

– Pin

– Socket

Termination

Type

Solder Cup

Hardware

Solder Cup

Stainless Steel Shell

– Passivated

Sample Part Number

GMSM

1 –

MICRO-D MOUNTING HARDWARE

Thru-Hole Jackpost Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Float Mount Float Mount

Order

Hardware

Separately

Removable

Includes Nut

and Washer

Hex Head

Removable

E-ring

Hex Head

Removable

E-ring

Extended

Slot Head

Removable

E-ring

Slot Head

Removable

E-ring

Extended

Hex Head

Non-

Removable

Slot Head

Non-

Removable

Extended

For Front

Panel

Mounting

For Rear

Panel

Mounting

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

D-2
