DMP2160U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DMP2160U

DMP2160U: Description3.2 A, 20 V, 0.08 ohm, P-CHANNEL, Si, POWER, MOSFET; Categorysemiconductor Discrete semiconductor; File Size488KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

DMP2160U Overview

3.2 A, 20 V, 0.08 ohm, P-CHANNEL, Si, POWER, MOSFET

DMP2160U Parametric

Parameter Name	Attribute value
Number of terminals	3
Minimum breakdown voltage	20 V
Processing package description	GREEN, PLASTIC PACKAGE-3
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
terminal coating	MATTE Tin
Terminal location	pair
Packaging Materials	Plastic/Epoxy
structure	Single WITH BUILT-IN diode
Number of components	1
transistor applications	switch
Transistor component materials	silicon
Channel type	P channel
field effect transistor technology	Metal-OXIDE SEMICONDUCTOR
operating mode	ENHANCEMENT
Transistor type	universal power supply
Maximum leakage current	3.2 A
Maximum drain on-resistance	0.0800 ohm
Maximum leakage current pulse	13 A

Preview

Download Datasheet

View All

NOT RECOMMENDED FOR NEW DESIGN

USE

DMP2120U

DMP2160U

P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

(BR)DSS

DS(ON)

max

75mΩ @ V

= -4.5V

-20V

140mΩ @ V

= -1.8V

-2.4A

max

= +25°C

-3.3A

Features and Benefits



Low On-Resistance

Very Low Gate Threshold Voltage V

GS(th)

≤ 1V

Low Input Capacitance

Fast Switching Speed

Low Input/Output Leakage

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q 101 Standards for High Reliability

Description and Applications

This MOSFET has been designed to minimize the on-state resistance

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.



Battery Charging

Power Management Functions

DC-DC Converters

Portable Power Adaptors

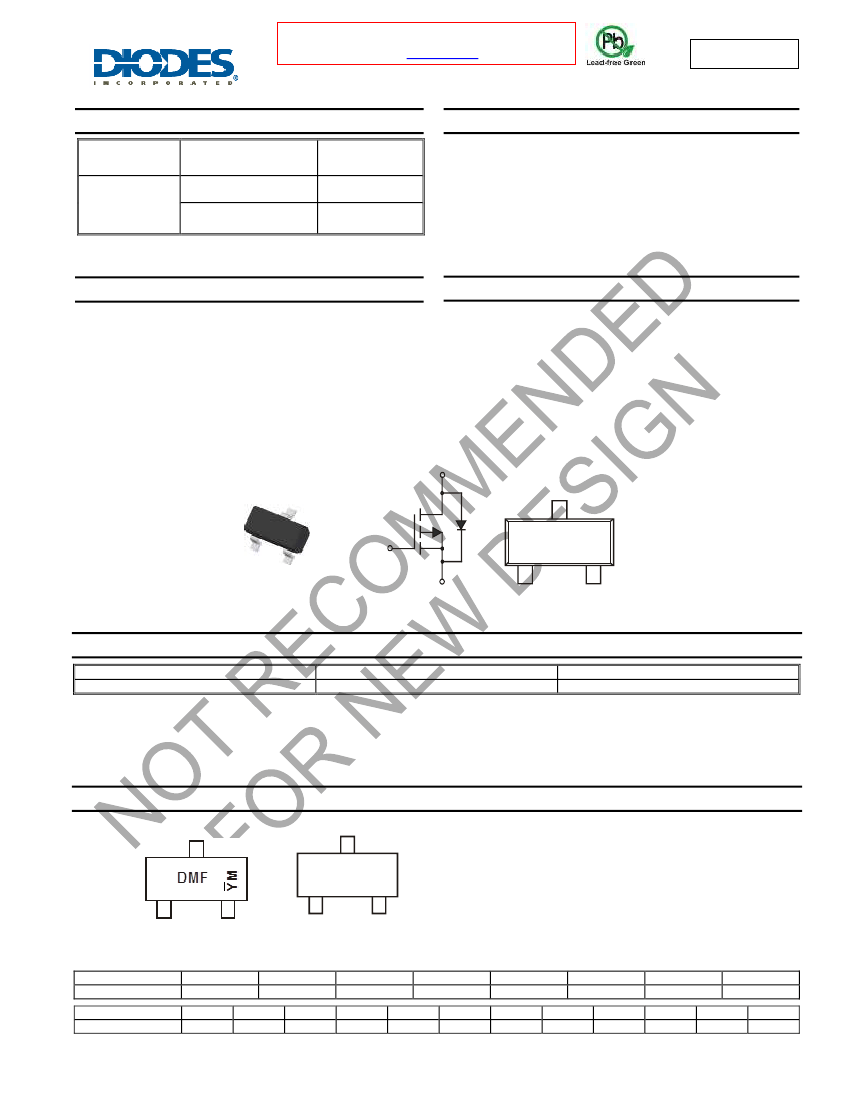

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals Connections: See Diagram Below

Terminals: Finish - Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.008 grams (approximate)

D r a in

SOT23

G a te

S o u rce

Top View

Internal Schematic

Top View

Ordering Information

(Note 4)

Part Number

DMP2160U-7

Notes:

Case

SOT23

Packaging

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

D F

DMF = Marking Code

YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)

M = Date Code Marking for CAT (Chengdu Assembly/ Test site)

Y or = Year (ex: A = 2013)

M = Month (ex: 9 = September)

Chengdu A/T Site

Date Code Key

Year

Code

Month

Code

2008

Jan

Feb

Shanghai A/T Site

2009

Mar

2010

Apr

May

2011

Jun

2012

Jul

Aug

2013

Sep

2014

Oct

Nov

2015

Dec

DMP2160U

Document number: DS31586 Rev. 9 - 3

1 of 5

www.diodes.com

December 2017
