HDSP-C8L1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HDSP-C8L1

HDSP-C8L1: Description7 SEG NUMERIC DISPLAY, ORANGE, 20.4 mm; CategoryLED optoelectronic/LED photoelectric; File Size114KB，10 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HDSP-C8L1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HDSP-C8L1	-	-	View	Buy Now

HDSP-C8L1 Overview

7 SEG NUMERIC DISPLAY, ORANGE, 20.4 mm

HDSP-C8L1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-13
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	16 weeks
Other features	HIGH RELIABILITY
color	ORANGE
color@wavelength	Ambe
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	20.4 mm
Maximum forward current	0.025 A
Maximum forward voltage	2.3 V
JESD-609 code	e3
Number of characters	1
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	610 nm
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

HDSP-C8x1/C8x3

0.8” Single Digit PCB Based LED Display

Data Sheet

Description

This is 0.8” height single digit display. It utilizes GaAsP/GaP

Red, Orange, Yellow, Green and AlGaAs/GaAs Red chips.

This device is halogenated.

All devices are categorized for luminous intensity. The

orange, yellow and green devices are categorized for

color. Use of similar device categories will yield a uniform

display.

Features

High reliability

Excellent characters appearance

Available in CA and CC

RoHS Compliant

Gray top surface with white diffused segments.

Ordering Information

Red

HDSP-C8E1

HDSP-C8E3

Green

HDSP-C8G1

HDSP-C8G3

Yellow

HDSP-C8Y1

HDSP-C8Y3

Orange

HDSP-C8L1

HDSP-C8L3

AlGaAs Red

HDSP-C8A1

HDSP-C8A3

Description

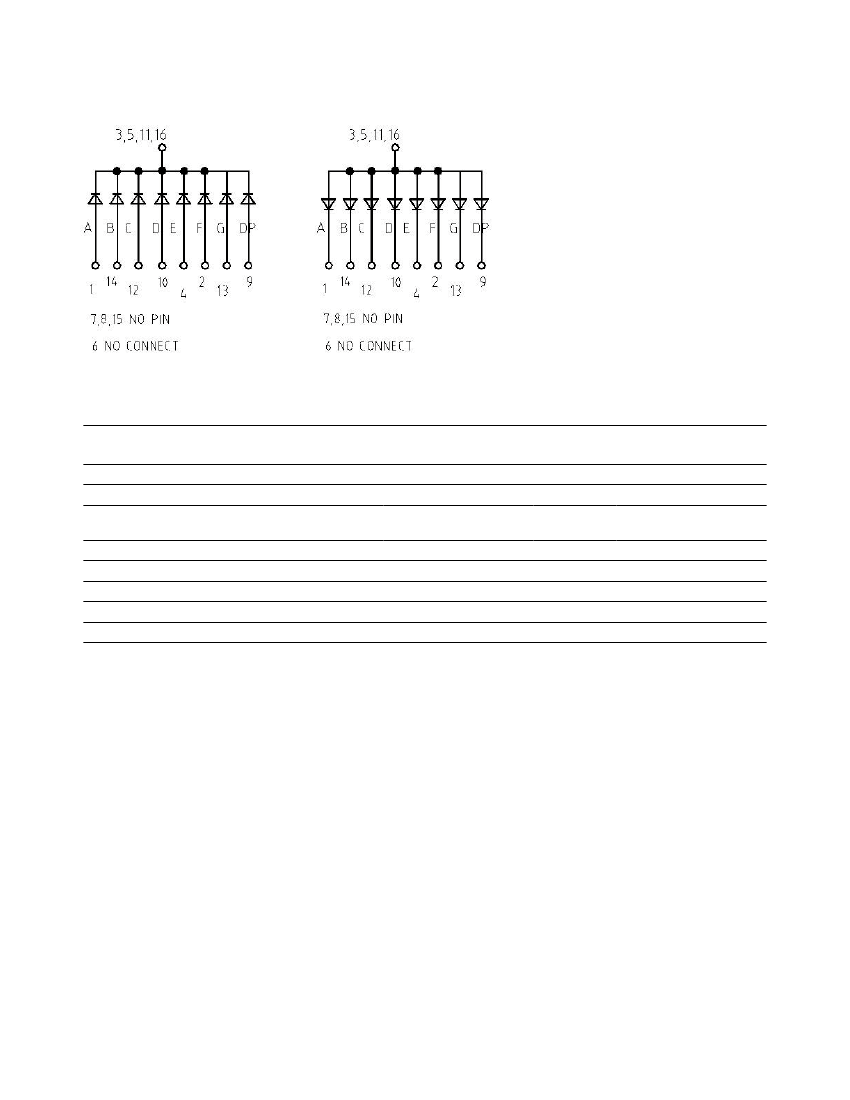

Common Anode, Right Hand Decimal

Common Cathode, Right Hand Decimal

Package Dimensions

Notes:

1. All dimensions are in millimeter.

2. Unless otherwise stated, the tolerance is ± 0.25mm.

HDSP-C8L1 Related Products

	HDSP-C8L1	HDSP-C8A1	HDSP-C8A3	HDSP-C8E1	HDSP-C8E3	HDSP-C8G1	HDSP-C8G3	HDSP-C8L3	HDSP-C8Y1	HDSP-C8Y3
Description	7 SEG NUMERIC DISPLAY, ORANGE, 20.4 mm	7 SEG NUMERIC DISPLAY, RED, 20.4 mm	7 SEG NUMERIC DISPLAY, RED, 20.4 mm	7 SEG NUMERIC DISPLAY, RED, 20.4 mm	7 SEG NUMERIC DISPLAY, RED, 20.4 mm	7 SEG NUMERIC DISPLAY, RED, 20.4 mm	7 SEG NUMERIC DISPLAY, RED, 20.4 mm	7 SEG NUMERIC DISPLAY, ORANGE, 20.4 mm	7 SEG NUMERIC DISPLAY, RED, 20.4 mm	7 SEG NUMERIC DISPLAY, RED, 20.4 mm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13	ROHS COMPLIANT PACKAGE-13
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compliant	compli	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	ORANGE	RED	RED	RED	RED	GREEN	GREEN	ORANGE	YELLOW	YELLOW
color@wavelength	Ambe	Red	Red	Orange-Red	Orange-Red	Gree	Green	Ambe	Yellow	Yellow
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	20.4 mm	20.4 mm	20.4 mm	20.4 mm	20.4 mm	20.4 mm	20.4 mm	20.4 mm	20.4 mm	20.4 mm
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Maximum forward voltage	2.3 V	2 V	2 V	2.3 V	2.3 V	2.5 V	2.5 V	2.3 V	2.3 V	2.3 V
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
Number of characters	1	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	610 nm	660 nm	660 nm	640 nm	640 nm	565 nm	565 nm	610 nm	587 nm	587 nm
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Base Number Matches	1	-	1	1	-	1	1	1	-	1
