MAS17 Overview

absolute encoder

Preview

Download Datasheet

View All

rev.

page

date

1 of 3

05/2009

PART NUMBER:

MAS17

DESCRIPTION:

absolute encoder

ELECTRICAL SPECIFICATIONS

output signals

output circuit

logic

current consumption

frequency response

supply voltage

output resolution (ppr)

max ouput current

G: gray code, N: natural binary, B: BCD (1000ppr only)

NPN open collector

negative logic (H=0, L=1)

70mA or less (under no load)

20 KHz

5 V dc ± 5%

256 (8 bit), 512 (9 bit), 1000, 1024 (10 bit)

sink current each bit 4mA (output voltage resistance 7V)

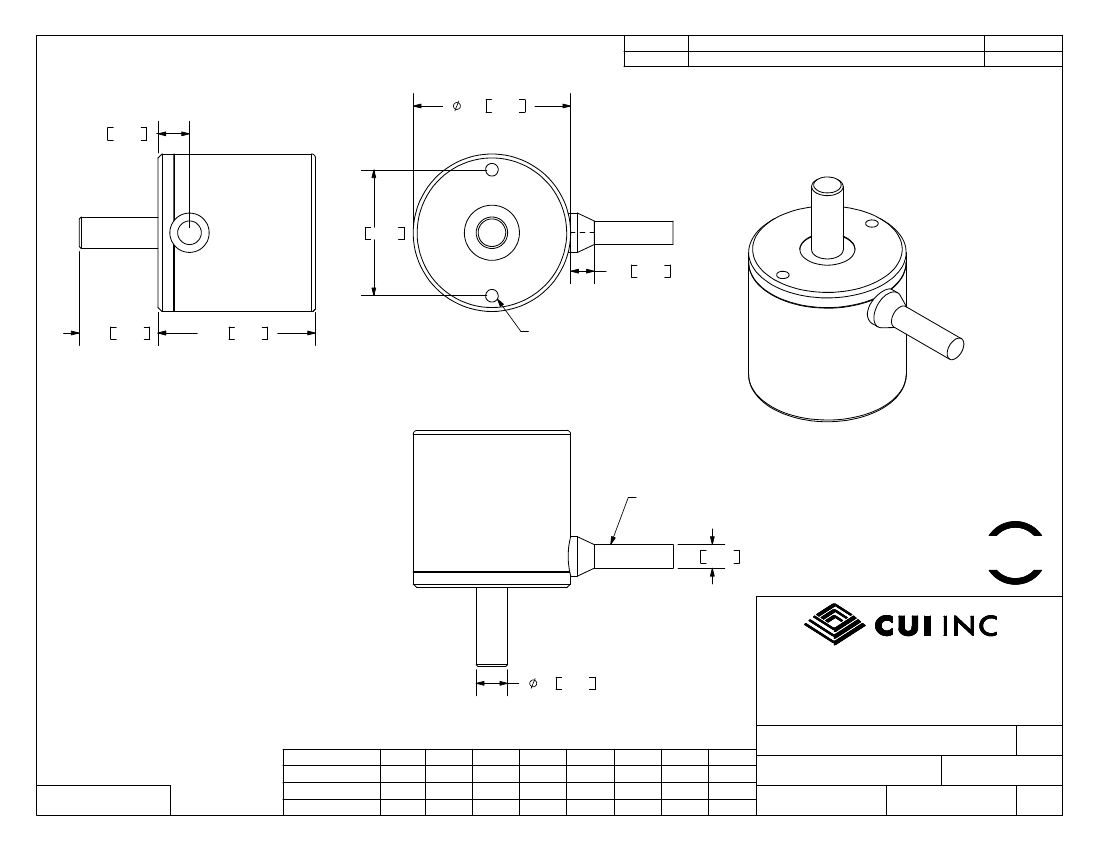

MECHANICAL SPECIFICATIONS

max shaft loading, radial:

thrust:

max rotational speed

shock resistance

vibration proof

weight

cable

1.9N (200gf)

6000 RPM

500m/s

(50g), X, Y, Z each 3 times

55 Hz / 1.5mm 2h each X, Y, Z

30g (with 300mm cable)

256: outside diameter 3mm, 10-core vinyl wire insulated shield cable

(length 1m)

1024: vinyl wire (AWG32) cable length 300mm

ENVIRONMENTAL SPECIFICATIONS

operating temp

storage temp

humidity

-10° to +70° C

-20° to +80° C

RH 35%~ 90%, non collecting

ORDERING INSTRUCTIONS

MAS17 - XXXX-X1

Resolution (PPR):

256 = 256 PPR

512 = 512 PPR

1000 = 1000 PPR

1024 = 1024 PPR

Output Type:

G = Gray Code

N = Natural Binary

B = BCD (1000ppr only)

20050

112

Ave. Tualatin, Oregon

97062

phone

503.612.2300

fax

503.612.2383
