KC7050PFREQP3UE00: DescriptionXO, Clock, CRYSTAL OSCILLATOR, CLOCK, 50 MHz - 190 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size128KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

KC7050PFREQP3UE00 Overview

XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 50 MHz - 190 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN

KC7050PFREQP3UE00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	0.6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	KC7050P-P3
Installation features	SURFACE MOUNT
Maximum operating frequency	190 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	0.6 ns
Maximum supply voltage	3.46 V
Minimum supply voltage	3.14 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

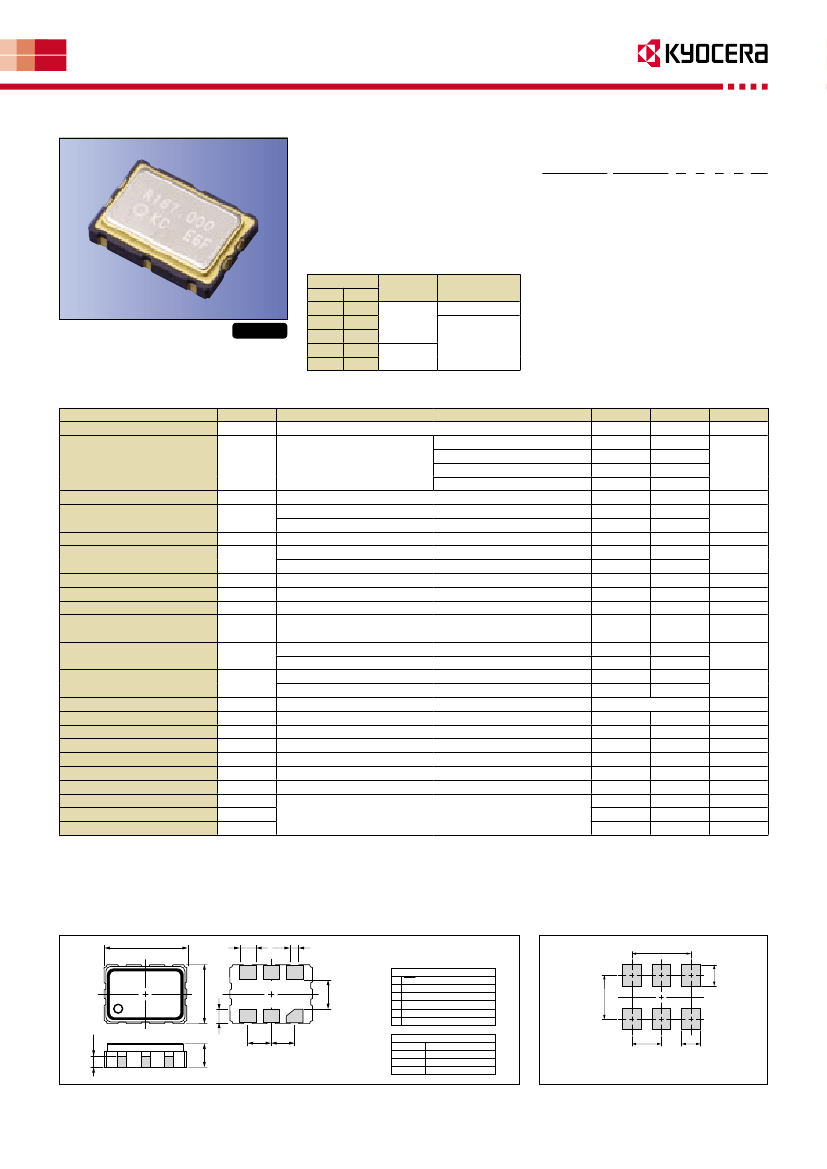

Clock Oscillators Surface Mount Type

KC7050P-P3 Series

LV-PECL/ 3.3V/ 7.0×5.0mm

Features

• Miniature ceramic package

• Highly reliable with seam welding

• LV-PECL output

• Supply voltage V

CC

=3.3V

•

±25×10

-

6

available

How to Order

KC7050P 125.000 P 3 0 E 00

①

②

③④⑤⑥ ⑦

①

Type (7.0×5.0mm SMD)

②

Output Frequency

③

Output Type (LV-PECL)

④

Supply Voltage (3.3V)

⑤

Frequency Tolerance (See Table 1)

⑥

Symmetry/ INH Function

(45/ 55%, Stand-by)

⑦

Customer Special Model Suffix

(STD Specification is “00”)

Packaging (Tape & Reel 1000 pcs./ reel)

Table 1

Operating

Freq. Tol.

Note

-

6

Temperature

Code

×

10

Range (°C)

±

50

0

Standard specifications

±

30 0 to

+70

S

±

25

U

With only certain

frequencies

±100

F

-40

to

+85

±

50

G

RoHS Compliant

Specifications

Item

Output Frequency Range

Note1

Frequency Tolerance

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Stand-by Current

Symmetry

Rise/ Fall Time

(20% to 80% Output Level)

Low Level Output Voltage

Note2

High Level Output Voltage

Note2

Output Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

Deterministic Jitter (DJ)

1 Sigma Jitter

Peak to Peak Jitter

Symbol

fo

f

_tol

T

_stg

T

_use

—

V

CC

I

CC

I

_std

SYM

tr/ tf

V

OL

V

OH

RL

V

IN

V

IL

V

IH

t

_dis

t

_ena

t

_str

DJ

J

Sigma

J

PK-PK

Freq. Tol.Code: 0, S, F

Freq. Tol.Code: U, G

Standard Specifications

Extend (Option)

Conditions

Initial tolerance, Operating tem-

perature range, Rated power supply

voltage change, Load change, Aging

(1 year @25°C), Shock and vibration

Op. Temp.:

-40

to

+85°C

Op. Temp.: 0 to

+70°C/ -40

to

+85°C

Op. Temp.: 0 to

+70°C

Op. Temp.: 0 to

+70°C

Min.

50

-100

-50

-30

-25

-55

0

-40

-0.5

+2.97

+3.14

—

45

—

Max.

190

+100

+50

+30

+25

+125

+70

+85

+5

+3.63

+3.46

90

30

55

0.6

Units

MHz

×10

-

6

°C

V

mA

μA

%

ns

V

ohm

V

ns

ms

ps

50ohm @crossing point

50ohm

Op. Temp.: 0 to

+85°C/

Typ. 1.600V

Op. Temp.:

-40

to 0°C/ Typ. 1.605V

Op. Temp.: 0 to

+85°C/

Typ. 2.350V

Op. Temp.:

-40

to 0°C/ Typ. 2.295V

LV-PECL Output

@Minimum operating voltage to be 0 sec.

Measured with Wavecrest DTS-2079

VISI 6.3.1

V

CC

-1.810

V

CC

-1.620

V

CC

-1.830

V

CC

-1.555

V

CC

-1.025

V

CC

-0.880

V

CC

-1.085

V

CC

-0.900

50

0

V

CC

—

30% V

CC

70% V

CC

—

150

—

10

—

10

—

2

—

4

—

30

Note : All electrical characteristics are defined at the maximum load and operating temperature range.

Note1: Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Note2: DC characteristic

Dimensions

7.0

1.4

0.6

(Unit: mm)

Recommended Land Pattern

5.08

(Unit: mm)

2.46

5.0

#3

1.17

#2

#1

0.75

2.54

1.6

2.54

Plating: Ni+Au

Tolerance:

±0.2

INH Function

Pad1

Pad4/ Pad5 (Output)

Open

Active

"H" Level

Active

"L" Level High Z (No-Oscillation)

3.6

#4

#5

#6

#1

#2

#3

#4

#5

#6

Pad Connections

INH

NC

Case GND

Output

Complementary Output

V

CC

2.54

1.6

Note: A capacitor of value 0.01µF and 10µF

between V

CC

and GND is recommended.

1.6
