T-1 3/4 (5mm) SOLID STATE LAMP
Part Number: L-7113ZGC
Green
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
Low power consumption.
Popular T-1 3/4 diameter package.
General purpose leads.
Reliable and rugged.
Long life - solid state reliability.
Available on tape and reel.
RoHS compliant.
Description
The Green source color devices are made with InGaN
on Sapphire Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

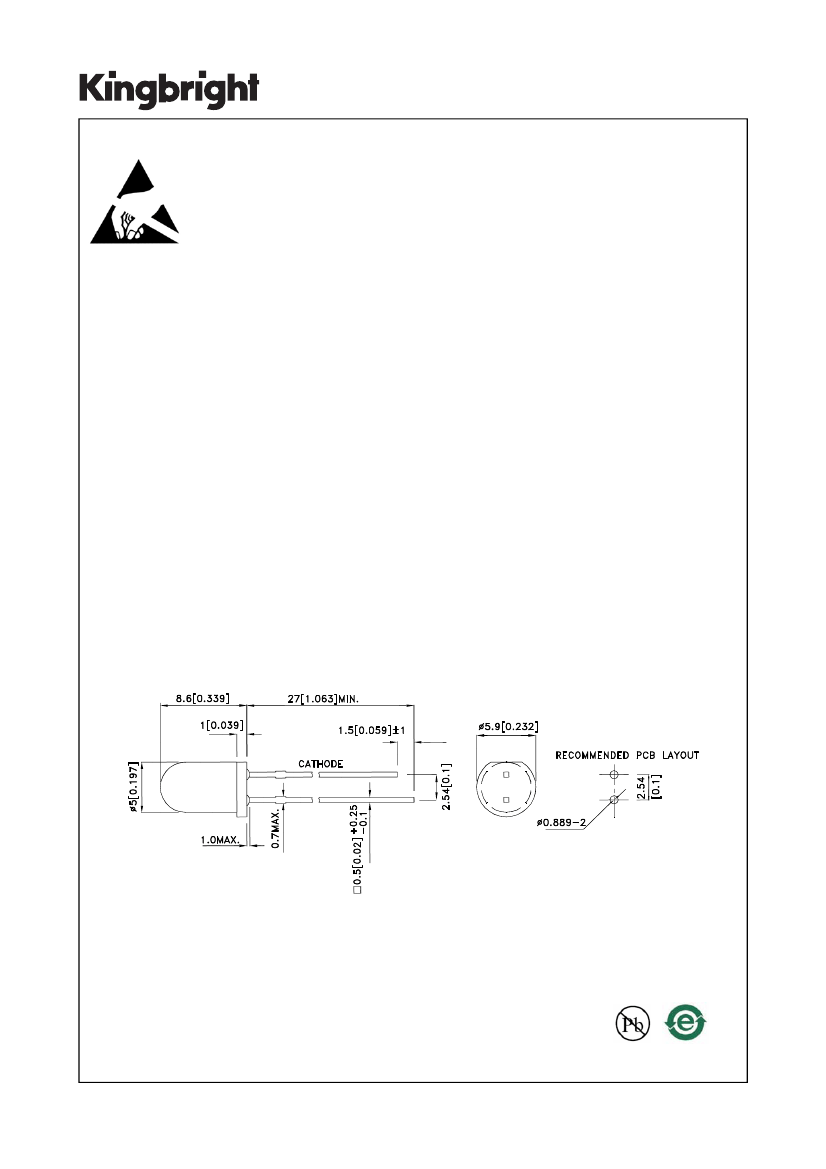

Package Dimensions
K
g
in
ig
r
b
t
h
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAE0504
APPROVED: WYNEC
REV NO: V.14B
CHECKED: Allen Liu
DATE: FEB/20/2014
DRAWN: L.Q.Xie
PAGE: 1 OF 6
ERP: 1101012148
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
L-7113ZGC
Green (InGaN)
Water Clear
8000
Typ.
14000
Viewing
Angle [1]
2θ1/2
20
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
3. Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Typ.
515
Max.
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
in
K
b
g
Green
Green
Green
ig
r
525
30
45
3.3
t
h
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
4.1
50
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Green
102.5
25
150
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAE0504
APPROVED: WYNEC
REV NO: V.14B
CHECKED: Allen Liu
DATE: FEB/20/2014
DRAWN: L.Q.Xie
PAGE: 2 OF 6
ERP: 1101012148

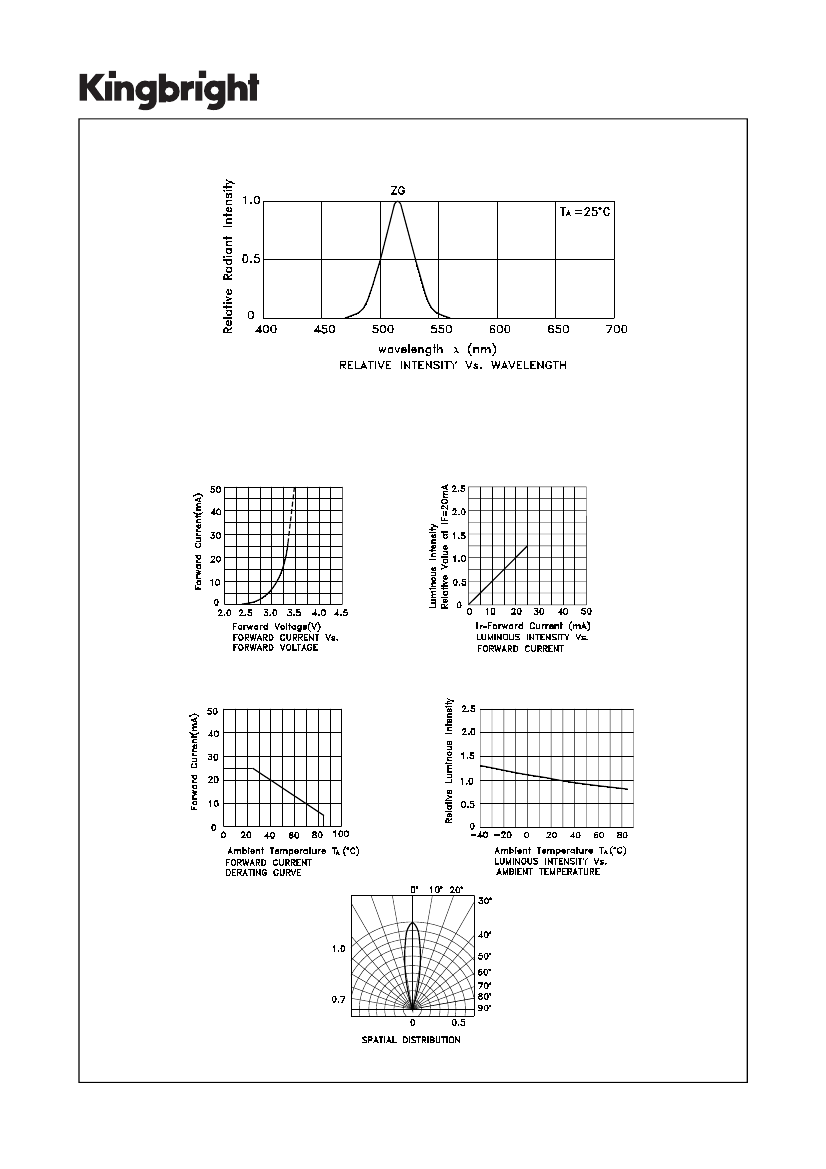

Green
L-7113ZGC
t
h
ig
r
b
g
in
K
SPEC NO: DSAE0504
APPROVED: WYNEC
REV NO: V.14B
CHECKED: Allen Liu
DATE: FEB/20/2014
DRAWN: L.Q.Xie
PAGE: 3 OF 6
ERP: 1101012148

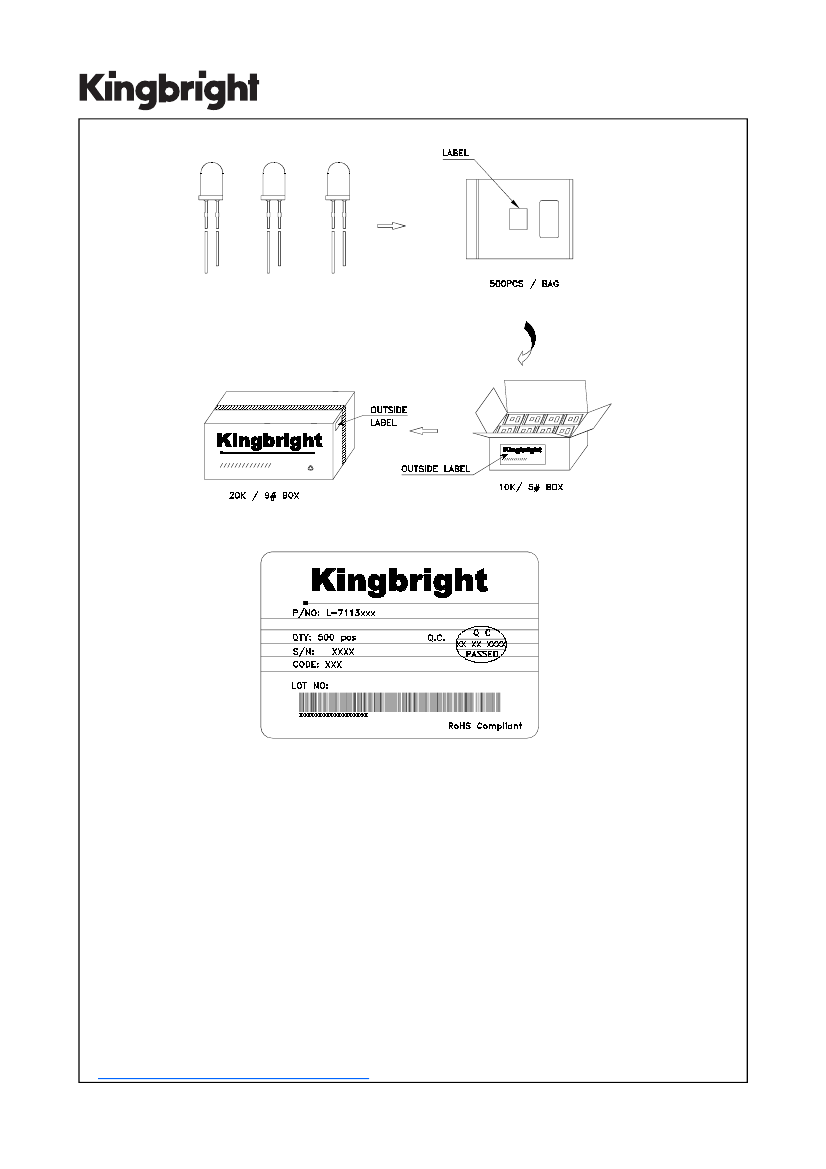

PACKING & LABEL SPECIFICATIONS
L-7113ZGC
K
g
in
ig
r
b
t
h
Terms and conditions for the usage of this document
1.The information included in this document reflects representative usage scenarios and is intended
for technical reference only.
2.The part number, type, and specifications mentioned in this document are subject to future change
and improvement without notice. Before production usage customer should refer to the latest
datasheet for the updated specifications.
3.When using the products referenced in this document, please make sure the product is being
operated within the environmental and electrical limits specified in the datasheet. If customer usage
exceeds the specified limits, Kingbright will not be responsible for any subsequent issues.
4.The information in this document applies to typical usage in consumer electronics applications.
If customer's application has special reliability requirements or have life-threatening liabilities,
such as automotive or medical usage, please consult with Kingbright representative for further
assistance.
5.The contents and information of this document may not be reproduced or re-transmitted without
permission by Kingbright.
6.All design applications should refer to Kingbright application notes available at
http://www.kingbright.com/application_notes
SPEC NO: DSAE0504
APPROVED: WYNEC
REV NO: V.14B
CHECKED: Allen Liu
DATE: FEB/20/2014
DRAWN: L.Q.Xie
PAGE: 4 OF 6
ERP: 1101012148

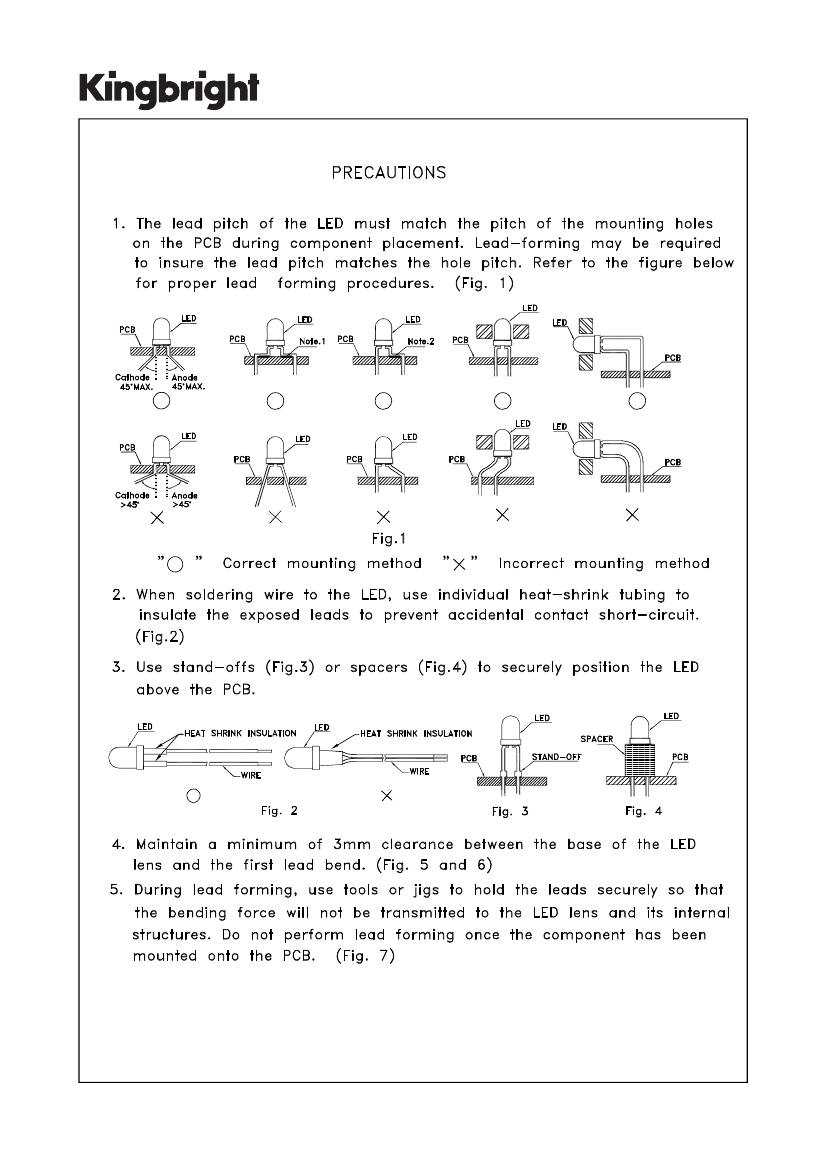

K
g
in
ig
r
b
t
h
SPEC NO: DSAE0504
APPROVED: WYNEC
REV NO: V.14B
CHECKED: Allen Liu
DATE: FEB/20/2014
DRAWN: L.Q.Xie
PAGE: 5 OF 6
ERP: 1101012148
