SURFACE MOUNT DISPLAY
APSA04-41CGKWA-F01
GREEN
Features
0.4INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
I.C. COMPATIBLE.
MECHANICALLY RUGGED.
GRAY FACE,WHITE SEGMENT.
PACKAGE:800PCS/ REEL.
RoHS COMPLIANT.
Description
The Green source color devices are made with InGaAlP on
GaAs substrate Light Emitting Diode.

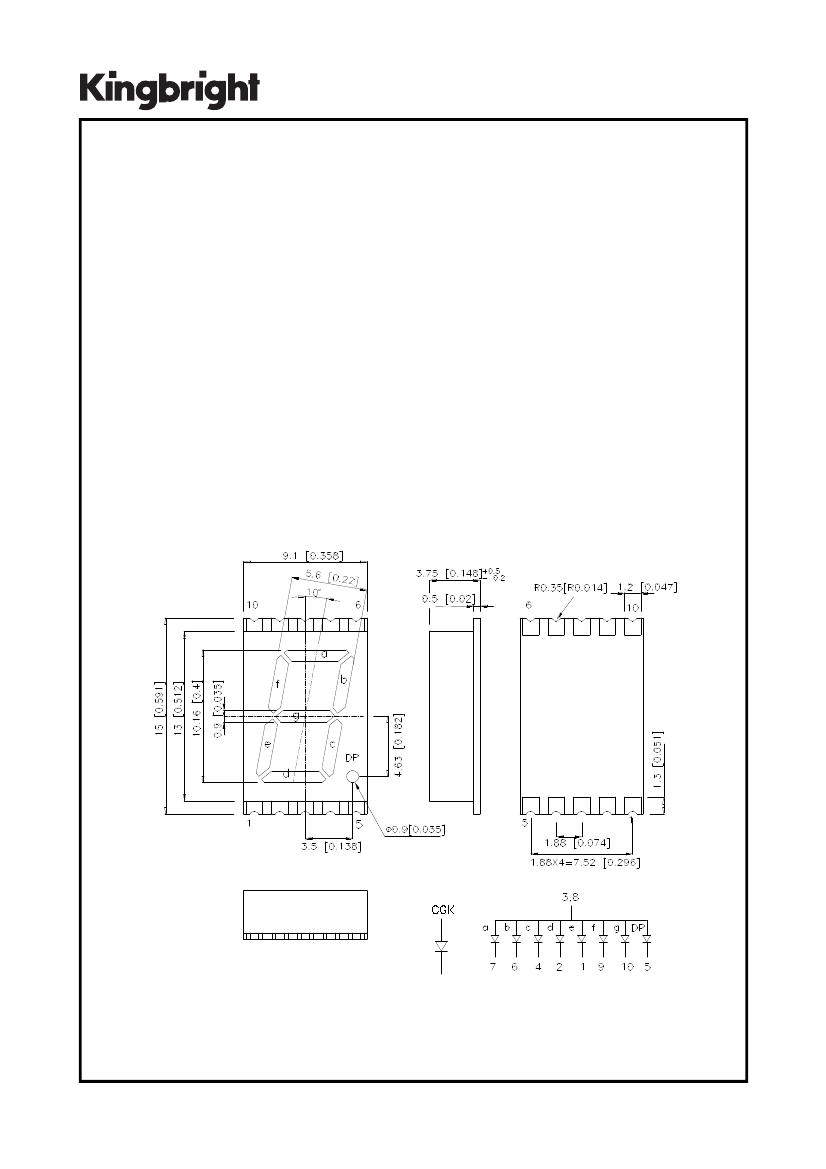

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAF2743
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE:APR/25/2005
DRAWN:B.H.LI
PAGE: 1 OF 5
ERP: 1351000061-01
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd)
@ 10 mA
Min.
APSA04-41CGKWA-F01 GREEN (InGaAIP)
WHITE DIFFUSED
4700
Typ.
17400
Common Anode, Rt.
Hand Decimal.
Description
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Green
Green
Green
Green
Green
Green
Device
Typ.
574
570
20
15
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Green
105
30
150
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAF2743
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE:APR/25/2005
DRAWN:B.H.LI
PAGE: 2 OF 5
ERP: 1351000061-01

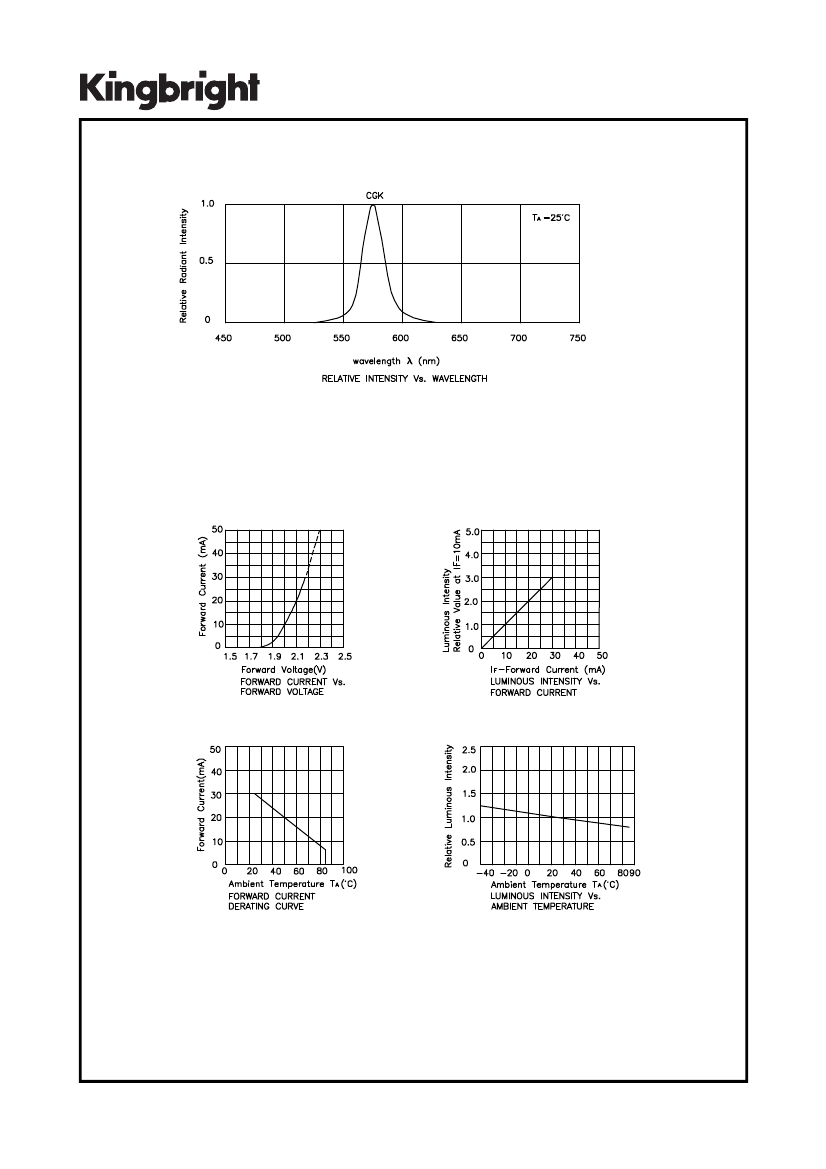

Green
APSA04-41CGKWA-F01
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAF2743
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE:APR/25/2005
DRAWN:B.H.LI
PAGE: 3 OF 5
ERP: 1351000061-01
APSA04-41CGKWA-F01

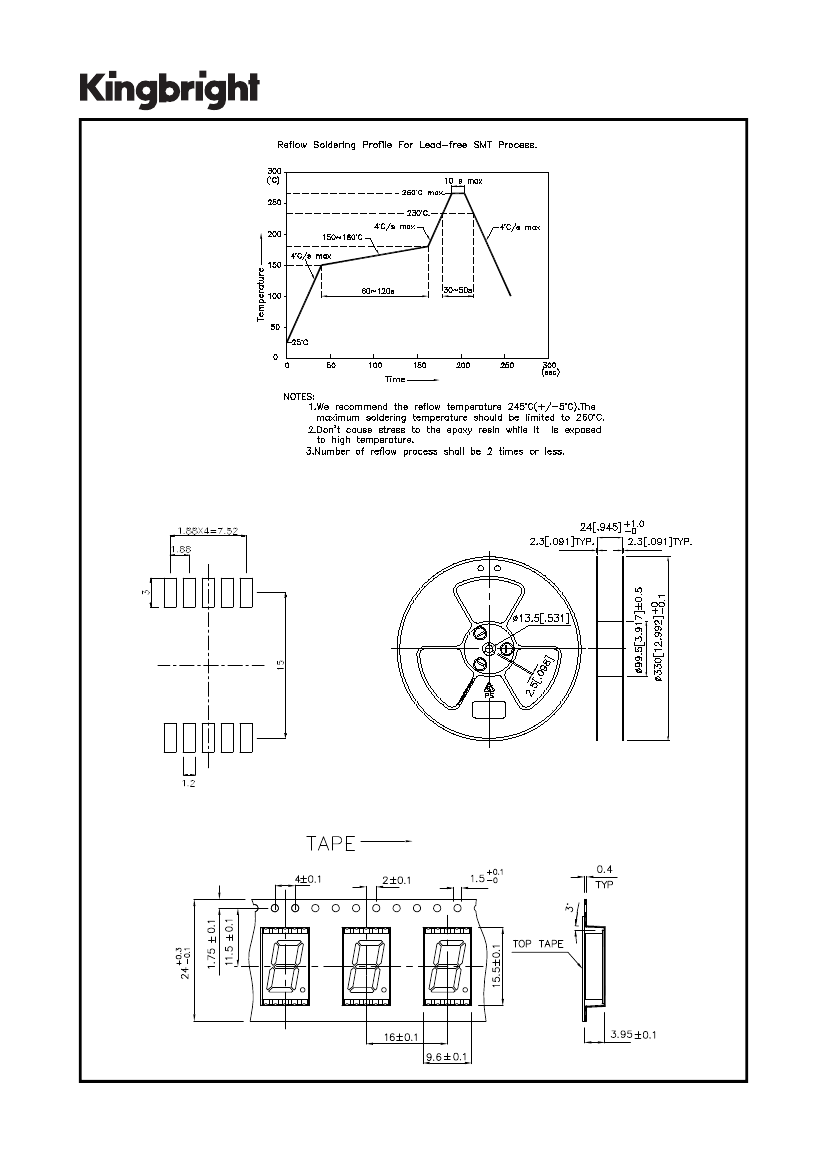

Recommended Soldering Pattern
(Units : mm)
Reel Dimension
Tape Specifications
(Units : mm)
SPEC NO: DSAF2743
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE:APR/25/2005
DRAWN:B.H.LI
PAGE: 4 OF 5
ERP: 1351000061-01

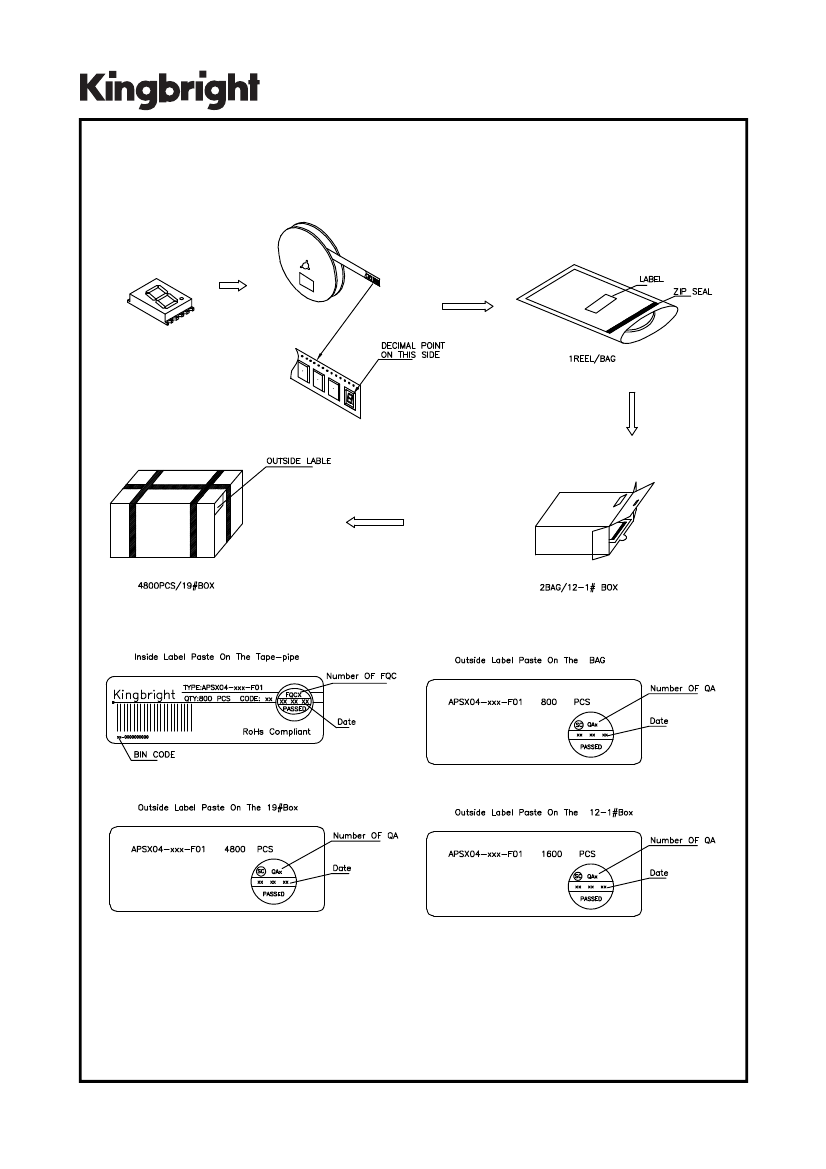

PACKING & LABEL SPECIFICATIONS
APSA04-41CGKWA-F01
SPEC NO: DSAF2743
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE:APR/25/2005
DRAWN:B.H.LI
PAGE: 5 OF 5
ERP: 1351000061-01
