Anti-Sulfurated Thick Film Chip Resistors
Anti-Sulfurated Thick Film Chip Resistors
ERJ S : 0402, 0603, 0805, 1206, 1210,
1812, 2010, 2512
ERJ S6 : 0805
ERJ U : 0201, 0402, 0603, 0805, 1206,
1210, 1812, 2010, 2512
Type:
ERJ S02, S03, S06, S08, S14
S12, S1D, S1T (Au-based inner electrode type)
Type:
ERJ S6S, S6Q (Ag-Pd-based inner electrode type)
Type:
ERJ U01, U02, U03, U06, U08, U14,
U12, U1D, U1T (Ag-Pd-based inner electrode type)
●
High resistance to sulfurization achieved by adopting an Au-based inner electrode (ERJS0/S1 type)
and Ag-Pd-based inner electrode (ERJS6, ERJU type)
●
High reliability
Metal glaze thick film resistive element and three layers of electrodes
●
Suitable for both reflow and flow soldering
●
Low Resistance type…ERJS6S, S6Q : 0.1
Ω
to 1.0
Ω
●
Reference Standard…IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
●
RoHS compliant
■
Features
■
Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions
Please see Data Files
■
Explanation of Part Numbers
●
ERJS0, S1, U0, U1 Series
1
2
3
4
5
6
7
8
9
10
11
12
Product Code
Thick Film Chip Resistors
Size, Power Rating
Type: inch Power R. Type: inch Power R.
S14
0.5 W
U01 : 0201 0.05 W
U14 : 1210
S12
S02
0.1 W
U12 : 1812 0.75 W
U02 : 0402
S1D
S03
0.1 W
U1D : 2010 0.75 W
U03 : 0603
S1T
S06
1W
U06 : 0805 0.125 W U1T : 2512
S08
0.25 W
U08 : 1206
Resistance Tolerance
Code
F
J
0
Tolerance
±1%
±5%
Jumper
Code
C
X
V
Resistance Value
The first two or three digits are significant figures of
resistance and the third or 4th one denotes number
of zeros following. Jumper is expressed by R00.
Three digit type (±5%), four digit type (±1%)
Example: 222 2.2 k , 1002 10 k
U
Packaging Methods
Packaging
Type
Pressed Carrier Taping
ERJU01
2 mm pitch, 15,000 pcs.
Punched Carrier Taping
2 mm pitch, 10,000 pcs. ERJS02, ERJU02
Punched Carrier Taping ERJS03, ERJU03
4 mm pitch, 5,000 pcs. ERJS06, ERJU06
ERJS08, ERJU08
Embossed Carrier Taping ERJS14, ERJU14
4 mm pitch, 5,000 pcs. ERJS12, ERJU12
ERJS1D, ERJU1D
Embossed Carrier Taping
4 mm pitch, 4,000 pcs. ERJS1T, ERJU1T
●
ERJS6S, S6Q Series
1
2
3
4
5
6
7
8
9
10
11
Size, Power Rating
Type: inch
Power R.
0.25 W
S6: 0805
Product Code
Thick Film Chip Resistors
Resistance Value
Code
Res. Value
S
0.1 to 0.2
Q
0.22 to 1
Resistance Tolerance
Code Tolerance
±1 %
F
±2 %
G
±5 %
J
Resistance Value
Shown by 3 digits or
letters.
(Example)
R20 : 0.20 =200 m
1R0 : 1.00 =1000 m
Code
V
Packaging Methods
Packaging
Type
Punched Carrier Taping
ERJS6
4 mm pitch, 5,000 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04 Aug. 2012
24

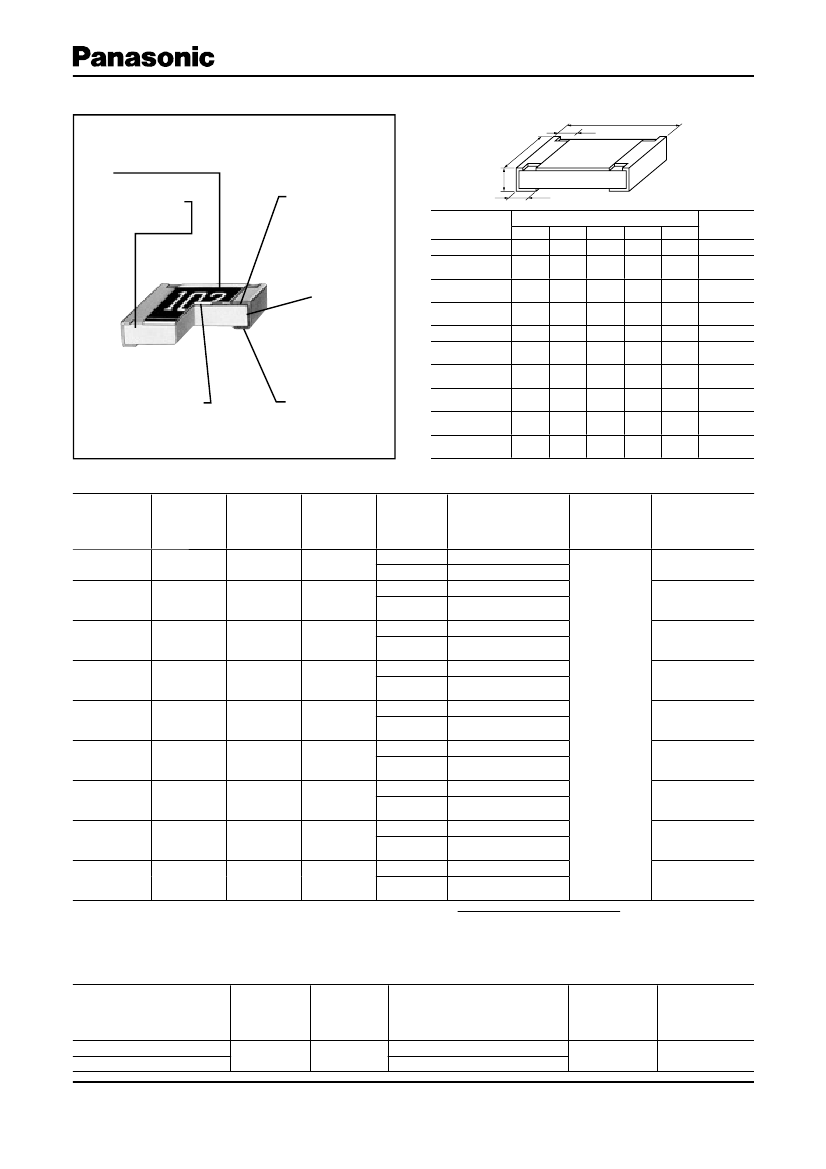

Anti-Sulfurated Thick Film Chip Resistors
■
Construction
■
Dimensions in mm (not to scale)
a
W
Protective coating
t
Alumina substrate
Electrode (Inner)
Au-based :
ERJS type
Ag-Pd-based:
ERJU type
ERJS6 type
Electrode
(Between)
b
Type
(inch size)
ERJU01 (0201)
ERJS02 (0402)
ERJU02
ERJS03 (0603)
ERJU03
ERJS06 (0805)
ERJU06
ERJS08 (1206)
ERJU08
ERJS14 (1210)
ERJU14
ERJS12 (1812)
ERJU12
ERJS1D (2010)
ERJU1D
ERJS1T (2512)
ERJU1T
Dimensions (mm)
L
W
a
b
t
0.60
±0.03
0.30
±0.03
0.10
±0.05
0.15
±0.05
0.23
±0.03
1.00
±0.05
0.50
±0.05
0.20
±0.10
0.25
±0.10
0.35
±0.05
1.60
±0.15
0.80
+0.15
0.30
±0.20
0.30
±0.15
0.45
±0.10
–0.05
2.00
±0.20
1.25
±0.10
0.40
±0.20
0.40
±0.20
0.60
±0.10
Mass (Weight)
[g/1000 pcs.]
0.15
0.8
2
4
6
10
16
27
27
45
L
ERJS6□ (0805)
2.00
±0.20
1.25
±0.10
0.45
±0.20
0.45
±0.20
0.55
±0.10
3.20
+0.05
1.60
+0.05
0.50
±0.20
0.50
±0.20
0.60
±0.10
–0.20
–0.15
3.20
±0.20
2.50
±0.20
0.50
±0.20
0.50
±0.20
0.60
±0.10
4.50
±0.20
3.20
±0.20
0.50
±0.20
0.50
±0.20
0.60
±0.10
5.00
±0.20
2.50
±0.20
0.60
±0.20
0.60
±0.20
0.60
±0.10
6.40
±0.20
3.20
±0.20
0.65
±0.20
0.60
±0.20
0.60
±0.10
Thick film
resistive element
Electrode (Outer)
■
Ratings
Type
(inch size)
ERJU01
(0201)
ERJS02
ERJU02
(0402)
ERJS03
ERJU03
(0603)
ERJS06
ERJU06
(0805)
ERJS08
ERJU08
(1206)
ERJS14
ERJU14
(1210)
ERJS12
ERJU12
(1812)
ERJS1D
ERJU1D
(2010)
ERJS1T
ERJU1T
(2512)
PowerRating
at 70 °C
(W)
0.05
0.1
Limiting
Element
Voltage
(1)
(V)
25
50
Maximum
Overload
Voltage
(2)
(V)
50
100
Resistance
Tolerance
(%)
±1
±5
±1
±5
±1
Resistance
Range
(Ω)
10 to 1 M (E24, E96)
1 to 1 M (E24)
10 to 1 M (E24, E96)
1 to 3.3 M (E24)
10 to 1 M (E24, E96)
1 to 10 M (E24)
10 to 1 M (E24, E96)
1 to 10 M (E24)
10 to 1 M (E24, E96)
1 to 10 M (E24)
10 to 1 M (E24, E96)
1 to 10 M (E24)
10 to 1 M (E24, E96)
1 to 10 M (E24)
10 to 1 M (E24, E96)
1 to 10 M (E24)
10 to 1 M (E24, E96)
1 to 10 M (E24)
T.C.R.
(×10
-6
/°C )
Category
Temperature
Range
(°C)
-55 to +125
-55 to +155
0.1
75
150
<10
Ω:
–100 to +600
±5
±1
-55 to +155
0.125
150
200
±5
±1
0.25
200
400
±5
±1
10
Ω
to 1 MΩ:
±200(±5%)
±100(±1%)
½
½
ERJU01,
ERJS02,
ERJU02 :
±200
1 MΩ<:
–400 to +150
-55 to +155
-55 to +155
0.5
200
400
±5
±1
-55 to +155
0.75
200
500
±5
±1
-55 to +155
0.75
200
500
±5
±1
-55 to +155
1.0
200
500
±5
-55 to +155
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=√Power Rating
×
Resistance Values, or Limiting Element Voltage
listed above, whichever less.
(2) Overload (Short-time Overload) Test Voltage (SOTV) shall be determined from SOTV=2.5
×
Power Rating or max. Overload Voltage listed above
whichever less.
<Low Resistance type>
Type
(inch size)
ERJS6S
(0805)
ERJS6Q
(0805)
PowerRating Resistance
at 70 °C
Tolerance
(W)
(%)
0.25
±1, ±2, ±5
Resistance
Range
(Ω)
0.1 to 0.2 (E24)
0.22 to 1 (E24)
T.
C.R.
(×10
-6
/°C )
±150
Category
Temperature
Range
(°C)
-55 to +155
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04 Aug. 2012
25
