CX-11F-16.384MHZ-STBY3-TOL2-CL datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX-11F-16.384MHZ-STBY3-TOL2-CL

CX-11F-16.384MHZ-STBY3-TOL2-CL: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 16.384 MHz; CategoryPassive components Crystal/resonator; File Size162KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

CX-11F-16.384MHZ-STBY3-TOL2-CL Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 16.384 MHz

CX-11F-16.384MHZ-STBY3-TOL2-CL Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	300 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	12 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	16.384 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L8XB4.5XH1.8 (mm)
surface mount	YES

Preview

Download Datasheet

View All

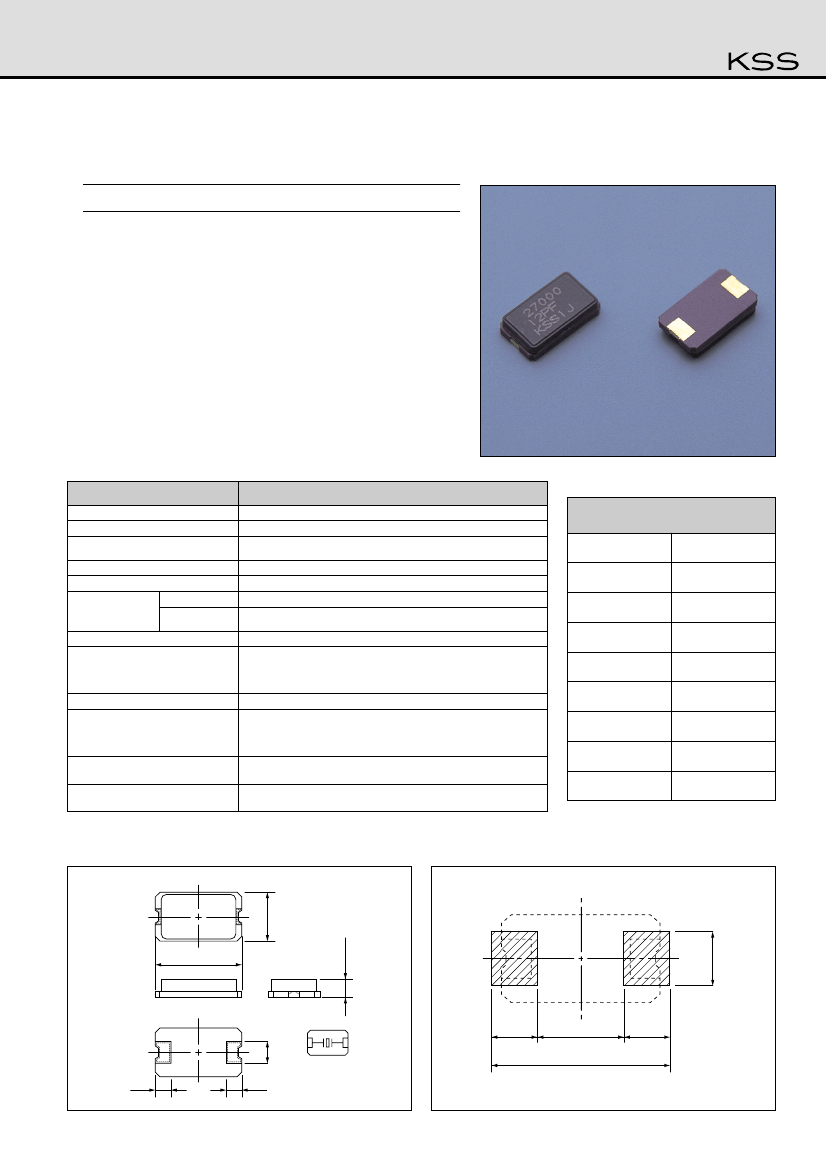

CX-8045G (CX-11F)

SMD

Features

¡Compact,

thin. (8.0×4.5×1.8mm)

¡For

self-loading.

¡Ceramic

package leadless type.

¡Emboss

taping.

¡Reflow

soldering.

¡The

oscillation circuit can obtain sufficient output at the inverter

stage.

Specifications

Type

Frequency Range

Standard Frequency

Overtone Order

Operating Temp. Range

Storage Temp. Range

Frequency

Tolerance

Load Capacitance

Equivalent Series Resistance

Shunt Capacitance

Drive Level

at 25:

Over The Oper.

Temp. Range

CX-8045G

8~70MHz

Table 1

8~47MHz : Fundamental

40~70MHz : 3rd. O.T.

-10~+70:

-40~+85:

±15, ±30, ±50×10

-6

±15, ±30, ±50×10

-6

(referred to 25:)

12pF

8~10MHz (Fund.) 200Ω MAX.

10~12MHz (Fund.) 150Ω MAX.

12~47MHz (Fund.) 50Ω MAX.

40~70MHz (3rd.) 150Ω MAX.

7pF MAX.

8~16MHz:0.5mW MAX.

16~24MHz:0.3mW MAX.

24~47MHz:0.1mW MAX.

3rd. O.T. :0.3mW MAX.

Three drops onto a hard wood board from the height of 20cm

Table 1

Standard Frequencies

Standard Frequency (MHz)

14.31818

16.000

16.384

16.9344

19.6608

20.000

21.47727

24.000

24.576

27.000

28.63636

30.000

32.000

33.8688

36.000

40.000

45.1584

Shock

Vibration

10~55Hz, amplitude 1.5mm, each to 3 directions, 2 hours each

* Please inquire about frequencies other than

the above.

*Taping item packaging : one unit 1,000pcs & 3,000pcs

Outline

CX-8045G

4.5±0.3

Land Pattern(reference)

1.8±0.2

8.0±0.3

2.4

2.0

4.2

9.0

2.4

CONNECTION

1.5

Dimensions(mm)
