Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
STA3KA13.6JE
thru
STA3KA800JE
3,000 WATT
PEAK PULSE POWER
UNIDIRECTIONAL TRANSIENT
VOLTAGE SUPPRESSOR
13.6 – 800 VOLTS
FEATURES:
13.6 – 800 volts unidirectional in TO-257 package
Glass passivated junction, epoxy encapsulated assembly
Meets all environmental requirements of MIL-PRF-19500
Custom configuration available
Reverse polarity available (add suffix “R”)
150°C maximum operating temperature
TX and TXV level screening available
DESIGNER’S DATA SHEET
Part Number / Ordering Information
1/
STA3K __ __ __ __
│
│ │ └
Screening
2/
__
= Not Screened
TX = TX Level
│
│ │
TXV = TXV Level
│
│ │
│
│ │
│ └
Package
│
JE = TO-257JE
│
│
│
└
Voltage
13.6 – 800 Volts
│
└
Voltage Tolerance
3/
A = 10%
B = 5%
APPLICATIONS:
Voltage sensitive components protection
Protection against power interruption
Lightning protection
MAXIMUM RATINGS
Stand Off Voltage
Steady State Power Dissipation
Peak Pulse Power @ 1.0 msec
Peak Surge Current
(8.3 ms pulse, half sine wave)
Operating and Storage Temperature
Symbol
Value
13.6 - 800
10
3000
200
-65 to +150
Units
V
RWM
P
D
P
PP
I
FSM
T
op
& T
stg
Volts
Watts
Watts
Amps
°C
NOTES:
1/ For ordering information, price, and availability – contact factory.
2/ Screening based on MIL-PRF-19500. Screening flows available on request.
3/ SSDI’s Transient Voltage Suppressors offer standard breakdown voltage tolerances of ±10% (A)
and ±5% (B). For other voltages and voltage tolerances, contact SSDI’s Marketing Department.
TO-257JE
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: TVS001D
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
STA3KA13.6JE
thru
STA3KA800JE
ELECTRICAL CHARACTERISTICS
BREAKDOWN
PART NUMBER
3/
4/
MAX REVERSE STAND OFF
Voltage
V
RWM
10%
11.00
12.10
13.26
14.74
16.2
17.84
19.44
21.0
24.2
25.8
29.0
32.4
35.6
38.8
48.6
59.2
69.2
82.6
100.4
120.4
132.8
162
242
292
324
486
648
5%
10.60
12.80
14.04
15.56
17.1
18.8
20.4
22.2
25.6
27.2
30.6
34.2
37.6
41.0
50.2
61.6
73.6
87.2
106.0
128.2
140.2
171
256
308
342
512
684
Reverse
Leakage
Current
I
R
@V
RWM
µA
1000
500
200
50
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
PEAK PULSE
CLAMPING
@ Current
5/
tp = 1ms
I
PP
A
143
132
124
112
103
96.0
90.0
82.0
71.0
67.0
57.2
54.0
49.0
45.0
36.0
30.0
25.3
21.4
17.7
14.6
13.3
11.0
7.2
6.1
5.5
3.6
2.7
Voltage
(max)
V
C
Volts
21.0
22.6
24.2
26.8
29.0
31.2
33.4
36.4
42.4
45.0
52.4
55.4
61.2
66.4
82.8
98.8
118.6
140.2
170.0
206.0
226
274
414
492
548
828
1096
Nominal
Voltage
V
BR
Test
Current
I
BRT
mA
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
TEMPERATURE
COEFFICIENT
TC @ 25°C &
125°C
%/°C
0.057
0.061
0.065
0.068
0.073
0.075
0.076
0.081
0.084
0.086
0.088
0.090
0.092
0.094
0.097
0.099
0.101
0.102
0.104
0.105
0.105
0.106
0.108
0.108
0.108
0.110
0.110
10%
STA3KA13.6JE
STA3KA15JE
STA3KA16.4JE
STA3KA18.2JE
STA3KA20JE
STA3KA22JE
STA3KA24JE
STA3KA26JE
STA3KA30JE
STA3KA32JE
STA3KA36JE
STA3KA40JE
STA3KA44JE
STA3KA48JE
STA3KA60JE
STA3KA72JE
STA3KA86JE
STA3KA102JE
STA3KA124JE
STA3KA150JE
STA3KA164JE
STA3KA200JE
STA3KA300JE
STA3KA360JE
STA3KA400JE
STA3KA600JE
STA3KA800JE
5%
STA3KB13.6JE
STA3KB15JE
STA3KB16.4JE
STA3KB18.2JE
STA3KB20JE
STA3KB22JE
STA3KB24JE
STA3KB26JE
STA3KB30JE
STA3KB32JE
STA3KB36JE
STA3KB40JE
STA3KB44JE
STA3KB48JE
STA3KB60JE
STA3KB72JE
STA3KB86JE
STA3KB102JE
STA3KB124JE
STA3KB150JE
STA3KB164JE
STA3KB200JE
STA3KB300JE
STA3KB360JE
STA3KB400JE
STA3KB600JE
STAKB800JE
Volts
13.6
15
16.4
18.2
20
22
24
26
30
32
36
40
44
48
60
72
86
102
124
150
164
200
300
360
400
600
800

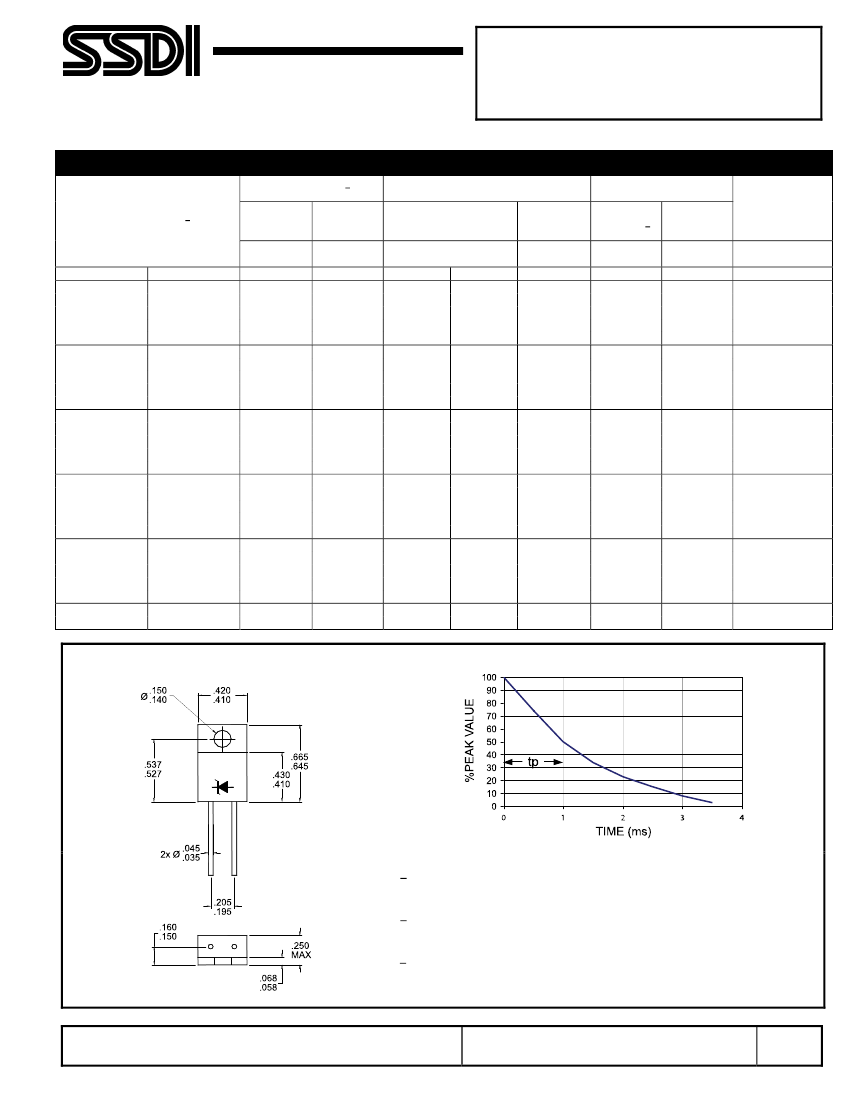

CASE OUTLINE: TO-257JE
NOTES:
3/ SSDI’s Transient Voltage Suppressors offer standard breakdown voltage
tolerances of ±10% (A) and ±5% (B). For other voltages and voltage tolerances,
contact SSDI’s Marketing Department.
4/ All voltages are measured with automated test set using 35 msec test time.
Longer or shorter test times will have a corresponding effect on the measured
value due to the heating effects.
5/ Pulse width (t
P
) is defined as the time from peak pulse current I
PP
to the point where
peak pulse current decayed to 50% of rated I
PP
(10µsec x 100µsec wave form as
defined by R.E.A.).
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: TVS001D
DOC
