UDD-7.5: Description1 A, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size137KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UDD-7.5 Overview

1 A, SILICON, SIGNAL DIODE

UDD-7.5 Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	DD, 2 PIN
Contacts	2
Manufacturer packaging code	DD
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-XXSS-X2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	SPECIAL SHAPE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	7500 V
Maximum reverse recovery time	0.5 µs
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED

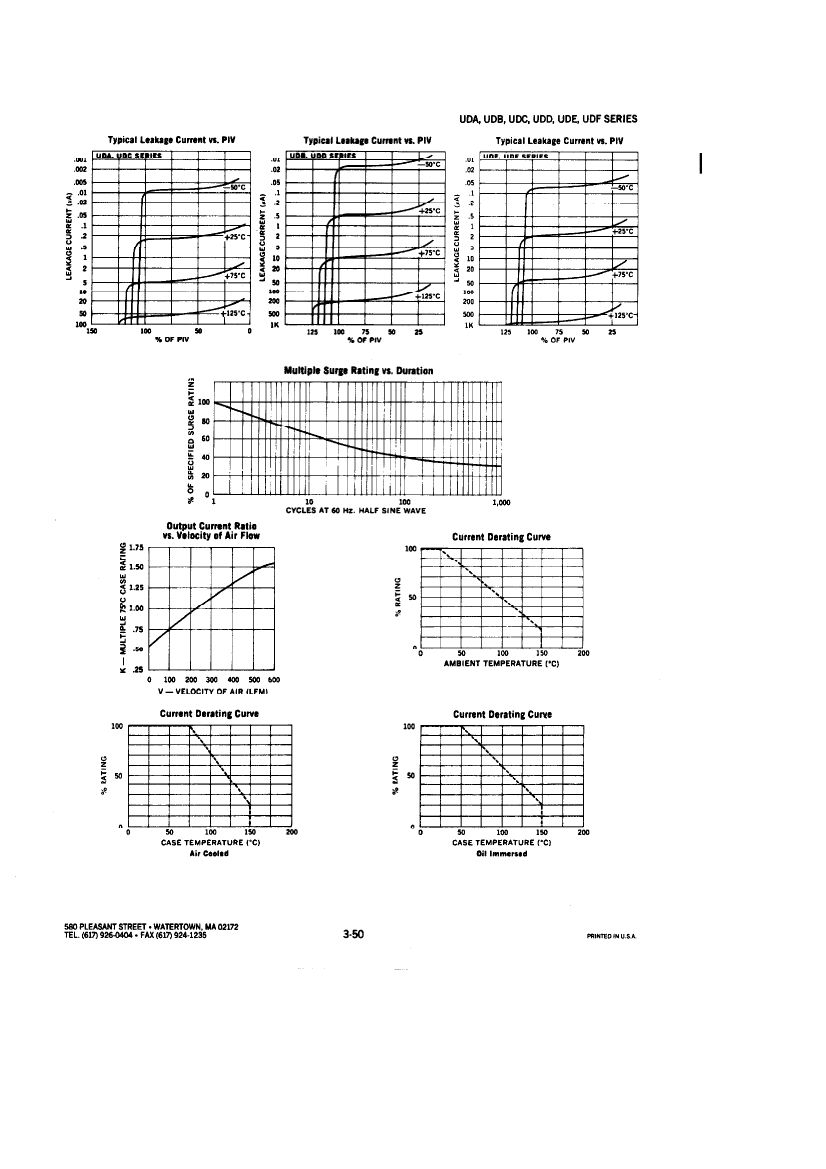

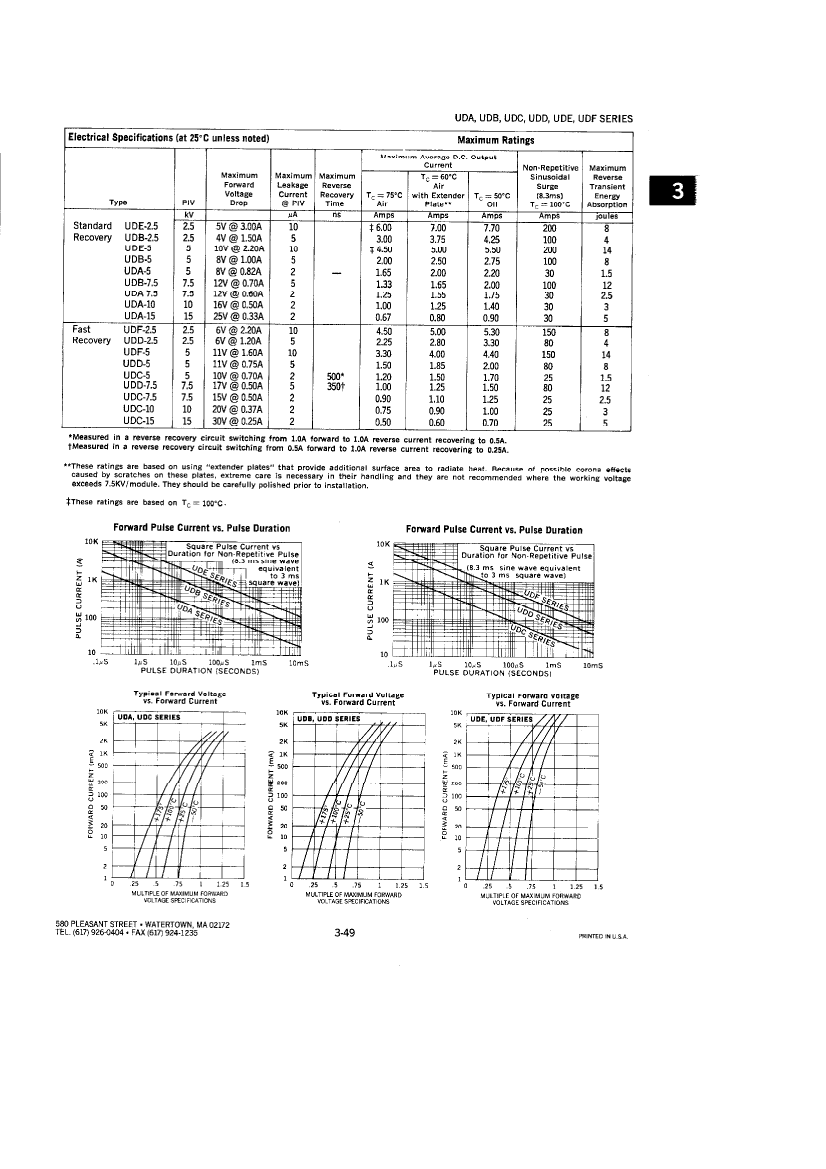

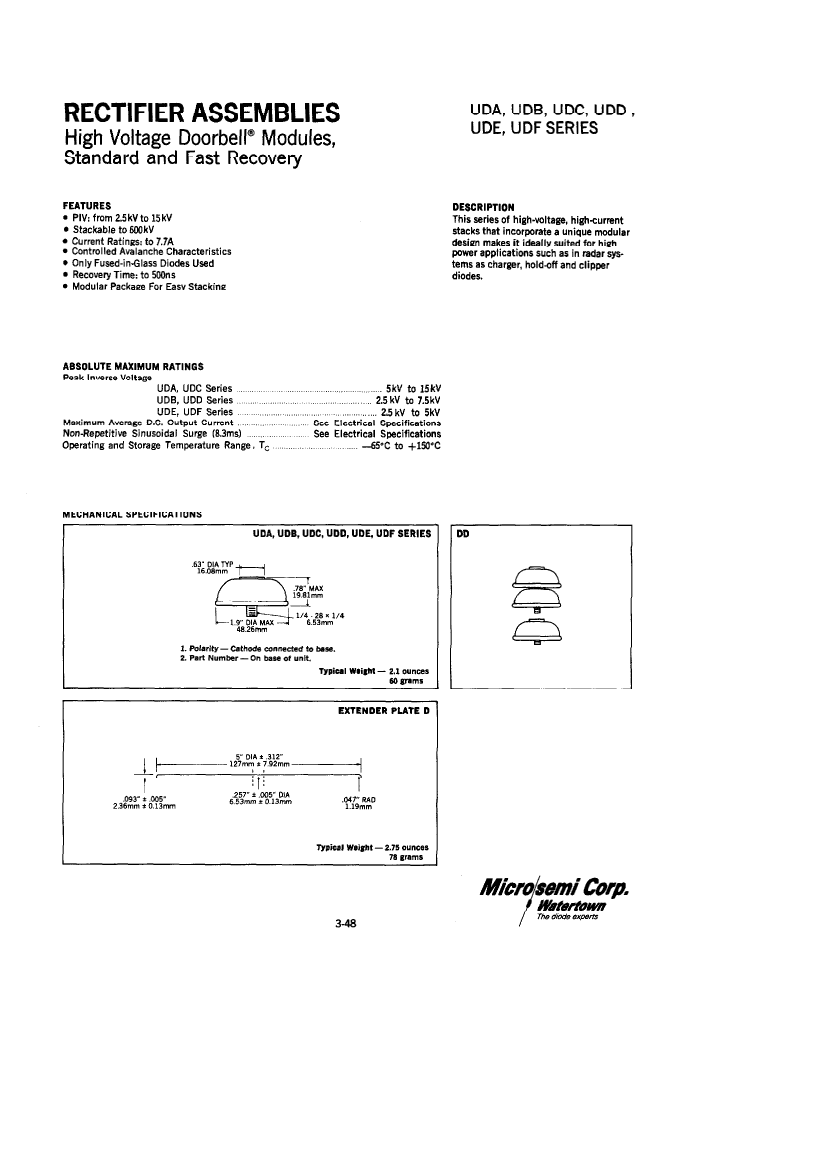

Preview

Download Datasheet

View All

UDD-7.5 Related Products

	UDD-7.5	UDE-2.5	UDF-2.5	UDD-2.5	UDC-7.5	UDB-7.5	UDB-2.5	UDA10
Description	1 A, SILICON, SIGNAL DIODE	6 A, SILICON, RECTIFIER DIODE	4.5 A, SILICON, RECTIFIER DIODE	2.25 A, SILICON, RECTIFIER DIODE	0.9 A, SILICON, SIGNAL DIODE	1.33 A, SILICON, RECTIFIER DIODE	3 A, SILICON, RECTIFIER DIODE	6 A, SILICON, RECTIFIER DIODE
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
package instruction	DD, 2 PIN	MODULE-2	MODULE-2	MODULE-2	DD, 2 PIN	MODULE-2	MODULE-2	O-XXSS-X2
Contacts	2	2	2	2	2	2	2	3
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	unknow
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-XXSS-X2	O-XXSS-X2	O-XXSS-X2	O-XXSS-X2	O-XXSS-X2	O-XXSS-X2	O-XXSS-X2	O-XXSS-X2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum output current	1 A	6 A	4.5 A	2.25 A	0.9 A	1.33 A	3 A	1 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE	SPECIAL SHAPE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	7500 V	2500 V	2500 V	2500 V	7500 V	7500 V	2500 V	10000 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	-
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	-
Parts packaging code	-	MODULE	MODULE	MODULE	-	MODULE	MODULE	TO-263
application	-	HIGH VOLTAGE	HIGH VOLTAGE FAST RECOVERY	HIGH VOLTAGE FAST RECOVERY	-	HIGH VOLTAGE	HIGH VOLTAGE	-
Maximum forward voltage (VF)	-	5 V	6 V	6 V	-	12 V	4 V	-
Maximum non-repetitive peak forward current	-	200 A	150 A	80 A	-	100 A	100 A	-
Phase	-	1	1	1	-	1	1	-
Maximum reverse current	-	10 µA	10 µA	5 µA	-	5 µA	5 µA	-
