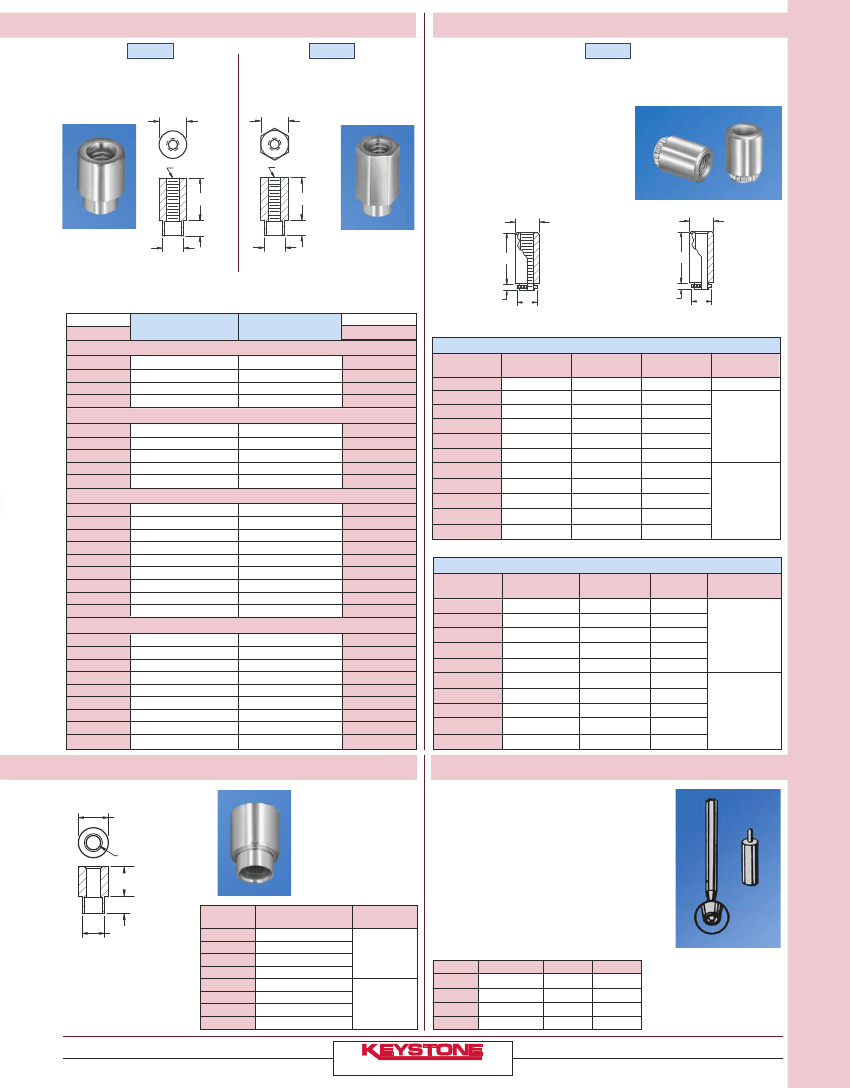

SWAGE THREADED STANDOFFS

ROUND

HEX

FORCE-FIT STANDOFFS

ROUND

A broaching-type fastener/standoff for installation in panels and circuit boards

.060 (1.52) and thicker made of plastic and other non-ductile materials. Available

threaded or with clearance holes. Easy to install, presses into punched or drilled holes.

O.D.

HEX

MATERIAL:

Stainless Steel per ASTM-A581/A582

MOUNTING HOLES:

THREAD

.105 (2.7)

L.D.

THREAD

.105 (2.7)

L.D.

.147 (3.7) hole for 2-56

.166 (4.2) hole for 4-40

.213 (5.4) hole for 6-32

TOLERANCE ON MOUNTING HOLES:

+.003/-.000

O.D.

SWAGE

FORCE FIT STANDOFFS

MATERIAL:

Brass, ASTM-B16, Nickel Plate (QQ-N-290)

For .062 (1.52) thick boards

.060

[1.52]

MAX.

.060

[1.52]

MAX.

ROUND

CAT. NO.

1589-2

1590-2

1591-2

1596-2

2260-2

2261-2

2262-2

2263-2

2264-2

1560A

1790-2

1650-2

1651-2

1623-2

1624-2

1625-2

1792-2

1652-2

1560B

1612-2

1546

1561B

1604-2

1605-2

1608-2

1796-2

1609-2

L.D. SHANK

HEIGHT ABOVE PANEL

DIAMETER

2-56 THREAD

.156 (4.0) O.D.

.125 (3.2)

.187 (4.7)

.125 (3.2)

.250 (6.4)

.125 (3.2)

.375 (9.5)

.125 (3.2)

4-40 THREAD

.187 (4.7) O.D.

.125 (3.2)

.139 (3.5)

.187 (4.7)

.139 (3.5)

.250 (6.4)

.139 (3.5)

.375 (9.5)

.139 (3.5)

.500 (12.7)

.139 (3.5)

4-40 THREAD

.250 (6.4) O.D.

.125 (3.2)

.187 (4.7)

.250 (6.4)

.187 (4.7)

.375 (9.5)

.187 (4.7)

.500 (12.7)

.187 (4.7)

.625 (15.9)

.187 (4.7)

.750 (19.1)

.187 (4.7)

.875 (22.2)

.187 (4.7)

1.000 (25.4)

.187 (4.7)

6-32 THREAD

.250 (6.4) O.D.

.125 (3.2)

.187 (4.7)

.250 (6.4)

.187 (4.7)

.375 (9.5)

.187 (4.7)

.500 (12.7)

.187 (4.7)

.625 (15.9)

.187 (4.7)

.750 (19.1)

.187 (4.7)

.875 (22.2)

.187 (4.7)

1.000 (25.4)

.187 (4.7)

HEX

CAT NO.

1731-2

1734-2

1740-2

1743-2

2270-2

2271-2

2272-2

2273-2

2274-2

1653-2

1746-2

1627-2

1628-2

1629-2

1654-2

1655-2

1749-2

1630-2

1620-2

1752-2

1621-2

1622-2

1758-2

1759-2

1761-2

1775-2

1784-2

CAT. NO.

4860

4861

4862

4863

4864

4865

4866

4867

4868

4869

4870

Threaded

THREADED

LENGTH

.065 (1.7)

065 (1.7)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.500 (12.7)

.065 (1.7)

.125

(3.2)

.250 (6.4)

.375 (9.5)

.500 (12.7)

O.D.

.219 (5.6)

.281 (7.1)

CLEAR HOLE

CAT. NO.

4850

4851

4852

4853

4854

4855

4856

4857

4858

4859

LENGTH

.065 (1.7)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.500

(12.7)

.065 (1.7)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.500 (12.7)

O.D.

.219 (5.6)

.281 (7.1)

Clear Hole

.165

.184

.231

(4.2)

(4.7)

(5.9)

(.59)

THREAD

2-56

4-40

6-32

*Thread depth .375 (9.5)

.184 (4.7)

.231 (5.9)

HOLE

.116 (2.9)

For # 4

.143 (3.6)

For # 6

SWAGE CLEAR HOLE SPACERS

.250

[6.4]

SWAGE STAKING TOOLS

Precision made staking tool kits are made from .250

(6.4) diameter heat treated steel, zinc plated. Each kit

includes the correct swage top staking tool anvil to

create a professional appearance. These tools may be

used with an arbor press or hand tapped.

.109 [2.8]

.187 [4.8]

MATERIAL:

Brass, ASTM-B16,

Nickel Plate (QQ-N-290)

For .062 (1.52) thick boards

CAT. NO.

5058-2

5060-2

5061-2

5062-2

5059-2

5063-2

5064-2

5065-2

HEIGHT ABOVE PANEL

.125 (3.2)

.250 (6.4)

.375 (9.5)

.500 (12.7)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.500 (12.7)

HOLE

.120 (3.0)

For # 4

.140 (3.5)

For # 6

CAT. NO.

STANDOFF DIA.

TL-19

.156 (4.0)

TL-22

.187 (4.7)

TL-20

.250 (6.4)

TL-21

.250 (6.4)

THREAD

2-56

4-40

6-32

HOLE SIZE

—

.120 (3.0)

Tel (718) 956-8900

•

Fax (718) 956-9040

(800) 221-5510

•

kec@keyelco.com

RoHS COMPLIANT

ISO 9001 CERTIFIED

www.keyelco.com

31-07 20th Road – Astoria, NY 11105-2017
