UCN5890LW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> UCN5890LW

UCN5890LW: DescriptionPANEL MOUNT, FEMALE, SMA CONNECTOR; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size151KB，8 Pages; ManufacturerAllegro; Websitehttp://www.allegromicro.com/

Download Datasheet Parametric Compare View All

UCN5890LW Overview

PANEL MOUNT, FEMALE, SMA CONNECTOR

UCN5890LW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Allegro
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Built-in protection	TRANSIENT
Number of drives	8
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Output current flow direction	SOURCE
Nominal output peak current	0.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.65 mm
Nominal supply voltage	5 V
Supply voltage1-Nom	80 V
surface mount	YES
technology	BIMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	10 µs
connection time	2 µs
width	7.5 mm

Preview

Download Datasheet

View All

5890

AND

5891

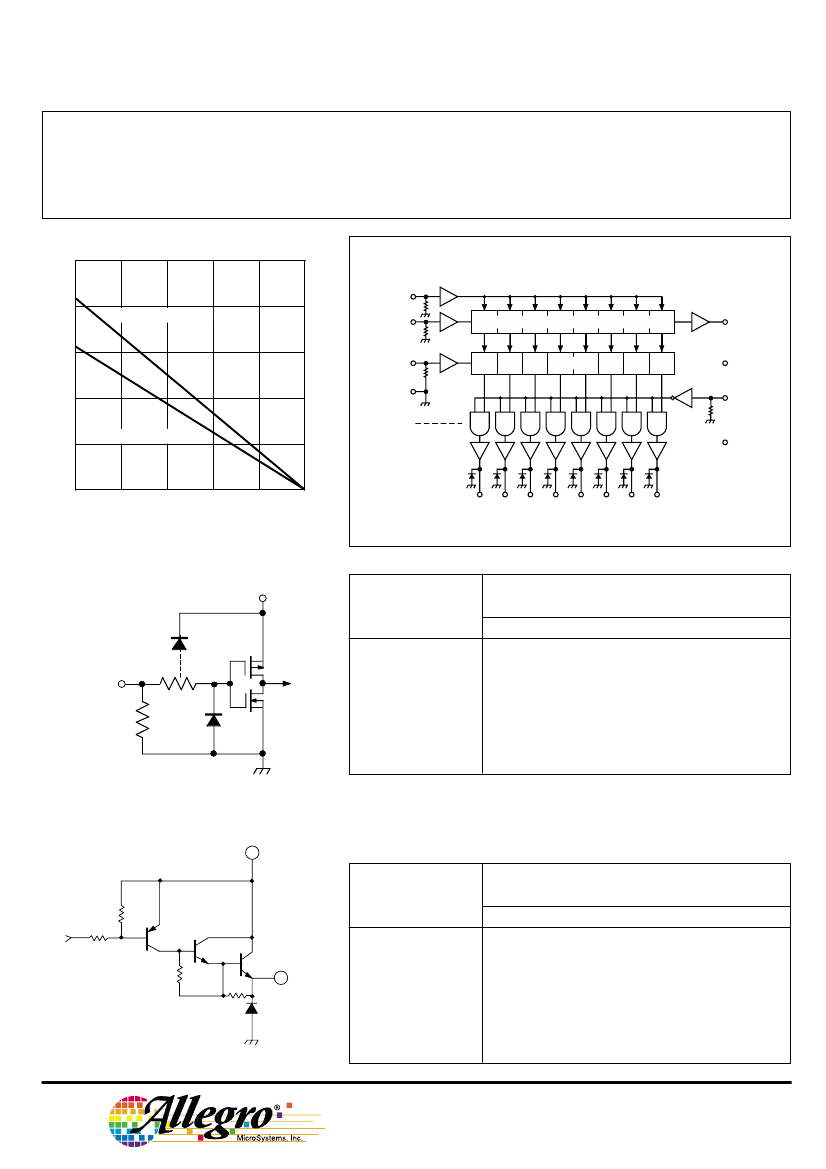

Frequently applied in non-impact printer systems, the UCN5890A,

UCN5890LW, UCN5891A, and UCN5891LW are BiMOS II serial-input,

latched source (high-side) drivers. The octal, high-current smart-power ICs

merge an 8-bit CMOS shift register, associated CMOS latches, and CMOS

control logic (strobe and output enable) with sourcing power Darlington

outputs. Typical applications include multiplexed LED and incandescent

displays, relays, solenoids, and similar peripheral loads to a maximum of

-500 mA per output.

BIMOS II 8-BIT SERIAL-INPUT,

LATCHED SOURCE DRIVERS

GROUND

CLOCK

SERIAL

DATA IN

STROBE

OUT

LATCHES

CLK

SHIFT

SERIAL

DATA OUT

LOGIC

SUPPLY

OUTPUT

ENABLE

LOAD

SUPPLY

OUT

Data Sheet

26182.12C

Except for output voltage ratings, these smart high-side driver ICs are

equivalent. The UCN5890A/LW are rated for operation with load supply

voltages of 20 V to 80 V and a minimum output sustaining voltage of 50 V.

The UCN5891A/LW are optimized for operation with supply voltages of 5 V

to 50 V (35 V sustaining).

BiMOS II devices have higher data-input rates than the original BiMOS

circuits. With a 5 V supply, they will operate to at least 3.3 MHz. At 12 V,

higher speeds are possible. The CMOS inputs are compatible with standard

CMOS and NMOS logic levels. TTL circuits may require the use of appropri-

ate pull-up resistors to ensure a proper input-logic high. A CMOS serial data

output, allows cascading these devices in multiple drive-line applications

required by many dot matrix, alphanumeric, and bar graph displays.

Suffix ‘A’ devices are supplied in a standard dual in-line plastic package

with copper lead frame for enhanced package power dissipation characteris-

tics. Suffix ‘LW’ devices are supplied in a standard wide-body SOIC package

for surface-mount applications. Similar driver, featuring reduced output

saturation voltage, are the UCN5895A and A5895SLW. Complementary,

8-bit serial-input, latched sink drivers are the Series UCN5820A.

Dwg. PP-026-2A

Note the suffix ‘A’ devices (DIP) and the suffix

‘LW’ devices (SOIC) are electrically identical and

share a common terminal number assignment.

ABSOLUTE MAXIMUM RATINGS

at T

= +25°C

Output Voltage, V

OUT

(UCN5890A & UCN5890LW) .........

80 V

(UCN5891A & UCN5891LW) .........

50 V

Logic Supply Voltage Range,

....................................

4.5 V to 15 V

Driver Supply Voltage Range, V

(UCN5890A/LW) ................

20 V to 80 V

(UCN5891A/LW) ...............

5.0 V to 50 V

Input Voltage Range,

........................

-0.3 V to V

+ 0.3 V

Continuous Output Current,

OUT

...........................................

-500 mA

Allowable Package Power Dissipation,

.........................................

See Graph

Operating Temperature Range,

..................................

-20

C to +85

Storage Temperature Range,

................................

-55

C to +150

Caution: CMOS devices have input static

protection, but are susceptible to damage when

exposed to extremely high static electrical

charges.

FEATURES

50 V or 80 V Source Outputs

Output Current to -500 mA

Output Transient-Suppression Diodes

To 3.3 MHz Data-lnput Rate

Low-Power CMOS Logic and Latches

Always order by complete part number, e.g., UCN5891LW .

UCN5890LW Related Products

	UCN5890LW	5890	UCN5891A	UCN5890A	UCN5890
Description	PANEL MOUNT, FEMALE, SMA CONNECTOR	PANEL MOUNT, FEMALE, SMA CONNECTOR	PANEL MOUNT, FEMALE, SMA CONNECTOR	PANEL MOUNT, FEMALE, SMA CONNECTOR	PANEL MOUNT, FEMALE, SMA CONNECTOR
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-
Maker	Allegro	-	Allegro	Allegro	-
Parts packaging code	SOIC	-	DIP	DIP	-
package instruction	SOP, SOP16,.4	-	DIP, DIP16,.3	DIP, DIP16,.3	-
Contacts	16	-	16	16	-
Reach Compliance Code	unknow	-	compli	unknow	-
ECCN code	EAR99	-	EAR99	EAR99	-
Built-in protection	TRANSIENT	-	TRANSIENT	TRANSIENT	-
Number of drives	8	-	8	8	-
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER	-	SIPO BASED PERIPHERAL DRIVER	SIPO BASED PERIPHERAL DRIVER	-
JESD-30 code	R-PDSO-G16	-	R-PDIP-T16	R-PDIP-T16	-
JESD-609 code	e0	-	e0	e0	-
length	10.3 mm	-	19.175 mm	19.175 mm	-
Number of functions	1	-	1	1	-
Number of terminals	16	-	16	16	-
Maximum operating temperature	85 °C	-	85 °C	85 °C	-
Minimum operating temperature	-20 °C	-	-20 °C	-20 °C	-
Output current flow direction	SOURCE	-	SOURCE	SOURCE	-
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SOP	-	DIP	DIP	-
Encapsulate equivalent code	SOP16,.4	-	DIP16,.3	DIP16,.3	-
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	-	IN-LINE	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Certification status	Not Qualified	-	Not Qualified	Not Qualified	-
Maximum seat height	2.65 mm	-	5.33 mm	5.33 mm	-
Nominal supply voltage	5 V	-	5 V	5 V	-
Supply voltage1-Nom	80 V	-	50 V	80 V	-
surface mount	YES	-	NO	NO	-
technology	BIMOS	-	BIMOS	BIMOS	-
Temperature level	OTHER	-	OTHER	OTHER	-
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	-	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	1.27 mm	-	2.54 mm	2.54 mm	-
Terminal location	DUAL	-	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Disconnect time	10 µs	-	10 µs	10 µs	-
connection time	2 µs	-	2 µs	2 µs	-
width	7.5 mm	-	7.62 mm	7.62 mm	-
