LM107H datasheet, PDF - EEWORLD Datasheet

LM107H: DescriptionOperational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, METAL, CAN-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size66KB，2 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

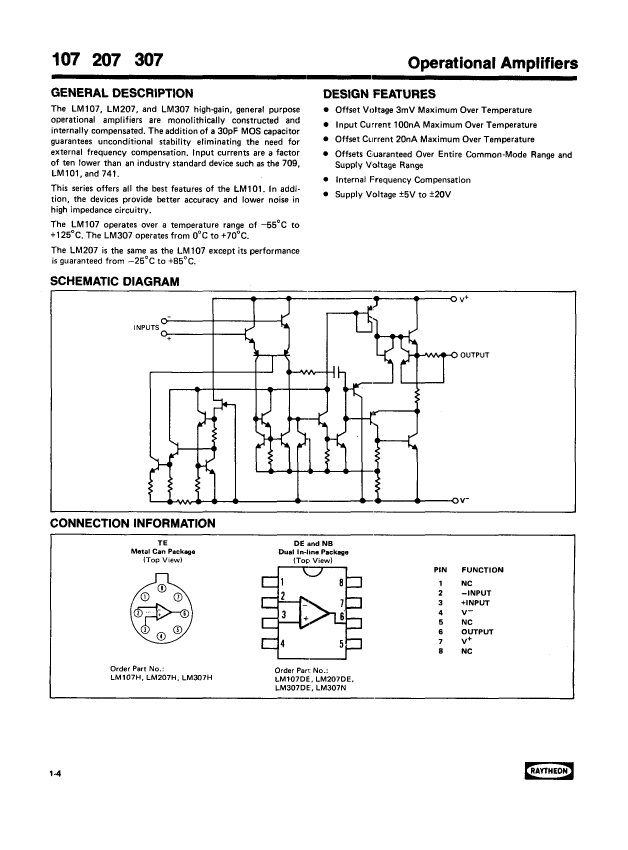

LM107H Overview

Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, METAL, CAN-8

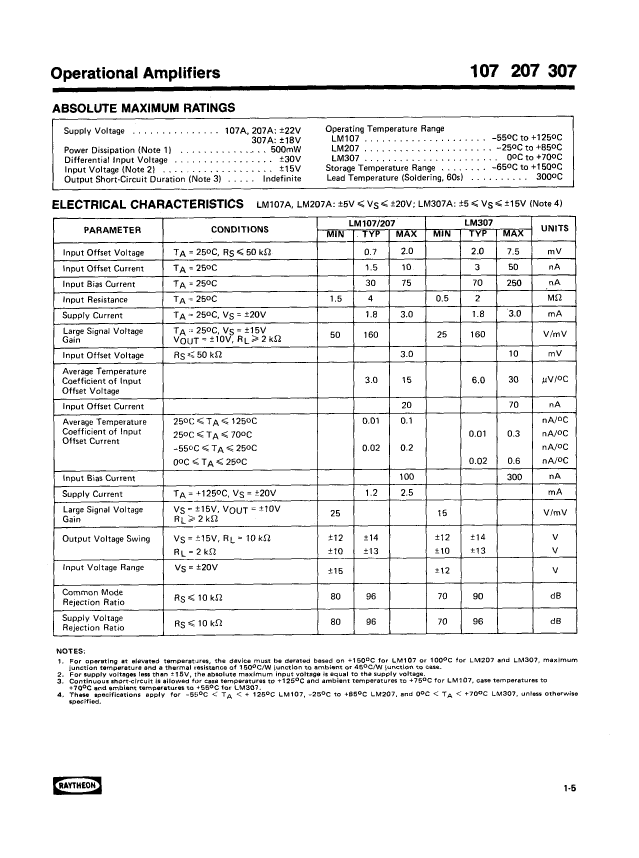

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raytheon Company
Objectid	1679729822
package instruction	, CAN8,.2
Reach Compliance Code	unknown
compound_id	294038201
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.1 µA
Maximum bias current (IIB) at 25C	0.075 µA
Nominal Common Mode Rejection Ratio	96 dB
frequency compensation	YES
Maximum input offset voltage	3000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-bias	NO
low-dissonance	NO
micropower	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power	NO
power supply	+-5/+-20 V
Programmable power	NO
Certification status	Not Qualified
Maximum slew rate	3 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	25000
broadband	NO

	LM107H	LM107H/883B
Description	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, METAL, CAN-8	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8, METAL, CAN-8
Is it Rohs certified?	incompatible	incompatible
Maker	Raytheon Company	Raytheon Company
package instruction	, CAN8,.2	METAL, CAN-8
Reach Compliance Code	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.1 µA	0.1 µA
Nominal Common Mode Rejection Ratio	96 dB	96 dB
frequency compensation	YES	YES
Maximum input offset voltage	3000 µV	3000 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0
low-bias	NO	NO
low-dissonance	NO	NO
micropower	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	METAL	METAL
Encapsulate equivalent code	CAN8,.2	CAN8,.2
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power	NO	NO
power supply	+-5/+-20 V	+-5/+-15 V
Programmable power	NO	NO
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
broadband	NO	NO
