LF398H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LF398H

LF398H: DescriptionSample and Hold Circuit; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LF398H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LF398H	-	-	View	Buy Now

LF398H Overview

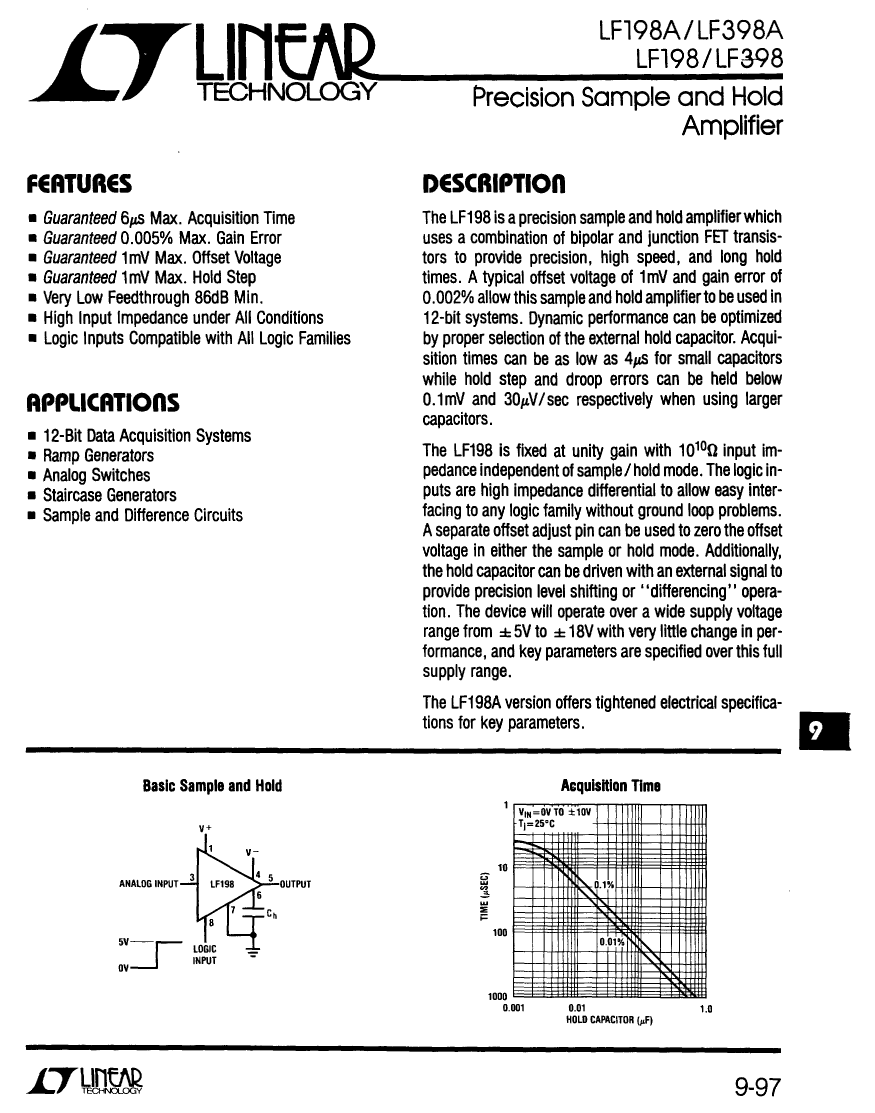

Sample and Hold Circuit

LF398H Parametric

Parameter Name	Attribute value
Maker	ADI
package instruction	, CAN8,.2
Reach Compliance Code	compliant
Nominal acquisition time	16 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	11.5 V
Minimum analog input voltage	-11.5 V
JESD-30 code	O-MBCY-W8
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Sample and hold/Track and hold	SAMPLE
Maximum slew rate	6.5 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	WIRE
Terminal location	BOTTOM

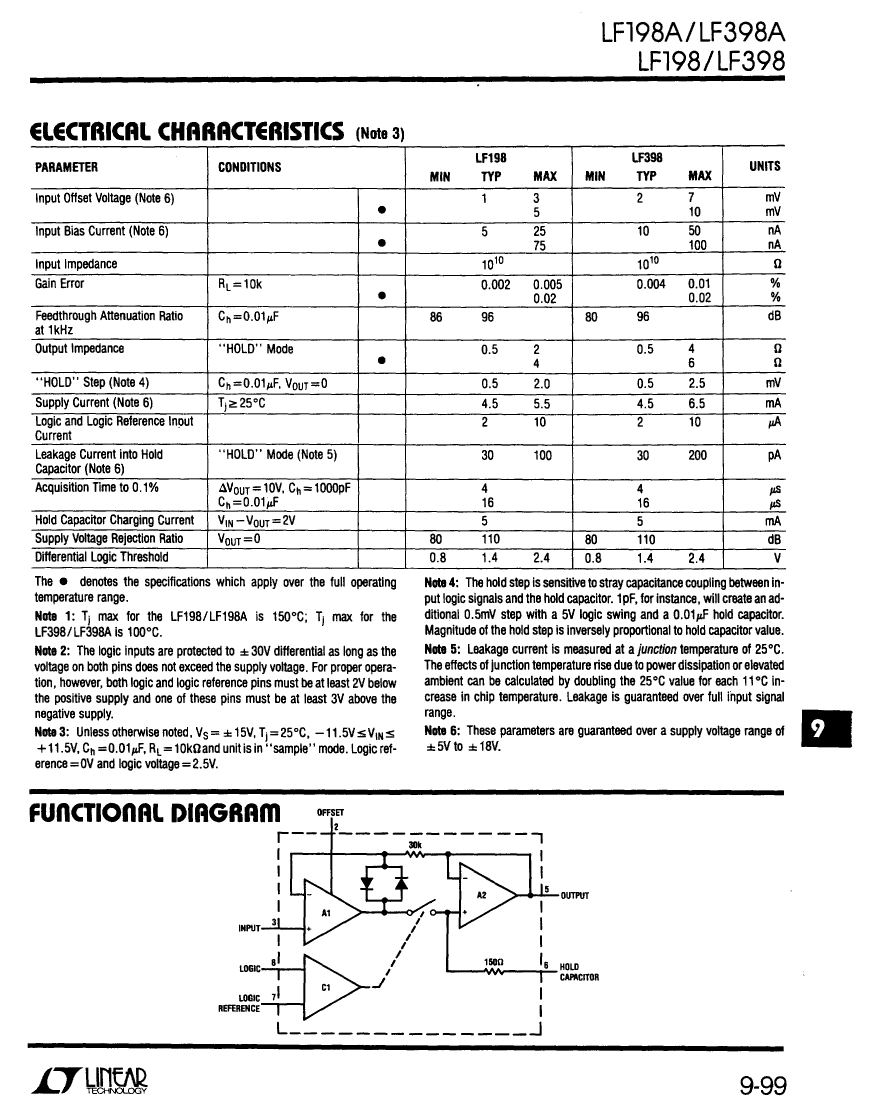

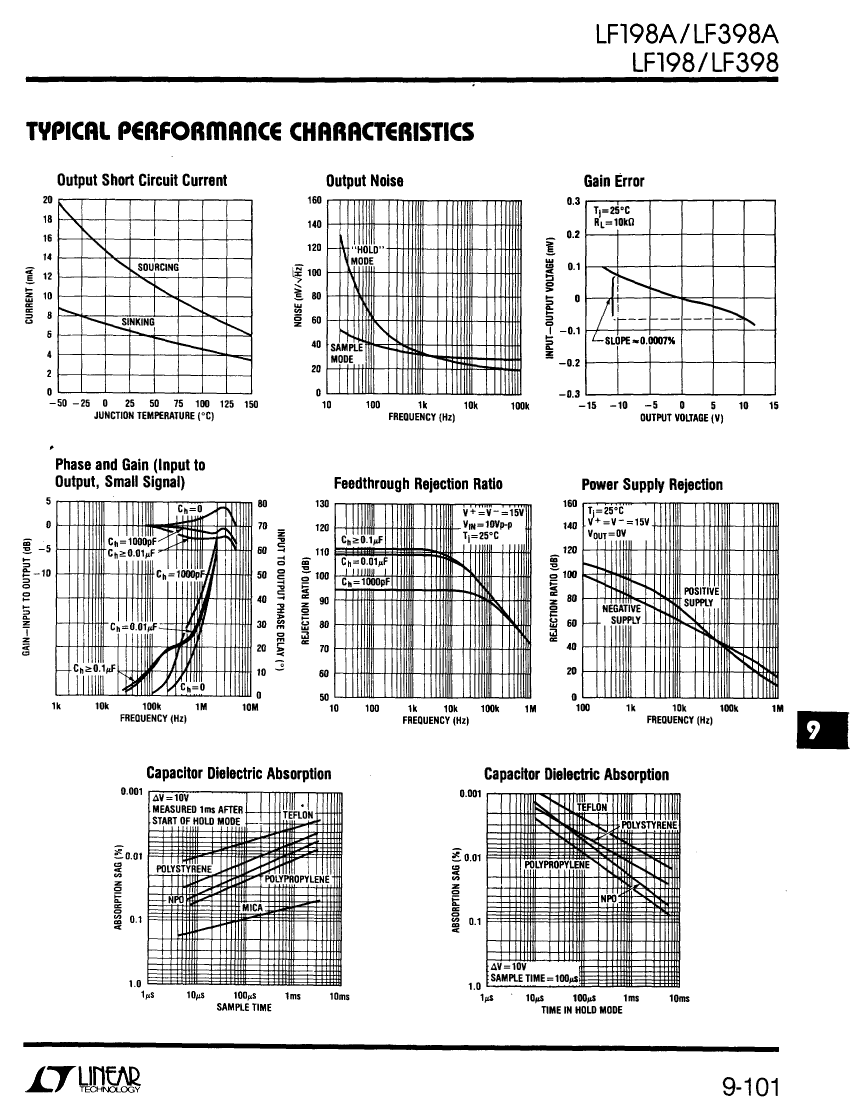

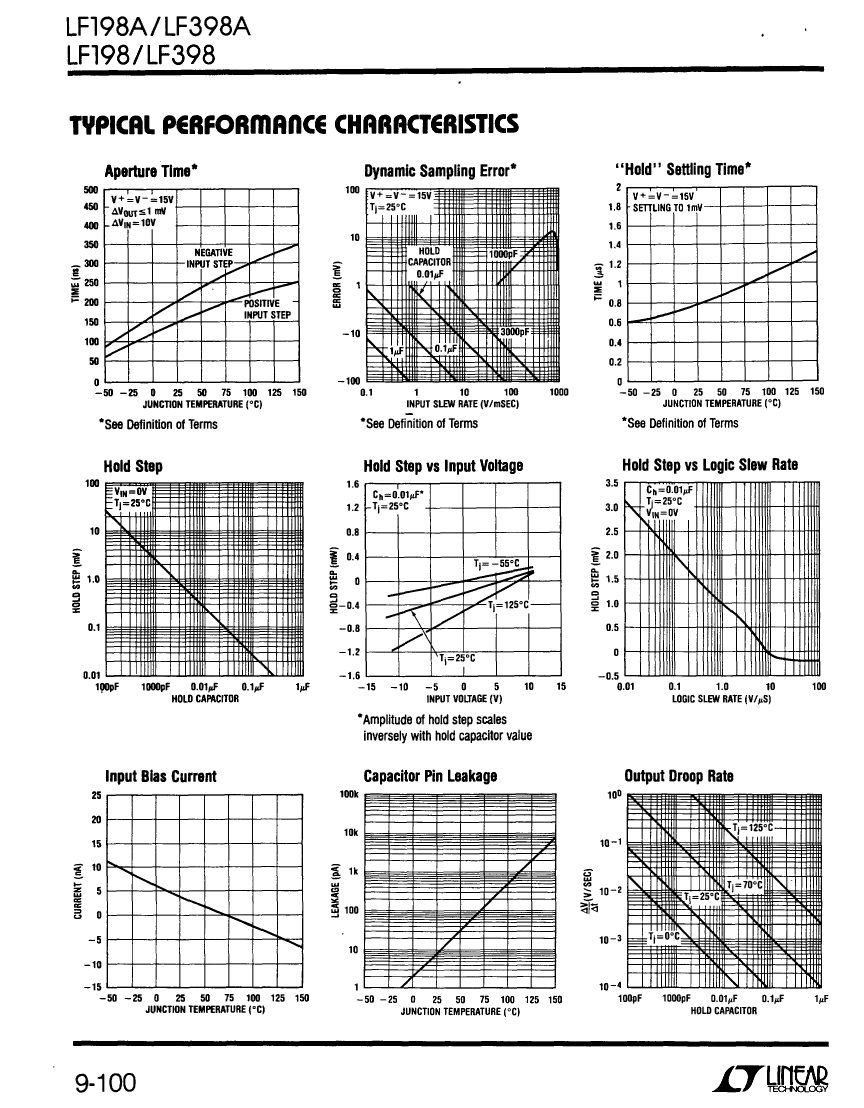

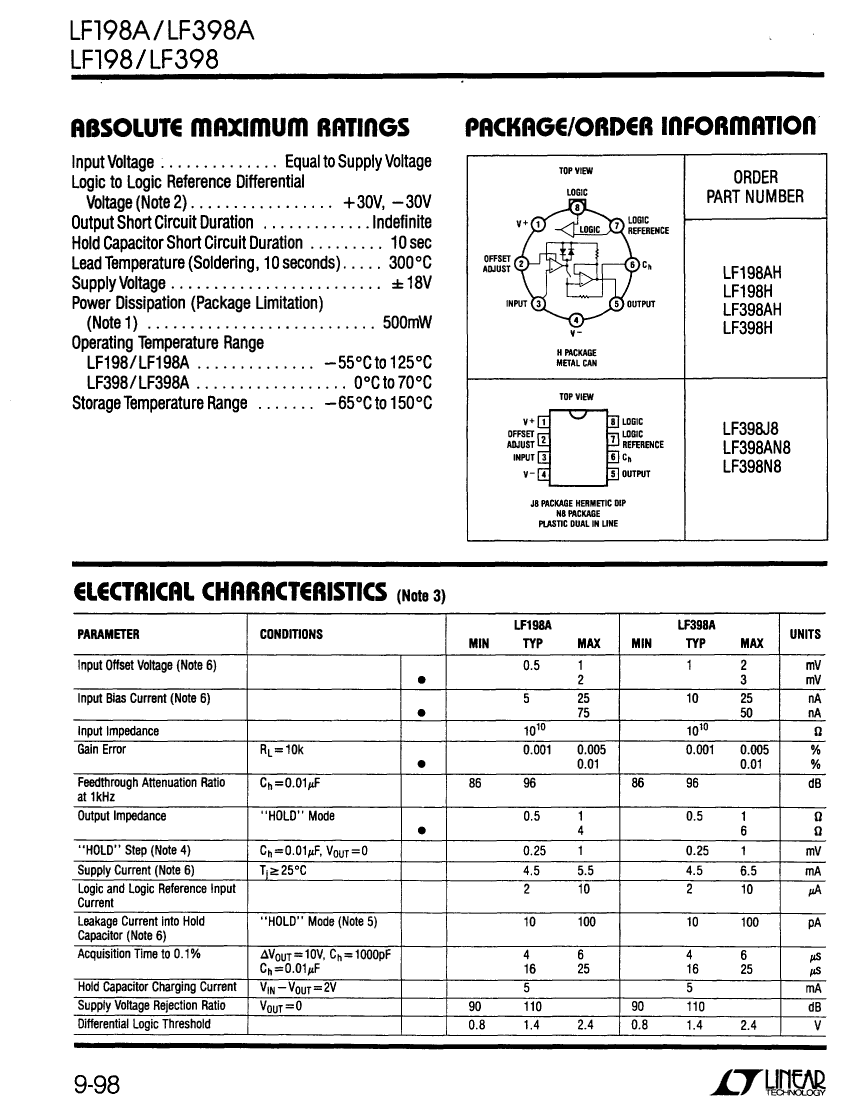

Preview

Download Datasheet

View All

LF398H Related Products

	LF398H	LF398N8	LF198AH	LF198H	LF398AN8
Description	Sample and Hold Circuit	Sample and Hold Circuit	Sample and Hold Circuit	Sample and Hold Circuit	Sample and Hold Circuit
package instruction	, CAN8,.2	DIP, DIP8,.3	CAN-8	CAN-8	DIP, DIP8,.3
Reach Compliance Code	compliant	compliant	unknown	unknown	compliant
Nominal acquisition time	16 µs	16 µs	16 µs	16 µs	16 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	11.5 V	11.5 V	11.5 V	11.5 V	11.5 V
Minimum analog input voltage	-11.5 V	-11.5 V	-11.5 V	-11.5 V	-11.5 V
JESD-30 code	O-MBCY-W8	R-PDIP-T8	O-MBCY-W8	O-MBCY-W8	R-PDIP-T8
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	125 °C	125 °C	70 °C
Package body material	METAL	PLASTIC/EPOXY	METAL	METAL	PLASTIC/EPOXY
Package shape	ROUND	RECTANGULAR	ROUND	ROUND	RECTANGULAR
Package form	CYLINDRICAL	IN-LINE	CYLINDRICAL	CYLINDRICAL	IN-LINE
Sample and hold/Track and hold	SAMPLE	SAMPLE	SAMPLE	SAMPLE	SAMPLE
Maximum slew rate	6.5 mA	6.5 mA	5.5 mA	5.5 mA	6.5 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal form	WIRE	THROUGH-HOLE	WIRE	WIRE	THROUGH-HOLE
Terminal location	BOTTOM	DUAL	BOTTOM	BOTTOM	DUAL
Maker	ADI	-	-	ADI	ADI
Encapsulate equivalent code	CAN8,.2	DIP8,.3	-	-	DIP8,.3
Maximum acquisition time	-	-	25 µs	25 µs	25 µs
