92844-312J: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size176KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

92844-312J Overview

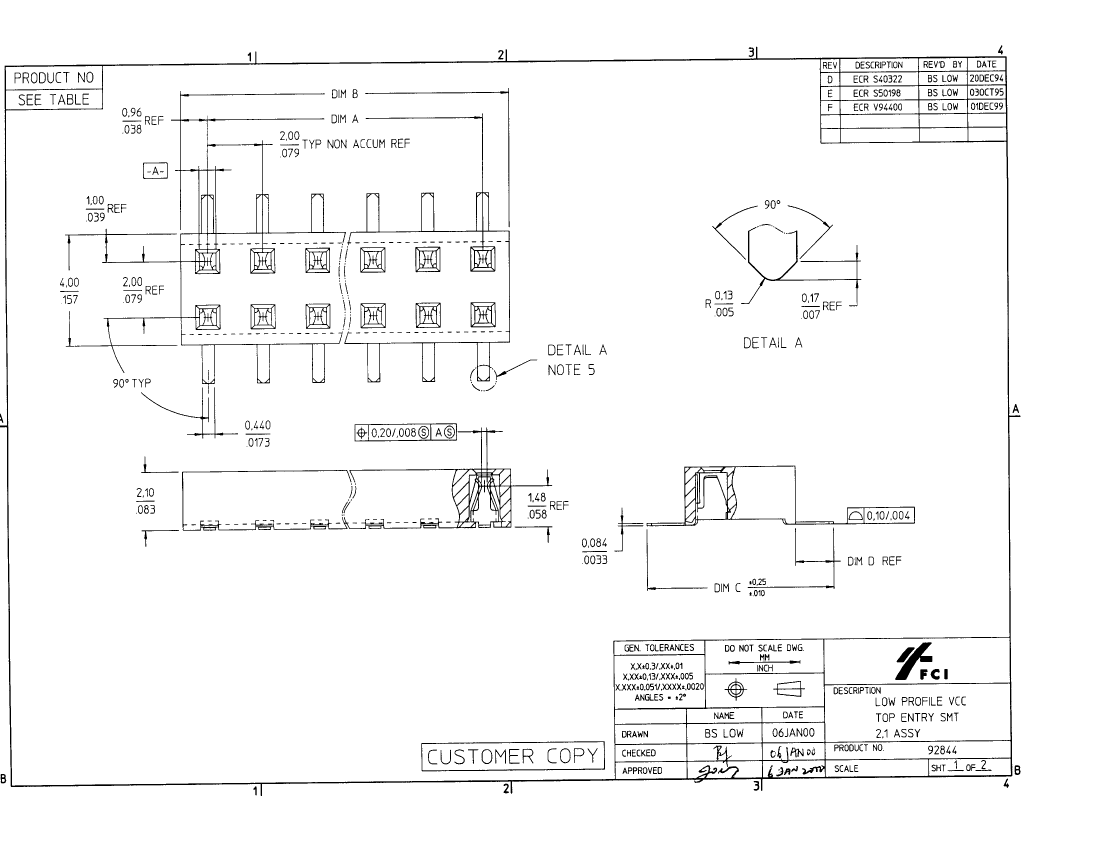

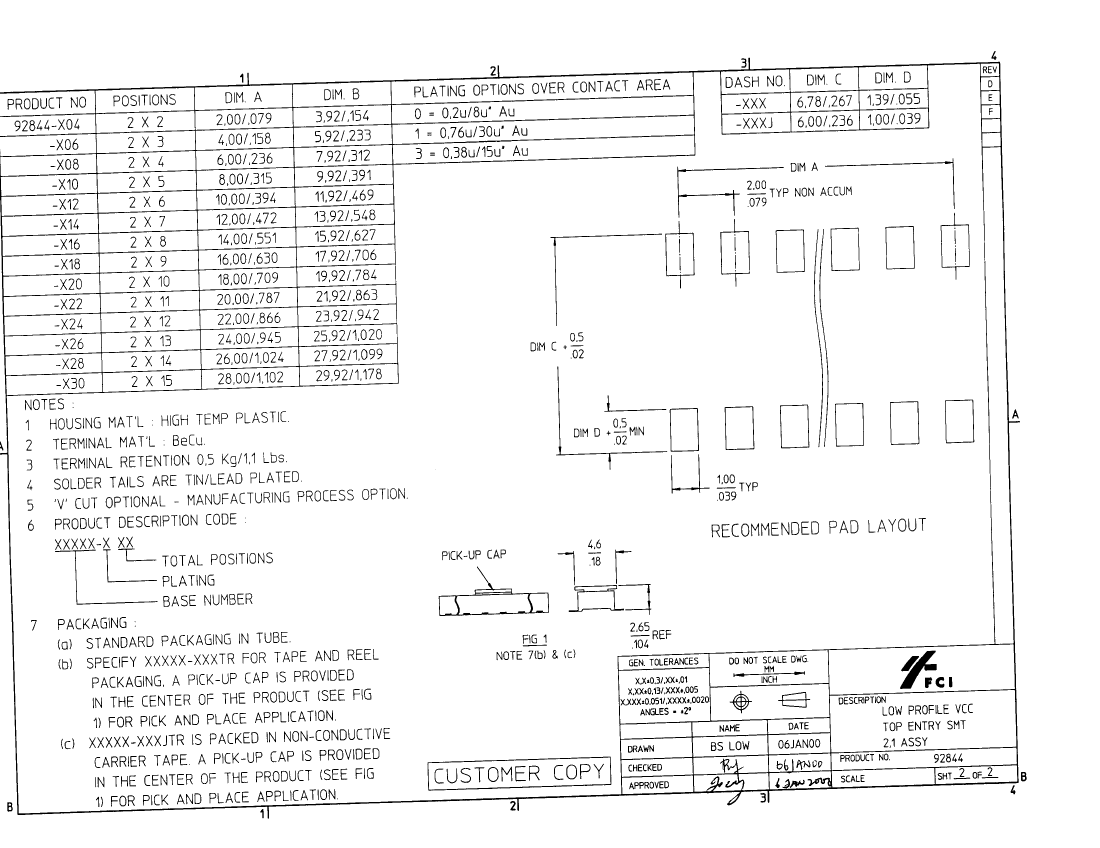

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.157 inch
subject depth	0.083 inch
body length	0.469 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
JESD-609 code	e0
Manufacturer's serial number	92844
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	12

PDM: Rev:F

STATUS:

Released

Printed: Nov 28, 2002
