90572-2203 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 90572-2203

90572-2203: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size42KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

90572-2203 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

90572-2203 Parametric

Parameter Name	Attribute value
Maker	Molex
Objectid	1416395055
Reach Compliance Code	unknown
compound_id	58019847
Other features	QF 50
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	90572
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0

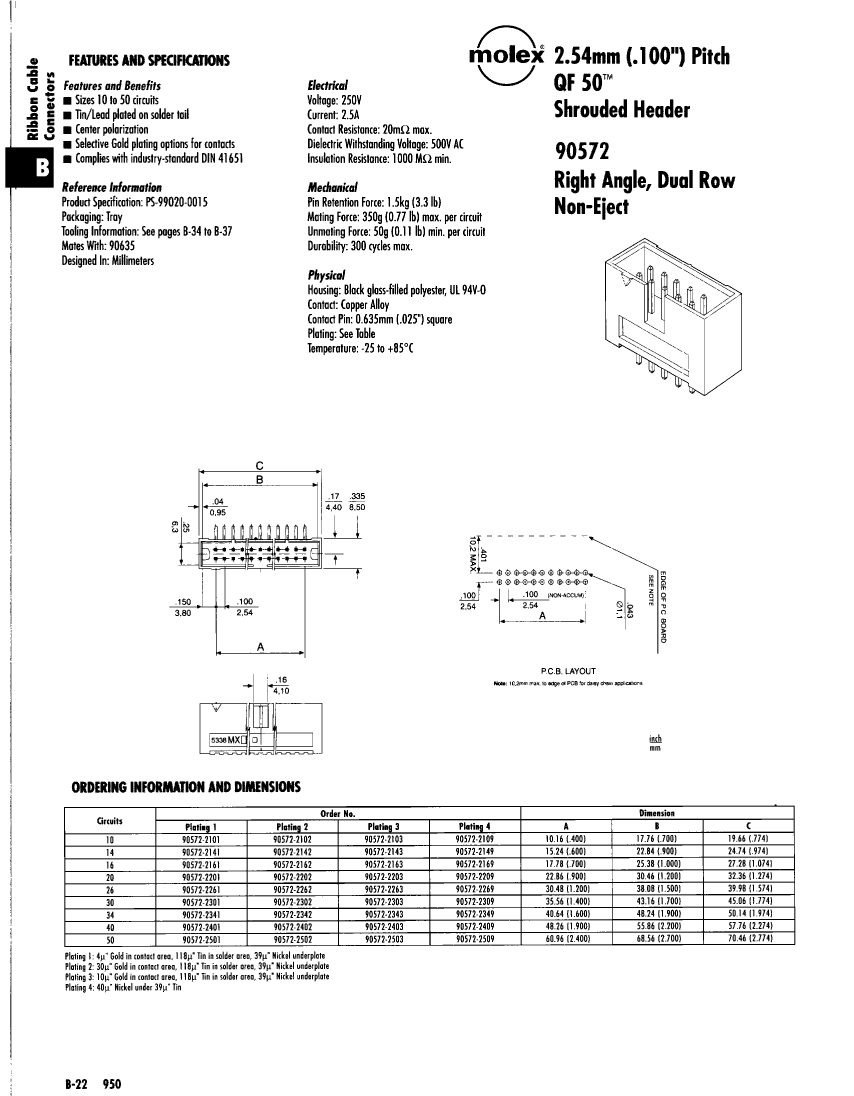

Preview

Download Datasheet

View All

90572-2203 Related Products

	90572-2203	90572-2209	90572-2263	90572-2143	90572-2309	90572-2403	90572-2163	90572-2303
Description	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	QF 50	QF 50	QF 50	QF 50	QF 50	QF 50	QF 50	QF 50
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	20	20	26	14	30	40	16	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	90572	-	90572	90572	-	90572	90572	90572
Base Number Matches	-	1	1	1	1	1	-	-
