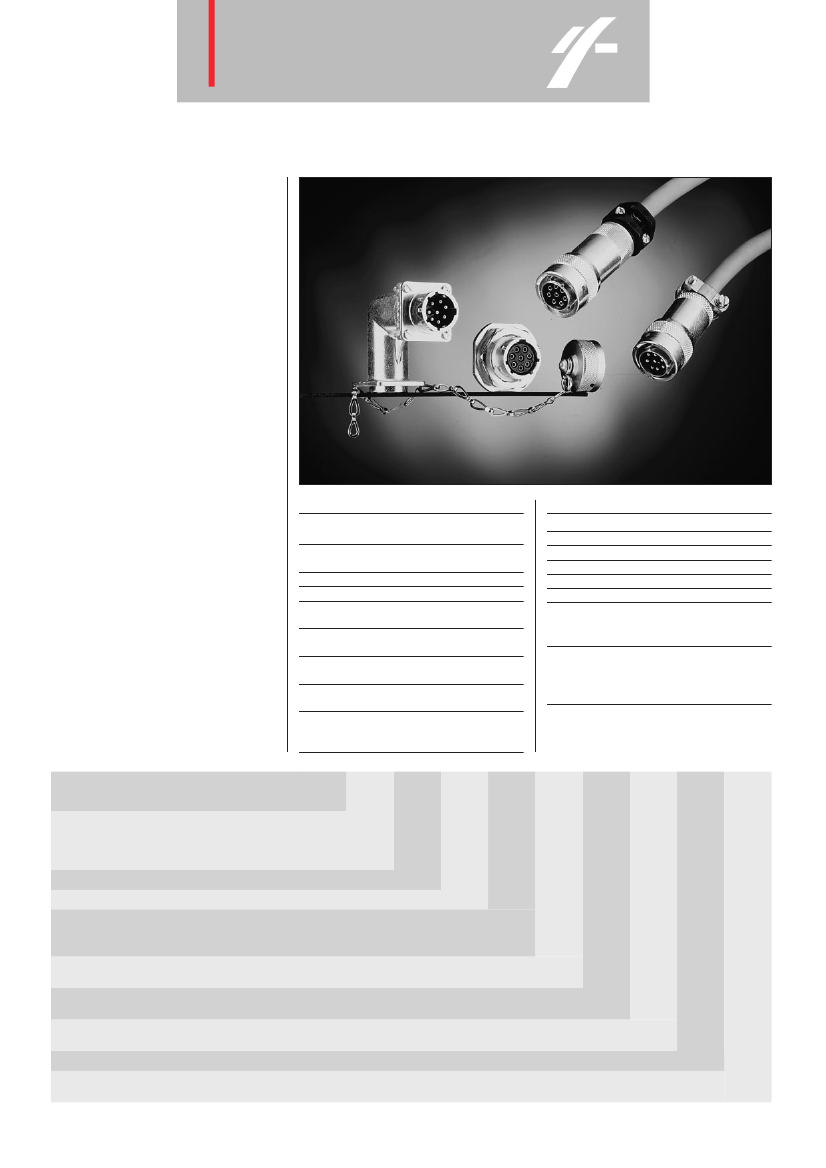

UT0
- Bantam
Metal circular
connector
(Suitable for EMC requirements)
Description
“UT0” Bantam industrial circular connectors
are a range of multiway connectors available
in 8 shell sizes and 8 insert arrangements
all intermateable, interchangeable and
intermountable with the Trim-Trio “UTG” ,
“UTGS” and “UTP industrial connector
families.
“UT0” is equipped with identical shells
from military connectors complying to
MIL-C-26482 spec.
Strong and rugged built to resist every
environmental and mechanical requirement
for indoor and outdoor applications.
In combination with the shielded backshell ,
“UT0” offers the perfect solution to EMC
requirements.
Features and benefits
• Suitable for EMC requirements.
• Shielded backshell is independent of the
cable diameter and its shielding.
• Available in 8 shell sizes and 8 insert
arrangements.
• Available in plug and receptacle version for
both male and female contacts.
• Shells and accessories are made from tin
plated corrosion resistant Aluminium.
• Plastic inserts with flammability rating:
UL94-V0.
• Alu. bayonet ring:
- Metal wave spring loaded.
- Locks with audible positive “click”
- Assures 500 matings and unmatings
Performance characteristics
Operating
temperature:
Insulation
resistance:
Test potential:
Durability:
Vibration
resistance:
Thermal
shock:
Corrosion:
-55°C to +125°C
Construction
Shells and accessories: Alumimium alloy
Coupling ring: Aluminium alloy
Tri-lock pins: Stainless steel
Coupling spring: Spring steel
Insert: Glass-filled thermoplast UL94-V0
Finish: Bright tin (standard)
How to order
5000 MΩ min.
2000 VAC
500 matings and unmatings.
Per MIL-STD202
method 204
Per MIL-STD202
method 207
Salt spray per MIL-STD 202
method 101
Shielding effectiveness: 95 dB at 1 Mhz
(see shielded connectors section)
Degree of protection per DIN 40050:
IP65 in mated condition. “H” version used
with UTG-PG cable clamp
UT0
UT0
0
6
14
14
12
12
P
S
Contact accommodation
• “UT0” connectors accept Trim-Trio crimp-
type removable snap-lock contacts (see
contacts section)
• Contacts to be ordered seperately.
–
–
H
––
T
B
B
Body variation:
0 :

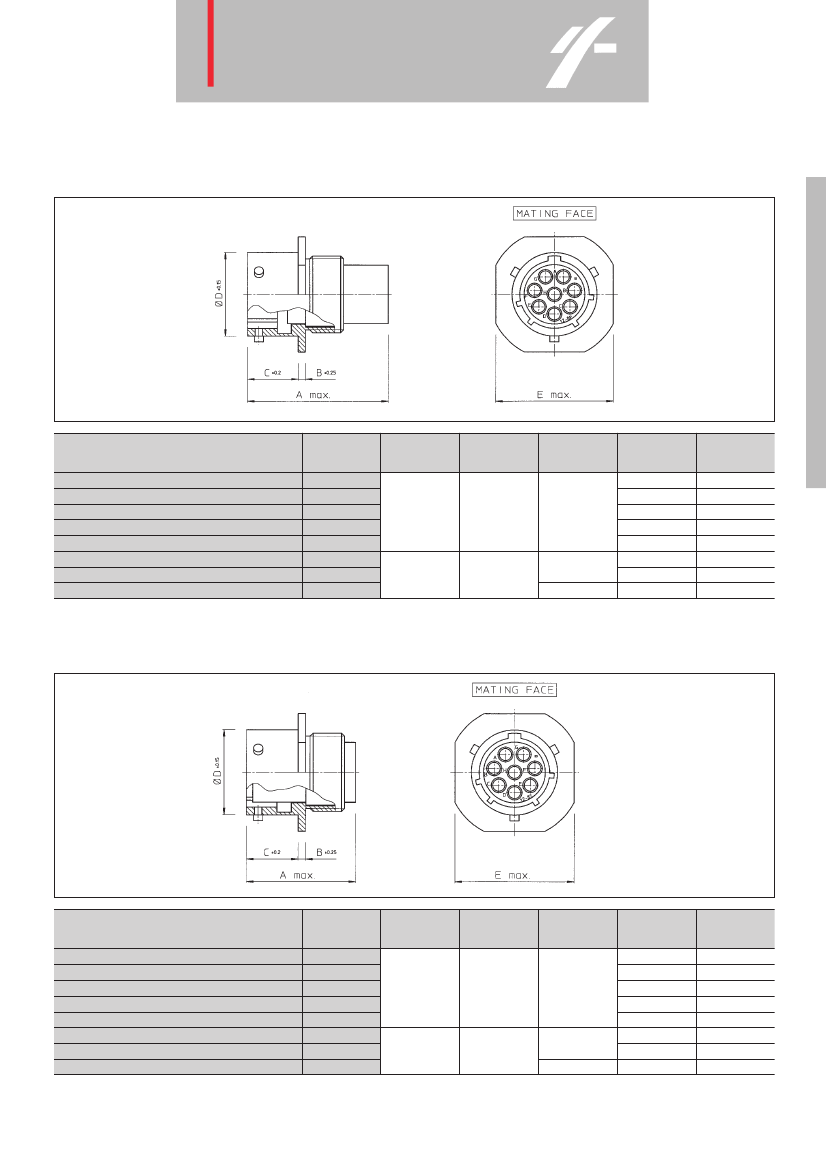

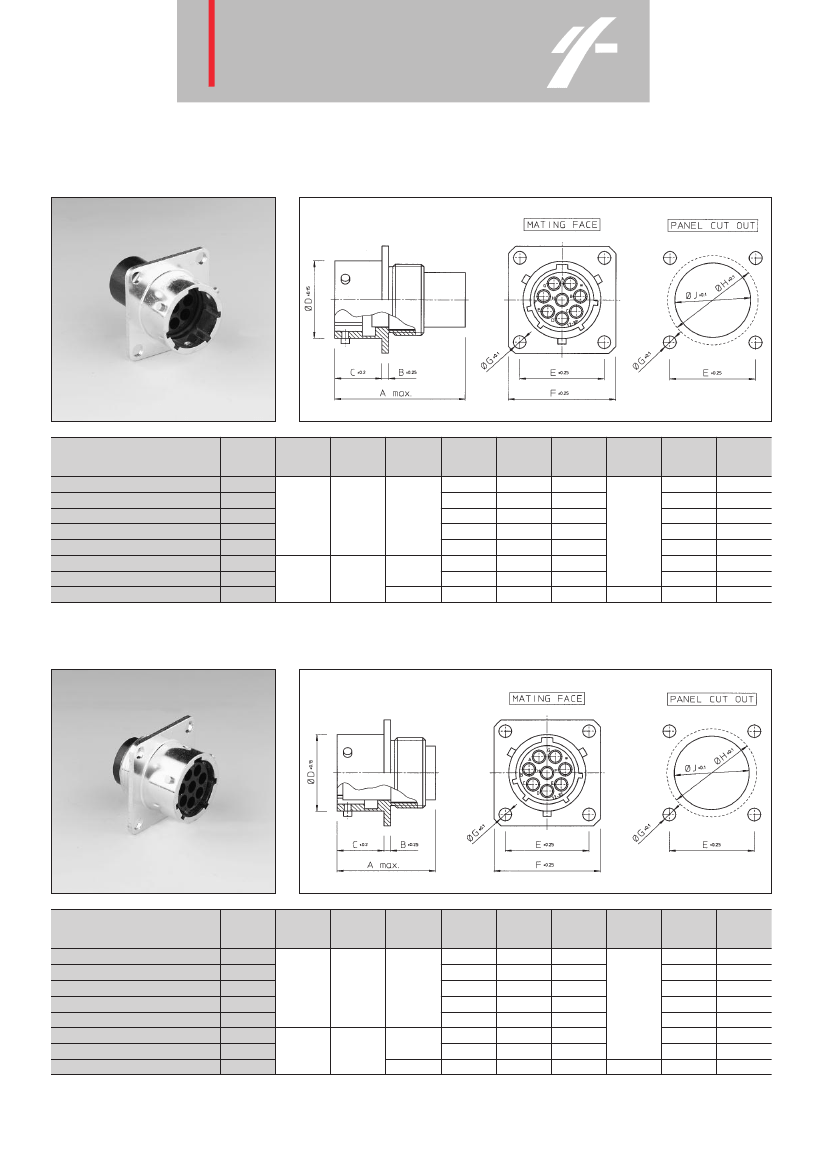

Wall mounting receptacle
6 :

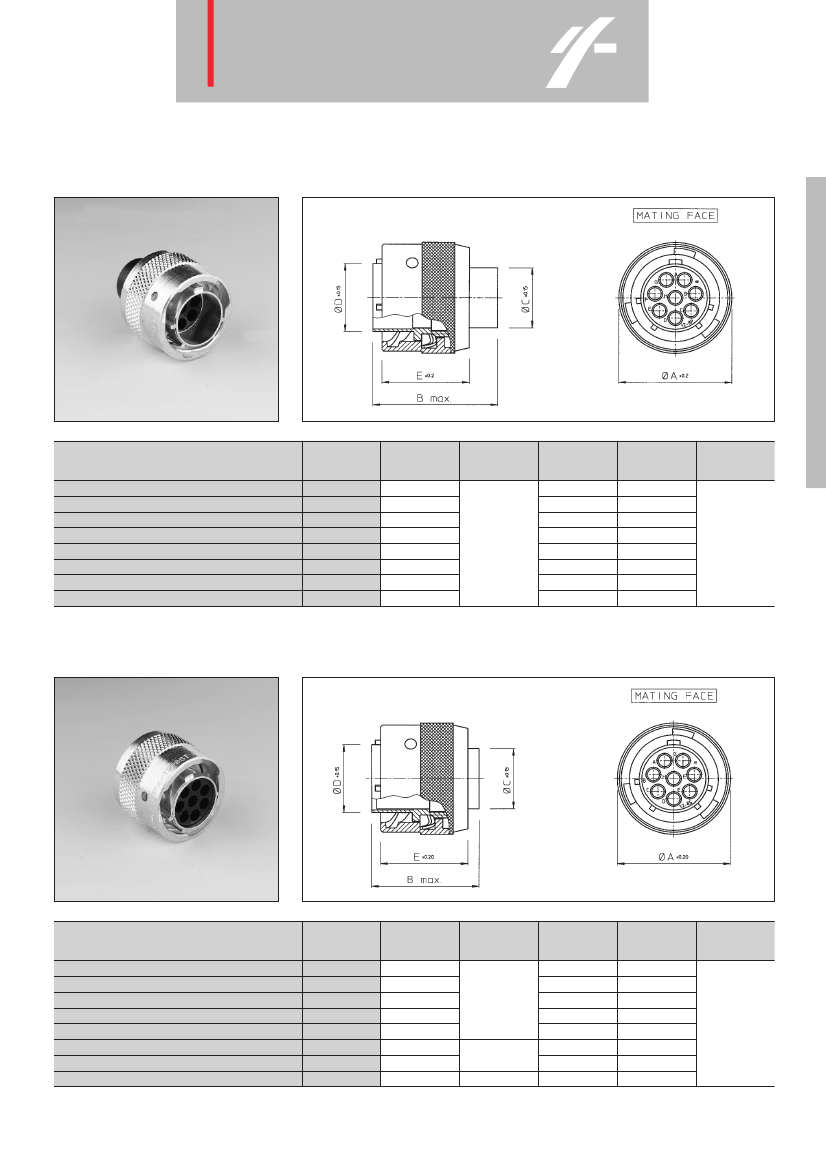

Cable plug
1 :
Free hanging receptacle
7 :

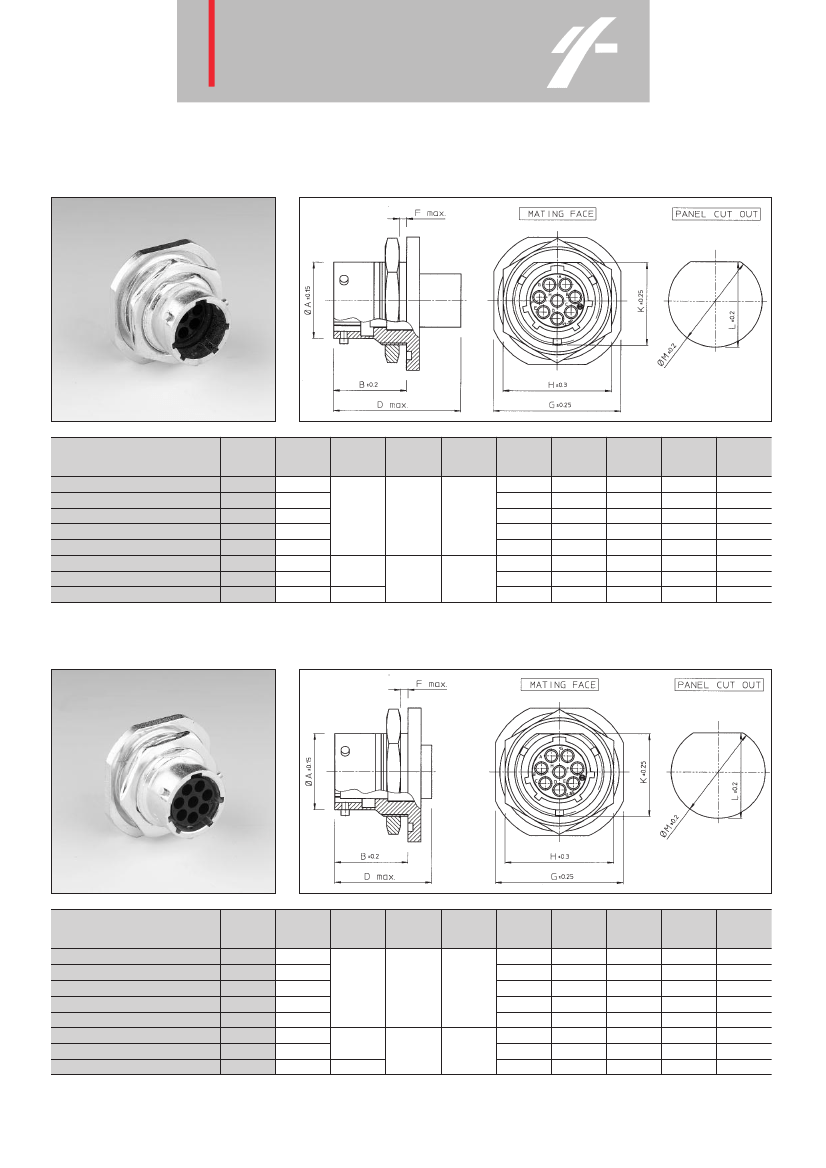

Bulk head receptacle for rear panel mounting
Shell size:
Insert arrangement:
Type of contacts: P :
Pin contacts
S :
Socket contacts
Insert polarisation: No letter :
Standard version
Application:
Design variation:
Plating:
Packing:
No letter :
Standard version
H :
Water protected version (only receptacle)
No letter :
Standard version
Others :
Special versions
T :
Bright tin (Standard version)
No letter:
Standard version: Each connector individualy packed in plastic bag
B:
Bulk packing per qty of 100 pcs
