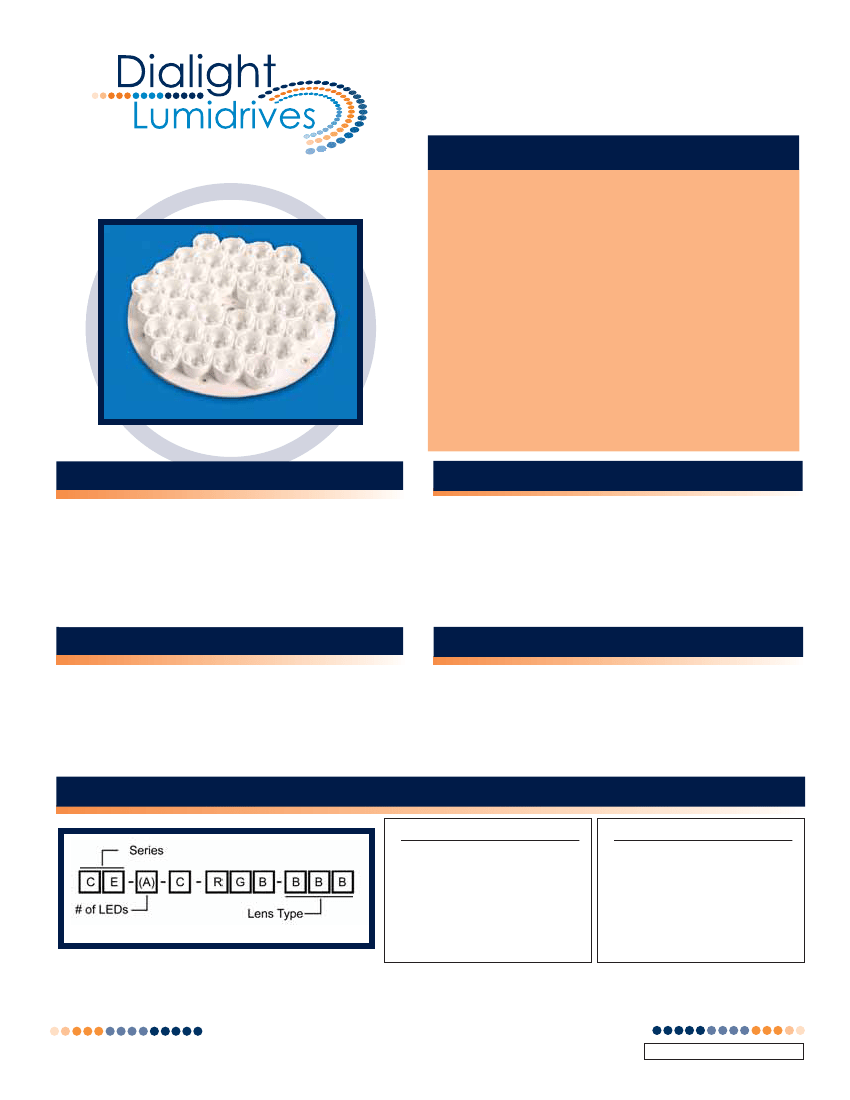

COLOR ENGINE CIRCULAR
LED LIGHT ENGINES
FEATURES / BENEFITS
Extremely long life of 50,000 hours at 55ºC PCB
temperature
Durable F-Form optics holder allow for easy changing
of 4 lens options (5, 15, 25 degree and 5X20 degree
oval)*
Red, Blue and Green LEDs allow for infinite number of
color combinations and dynamic color changing
(appropriate colordriver controller required)
Aluminium based PCB for easier heat dissipation
and more efficient operation
Available Color Kinetics pass through license,
consult factory for details
OPERATING CONDITIONS
Recommended PCB temp=55ºC
Maximum PCB temp = 105ºC
LED Life @ 55ºC PCB temp = 50,000 hours
For maximum performance, all “Circular Color Engine”
LED Light Engines should be screwed or affixed using
thermal adhesive to an appropriate heat sink
Thermal conductivity = 1.3W/m-k
Breakdown voltage = 2kV
APPLICATIONS
Color washing
Decorative effects
Entertainment lighting
Retail
Landscape
Night clubs, restaurants, bars
Any application requiring color changing, efficiency,
and long life in a circular pattern.
MECHANICAL DIMENSIONS
Height (all models including lens) = 15.5mm (0.61”)
Color engine3C, Diameter = 48mm (1.89”)
Color engine6C, Diameter = 69mm (2.72”)
Color engine12C, Diameter = 90mm (3.54”)
Color engine18C, Diameter = 110mm (4.33”)
Color engine36C, Diameter = 155mm (6.10”)
MATERIALS/FINISH
LUXEON
®
I LEDs
1.6mm Aluminium clad PCB substrate
White solder resist finish
Recommended accessories include Color driver 36
power supply, CDL-M3E Molex cable and
other cabling accessories
PART NUMBERS
# of LEDs (A)
3 = Color engine3C (1 each
of red, blue and green LEDs)
6 = Color engine6C
12 = Color engine12C
18 = Color engine18C
36 = Color engine36C
LENS Type (BBB)*
005 = 5 Degree
015 = 15 Degree
025 = 25 Degree
520 = 5 X 20 Degree
XXX = no lens**
Dialight-Lumidrives Ltd.
York House • Wetherby Road • Long Marston, York, YO26 7NH
Tel: +44(0) 1904 739150 • Fax: +44(0) 1904 737926 • www.dialight.com
* Half Divergence Angle
** Lens to be purchased & installed
separately
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEXLUMCLENGC_D
COLOR ENGINE CIRCULAR
LED LIGHT ENGINES

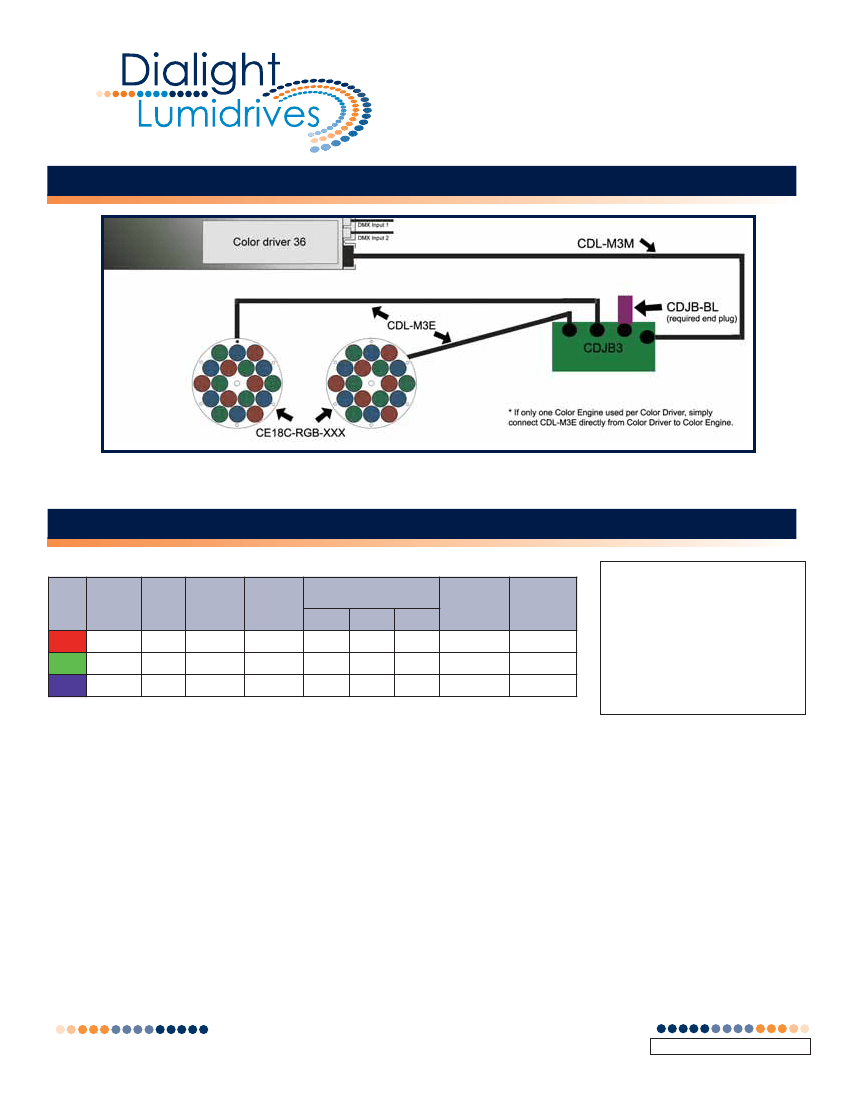

WIRING INFORMATION
CDL-M3E is equipped with 8 individual colored wires. Each wire to be soldered onto indicated solder pad on
color engine. For CE3C-RGB, cut off brown and purple leads.
TYPICAL LED PHOTOMETRIC DATA
LED
Color
Forward
Max.Current Max. Power
Voltage
(mA)
(Watts)
(Typ)
2.95
3.42
3.42
350
350
350
1.03
1.20
1.20
Dom Wavelength / CCT
Min
Typ
Max
645 nm
550 nm
460 nm
Min Luminous Typ Luminous
Flux (lm) /
Flux (lm) /
Radiometric
Radiometric
Power (mW) Power (mW)
30.6 lm
30.6 lm
145 mW
44 lm
53 lm
220 mW
Maximum current input 350mA
Maximum power consumption
1.2W per LED for Blue / Green,
1.0W per LED for Red.
Recommended min gauge wire,
AWG24
Red
Green
Royal Blue
620.5 nm 627 nm
520 nm
440 nm
530 nm
455 nm
Results are LED manufacturer’s test data @ 25ºC JTC’. Light output at 55ºC PCB temperature will be approximately 15-20% lower.
Elevated temperatures will result in further degradation of light output. For maximum performance use appropriate heat sinking.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight-Lumidrives Ltd.
York House • Wetherby Road • Long Marston, York, YO26 7NH
Tel: +44(0) 1904 739150 • Fax: +44(0) 1904 737926 • www.dialight.com
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEXLUMCLENGC_D
