AC3475ZC18-11SE datasheet, PDF

Datasheet> All Categories > The connector> The connector> AC3475ZC18-11SE

AC3475ZC18-11SE: DescriptionMIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug; CategoryThe connector The connector; File Size188KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html; Environmental Compliance

Download Datasheet Parametric View All

AC3475ZC18-11SE Overview

MIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug

AC3475ZC18-11SE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-26482, COMPATIBLE CONTACTS: M39029/5-116, POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	AC3475
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	ZINC COBALT
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	CRIMP
Total number of contacts	11

Preview

Download Datasheet

View All

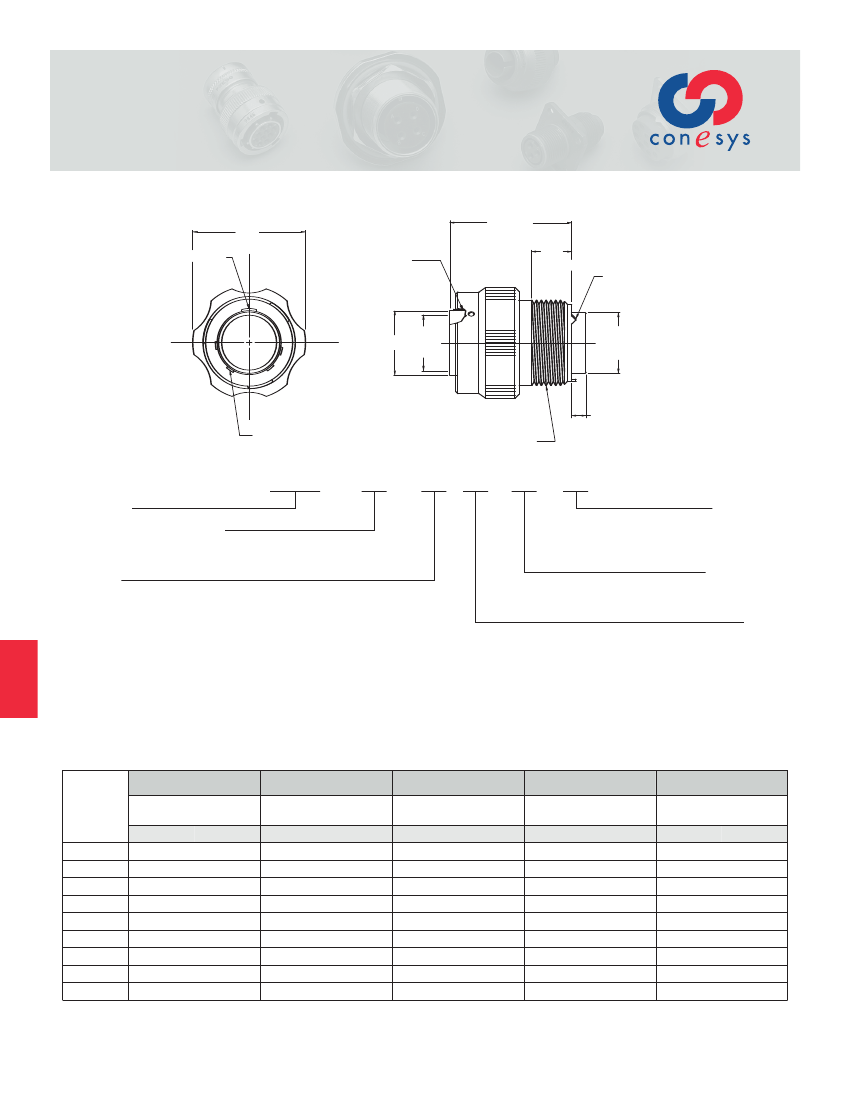

AC3475

Arctic Coupling Nut, RFI Plug

Bayonet Coupling, Crimp Removable, Rear Release

MAX

COUPLING NUT

MASTER KEY

RFI STRIP

1.230(31.24)

MAX

.290

(7.37)

MIN

FULL THREAD

3 ACCESSORY TEETH

EQUALLY SPACED

MAX

INSERT

MAX

GROMMET

.190 (4.83)

.130 (3.30)

GROMMET EXTENSION

4 MINOR KEYS

ACCESSORY THREAD

AC3475

Aero Preﬁx

Class (Material and Finish)

–

= Aluminum shell, cadmium olive drab over nickel

= Aluminum shell, zinc cobalt ﬁnish

–

10-

Polarization

= Normal (N included in part number marking)

A, B, C, D, E

(Alternate key positions)

and

W, X, Y

(Alternate insert clocking positions)

Shell Size

8, 10, 12, 14, 16, 18, 20, 22

Contact Style

= Pin

= Socket

MIL–DTL–

26482 S 2

Layout

See pages 82 thru 85

Page 80

Pages 84, 85

Page 70

Pages 82, 83

Page 82

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

±.003

inch

.355

.483

.595

.720

.845

.945

1.070

1.195

1.320

±.08

9.02

12.27

15.11

18.29

21.46

24.00

27.18

30.35

33.53

Note:

AC3475 Arctic Coupling Nut, RFI Plug is available

to Aero-Electric part number only. Mating part is AC3474

which is same as AE774 on page 75. Additional mates are

AC3470 (same as AE770 on page 72), AC3471 (same as

AE771 on page 73)and AC3472 (same as AE772 on page 74).

Maximum

inch

.900

1.010

1.180

1.310

1.510

1.620

1.740

1.850

1.980

22.86

25.65

29.97

33.27

38.35

41.15

44.20

46.99

50.29

Accessory Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

Maximum

inch

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

7.75

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

Shell

Size

Maximum

inch

.285

.402

.516

.641

.766

.855

.980

1.105

1.229

7.24

10.21

13.11

16.28

19.46

21.72

24.89

28.07

31.22

www.conesys.com

– 78 –

sales

aero-electric.com
