MPS2222AH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> MPS2222AH

MPS2222AH: DescriptionSmall Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size130KB，2 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric Compare View All

MPS2222AH Overview

Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC PACKAGE-3

MPS2222AH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.6 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	300 MHz

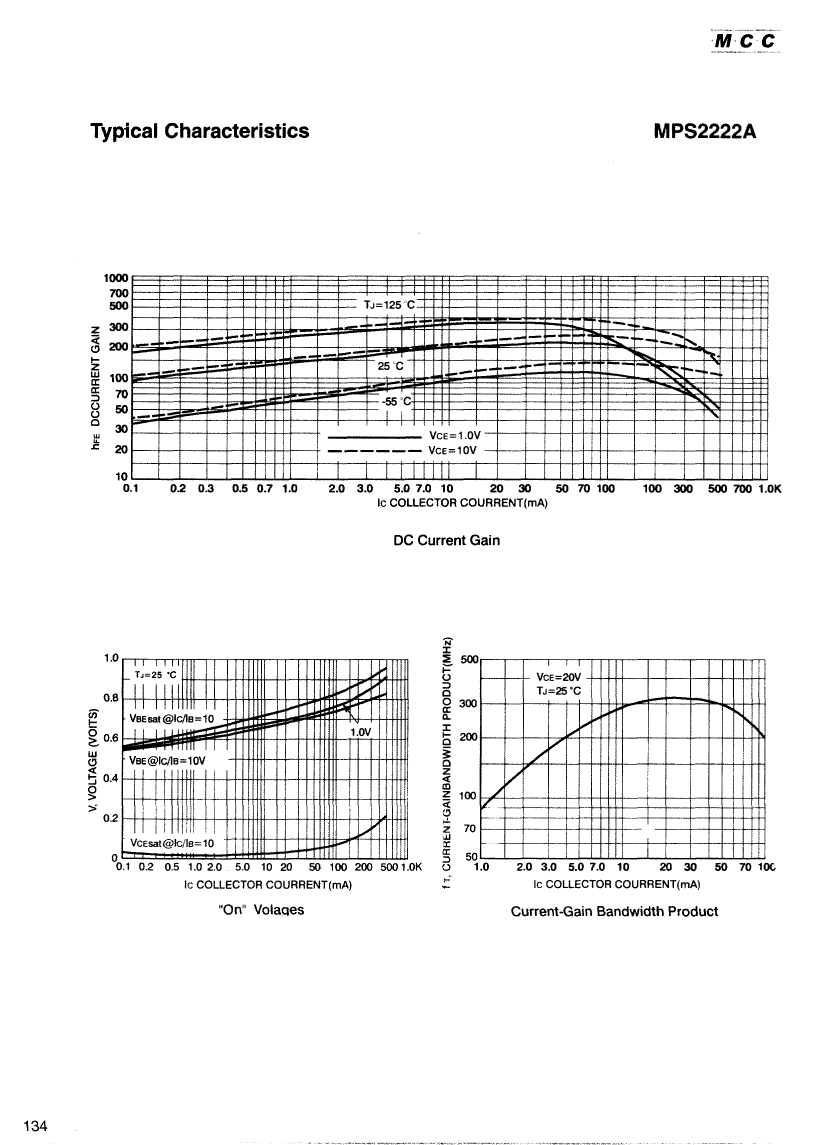

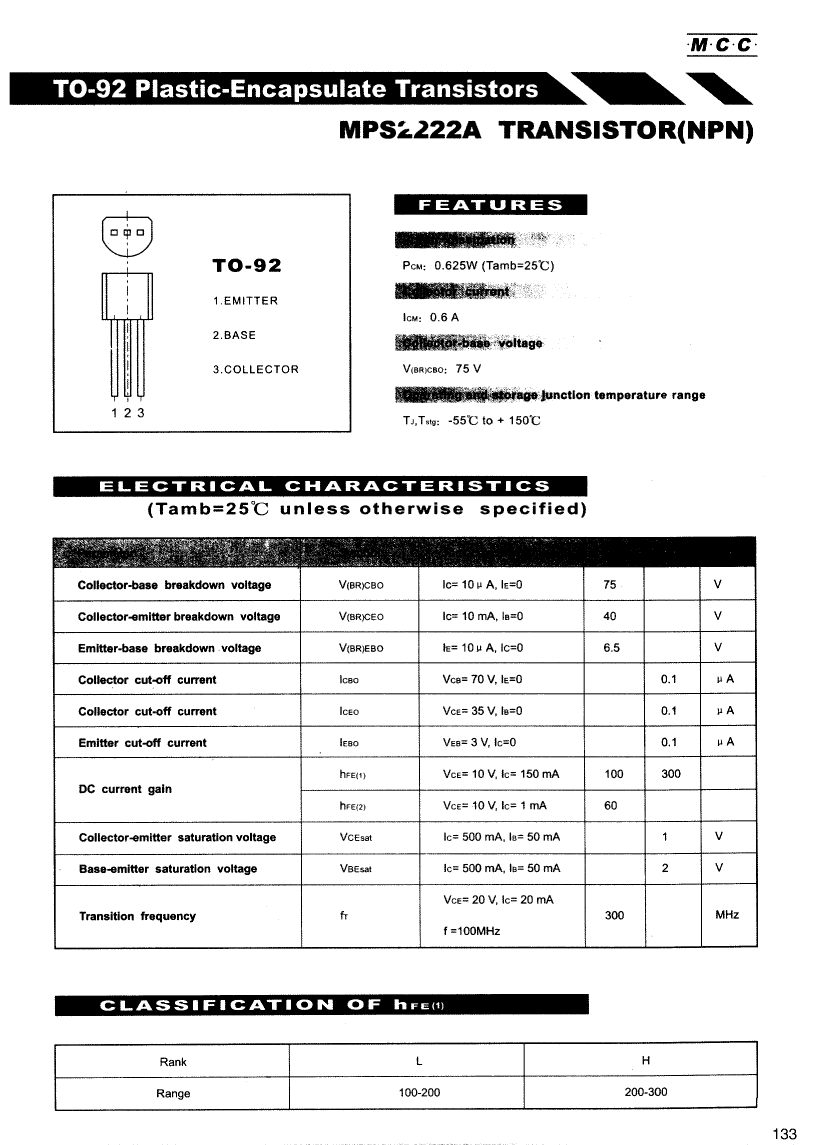

Preview

Download Datasheet

View All

MPS2222AH Related Products

	MPS2222AH	MPS2222AH-BP	MPS2222AL-BP	MPS2222AL
Description	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC PACKAGE-3
Is it Rohs certified?	incompatible	conform to	conform to	incompatible
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)
Parts packaging code	TO-92	TO-92	TO-92	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.6 A	0.6 A	0.6 A	0.6 A
Collector-emitter maximum voltage	40 V	40 V	40 V	40 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	200	200	100	100
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
JESD-609 code	e0	e3	e3	e0
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal surface	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	300 MHz	300 MHz	300 MHz	300 MHz
