APC08M03MA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> APC08M03MA

APC08M03MA: Description1-OUTPUT 25W DC-DC REG PWR SUPPLY MODULE, OPEN FRAME, SMT-7; CategoryPower/power management The power supply circuit; File Size289KB，2 Pages; ManufacturerEmerson Embedded Power

Download Datasheet Parametric View All

APC08M03MA Overview

1-OUTPUT 25W DC-DC REG PWR SUPPLY MODULE, OPEN FRAME, SMT-7

APC08M03MA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Emerson Embedded Power
Parts packaging code	MODULE
package instruction	,
Contacts	7
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	6 V
Minimum input voltage	1.8 V
JESD-30 code	R-XDMA-X7
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	1.5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	25 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

Astec Industry Standard

25 Watts

APC08

High Efficiency

PRELIMINARY

Total Power:

Input Voltages:

No. of Outputs:

25 Watts

1.8 to 13 V

Single

Electrical Specs

Input

Input range

Input Surge

Efficiency

1.8-6.0VDC and 5.0-13.0VDC

13V

90%@3.3V

Control

Enable

TTL compatible

(positive enable option)

Output

Regulation

(Line, Load, Temp)

<3%

75mV - (>2.5V Output)

50mV - (<2.5V Output)

.9V to 3.6V

5% max deviation with

50% to 75% full load

500 µS (max) recovery

Special Features

• Point of load (POL) applications

• High efficiency, 3.3V@90%

• -40°C to +85°C Ambient operating

temperature

• Open Frame SMT

• Positive enable function

• Low output ripple and noise

• Regulation to zero load

• Programmable Output from .9V to 3.6V

(External Trim Resistor)

• Fixed frequency switching (400 kHz)

Ripple and noise

Output voltage

adjust range

Transient Response

Specifications subject to change without notice.

Environmental

Operating temperature

-40°C to +85°C

Storage temperature: -55°C to +105°C

MTBF: >1 million hours

Safety

UL, cUL

1950 Recognized

TUV

EN60950 Licensed

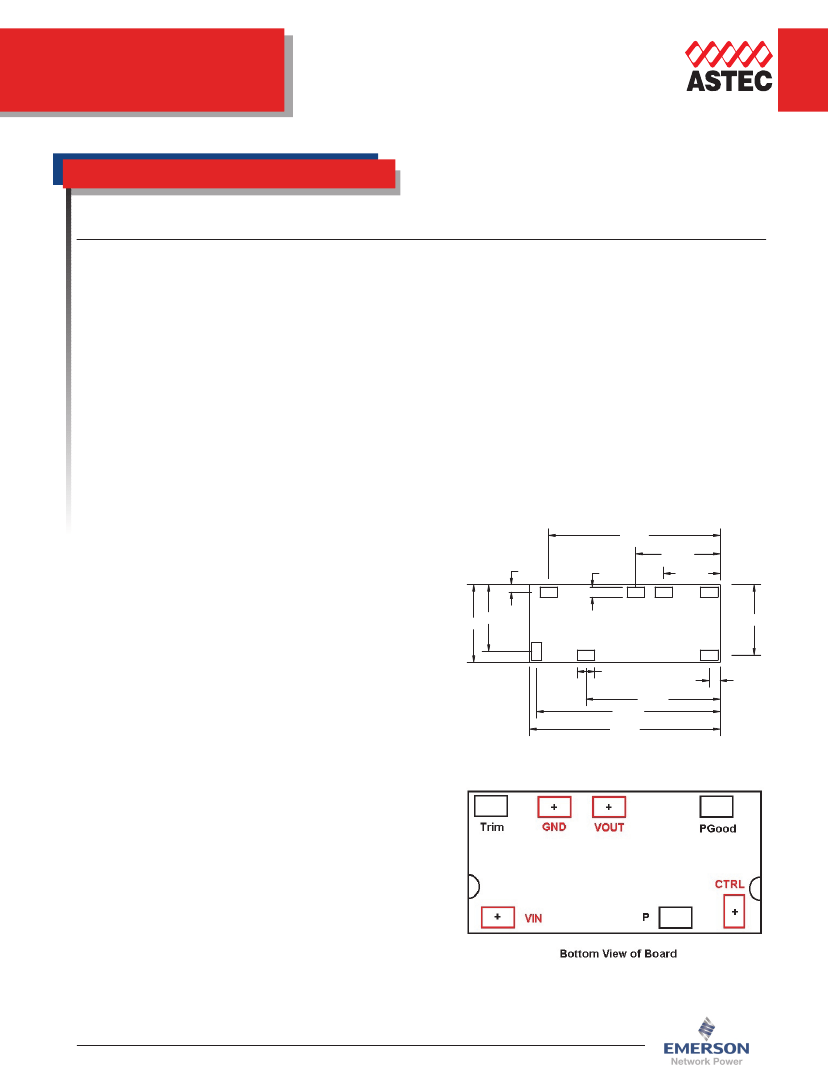

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662
