D../CRCW....-IF e3
Vishay
Lead (Pb)-free Thick Film, Rectangular,
Pulse Proof Chip Resistors
FEATURES
•
•
•
•
•
High pulse performance
Metal glaze on high quality ceramic
Protective overglaze
Lead (Pb)-free solder contacts on Ni barrier layer
Pure tin plating provides compatibility with lead (Pb)-free
and lead containing soldering processes
•
Compatible with “Restriction of the use of Hazardous
Substances” (RoHS) directive 2002/95/EC (issue 2004)
•
Excellent stability (ΔR/R
≤
± 1 % for 1000 h at 70 °C) in
different environmental conditions
STANDARD ELECTRICAL SPECIFICATIONS
SIZE
MODEL
INCH
METRIC
POWER RATING
P
70 °C
W
LIMITING
ELEMENT
VOLTAGE
MAX. V
50
75
150
200
TEMPERATURE
COEFFICIENT
ppm/K
TOLERANCE RESISTANCE
RANGE
%
Ω
E-SERIES
D10/CRCW0402-IF 0402
1005
0.063
± 200
± 5, ± 10
1R0 - 100K
E24
D11/CRCW0603-IF 0603
1608
0.10
± 200
± 5, ± 10
1R0 - 100K
E24
D12/CRCW0805-IF 0805
2012
0.125
± 200
± 5, ± 10
1R0 - 100K
E24
D25/CRCW1206-IF 1206
3216
0.25
± 200
± 5, ± 10
1R0 - 100K
E24
Notes
• These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over
operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime.
• Marking and packaging: See appropriate catalog or web pages
• Power rating depends on the max. temperature at the solder point, the component placement density and the substrate material
TECHNICAL SPECIFICATIONS
PARAMETER
UNIT D10/CRCW0402-IF
D11/CRCW0603-IF D12/CRCW0805-IF D25/CRCW1206-IF
(1)
W
0.063
0.10
0.125
0.25
Rated Dissipation at
P
70
V
50
75
150
200
Limiting Element Voltage
U
max.
AC/DC
V
> 75
> 100
> 200
> 300
Insulation Voltage
U
ins
(1 min)
Thermal Resistance
K/W
≤
870
≤
550
≤
440
≤
220
9
Insulation Resistance
Ω
> 10
Category Temperature Range
°C
- 55 to + 155
Weight
mg
0.65
2
5.5
10
Note
(1)
The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat flow support of the
printe-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature of 155 °C is not exceeded.
PART NUMBER AND PRODUCT DESCRIPTION
PART NUMBER: CRCW08051R00JNEAIF
(2)
C
R
C
W
0
VALUE
8
0
5
1
R
0
TCR
0
J
N
E
A
I
F
MODEL/SIZE
CRCW0402
CRCW0603
CRCW0805
CRCW1206
TOLERANCE
J
=±5%
K
= ± 10 %
PACKAGING
(3)
EA, EB, EC
ED, EE, EI,
EL
SPECIAL
Up to 2 digits
IF
= Pulse
R
= Decimal
K
= Thousand
N
= ± 200 ppm/K
S
= Special
PRODUCT DESCRIPTION: D12/CRCW0805-IF 200 1R0 5 % ET1 e3
D12/CRCW0805-IF
MODEL
D10/CRCW0402-IF
D11/CRCW0603-IF
D12/CRCW0805-IF
D12/CRCW1206-IF
200
TCR
± 200 ppm/K
1R0
RESISTANCE VALUE
1R0 = 1
Ω
10K = 10.0 kΩ
5%
TOLERANCE
±5%
± 10 %
ET1
PACKAGING
(3)
ET1, ET5, ET6,
ET7, EF4, EG1,
E20
e3
LEAD (Pb)-FREE
e3 = Pure tin
Terminal finish
Notes
(2)
Preferred way for ordering products is by use of the PART NUMBER
(3)
Please refer to table PACKAGING, see next page
www.vishay.com
1
For technical questions, contact: filmresistors.thickfilmchip@vishay.com
Document Number: 20024
Revision: 13-Oct-08
D../CRCW....-IF e3
Lead (Pb)-free Thick Film, Rectangular,
Pulse Proof Chip Resistors
PACKAGING
REEL
MODEL
TAPE
WIDTH
8 mm
8 mm
DIAMETER
180 mm/7"
330 mm/13"
180 mm/7"
285 mm/11.25"
330 mm/13"
180 mm/7"
285 mm/11.25"
330 mm/13"
180 mm/7"
285 mm/11.25"
330 mm/13"
330 mm/13"
PITCH
2 mm
2 mm
4 mm
4 mm
4 mm
4 mm
4 mm
4 mm
4 mm
4 mm
4 mm
4 mm
PIECES/
REEL
10 000
50 000
5000
10 000
20 000
5000
10 000
20 000
5000
10 000
15 000
20 000
PACKING CODE
PART NUMBER
PRODUCT DESC.
PAPER
BLISTER
PAPER
BLISTER
ED
ET7
EE
EF4
EA
EI
ET1
EG1
EB
ET5
EC
EL
ET6
E20
EA
EI
ET1
EG1
EB
ET5
EC
EL
ET6
E20
EA
EI
ET1
EG1
EB
ET5
EL
E20
EC
ET6
Vishay
D10/CRCW0402-IF
D11/CRCW0603-IF
D12/CRCW0805-IF
8 mm
D25/CRCW1206-IF
8 mm
DIMENSIONS
L
T2
I
W
H
T1
b
a
SIZE
INCH
0402
0603
0805
1206
METRIC
1005
1608
2012
3216
L
1.0 ± 0.05
1.55
2.0
3.2
+ 0.10
- 0.05
+ 0.10
- 0.20
+ 0.10
- 0.20
DIMENSIONS
(in millimeters)
W
0.5 ± 0.05
0.85 ± 0.1
1.25 ± 0.15
1.6 ± 0.15
H
0.35 ± 0.05
0.45 ± 0.05
0.45 ± 0.05
0.55 ± 0.05
T1
0.25 ± 0.05
0.3 ± 0.2
0.3 ± 0.2
0.45 ± 0.2
T2
0.2 ± 0.1
0.3 ± 0.2
0.3 ± 0.2
0.4 ± 0.2
SOLDER PAD DIMENSIONS
(in millimeters)
REFLOW SOLDERING
WAVE SOLDERING
a
b
l
a
b
l
0.4
0.6
0.5
0.5
0.7
0.9
0.9
1.3
1.7
1.0
1.2
2.0
0.9
0.9
1.1
0.9
1.3
1.7
1.0
1.3
2.3
FUNCTIONAL PERFORMANCE
Maximum pulse dissipation as a function of the pulse duration, single pulse
Pulse Power (W)
10 000
1206
0805
0603
0402
1000
100
10
1
0.1
0.01
0.000001 0.00001 0.0001
0.001
0.01
0.1
1
10
100
Pulse Duration (s)
Maximum pulse load, single pulse; applicable if
P
0 and n
≤
1000 and
Û
≤
Û
max.
;
for permissible resistance change equivalent to
8000
h operation
Document Number: 20024
Revision: 13-Oct-08
For technical questions, contact: filmresistors.thickfilmchip@vishay.com
www.vishay.com
2
D../CRCW....-IF e3
Vishay
Lead (Pb)-free Thick Film, Rectangular,
Pulse Proof Chip Resistors

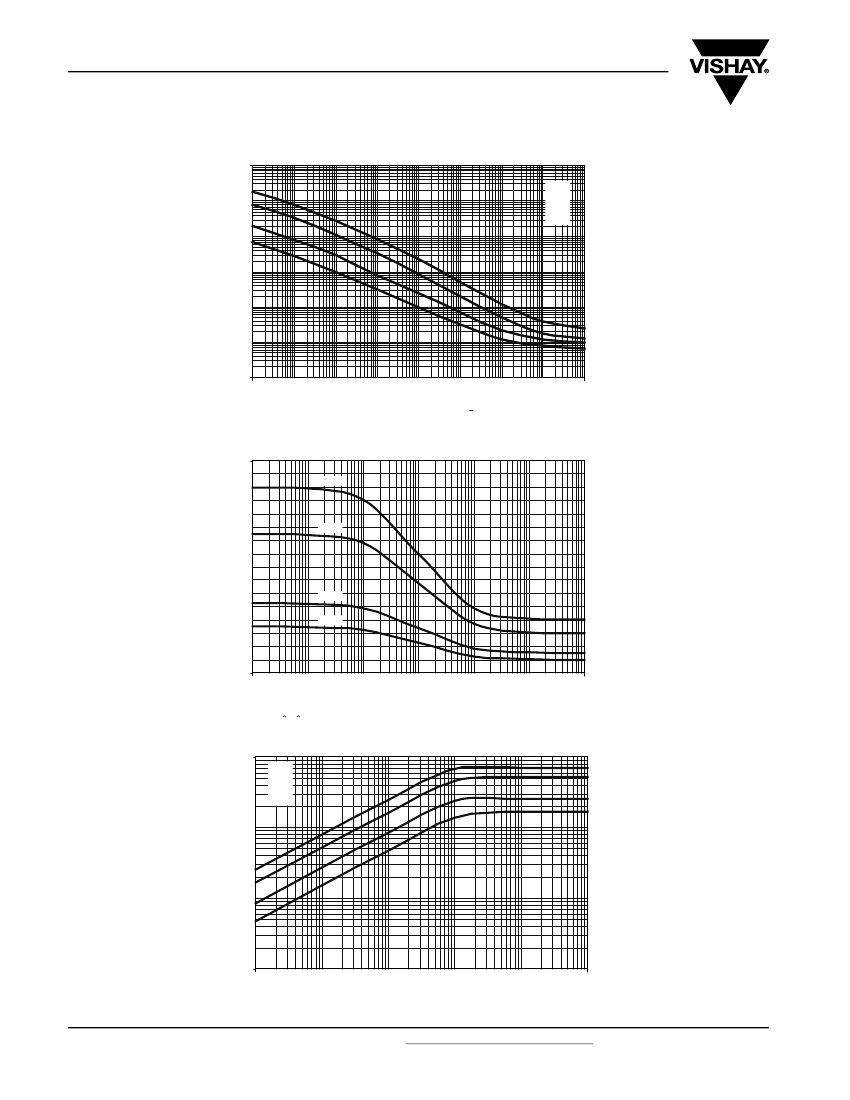

Maximum pulse dissipation as a function of the pulse duration, continuous pulse
Pulse Power (W)
10 000
1206
0805
0603
0402
1000
100
10
1
0.1
0.01
0.000001 0.00001 0.0001
0.001
0.01
0.1
1
10
100
Pulse Duration (s)
Maximum pulse load, continuous pulses; applicable if P
≤
P (ϑ
amb
) and
Û
≤
Û
max.
;
for permissible resistance change equivalent to
8000
h operation
Maximum permissible pulse voltage as a function of pulse duration
Pulse Voltage (V)
800
700
600
0805
500
400
300
200
100
0
0.00001
0603
0402
1206
0.0001
0.001
0.01
0.1
1
10
Pulse Duration (s)
Maximum pulse
voltage,
single and continuous pulses; applicable if
P
≤
P
max.
; for permissible resistance change equivalent to
8000
h operation
Single-pulse high voltage overload test 1.2/50 µs EN140000 4.27
Peak Voltage (V)
1000
1206
0805
0603
0402
100
10
1
1
10
100
1000
10 000
100 000
Resistance Value (Ω)
Pulse load rating in accordance to EN 60115-1, 4.27; 1.2 µs/50 µs;
5 pulses at 12 s intervals; for permissible resistance change 1
%
www.vishay.com
3
For technical questions, contact: filmresistors.thickfilmchip@vishay.com
Document Number: 20024
Revision: 13-Oct-08
D../CRCW....-IF e3
Lead (Pb)-free Thick Film, Rectangular,
Pulse Proof Chip Resistors
Single-pulse high voltage overload test 10/700 µs EN140000 4.27
Peak Voltage (V)
1000
1206
0805
0603
0402
Vishay
100
10
1
1
10
100
1000
10 000
100 000
Resistance Value (Ω)
Pulse load rating in accordance to EN 60115-1, 4.27; 10 µs/700 µs;
10 pulses at 1 min intervals; for permissible resistance change 1
%
Temperature Rise in °C
90
80
70
60
50
40
30
20
10
0
0
0.1
0.2
0.3
0.4
0.5
0402 0603 0805
1206
Power in W
Temperature Rise
Document Number: 20024
Revision: 13-Oct-08
For technical questions, contact: filmresistors.thickfilmchip@vishay.com
www.vishay.com
4
D../CRCW....-IF e3
Vishay
Lead (Pb)-free Thick Film, Rectangular,
Pulse Proof Chip Resistors
TEST PROCEDURES AND REQUIREMENTS
EN 60115-1
REQUIREMENTS
PERMISSIBLE CHANGE (ΔR/R)
TEST (clause)
CONDITIONS OF TEST
STABILITY CLASS 1
OR BETTER
Stability for product types:
D../CRCW....-IF e3
Resistance (4.5)
Temperature coefficient (4.8.4.2)
-
20/- 55/20 °C and
20/125/20 °C
U
= 2.5 × (P
70
×
R)
1/2
≤
2 ×
U
max.
;
Duration: according the style
Aging 4 h at 155 °C, dryheat
solder bath method; 235 °C; 2 s
visual examination
Solder bath method;
(260 ± 5) °C; (10 ± 1) s
30 min at LCT = - 55 °C;
30 min at UCT = 125 °C; 5 cycles
(40 ± 2) °C; 56 days;
(93 ± 3) % RH
16 h at UCT = 125 °C; 1 cycle at 55 °C;
2 h at LCT = - 55 °C;
1 h/1 kPa at 15 °C to 35 °C;
5 cycles at 55 °C
U
= (P
70
×
R)
1/2
U
=
U
max.
; whichever is less severe
U
= (P
70
×
R)
1/2
U
=
U
max.
; whichever is less severe
1.5 h on; 0.5 h off;
70 °C; 1000 h
Duration extended to 8000 h
UCT = 125 °C; 1000 h
1
Ω
to 100 kΩ
±5%
± 10 %
± 200 ppm/K
±
(0.25
%
R
+ 0.05
Ω)
Overload (4.13)
Solderability (4.17.5)
Good tinning (≥ 95 % covered)
no visible damage
±
(0.25
%
R
+ 0.05
Ω)
±
(0.25
%
R
+ 0.05
Ω)
±
(1
%
R
+ 0.05
Ω)
Resistance to soldering heat (4.18.2)
Rapid change of temperature (4.19)
Damp heat, steady state (4.24)
Climatic sequence (4.23)
±
(1
%
R
+ 0.05
Ω)
Endurance at 70 °C (4.25.1)
±
(1
%
R
+ 0.05
Ω)
± (2 %
R
+ 0.1
Ω)
± (1 %
R
+ 0.05
Ω)
Extended endurance (4.25.1.8)
Endurance at upper category temperature
(4.25.3)
APPLICABLE SPECIFICATIONS
• EN 60115-1
• EN 140400
• EN 140401-802
• IEC 60068-2-X
• IEC 60286-3
Generic Specification
Sectional Specification
Detail Specification
Variety of environmental test procedures
Packaging of SMD components
www.vishay.com
5
For technical questions, contact: filmresistors.thickfilmchip@vishay.com
Document Number: 20024
Revision: 13-Oct-08
