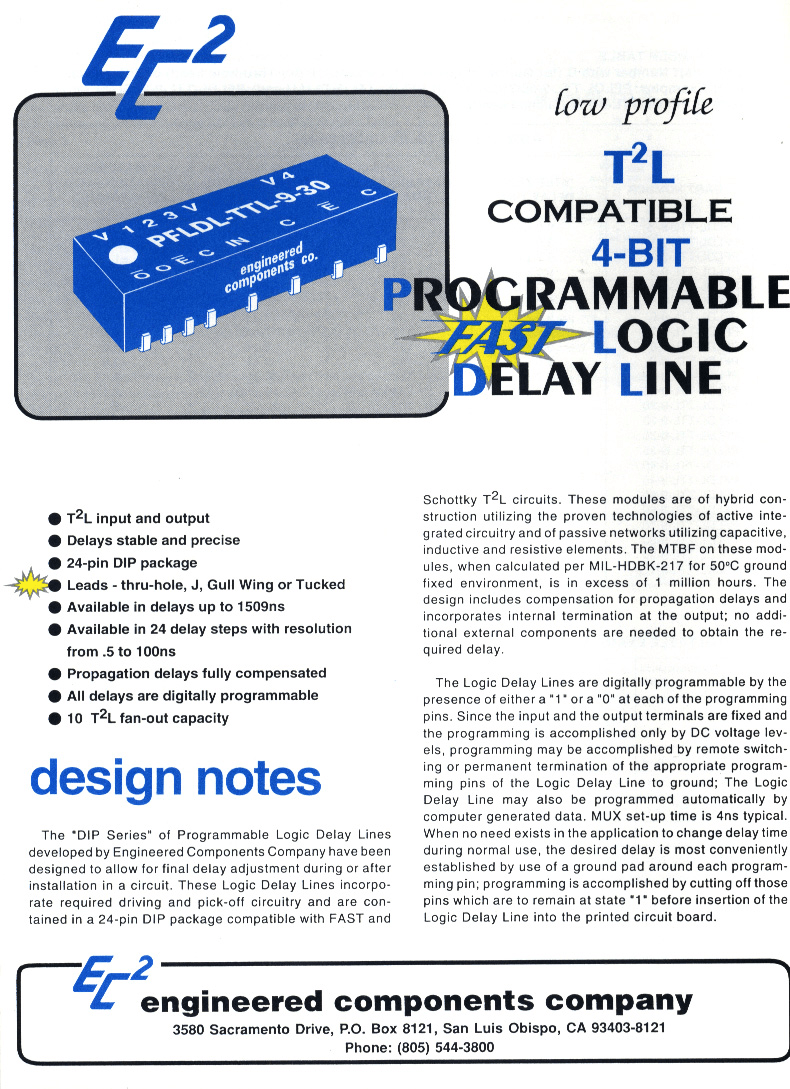

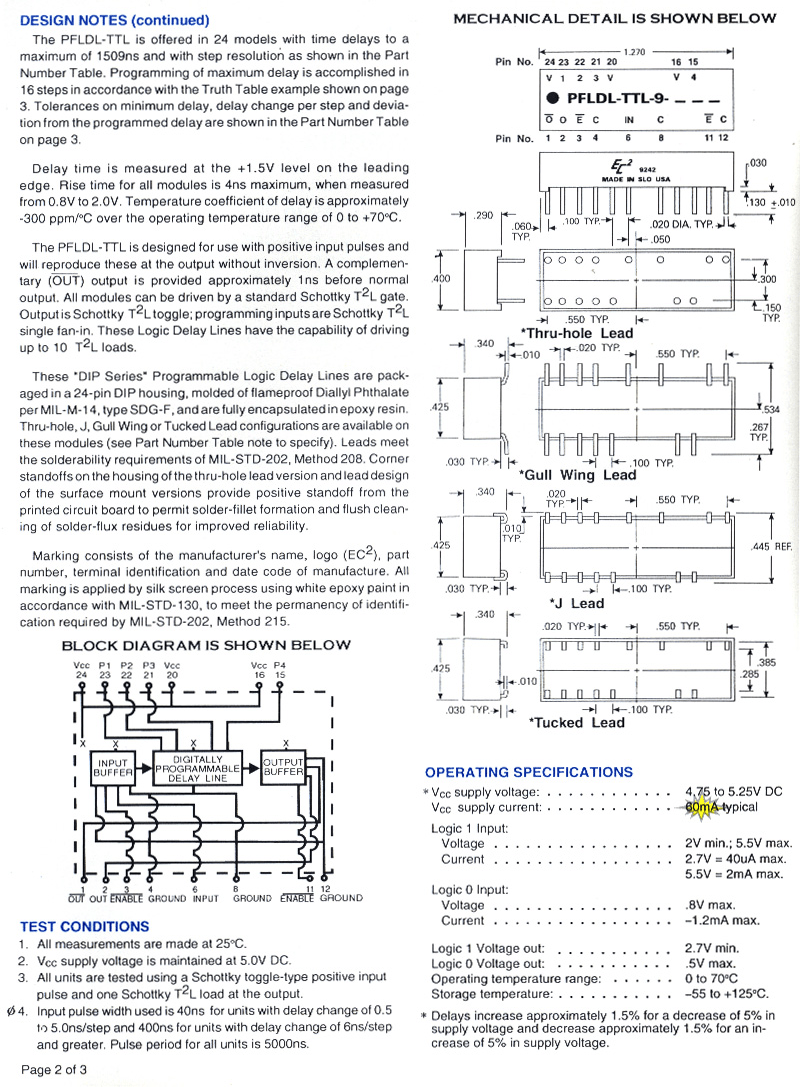

Active Delay Line, Programmable, 1-Func, 15-Tap, Complementary Output, TTL, J LEAD, MODULE-24/15
| Parameter Name | Attribute value |
| Maker | Engineered Components Co. |
| Parts packaging code | MODULE |
| package instruction | SOJ, |
| Contacts | 24/15 |
| Reach Compliance Code | unknown |
| Other features | INPUT & OUTPUT ENABLES; TYP. ICC = 60MA; INTERNAL TERMINATION; MAX RISE TIME CAPTURED |
| series | F |
| JESD-30 code | R-XDSO-J15 |
| length | 32.258 mm |
| Logic integrated circuit type | ACTIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 15 |
| Number of terminals | 15 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | COMPLEMENTARY |
| Package body material | UNSPECIFIED |
| encapsulated code | SOJ |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| programmable delay line | YES |
| Certification status | Not Qualified |
| Maximum seat height | 8.636 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | J BEND |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |

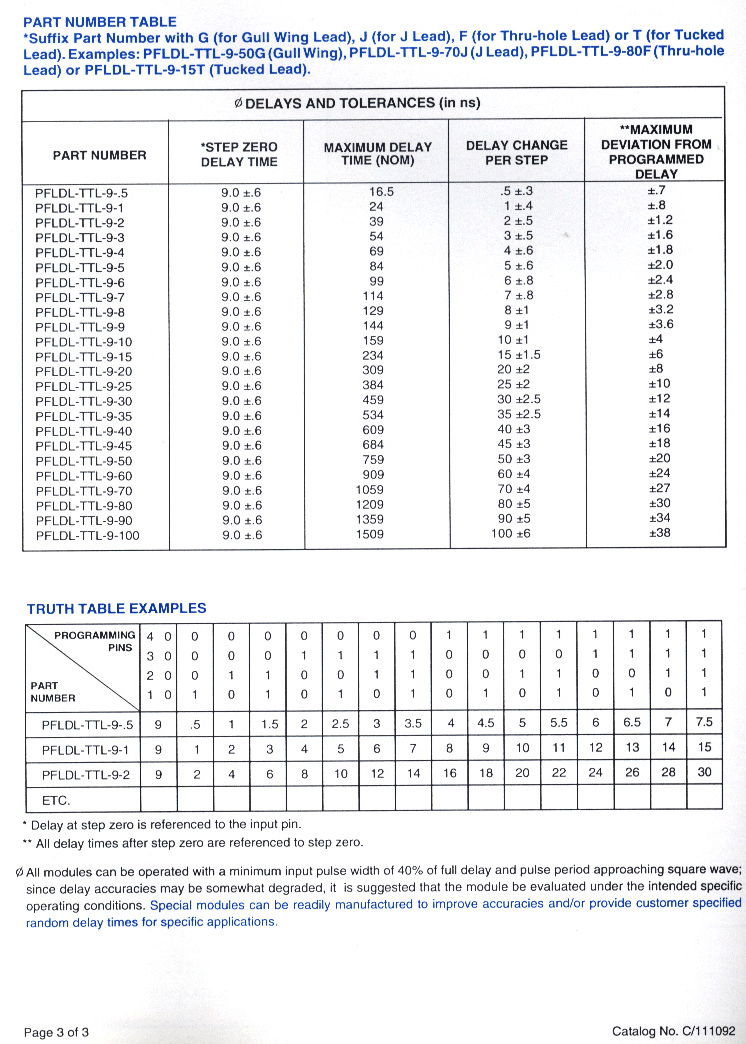

| Total delay nominal (td) | 1359 ns |
| width | 10.795 mm |
