1-1956024-0: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.014A (COIL), 12VDC (COIL), 170mW (COIL), THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size273KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

1-1956024-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1956024-0	-	-	View	Buy Now

1-1956024-0 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.014A (COIL), 12VDC (COIL), 170mW (COIL), THROUGH HOLE-STRAIGHT MOUNT

1-1956024-0 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
seal	RT3
Coil power	170 mW
Relay action	MOMENTARY
Relay function	SPDT
Coil resistance	848 ohm
Electrical life	5000 Cycle(s)
terminal coating	NOT SPECIFIED
Manufacturer Series	1393236
Maximum DC coil current	0.0140 A
Maximum DC coil voltage	12 V
Maximum AC contact current	6 A
Maximum AC contact voltage	400 V
DC coil operating voltage	8.4 V
DC coil release voltage	0.6000 V
width	5 mm
high	15 mm
length or diameter	28 mm
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	10 ms
Relay type	POWER/SIGNAL RELAY
release time	7.5 ms
Terminal type	SOLDER

Preview

Download Datasheet

View All

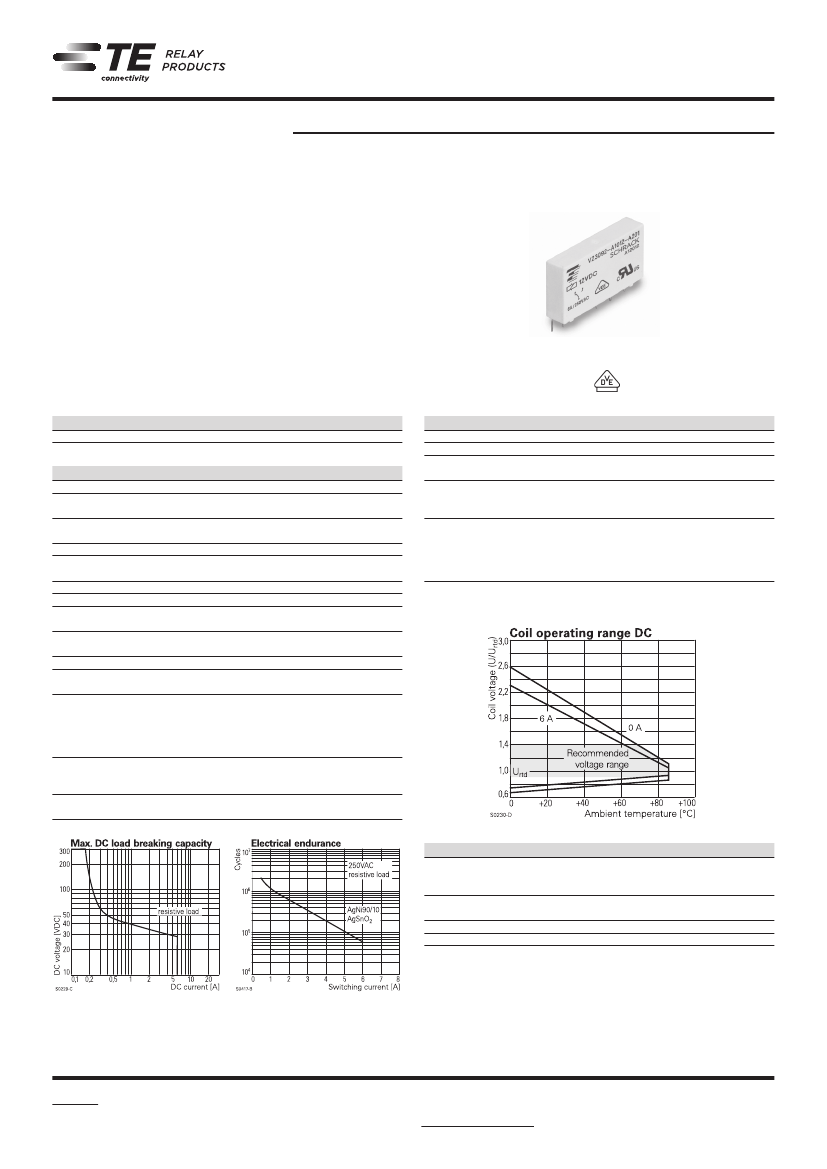

General Purpose Relays

PCB Relays

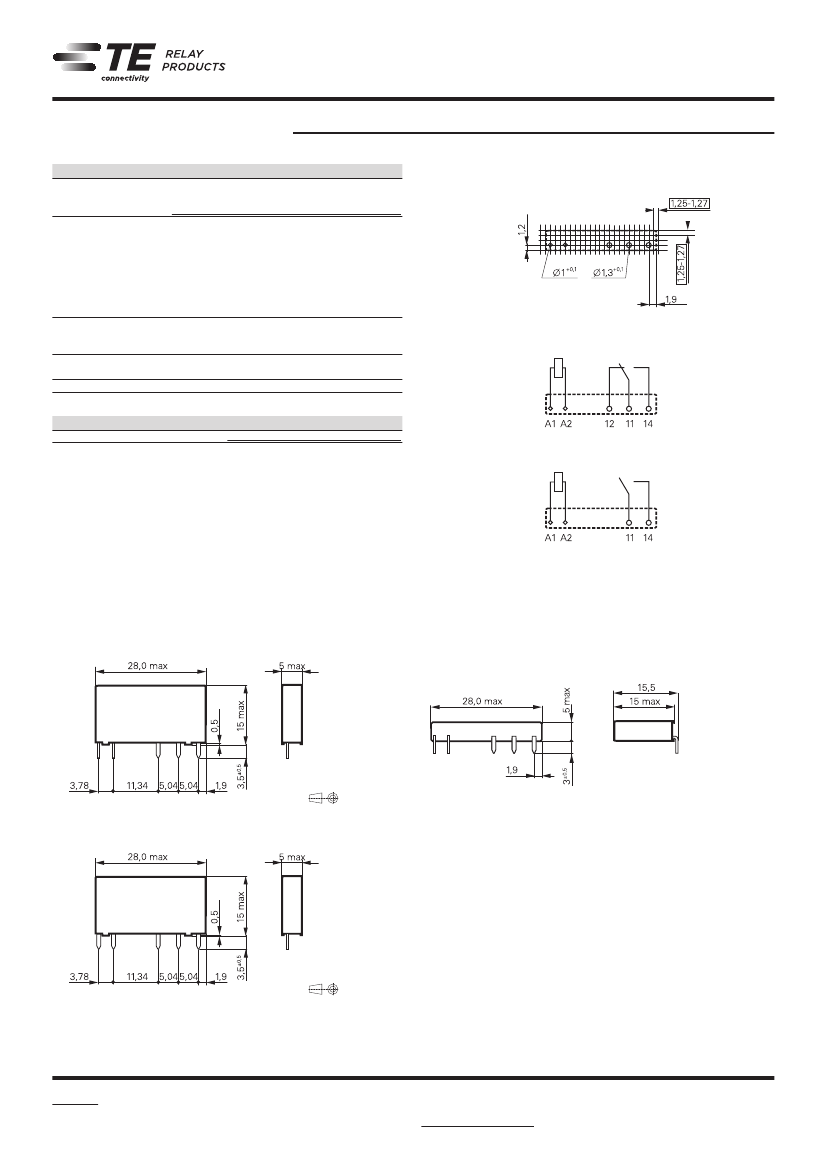

Slimline PCB Relay SNR

SCHRACK

1 pole 6A, 1 form C (CO), 1 form A (NO)

Only 5mm wide

Flat pack version available

Sensitive coil 170mW

Reinforced insulation (protection classII)

Strong coil pins for DIN-rail socket

Allows high function- / packaging density

Cadmium-free contacts, AgNi 90/10 for AC-loads

Typical applications

Interface technology, PLC’s, timers, centralized and decentralized heating

control

Approvals

Coil Data

F0140-D

Coil voltage range

Operative range, IEC 61810

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

005

3.5

012

8.4

024

16.8

048

33.6

060

42.0

Release

voltage

VDC

0.25

0.6

1.2

2.4

3.0

5 to 60VDC

Coil

resistance

Ω±10%

147

848

3390

10600

20500

Rated coil

power

170

217

176

VDE REG.-Nr. 6666, UL E214024

Technical data of approved types on request

Contact arrangement

1 form C (CO) or 1 form A (NO)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

Limiting making current, max 4s, df 10%

10A

Breaking capacity max.

1500VA

Contact material

AgSnO

AgNi 90/10

gold plated

Min. recommended contact load

100mA, 12V

50mW

Frequency of operation, with/without load

6/1200min

-1

Operate/release time max.

12/5ms

Bounce time max., form A/form B

3/8ms

Contact ratings

Type

Contact Load

Cycles

EC 61810

V23092-*****-A301, -A801 C (CO) 6A, 250VAC, cosφ=1, 85°C 5x10

UL 508

V23092-*****-A301, -A801 A/B

6A, 250VAC,

general purpose, 85°C

6x10

V23092-*****-A301, -A801 A/B (NO) B300, 85°C

6x10

V23092-*****-A301, -A801 A/B

R300, 85°C

6x10

EN60730-1

V23092-*****-A302

A (NO) 3A (1.5A), 250VAC, 85°C 100x10

V23092-*****-A302, -A802 A (NO) 5A (1.5A), 250VAC, 85°C

10x10

Mechanical endurance, DC coil

10x10

operations

Contact Data

1) Coil resistance ±15%.

All figures are given for coil without pre-energization, at ambient temperature +23°C.

Other coil voltages on request.

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

Clearance/creepage

between contact and coil

Material group of insulation parts

Tracking index of relay base

1000V

rms

4000V

rms

≥6/8mm

IIIa

PTI250

10-2012, Rev. 1012

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
