DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
µ
PC8178TB
SILICON MMIC LOW CURRENT AMPLIFIER
FOR MOBILE COMMUNICATIONS
DESCRIPTION
The
µ
PC8178TB is a silicon monolithic integrated circuit designed as amplifier for mobile communications. This
IC can realize low current consumption with external chip inductor which can not be realized on internal 50
Ω
wideband matched IC. This low current amplifier operates on 3.0 V.
This IC is manufactured using NEC’s 30 GHz f
max
UHS0 (Ultra High Speed Process) silicon bipolar process. This
process uses direct silicon nitride passivation film and gold electrodes. These materials can protect the chip surface
from pollution and prevent corrosion/migration. Thus, this IC has excellent performance, uniformity and reliability.
FEATURES
• Low current consumption
• Supply voltage
• Excellent isolation
: I
CC
= 1.9 mA TYP. @ V
CC
= 3.0 V
: V
CC
= 2.4 to 3.3 V
: ISL = 39 dB TYP. @ f = 1.0 GHz
ISL = 40 dB TYP. @ f = 1.9 GHz
ISL = 38 dB TYP. @ f = 2.4 GHz
• Power gain
: G
P
= 11.0 dB TYP. @ f = 1.0 GHz
G
P
= 11.5 dB TYP. @ f = 1.9 GHz
G
P
= 11.5 dB TYP. @ f = 2.4 GHz
• Gain 1 dB compression output power : P
O (1 dB)
=
−4.0
dBm TYP. @ f = 1.0 GHz
P
O (1 dB)
=
−7.0
dBm TYP. @ f = 1.9 GHz
P
O (1 dB)
=
−7.5
dBm TYP. @ f = 2.4 GHz
• Operating frequency
• High-density surface mounting
• Low weight
: 0.1 to 2.4 GHz (Output port LC matching)
: 6-pin super minimold package (2.0
×
1.25
×
0.9 mm)
: 7 mg (Standard value)
APPLICATION

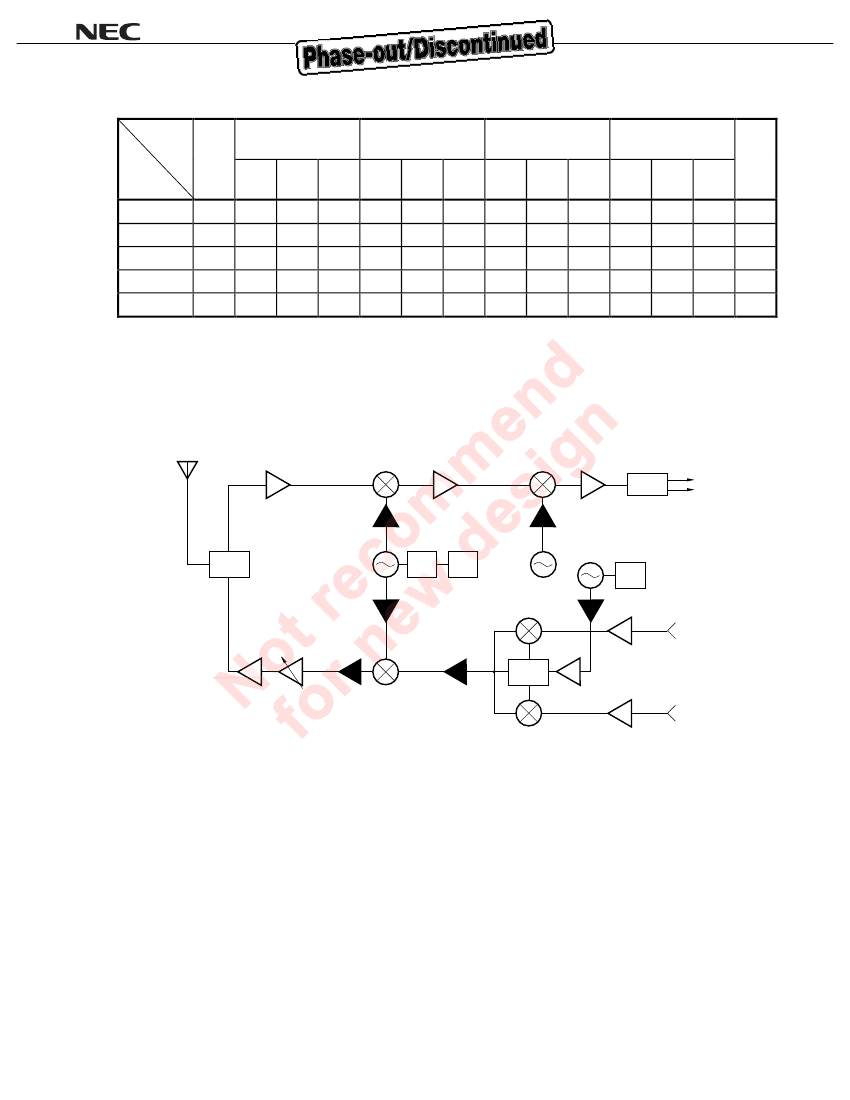

• Buffer amplifiers on 0.1 to 2.4 GHz mobile communications system
Caution Electro-static sensitive devices
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. P14895EJ2V0DS00 (2nd edition)
Date Published November 2000 N CP(K)
Printed in Japan
The mark
shows major revised points.
©
