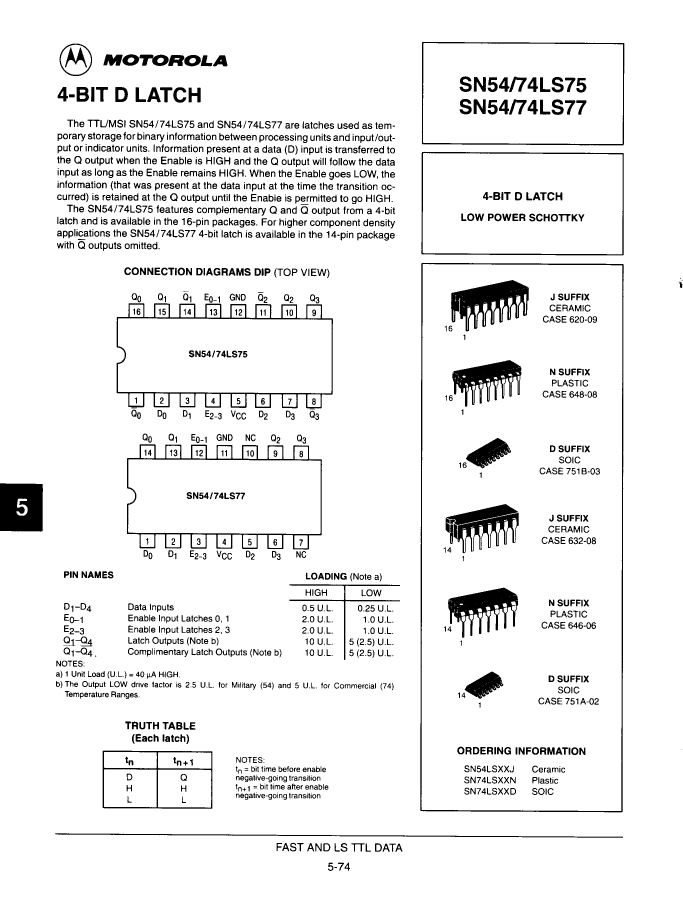

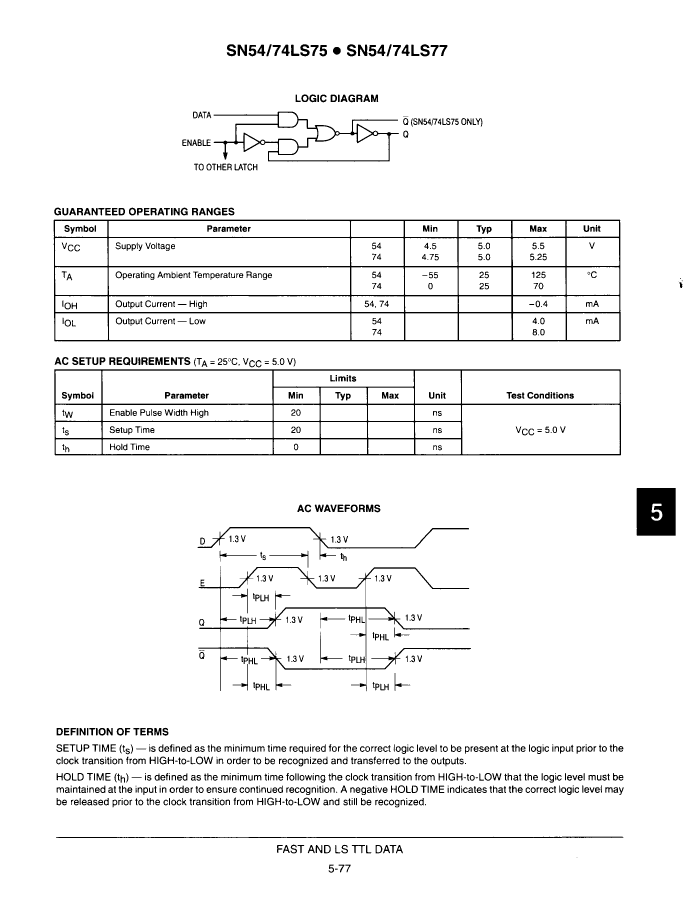

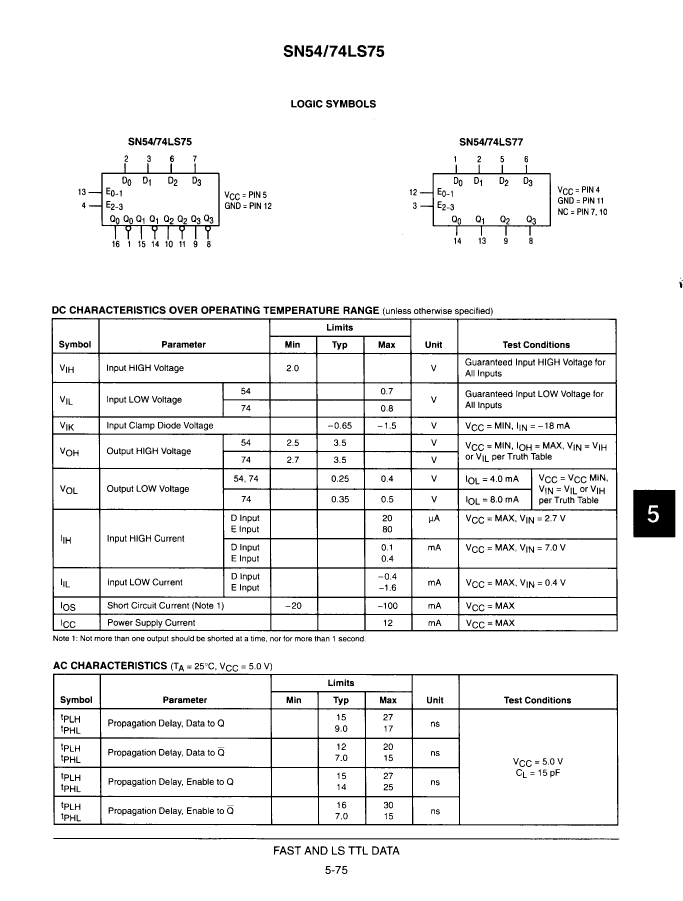

D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, True Output, TTL, PDIP14

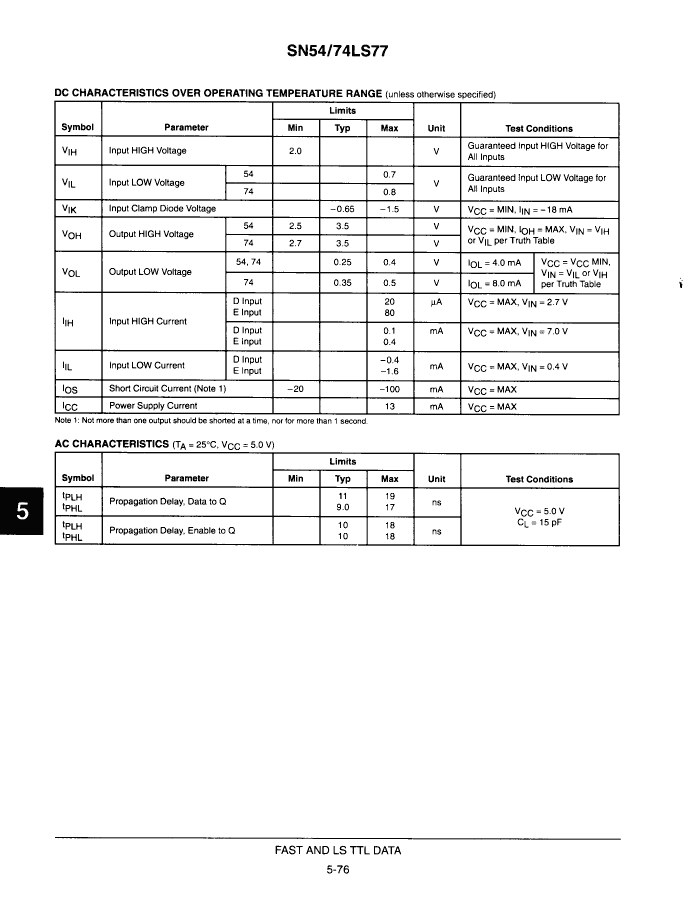

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| package instruction | DIP, DIP14,.3 |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| length | 18.86 mm |
| Load capacitance (CL) | 15 pF |
| Logic integrated circuit type | D LATCH |
| Number of digits | 2 |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Maximum supply current (ICC) | 13 mA |
| propagation delay (tpd) | 18 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.69 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | HIGH LEVEL |
| width | 7.62 mm |
