AS8F512K32P-150 datasheet, PDF

Datasheet> All Categories > storage> storage> AS8F512K32P-150

AS8F512K32P-150: DescriptionFlash Module, 512KX32, 150ns, CPGA66; Categorystorage storage; File Size1MB，22 Pages; ManufacturerMicross; Websitehttps://www.micross.com

Download Datasheet Parametric Compare View All

AS8F512K32P-150 Overview

Flash Module, 512KX32, 150ns, CPGA66

AS8F512K32P-150 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micross
package instruction	PGA, PGA66,11X11
Reach Compliance Code	compliant
Maximum access time	150 ns
Other features	ALSO HAVING 8-BIT WIDTH
Spare memory width	16
Data polling	YES
JESD-30 code	S-CPGA-P66
length	29.718 mm
memory density	16777216 bit
Memory IC Type	FLASH MODULE
memory width	32
Number of functions	1
Number of departments/size	32
Number of terminals	66
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	512KX32
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA66,11X11
Package shape	SQUARE
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Department size	16K
Maximum standby current	0.0065 A
Maximum slew rate	0.24 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES
type	NOR TYPE
width	29.718 mm

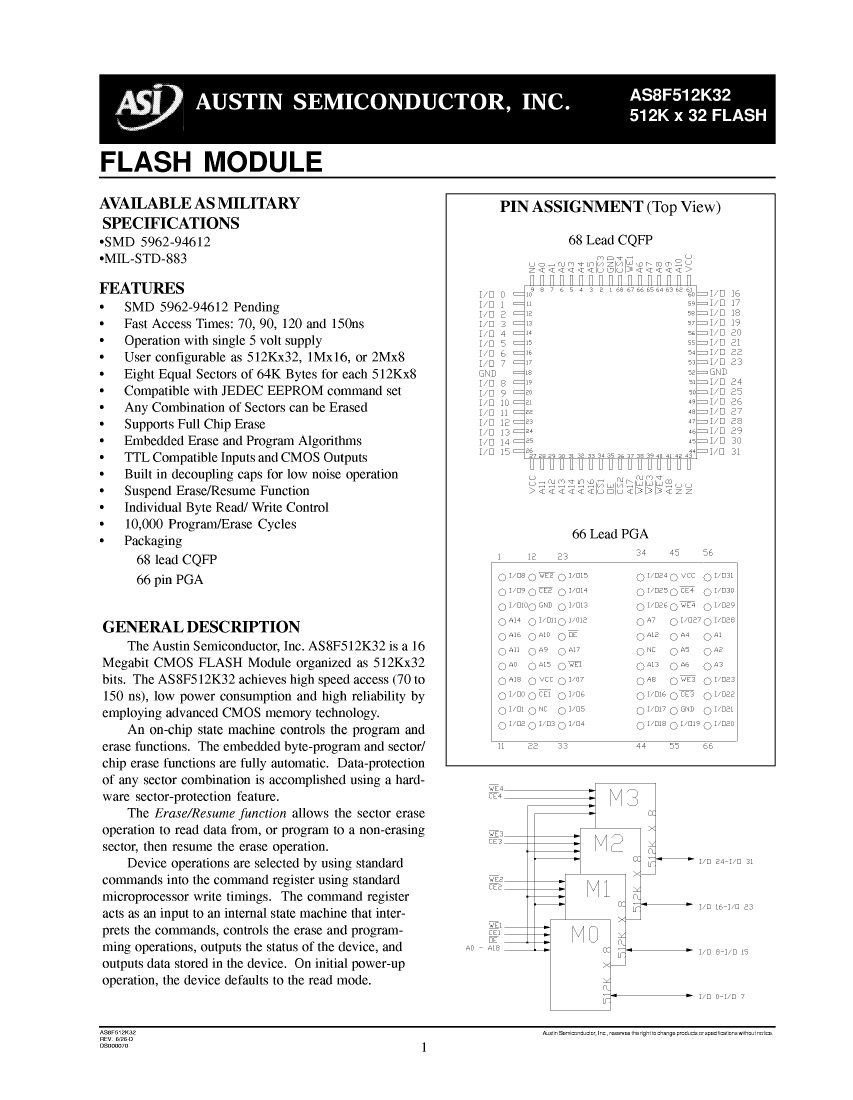

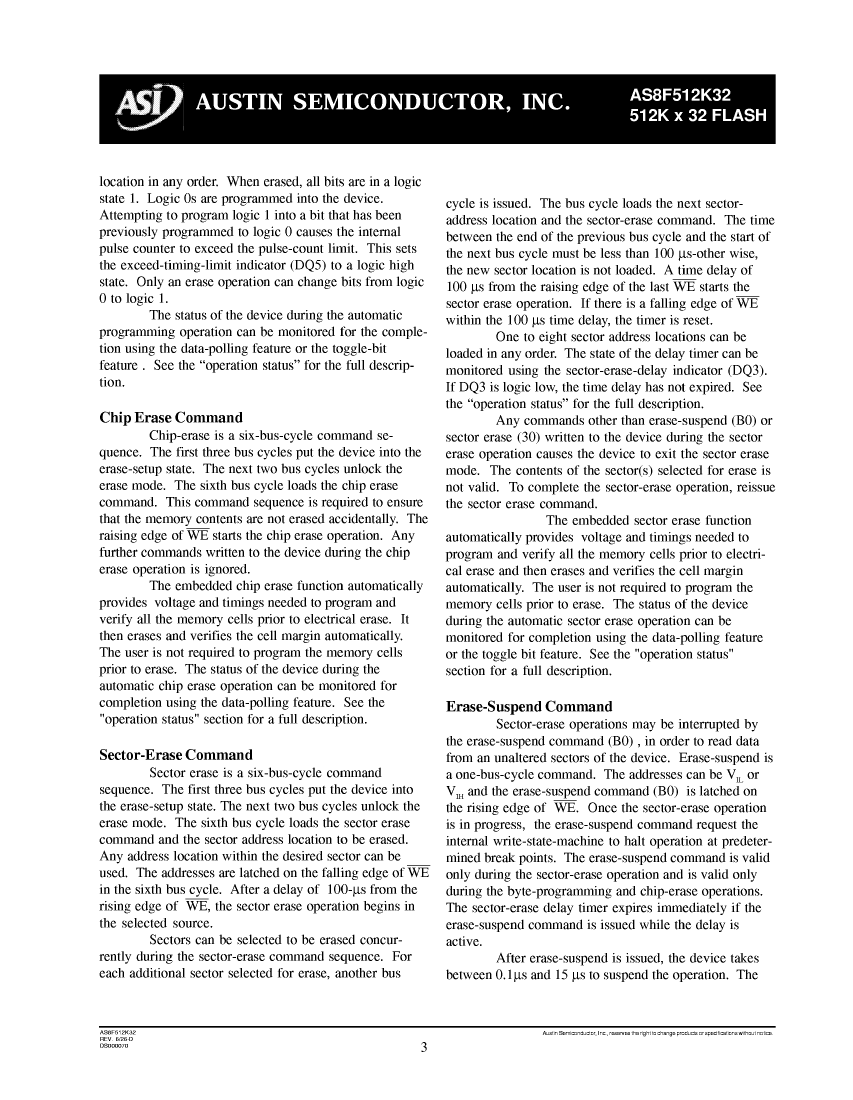

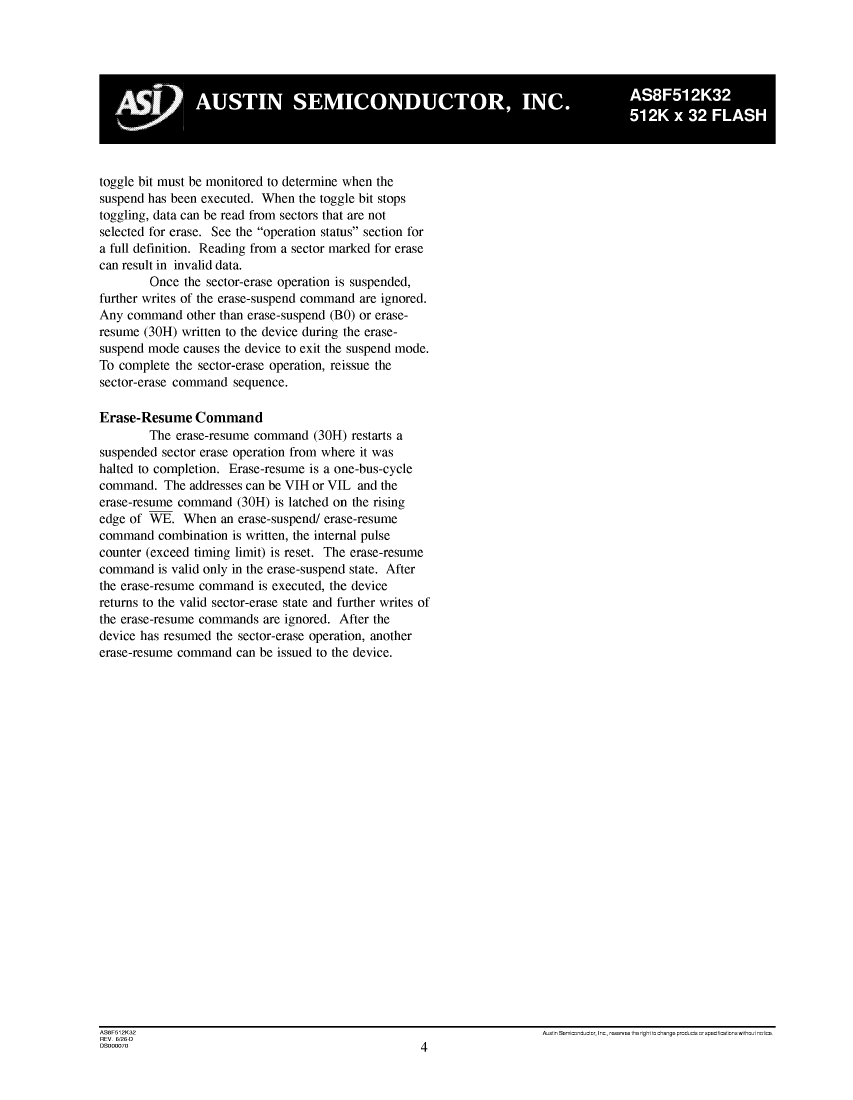

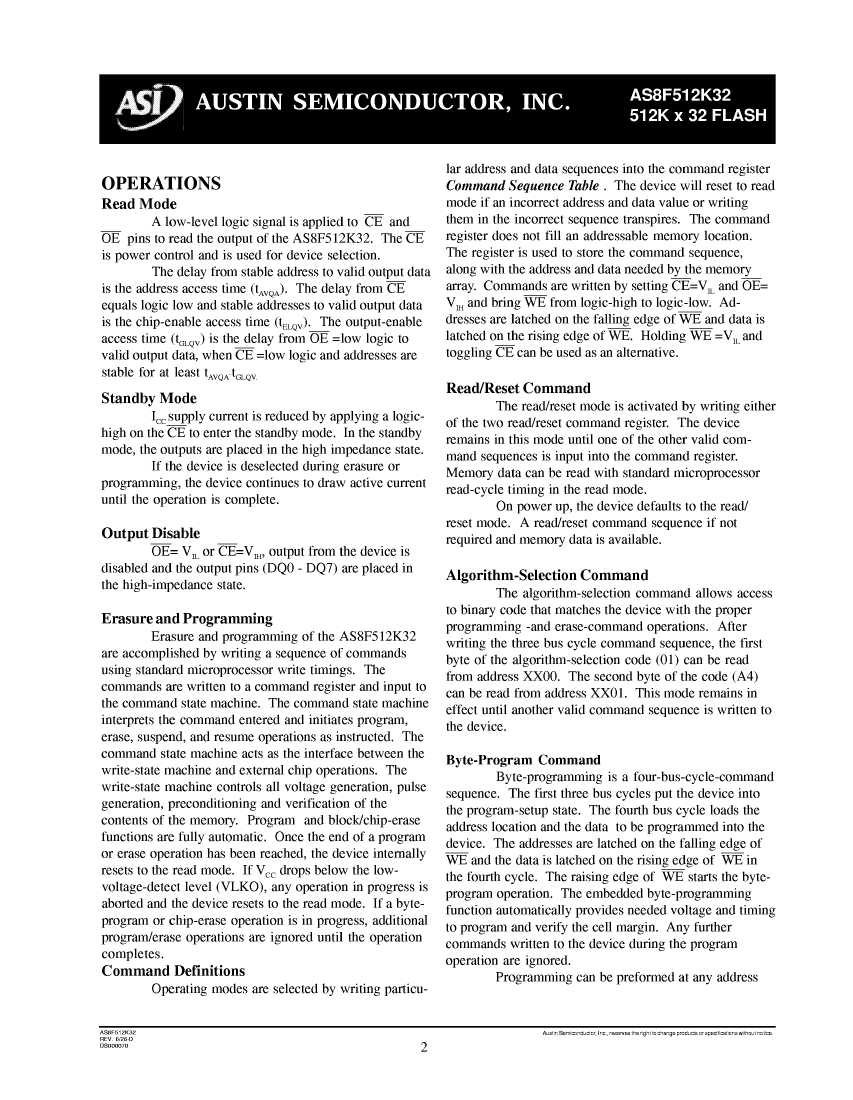

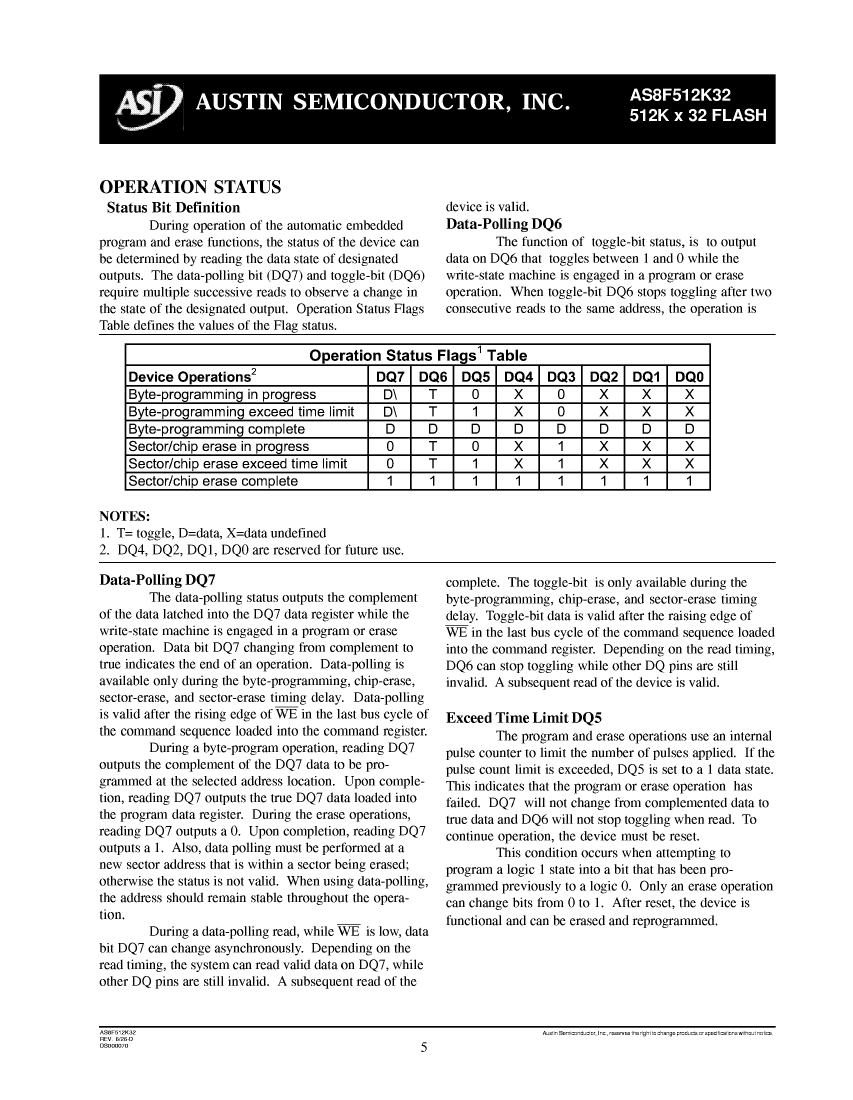

Preview

Download Datasheet

View All

AS8F512K32P-150 Related Products

	AS8F512K32P-150	AS8F512K32Q-120	AS8F512K32Q-150	AS8F512K32Q-90	AS8F512K32P-120	AS8F512K32P-90	AS8F512K32Q-70	AS8F512K32P-70
Description	Flash Module, 512KX32, 150ns, CPGA66	Flash Module, 512KX32, 120ns, CQFP68	Flash Module, 512KX32, 150ns, CQFP68	Flash Module, 512KX32, 90ns, CQFP68	Flash Module, 512KX32, 120ns, CPGA66	Flash Module, 512KX32, 90ns, CPGA66	Flash Module, 512KX32, 70ns, CQFP68	Flash Module, 512KX32, 70ns, CPGA66
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PGA, PGA66,11X11	QFP, QFP68,.99SQ,50	QFP, QFP68,.99SQ,50	QFP, QFP68,.99SQ,50	PGA, PGA66,11X11	PGA, PGA66,11X11	QFP, QFP68,.99SQ,50	PGA, PGA66,11X11
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum access time	150 ns	120 ns	150 ns	90 ns	120 ns	90 ns	70 ns	70 ns
Other features	ALSO HAVING 8-BIT WIDTH	ALSO HAVING 8-BIT WIDTH	ALSO HAVING 8-BIT WIDTH	ALSO HAVING 8-BIT WIDTH	ALSO HAVING 8-BIT WIDTH	ALSO HAVING 8-BIT WIDTH	ALSO HAVING 8-BIT WIDTH	ALSO HAVING 8-BIT WIDTH
Spare memory width	16	16	16	16	16	16	16	16
Data polling	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	S-CPGA-P66	S-CQFP-G68	S-CQFP-G68	S-CQFP-G68	S-CPGA-P66	S-CPGA-P66	S-CQFP-G68	S-CPGA-P66
length	29.718 mm	22.352 mm	22.352 mm	22.352 mm	29.718 mm	29.718 mm	22.352 mm	29.718 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE	FLASH MODULE
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of departments/size	32	32	32	32	32	32	32	32
Number of terminals	66	68	68	68	66	66	68	66
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	512KX32	512KX32	512KX32	512KX32	512KX32	512KX32	512KX32	512KX32
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	QFP	QFP	QFP	PGA	PGA	QFP	PGA
Encapsulate equivalent code	PGA66,11X11	QFP68,.99SQ,50	QFP68,.99SQ,50	QFP68,.99SQ,50	PGA66,11X11	PGA66,11X11	QFP68,.99SQ,50	PGA66,11X11
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	FLATPACK	FLATPACK	FLATPACK	GRID ARRAY	GRID ARRAY	FLATPACK	GRID ARRAY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Department size	16K	16K	16K	16K	16K	16K	16K	16K
Maximum standby current	0.0065 A	0.0065 A	0.0065 A	0.0065 A	0.0065 A	0.0065 A	0.0065 A	0.0065 A
Maximum slew rate	0.24 mA	0.24 mA	0.24 mA	0.24 mA	0.24 mA	0.24 mA	0.24 mA	0.24 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	GULL WING	GULL WING	GULL WING	PIN/PEG	PIN/PEG	GULL WING	PIN/PEG
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	PERPENDICULAR	QUAD	QUAD	QUAD	PERPENDICULAR	PERPENDICULAR	QUAD	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
switch bit	YES	YES	YES	YES	YES	YES	YES	YES
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	29.718 mm	22.352 mm	22.352 mm	22.352 mm	29.718 mm	29.718 mm	22.352 mm	29.718 mm
Maker	Micross	Micross	-	-	-	Micross	Micross	Micross
