PFC-1000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PFC-1000

PFC-1000: DescriptionAC-DC Power Factor Correction Module, 1 Output, 1000W, Hybrid, FULL BRICK PACKAGE-7; CategoryPower/power management The power supply circuit; File Size1MB，2 Pages; ManufacturerAstrodyne TDI; Environmental Compliance

Download Datasheet Parametric Compare View All

PFC-1000 Overview

AC-DC Power Factor Correction Module, 1 Output, 1000W, Hybrid, FULL BRICK PACKAGE-7

PFC-1000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Astrodyne TDI
Parts packaging code	MODULE
package instruction	,
Contacts	7
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Maximum input voltage	265 V
Minimum input voltage	170 V
JESD-30 code	R-XDMA-P7
JESD-609 code	e4
length	116.84 mm
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Nominal output voltage	380 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	GOLD OVER NICKEL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1000 W
Fine-tuning/adjustable output	NO
width	60.96 mm

Preview

Download Datasheet

View All

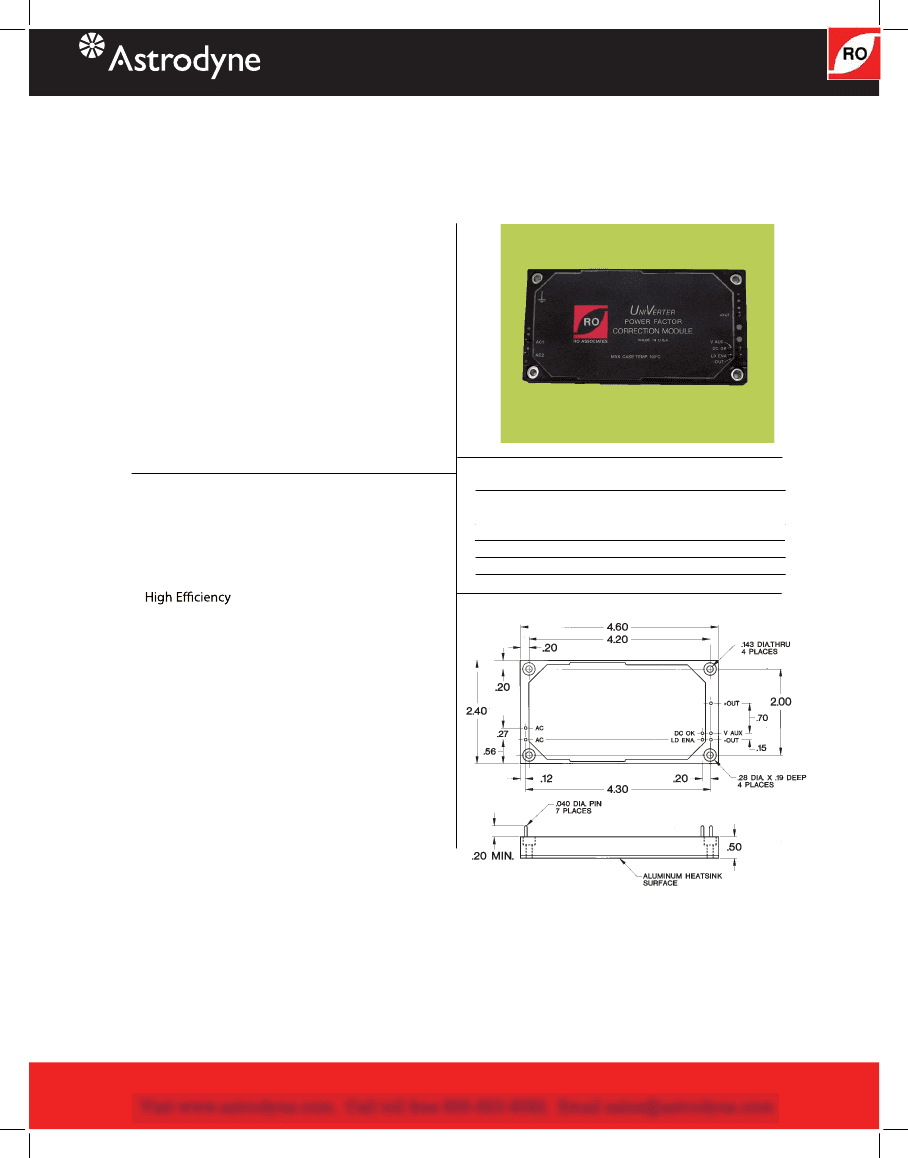

PFC

UNIVERTER

SERIES

85-265VAC INPUT

3 / 4 ” & FULL BRICK

POWER FACTOR

375-1000 WATTS

DESCRIPTION

UniVerter PFC modules accept 85-265 VAC

(PFC-600, PFC-650) or 170-265 VAC (PFC-1000) and

convert it to 380 VDC to power 300VDC input

DC-DC converters. Power factor correction

meets low harmonic distortion requirements

of IEC 1000-3-2 and the European EN55022

emissions speci ﬁcation when used with the

Model HH-1199-6 EMI ﬁlter. UniVerter modules

utilize a boost converter incorporating a solid

state series switch for active inrush and short

circuit current limiting. The series switch is

also used to provide over temperature

shutdown with automatic recovery.

FEATURES

• 600, 650 & 1000 Watts

• UL/CSA/TUV/CE MARK

• Meets European EN55022 Emissions

when used with HH-1199-6 EMI Filter

• Unity Power Factor

•

• Active Inrush Limiting and Short Circuit

Protection

• Very Low Harmonic Distortion

• Auxiliary Supply

• Power Fail Warning Via DC OK Signal

• Load Enable Signal to Control DC-DC

Converters

• Very Low Thermal Resistance

• Superior Thermal Design

• 100 °C Baseplate Operation

MODEL SELECTION

Model

Number

PFC-600

PFC-650

PFC-1000

Input

Voltage

85-265VAC

170-265VAC

Output

Voltage

380VDC

375VDC

380VDC

Output

Power*

600 Watts

650 Watts

1000 Watts

* See Derating Speciﬁcation

Visit www.astrodyne.com. Call toll free 800-823-8082. Email sales@astrodyne.com

PFC-1000 Related Products

	PFC-1000	PFC-650
Description	AC-DC Power Factor Correction Module, 1 Output, 1000W, Hybrid, FULL BRICK PACKAGE-7	AC-DC Power Factor Correction Module, 1 Output, 650W, Hybrid, FULL BRICK PACKAGE-7
Maker	Astrodyne TDI	Astrodyne TDI
Parts packaging code	MODULE	MODULE
Contacts	7	7
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE
Maximum input voltage	265 V	265 V
Minimum input voltage	170 V	85 V
JESD-30 code	R-XDMA-P7	R-XDMA-P7
length	116.84 mm	116.84 mm
Number of functions	1	1
Output times	1	1
Number of terminals	7	7
Nominal output voltage	380 V	375 V
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
surface mount	NO	NO
technology	HYBRID	HYBRID
Terminal form	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL
Maximum total power output	1000 W	650 W
Fine-tuning/adjustable output	NO	NO
width	60.96 mm	60.96 mm
