LNR-081 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> LNR-081

LNR-081: DescriptionNarrow Band Low Power Amplifier,; CategoryWireless rf/communication Radio frequency and microwave; File Size45KB，2 Pages; ManufacturerPascall Electronics Ltd

Download Datasheet Parametric View All

LNR-081 Overview

Narrow Band Low Power Amplifier,

LNR-081 Parametric

Parameter Name	Attribute value
Maker	Pascall Electronics Ltd
Reach Compliance Code	unknown
RF/Microwave Device Types	NARROW BAND LOW POWER

Preview

Download Datasheet

View All

Linear Amplifiers

LNR Series

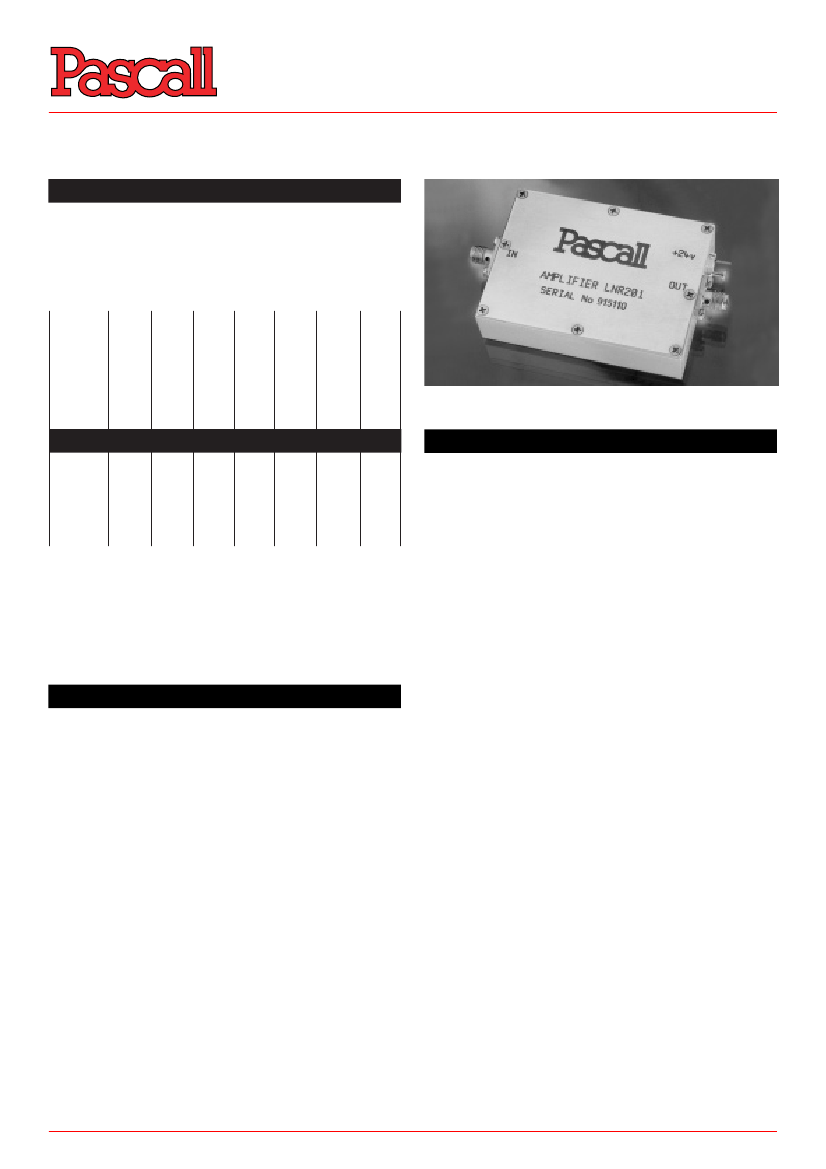

Broad and narrow band capability • Low noise and high output powers • Wide variety of package sizes

Exceptionally high second order intercept points • Ultra flat gain and phase responses

Applications

Radar receivers

E.W. equipment

Satellite ground stations

Communications

Test equipment

Avionics

Frequency Range MHz

1 dB Comp Point dBm

Gain Flatness dB

Noise Figure dB

Model No. LNR

Power Gain dB

IM2 dBm (1)

IM3

LNR Standard Models

LNR-081

LNR-156

LNR-157

LNR-201

LNR-301

LNR-604

45-95

7.5±0.5

14.5±0.5

20±0.5

30±0.5

60±1

±0.1

±0.15

5.0

6.2

5.0

4.0

Ordering Information

Units ordered by standard part number ie. LNR-201

Custom units available on request.

Six types in this series - LNR-081, -156, -157, -201, -301 and -604 are

designed specifically for use in broadband 70MHz IF applications such

as communications receivers. These units feature excellent gain

flatness and high second order intercept points. Different gain and

bandwidth variations are available to meet particular requirements.

Notes

Intercept points are measured with two tones of equal amplitude

having a 1MHz separation. Levels as follows:-

LNR

081 +9dBm

156 +9dBm

157 +14dBm

201 +4dBm

301 +4dBm

604 +7dBm

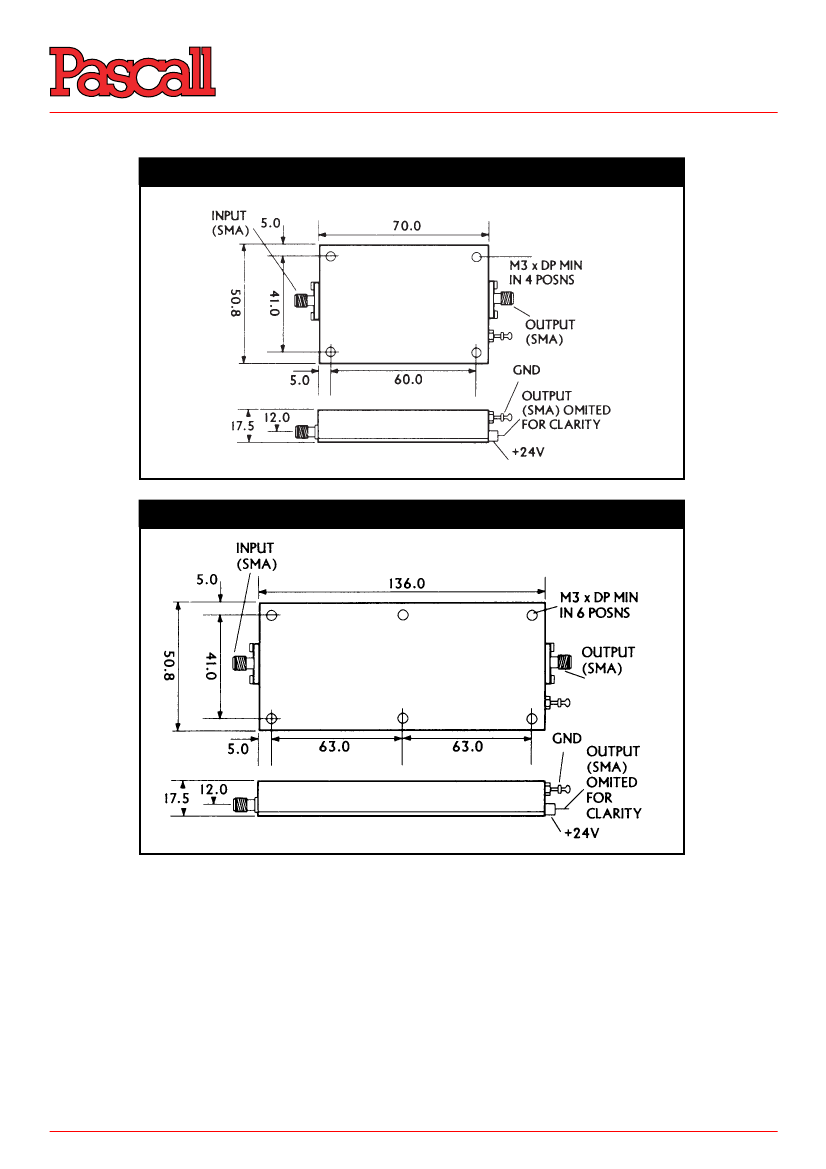

Units will operate over -50°C to +80°C temperature range.

The 24 volt units can be configured to operate at +15V.

Consult factory for details.
