90° SOLDER PRINTED
BOARD CONNECTORS

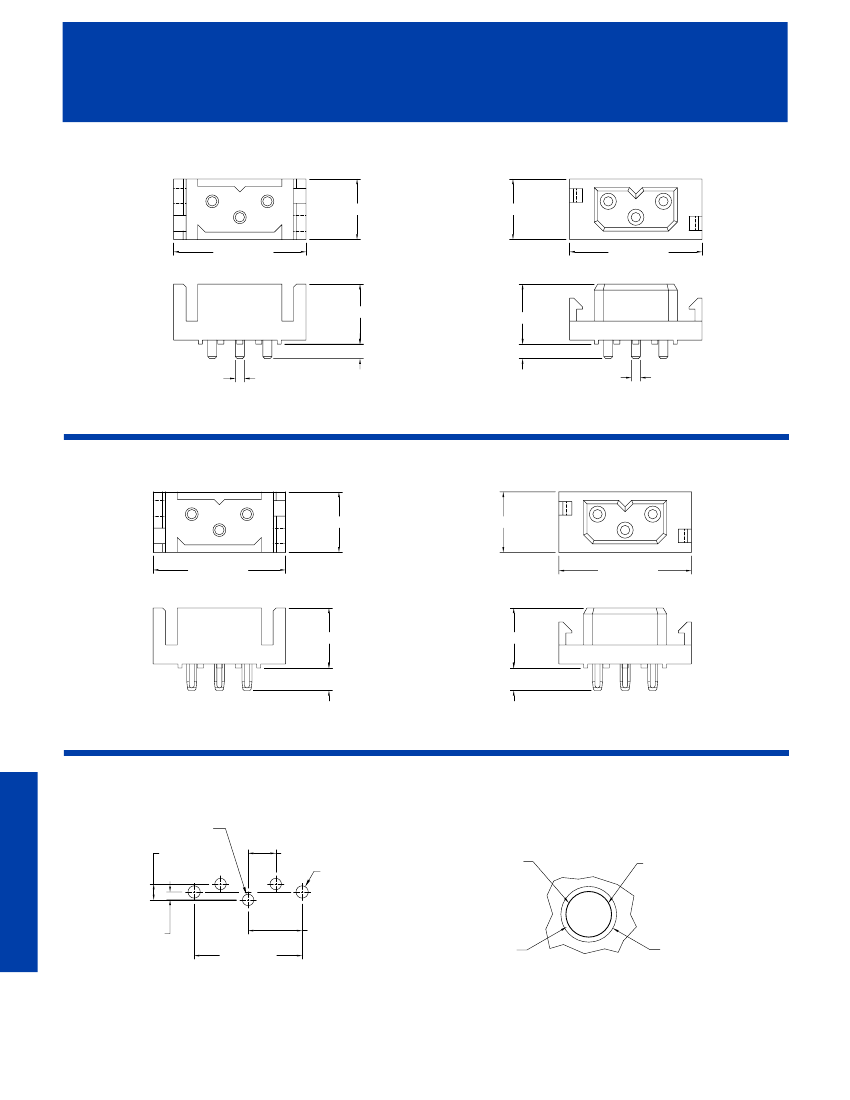

STRAIGHT PRINTED BOARD MOUNT CONNECTORS
Code 3, 0.146 [3.71] Contact Extension
0.606 [15.39]
0.606 [15.39]
P
ower
C
onnection
S
ystems
1.324±0.020
[33.63±0.51]
1.324±0.020
[33.63±0.51]
0.600 [15.24]
0.600 [15.24]
0.146 [3.71]
Ø0.090 [2.29]
0.146 [3.71]
Ø0.090 [2.29]
Part Number:
PLB3W3M300*
Part Number:
PLB3W3F300*
COMPLIANT TERMINATION CONNECTORS
Code 93, 0.225 [5.72] Contact Extension
0.606 [15.39]
0.606 [15.39]
1.324±0.020
[33.63±0.51]
1.324±0.020
[33.63±0.51]
0.600 [15.24]
0.600 [15.24]
0.225 [5.72]
0.225 [5.72]
Part Number:
PLB3W3M93ST30*
See page 55
for Installation
Tooling.
Part Number:
PLB3W3M93ST30*
CONTACT HOLE PATTERN
Straight Printed Board Mount and Compliant Termination Connectors
3X Contact holes
0.159 [4.04]
0.276 [7.01] Typ.
2X Mounting holes
Solder thickness
0.0001 [0.003]
minimum
Finished hole
Ø 0.094±0.002
[2.39±0.05]
A.C. / D.C. INPUT OPTIONS
48
0.080 [2.02]
1.080 [27.43]
0.540 [13.72]
Copper thickness
0.001 [0.03] minimum
Drilled hole
Suggest Ø0.114 [2.90] finished holes in printed board for straight solder printed board mount contacts.
Suggest Ø0.094±0.002 [2.39±0.05] finished holes in printed board for compliant termination contacts.
(See Detail ‘A’). Note: For other PCB plating compositions, i.e. ENIG, (Electroless Nickel,
Immersion Gold), consult Technical Sales.
Suggest Ø0.123±0.003 [3.15±0.08] holes in printed board for mounting connector with push-on fasteners
or 0.100 [2.54] for mounting connector with #2 screws.
Detail A
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
