W3120TRC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> W3120TRC

W3120TRC: DescriptionIC Socket, DIP20, 20 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size62KB，2 Pages; ManufacturerWinslow Adaptics Ltd; Environmental Compliance

Download Datasheet Parametric Compare View All

W3120TRC Overview

IC Socket, DIP20, 20 Contact(s), ROHS COMPLIANT

W3120TRC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Winslow Adaptics Ltd
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	PURE TIN (236) OVER NICKEL (98)
Contact completed and terminated	Pure Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
Device slot type	IC SOCKET
Type of equipment used	DIP20
Shell material	POLYBUTYLENE TEREPHTHALATE-POLYESTER
Number of contacts	20

Preview

Download Datasheet

View All

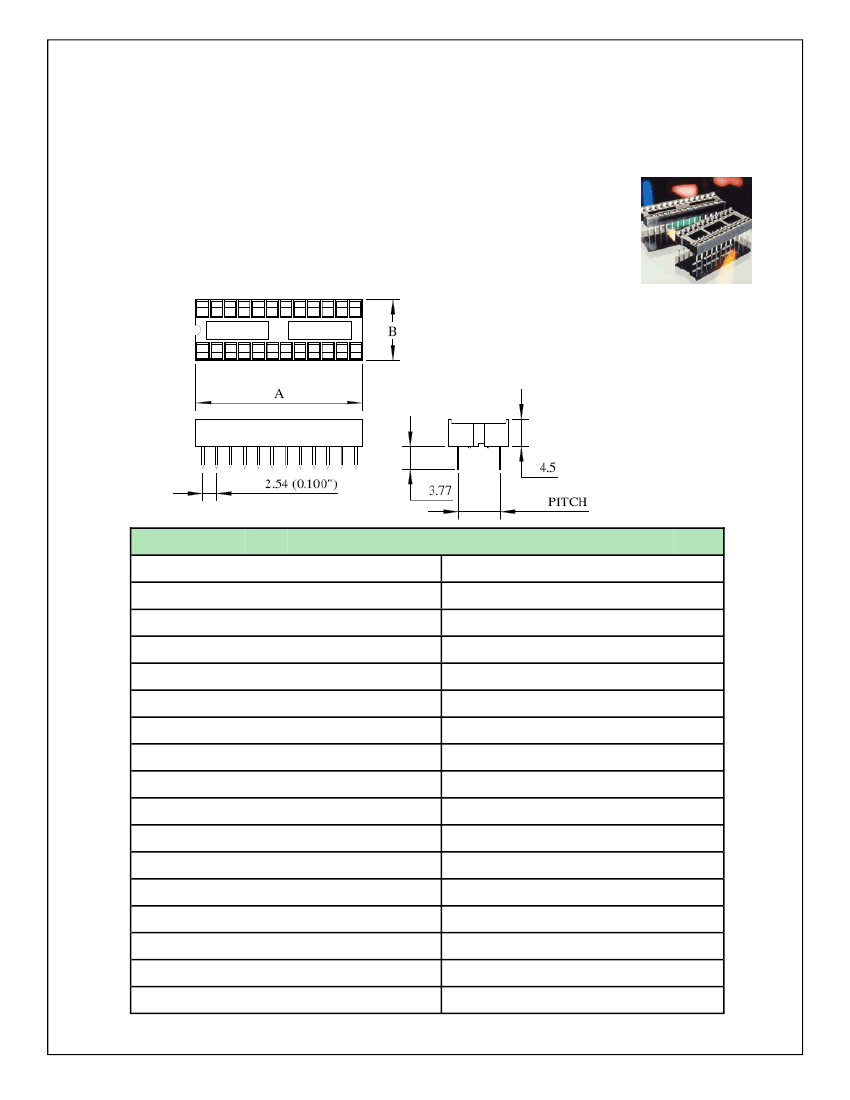

WINSLOW ADAPTICs

Data Sheet – Stamped I.C. Sockets

W3100TRC

W3100T

The W3100 Series uses a phosphor bronze contact with 2 plating options

RHoS compliant Tin or Tin/Lead . Moulding material is 30%GF PBT rated

to UL 94 V-0. Designed for automatic PCB loading machines features in-

clude; overstress protection, large target area for ease of IC insertion and

a 35 degree angled contact to prevent the IC leg from going behind the

contact during insertion.

Part No.

W3106TRC

W3108TRC

W3114TRC

W3116TRC

W3118TRC

W3120TRC

W3122TRC

W3124/3TRC

W3124/4TRC

W3124TRC

W3128/3TRC

W3128TRC

W3132TRC

W3140TRC

W3142TRC

W3148TRC

W3164TRC

Pins

Pitch

7.62

7.49

10.14

Part No.

W3106T

W3108T

W3114T

W3116T

W3118T

W3120T

W3122T

W3124/3T

W3124/4T

W3124T

W3128/3T

W3128T

W3132T

W3140T

W3142T

W3148T

W3164T

Pins Pitch

7.62

7.49

10.14

10.03 10.14

17.65 10.14

20.19 10.14

22.73 10.14

25.27 10.14

7.62 10.03 10.14

7.62 17.65 10.14

7.62 20.19 10.14

7.62 22.73 10.14

7.62 25.27 10.14

10.16 27.81 12.68

7.62 30.35 10.14

10.16 30.35 12.68

15.25 30.35 17.78

7.62 35.53 10.14

15.24 35.53 17.78

15.24 40.51 17.78

15.24 50.67 17.78

15.24 53.21 17.78

15.25 60.83 17.78

22.86 81.15 25.40

10.16 27.81 12.68

7.62

30.35 10.14

10.16 30.35 12.68

15.24 30.35 17.78

7.62

35.53 10.14

15.24 35.53 17.78

15.24 40.51 17.78

15.24 50.67 17.78

15.24 53.21 17.78

15.24 60.83 17.78

22.86 81.15 25.40

Note: Dimensions are subject to change without prior notice.

W3120TRC Related Products

	W3120TRC	W3148TRC	W3164TRC	W3124/3TRC	W3116TRC	W3128/3TRC	W3106TRC	W3108TRC	W3114TRC	W3142TRC
Description	IC Socket, DIP20, 20 Contact(s), ROHS COMPLIANT	IC Socket, DIP48, 48 Contact(s), ROHS COMPLIANT	IC Socket, DIP64, 64 Contact(s), ROHS COMPLIANT	IC Socket, DIP24, 24 Contact(s), ROHS COMPLIANT	IC Socket, DIP16, 16 Contact(s), ROHS COMPLIANT	IC Socket, DIP28, 28 Contact(s), ROHS COMPLIANT	IC Socket, DIP6, 6 Contact(s), ROHS COMPLIANT	IC Socket, DIP8, 8 Contact(s), ROHS COMPLIANT	IC Socket, DIP14, 14 Contact(s), ROHS COMPLIANT	IC Socket, DIP42, 42 Contact(s), ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)	PURE TIN (236) OVER NICKEL (98)
Contact completed and terminated	Pure Tin (Sn) - with Nickel (Ni) barrier	Pure Tin (Sn) - with Nickel (Ni) barrier	Pure Tin (Sn) - with Nickel (Ni) barrier	Pure Tin (Sn) - with Nickel (Ni) barrier	Pure Tin (Sn) - with Nickel (Ni) barrier	Pure Tin (Sn) - with Nickel (Ni) barrier	Pure Tin (Sn) - with Nickel (Ni) barrier	Pure Tin (Sn) - with Nickel (Ni) barrier	Pure Tin (Sn) - with Nickel (Ni) barrie	Pure Tin (Sn) - with Nickel (Ni) barrie
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP20	DIP48	DIP64	DIP24	DIP16	DIP28	DIP6	DIP8	DIP14	DIP42
Shell material	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER	POLYBUTYLENE TEREPHTHALATE-POLYESTER
Number of contacts	20	48	64	24	16	28	6	8	14	42
Maker	Winslow Adaptics Ltd	-	-	Winslow Adaptics Ltd	Winslow Adaptics Ltd	Winslow Adaptics Ltd	Winslow Adaptics Ltd	Winslow Adaptics Ltd	Winslow Adaptics Ltd	Winslow Adaptics Ltd
