91403-002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 91403-002

91403-002: DescriptionBoard Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size242KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

91403-002 Overview

Board Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

91403-002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PACKAGING TUBE
body width	0.375 inch
subject depth	0.41 inch
body length	2.65 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.417 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	91403
Plug contact pitch	0.025 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	11.43 mm
Plating thickness	30u inch
polarization key	CENTER
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.63 mm
Termination type	SURFACE MOUNT
Total number of contacts	160
Evacuation force-minimum value	.1112 N

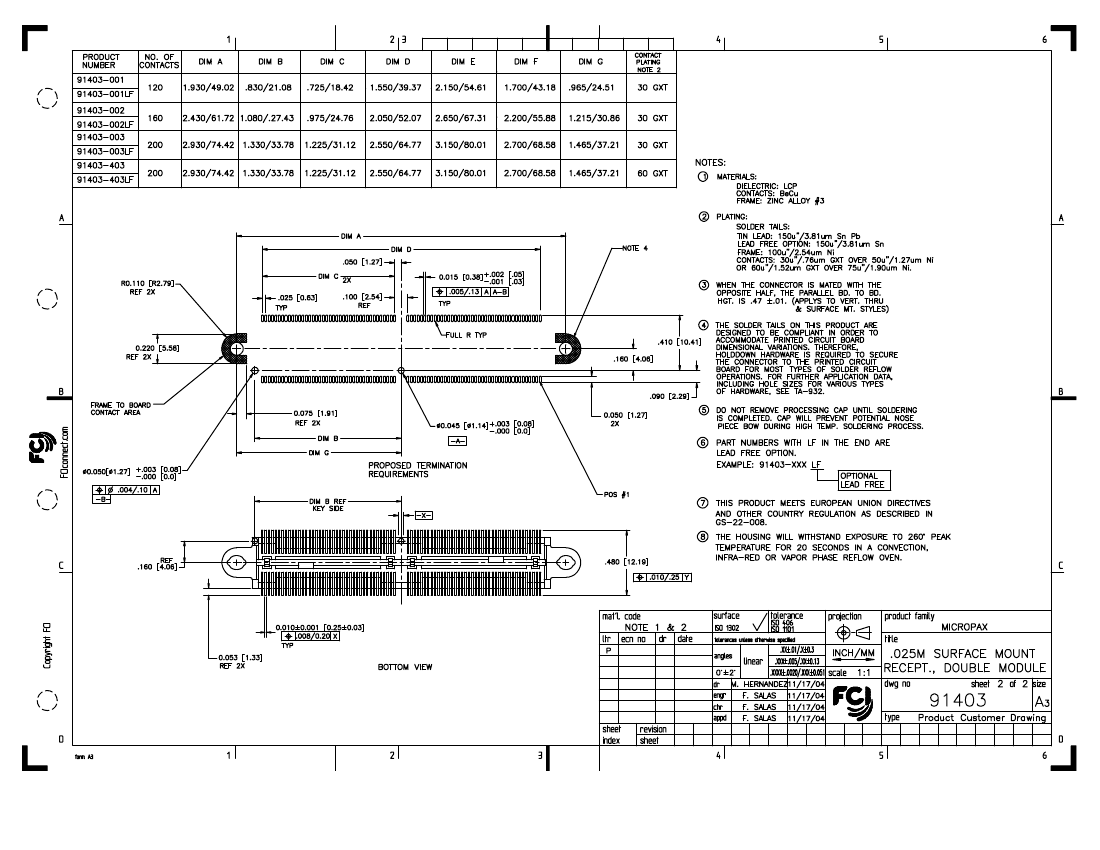

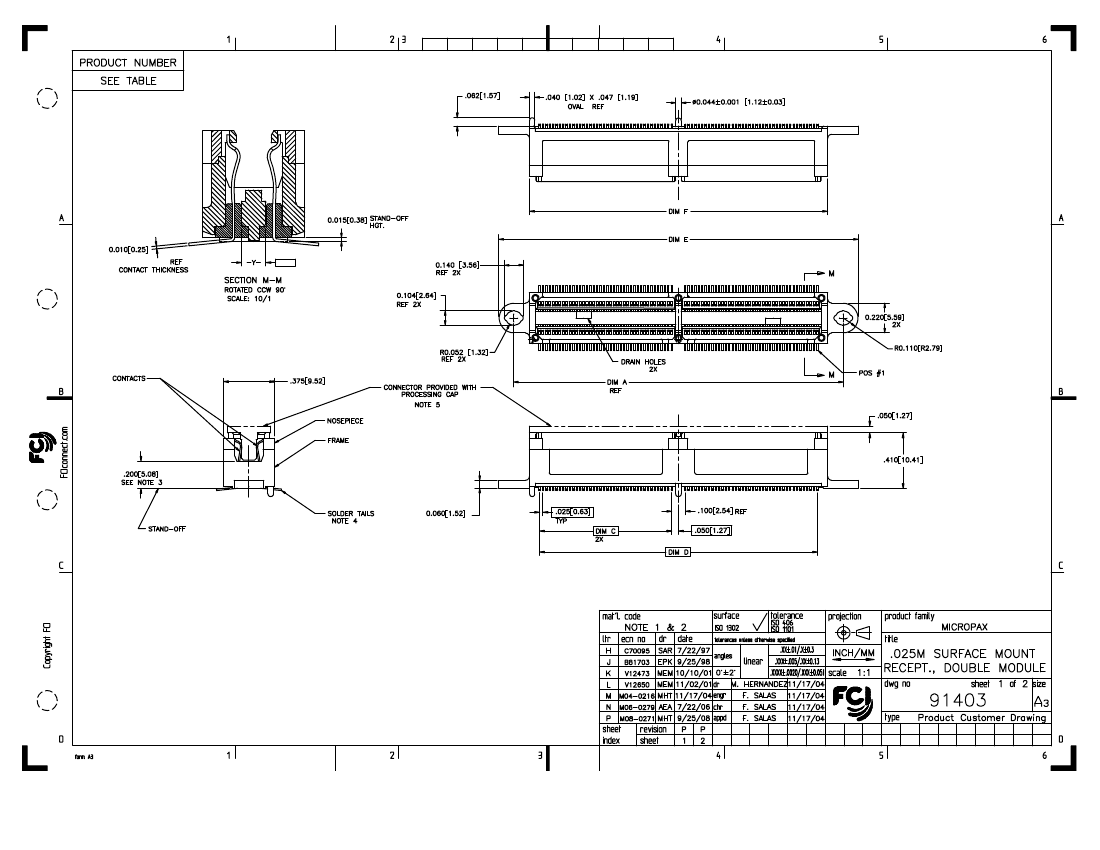

Preview

Download Datasheet

View All

PDM: Rev:P

STATUS:

Released

Printed: Jul 22, 2010

91403-002 Related Products

	91403-002	91403-001	91403-001LF	91403-403	91403-002LF
Description	Board Connector, 160 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	CONN RECPT 120POS .025" GOLD	Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 160 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, LEAD FREE
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30) OVER NICKEL (50)/NICKEL PALLADIUM GOLD (30) OVER NICKEL (50)	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	TIN (150)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	TIN (150)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e3	e0	e3
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.63 mm	0.63 mm	0.63 mm	0.63 mm	0.63 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	160	120	120	200	160
Is it lead-free?	Contains lead	Contains lead	-	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	-	incompatible	-
Maker	Amphenol	Amphenol	Amphenol	-	Amphenol
Other features	PACKAGING TUBE	PACKAGING TUBE	-	PACKAGING TUBE	-
body width	0.375 inch	0.375 inch	-	0.375 inch	-
subject depth	0.41 inch	0.41 inch	-	0.41 inch	-
body length	2.65 inch	2.15 inch	-	3.15 inch	-
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	-	BERYLLIUM COPPER	-
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
Contact resistance	15 mΩ	15 mΩ	-	15 mΩ	-
Contact style	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	-
Dielectric withstand voltage	500VAC V	500VAC V	-	500VAC V	-
Durability	250 Cycles	250 Cycles	-	250 Cycles	-
maximum insertion force	.417 N	.417 N	-	.417 N	-
Insulation resistance	10000000000 Ω	10000000000 Ω	-	10000000000 Ω	-
Insulator color	BLACK	BLACK	-	BLACK	-
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	-	LIQUID CRYSTAL POLYMER (LCP)	-
Manufacturer's serial number	91403	-	91403	-	91403
Plug contact pitch	0.025 inch	0.025 inch	-	0.025 inch	-
Number of connectors	ONE	ONE	-	ONE	-
PCB row number	2	2	-	2	-
Maximum operating temperature	105 °C	105 °C	-	105 °C	-
Minimum operating temperature	-20 °C	-20 °C	-	-20 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
PCB contact row spacing	11.43 mm	11.43 mm	-	11.43 mm	-
Plating thickness	30u inch	30u inch	-	60u inch	-
polarization key	CENTER	CENTER	-	CENTER	-
Rated current (signal)	0.5 A	0.5 A	-	0.5 A	-
Guideline	UL, CSA	UL, CSA	-	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-
Evacuation force-minimum value	.1112 N	.1112 N	-	.1112 N	-
