ZAY-3B+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZAY-3B+

ZAY-3B+: DescriptionDouble Balanced Mixer, 0.07MHz Min, 200MHz Max, 8dB Conversion Loss-Max, ROHS COMPLIANT, CASE M22; CategoryWireless rf/communication Radio frequency and microwave; File Size224KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

ZAY-3B+ Overview

Double Balanced Mixer, 0.07MHz Min, 200MHz Max, 8dB Conversion Loss-Max, ROHS COMPLIANT, CASE M22

ZAY-3B+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	COAXIAL
Maximum frequency conversion loss	8 dB
Maximum input power (CW)	25.44 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	0.07 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	2.42

Preview

Download Datasheet

View All

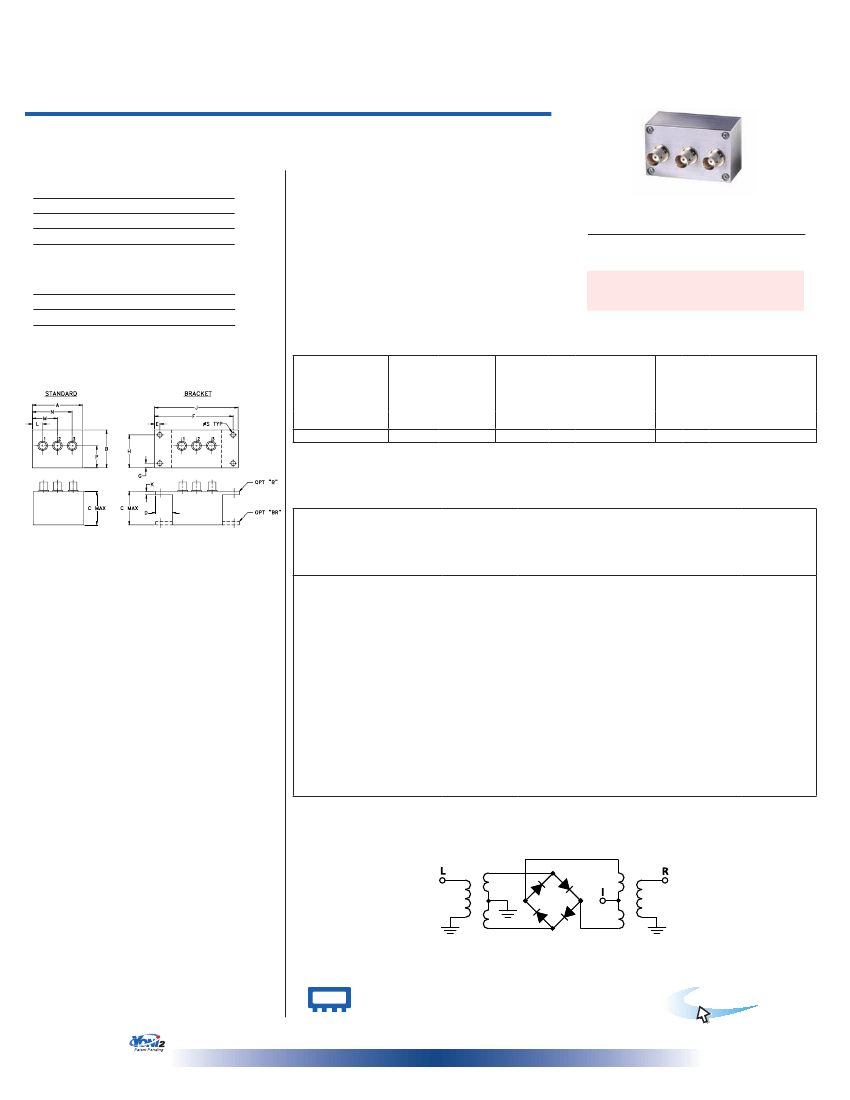

Frequency Mixer

Level 23 (LO Power +23 dBm) 0.07 to 200 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

350mW

40mA

Coaxial

ZAY-3+

ZAY-3

Features

• low conversion, 5.53

• high L-R & L-I isolation, 40 dB typ.

• rugged shielded case

CASE STYLE: M22

Connectors Model

BNC

ZAY-3(+)

BRACKET (OPTION “B”)

BRACKET (OPTION “BR”)

Price

$64.95

$5.00

$1.50

Qty.

(1-9)

(1+)

Permanent damage may occur if any of these limits are exceeded.

Applications

• VHF

• FM radio

• instrumentation

Coaxial Connections

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications.

Electrical Specifications

Outline Drawing

FREQUENCY

(MHz)

LO/RF

-f

0.07-200

DC-200

1 dB COMP.: +15 dBm typ.

—

5.53

CONVERSION LOSS

(dB)

Mid-Band

0.08

Total

Range

Max. Max.

7.5

8.0

Typ.

LO-RF ISOLATION

(dB)

Min.

Typ.

Min.

Typ.

Min.

Typ.

LO-IF ISOLATION

(dB)

Min.

Typ.

Min.

Typ.

Min.

L = low range [f

to 10 f

]

m= mid band [2f

to f

/2]

M = mid range [10 f

to f

/_]

U = upper range [f

/2 to f

]

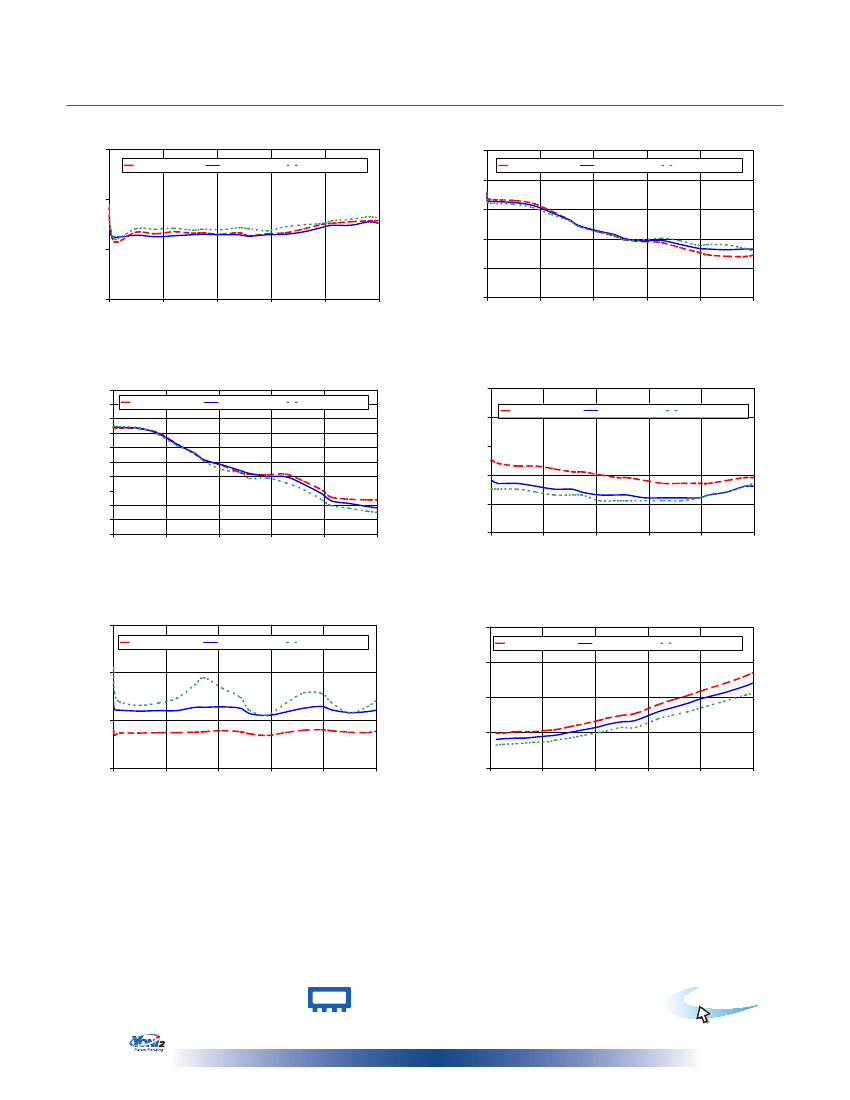

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

30.07

30.20

31.00

35.00

50.00

64.54

78.33

92.12

99.01

52.80

66.59

73.48

87.27

101.06

114.85

128.63

135.53

149.32

163.10

170.00

+23dBm

5.77

5.58

5.29

5.23

5.27

5.24

5.26

5.28

5.29

5.28

5.25

5.28

5.29

5.34

5.43

5.47

5.54

5.51

Isolation

L-R

(dB)

+23dBm

55.55

53.15

52.74

52.57

52.28

51.27

48.91

46.28

44.38

42.67

41.29

39.95

39.22

39.37

38.04

36.70

36.49

36.22

36.47

36.43

Isolation

L-I

(dB)

+23dBm

56.68

57.09

57.07

56.88

56.59

54.69

51.06

47.85

45.65

43.88

41.90

40.89

39.90

39.78

37.10

33.79

31.41

30.50

29.43

29.00

VSWR

RF Port

(:1)

+23dBm

1.17

1.18

1.17

1.16

1.15

1.14

1.13

1.12

1.13

1.14

1.16

VSWR

LO Port

(:1)

+23dBm

2.42

2.40

2.23

2.21

2.19

2.20

2.27

2.28

2.25

2.14

2.10

2.17

2.25

2.29

2.22

2.16

2.18

2.21

0.07

0.20

1.00

5.00

20.00

Outline Dimensions (

inch

)

2.25

57.15

3.25

82.55

1.38

35.05

.10

2.54

1.24

31.50

.40

10.16

.50

12.70

1.15

29.21

.150

3.81

1.86

47.24

3.100

78.74

.64

16.26

.138

3.51

1.238

31.45

34.54

48.33

62.12

69.01

82.80

96.59

103.48

117.27

131.06

144.85

158.63

165.53

179.32

193.10

200.00

.150 grams

3.81

74.0

Electrical Schematic

Mini-Circuits

minicircuits.com

REV. A

M119761

ZAY-3

DJ/TD/CP/AM

080930

Page 1 of 2

ISO 9001 ISO 14001

AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com

IF/RF MICROWAVE COMPONENTS
