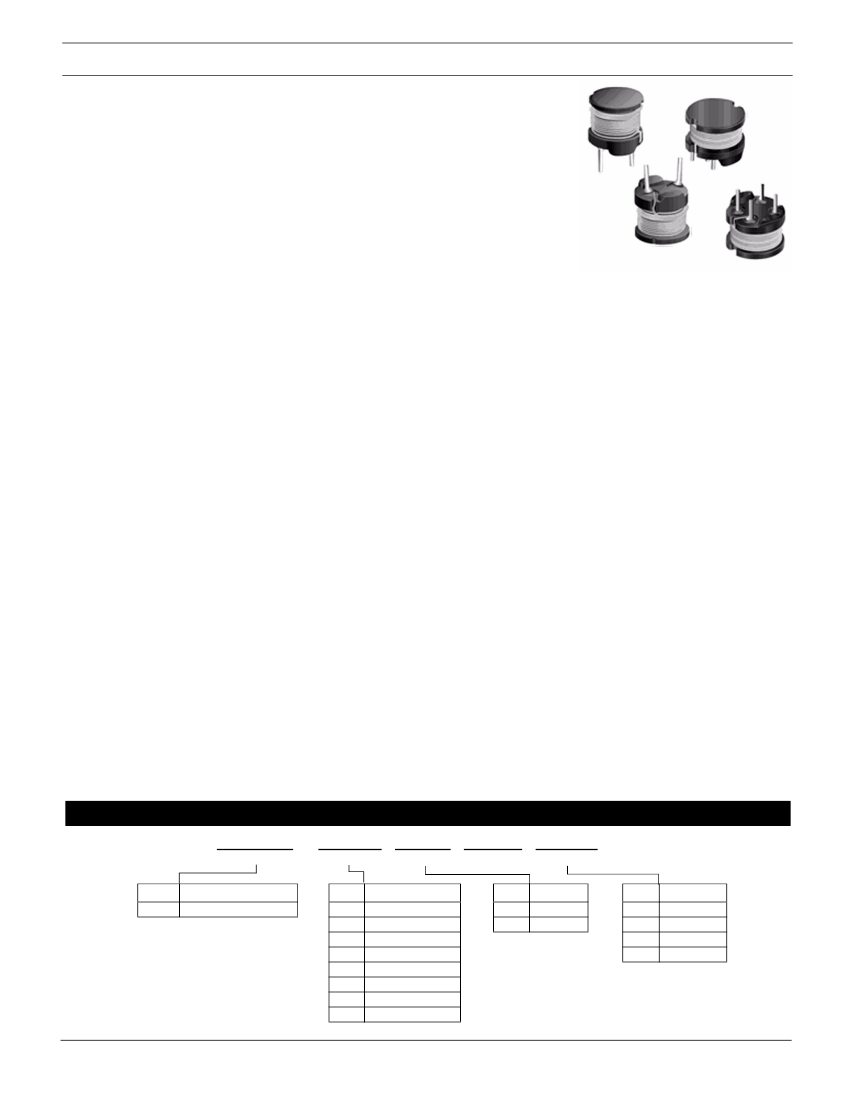

DRGH Series — Unshielded DIP Power Inductor
Features
• Designed for high density, small size, and low cost
• Provides low DCR with high DIP stability
• For Inductance values outside those listed in the datasheet contact factory
• Find Environmental information and Packaging specs in related supplimental documents
Applications
• Personal computers
• DC power supplies
• Battery powered equipment
• Power Choke
Inductance and Current ranges
• DRGH654
• DRGH664
• DRGH855
• DRGH875
• DRGH895
• DRGH106
• DRGH108
• DRGH110
22 ~ 1000 µH
22 ~ 1000 µH
10 ~ 10000 µH
10 ~ 10000 µH
10 ~ 47000 µH
10 ~ 1000 µH
10 ~ 1000 µH
10 ~ 1000 µH
0.90 ~ 0.13 A
1.27 ~ 0.19 A
2.50 ~ 0.08 A
2.90 ~ 0.08 A
2.60 ~ 0.04 A
3.60 ~ 0.36 A
4.50 ~ 0.45 A
5.30 ~ 0.53 A
How to Order
DRGH
SEI Type
654
Dimensions
K
Tolerance
T
Packaging
100
Inductance
Type
DRGH
Description
DIP Power Inductor
Code Dimensions(mm)
654
664
855
875
895
106
108
110
6.0x5.0
6.0x6.5
7.8x5.5
7.8x7.5
7.8x9.5
10.0x6.0
10.0x8.0
10.0x10.0
Code Tolerance
K
M
Code Inductance
100
101
102
103
10 µH
100 µH
1000 µH
10000 µH
±
10%
±
20%
Toll Free: (888) SEI-SEIS
(888) 734-7347
www.seielect.com
1
email: marketing@seielect.com
Rev 05/07
DRGH Series — Unshielded DIP Power Inductor

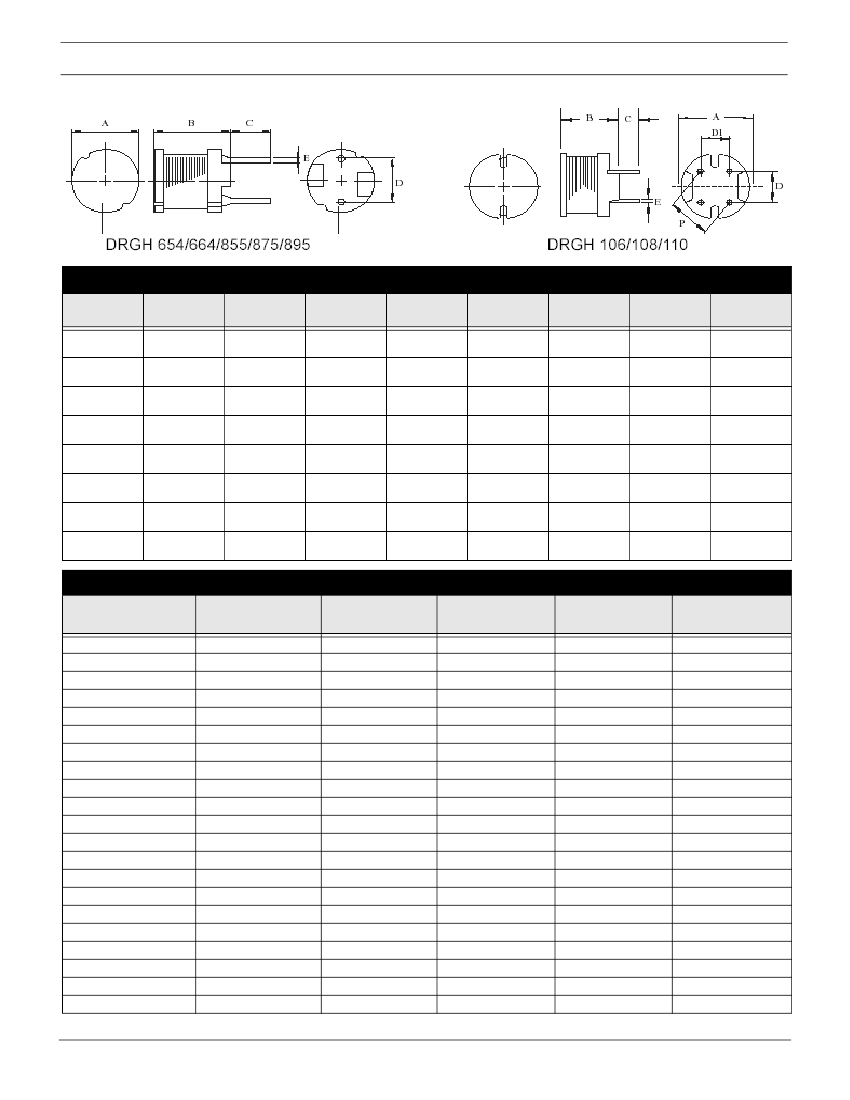

Mechanical Specifications
Type
/Code
DRGH654
DRGH664
DRGH855
DRGH875
DRGH895
DRGH106
DRGH108
DRGH110
A
0.236 ± 0.020
6.0 ± 0.5
0.236 ± 0.020
6.0 ± 0.5
0.307 ± 0.020
7.8 ± 0.5
0.307 ± 0.020
7.8 ± 0.5
0.307 ± 0.020
7.8 ± 0.5
0.394 ± 0.020
10.0 ± 0.5
0.394 ± 0.020
10.0 ± 0.5
0.394 ± 0.020
10.0 ± 0.5
B
0.197 ± 0.020
5.0 ± 0.5
0.256 ± 0.020
6.5 ± 0.5
0.217 ± 0.020
5.5 ± 0.5
0.295 ± 0.020
7.5 ± 0.5
0.374 ± 0.5
9.5 ± 0.5
0.236 ± 0.020
6.0 ± 0.5
0.315 ± 0.020
8.0 ± 0.5
0.394 ± 0.020
10.0 ± 0.5
C
0.150 ± 0.040
4.0 ± 1.0
0.150 ± 0.040
4.0 ± 1.0
0.197 ± 0.040
5.0 ± 1.0
0.197 ± 0.040
5.0 ± 1.0
0.197 ± 0.040
5.0 ± 1.0
0.138 ± 0.040
3.5 ± 1.0
0.138 ± 0.040
3.5 ± 1.0
0.138 ± 0.040
3.5 ± 1.0
D
0.150 ± 0.012
4.0 ± 0.3
0.150 ± 0.012
4.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
D1
-
-
-
-
-
0.150 ± 0.012
4.0 ± 0.3
0.150 ± 0.012
4.0 ± 0.3
0.150 ± 0.012
4.0 ± 0.3
E
0.020 ± 0.004
0.5 ± 0.1
0.020 ± 0.004
0.5 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
P
-
-
-
-
-
0.252 ± 0.020
6.4 ± 0.5
0.252 ± 0.020
6.4 ± 0.5
0.252 ± 0.020
6.4 ± 0.5
Units
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Electrical Characteristics - DRGH654
Part Number
DRGH654MT220
DRGH654MT270
DRGH654MT330
DRGH654MT390
DRGH654MT470
DRGH654MT560
DRGH654MT680
DRGH654MT820
DRGH654KT101
DRGH654KT121
DRGH654KT151
DRGH654KT181
DRGH654KT221
DRGH654KT271
DRGH654KT331
DRGH654KT391
DRGH654KT471
DRGH654KT561
DRGH654KT681
DRGH654KT821
DRGH654KT102
L
(µH)
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Test Freq
(KHz)
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance
(%)
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR
(
Ω
) Max
0.18
0.21
0.27
0.29
0.34
0.42
0.48
0.55
0.68
0.77
0.95
1.15
1.30
1.55
2.18
2.47
2.92
3.97
4.57
5.28
7.06
I DC
(A) Max
0.90
0.81
0.74
0.68
0.62
0.57
0.51
0.47
0.42
0.39
0.35
0.32
0.29
0.26
0.23
0.21
0.20
0.18
0.16
0.15
0.13
