Software-Calibrated, 1 MHz to 8 GHz, 60 dB RF Power
Measurement System Using a Logarithmic Detector
EVALUATION AND DESIGN SUPPORT
Circuit Evaluation Boards
CN-0150 Circuit Evaluation Board (EVAL-CN0150A-SDPZ)
System Demonstration Platform (EVAL-SDP-CB1Z)
Design and Integration Files
Schematics, Layout Files, Bill of Materials
A simple two-point system calibration is performed in the
digital domain.
The
AD8318
maintains accurate log conformance for signals of
1 MHz to 6 GHz and provides useful operation to 8 GHz.
The device provides a typical output voltage temperature
stability of ±0.5 dB.
The
AD7887
ADC can be configured for either dual or single
channel operation via the on-chip control register. There is a
default single-channel mode that allows the
AD7887
to be operated
as a read-only ADC, thereby simplifying the control logic.
Typical data is shown for the two devices operating over a
−40°C to +85°C temperature range.
CIRCUIT FUNCTION AND BENEFITS
This circuit measures RF power at any frequency from
1 MHz to 8 GHz over a range of approximately 60 dB. The
measurement result is provided as a digital code at the output of
a 12-bit ADC with serial interface and integrated reference. The
output of the RF detector has a glueless interface to the ADC and
uses most of the ADC’s input range without further adjustment.
+5V
V
POS
R4
499Ω
C5
0.1µF
C6
100pF
10µF
0.1µF
12
11
10
9
CMIP CMIP TADJ VPSO
PULSED RF
INPUT
R
FIN
R1
52.3Ω
13
TEMP
V
DD
V
OUT
SEE
TEXT
0.1µF
SERIAL
INTERFACE
CMOP
8
VSET
7
AD7887
AIN0
AIN1/
V
REF
SCLK
DOUT
DIN
CS
µC/µP
C1 1nF
C2 1nF
14
INHI
15
INLO
16
ENBL
AD8318
VOUT
6
CLPF
5
CMIP CMIP
1
2
VPSI
3
VPSI
4
C9
0.1µF
GND
C7
100pF
08967-001
V
POS
C8
0.1µF
Figure 1. Software-Calibrated RF Measurement System (Simplified Schematic: All Connections Not Shown)
Rev. C
Circuits from the Lab™ circuits from Analog Devices have been designed and built by Analog Devices
engineers. Standard engineering practices have been employed in the design and construction of
each circuit, and their function and performance have been tested and verified in a lab environment at
room temperature. However, you are solely responsible for testing the circuit and determining its
suitability and applicability for your use and application. Accordingly, in no event shall Analog Devices
be liable for direct, indirect, special, incidental, consequential or punitive damages due to any cause
whatsoever connected to the use of any Circuits from the Lab circuits. (Continued on last page)
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
www.analog.com
Fax: 781.461.3113 ©2010–2012 Analog Devices, Inc. All rights reserved.
CN-0150
CIRCUIT DESCRIPTION
The RF signal being measured is applied to the
AD8318.
The
device is configured in its so-called measurement mode, with
the VSET and VOUT pins connected together. In this mode,
the output voltage vs. the input signal level is linear-in-dB
(nominally −24 mV/dB) and has a typical output voltage range
of 0.5 V to 2.1 V.
The
AD8318
output is connected directly to the
AD7887,
12-bit
ADC. The ADC uses its internal reference and is configured for
a 0 V to 2.5 V input, resulting in an LSB size of 610 μV. With the RF
detector providing a nominal −24 mV/dB, the digital resolution
is 39.3 LSBs/dB. With this much resolution, there is little value
in trying to scale the 0.5 V to 2.1 V signal from the RF detector
to exactly fit the 0 V to 2.5 V range of the ADC.
The transfer function of the detector can be approximated by
the equation
V
OUT
=
SLOPE
× (P
IN
−
INTERCEPT)
where SLOPE is in mV/dB (−24 mV/dB nominal); INTERCEPT is
the x-axis intercept with a unit of dBm (20 dBm nominal);
and P
IN
is the input power expressed in dBm. A typical plot
of detector output voltage vs. input power is shown in Figure 2.
2.4
2.1
1.8
1.5
V
OUT
(V)
1.2
0.9
0.6
0.3
RANGE OF
CALCULATION
OF SLOPE AND
INTERCEPT
V
OUT
25°C
ERROR 25°C
2.0
1.5
1.0
ERROR (dB)
0.5
0
–0.5
–1.0
–1.5
08967-002
Circuit Note
Using the two known input power levels,
PIN_1
and
PIN_2,
and the corresponding observed ADC codes,
CODE_1
and
CODE_2, SLOPE_ADC,
and
INTERCEPT
can be calculated
using the following equations:
SLOPE_ADC
= (CODE_2 −
CODE_1)/(PIN_2
−
PIN_1)
INTERCEPT
=
PIN_2 − (CODE_2/SLOPE_ADC)
Once
SLOPE_ADC
and
INTERCEPT
are calculated and stored (in
nonvolatile RAM) during factory calibration, they can be used
to calculate an unknown input power level, PIN, when the
equipment is in operation in the field using the equation
PIN
= (CODE_OUT/SLOPE_ADC) +
INTERCEPT
Figure 3 through Figure 8 show how the system transfer function
deviates from this straight line equation, particularly at the
endpoints of the transfer function. This deviation is expressed
in dB using the equation
Error
(dB) =
Measured Input Power
−
True Input Power
=
(CODE_OUT/SLOPE_ADC) +
INTERCEPT
–
PIN_TRUE
where:
CODE_OUT
is the ADC output code.
SLOPE_ADC
is the stored ADC slope in codes/dB.
INTERCEPT
is the stored intercept.
PIN_TRUE
is the exact (and unknown) input level.
The plots shown in Figure 3 through Figure 8 show the typical
system performance that can be obtained using the
AD8318
and
AD7887BR
in an RF power measurement system. The graphs
depict the RF input power in dBm vs. the ADC output code and
output error in dB (scaled on the axes on the right side of the
plots). They were generated from data taken with various input
power levels, frequencies, and temperatures and with both internal
and external ADC voltage references. The charts show improved
system performance and lower temperature drift with the use of
a low drift external ADC voltage reference. (See the Common
Variations section for more details about the use of an external
reference.
A complete design support package for this circuit note can be
found at
www.analog.com/CN0150-DesignSupport.
4.0k
3.5k
CODE_2
3.0k
2.5k
2.0k
1.5k
1.0k
0.5k
0
–70
+25°C CODE
–40°C CODE
+85°C CODE
+25°C ERROR
–40°C ERROR
+85°C ERROR
4
3
2
1
0
–1
–2
–3
–4
–60 –50
–40
–30
–20 –10
0
10
08967-003
0
–65 –60 –55 –50 –45 –40 –35 –30 –25 –20 –15 –10 –5
P
IN
(dBm)
0
5
10 15
INTERCEPT
Figure 2. Typical Output Voltage vs. Input Signal Level for the
AD8318
At the output of the ADC, the equation can be written as
CODE_OUT
=
SLOPE_ADC
× (PIN −
INTERCEPT)
where
SLOPE_ADC
is in codes/dB and
PIN
and
INTERCEPT
are in dBm. Figure 3 shows a typical detector power sweep in
terms of input power and observed ADC codes.
Because the slope and intercept of the system vary from device
to device, a system level calibration is required. A calibration is
performed by applying two known signal levels close to the
endpoints of the
AD8318
linear input range and measuring the
corresponding output codes from the ADC. The calibration
points chosen should be well within the linear operating
range of the device (−10 dBm and −50 dBm in this case).
CODE_1
INPUT POWER (dBm)
PIN_2
PIN_1

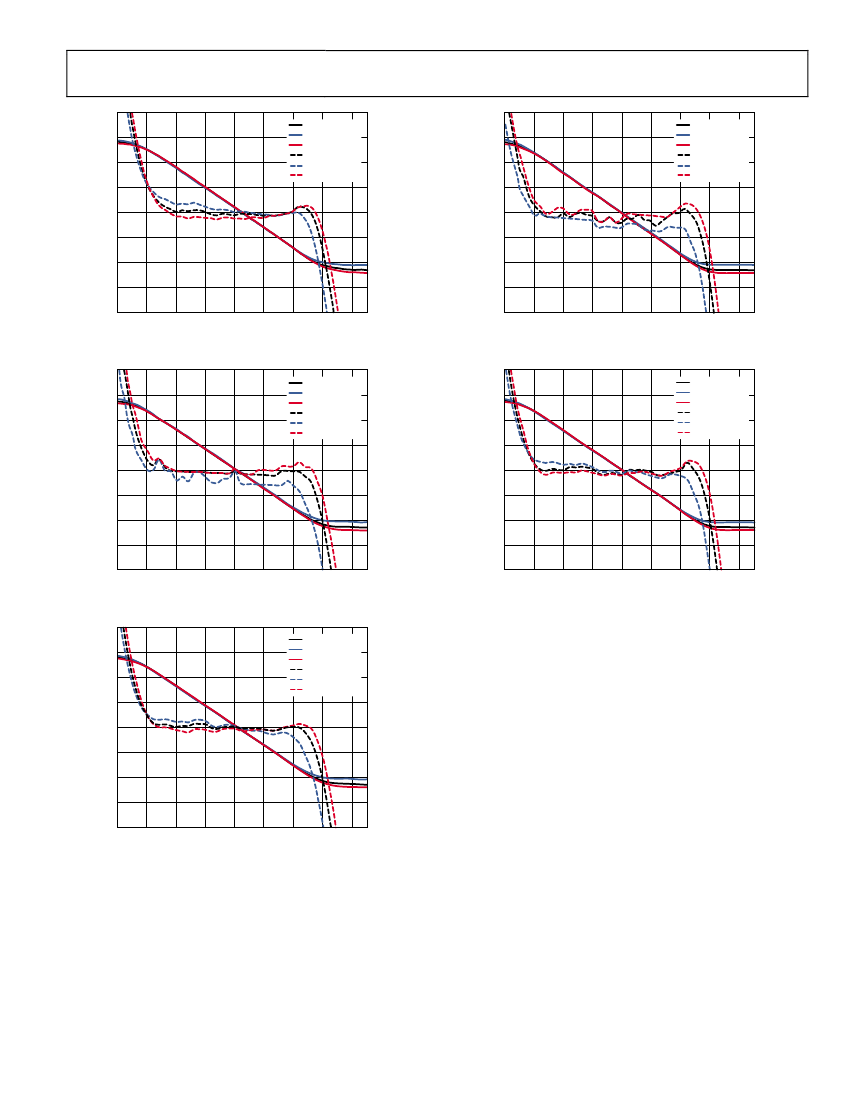

Figure 3. Input = 900 MHz, ADC Using an Internal 2.5 V Reference
Rev. C | Page 2 of 5
OUTPUT ERROR (dBm)
ADC CODE
Circuit Note
4.0k
3.5k
3.0k
2.5k
2.0k
1.5k
1.0k
0.5k
0
–70
+25°C CODE
–40°C CODE
+85°C CODE
+25°C ERROR
–40°C ERROR
+85°C ERROR
4
3
2
1
0
–1
–2
–3
08967-004
CN-0150
4.0k
3.5k
3.0k
2.5k
2.0k
1.5k
1.0k
0.5k
0
–70
+25°C CODE
–40°C CODE
+85°C CODE
+25°C ERROR
–40°C ERROR
+85°C ERROR
4
3
2
1
0
–1
–2
–3
08967-007
OUTPUT ERROR (dBm)
–60
–50
–40
–30
–20
–10
0
10
–4
–60
–50
–40
–30
–20
–10
0
10
–4
INPUT POWER (dBm)
INPUT POWER (dBm)
Figure 4. Input = 900 MHz, ADC Using an External 2.5 V Reference
4.0k
3.5k
3.0k
2.5k
2.0k
1.5k
1.0k
0.5k
0
–70
+25°C CODE
–40°C CODE
+85°C CODE
+25°C ERROR
–40°C ERROR
+85°C ERROR
4
3
2
1
0
–1
–2
–3
08967-005
Figure 7. Input = 2.2 GHz, ADC Using an Internal 2.5 V Reference
4.0k
3.5k
3.0k
2.5k
2.0k
1.5k
1.0k
0.5k
0
–70
+25°C CODE
–40°C CODE
+85°C CODE
+25°C ERROR
–40°C ERROR
+85°C ERROR
4
3
2
1
0
–1
–2
–3
08967-008
OUTPUT ERROR (dBm)
–60
–50
–40
–30
–20
–10
0
10
–4
–60
–50
–40
–30
–20
–10
0
10
–4
INPUT POWER (dBm)
INPUT POWER (dBm)
Figure 5. Input = 1.9 GHz, ADC Using an Internal 2.5 V Reference
4.0k
3.5k
3.0k
2.5k
2.0k
1.5k
1.0k
0.5k
0
–70
+25°C CODE
–40°C CODE
+85°C CODE
+25°C ERROR
–40°C ERROR
+85°C ERROR
4
3
2
1
0
–1
–2
–3
08967-006
Figure 8. Input = 2.2 GHz, ADC Using an External 2.5 V Reference
COMMON VARIATIONS
The
AD7887
is a 2-channel, 12-bit ADC with an SPI interface.
The second input channel of this device can be connected to the
AD8318
TEMP pin. This provides a convenient measure of the
ambient temperature around the
AD8318.
Like the
AD8318
power measurement output, the TEMP voltage output should
also be calibrated.
If the end application requires only a single channel, the 12-bit
AD7495
can be used. In multichannel applications that require
multiple ADCs and DAC channels, the
AD7294
can be used.
In addition to providing four 12-bit DAC outputs, this subsystem
chip includes four uncommitted ADC channels, two high-side
current sense inputs, and three temperature sensors. Current
and temperature measurements are digitally converted and
available to read over the I
2
C-compatible interface.
The temperature stability of the circuit can be improved using an
external ADC reference. The
AD7887
internal 2.5 V reference has
a 50 ppm/°C drift, which is approximately 15 mV over a 125°C
range. Because the detector has a slope of −24 mV/dB, the ADC
reference drift contributes approximately ±0.3 dB to the temperature
drift error budget. The
AD8318
temperature drift is approximately
±0.5 dB over a similar temperature range. (This varies with
frequency. See the
AD8318
data sheet for more details.)
Rev. C | Page 3 of 5
–60
–50
–40
–30
–20
–10
0
10
–4
INPUT POWER (dBm)
Figure 6. Input = 1.9 GHz, ADC Using an External 2.5 V Reference
OUTPUT ERROR (dBm)
ADC CODE
OUTPUT ERROR (dBm)
ADC CODE
ADC CODE
OUTPUT ERROR (dBm)
ADC CODE
ADC CODE
CN-0150
If an external voltage reference is to be used, the
ADR421
2.5 V
reference is recommended. Its 1 ppm/°C temperature drift results
in a reference voltage variation of only 312 μV from −40°C to
+85°C. This has a negligible effect on the overall temperature
stability of the system.
If a less dynamic range is required, the
AD8317
(55 dB) or
AD8319
(45 dB) log detector can be used. If a true rms responding power
measurement is required, the
AD8363
(50 dB) or
ADL5902
(65 dB) can be used.
Circuit Note
6 V wall wart can be connected to the barrel connector on the
board and used in place of the 6 V power supply. Connect the USB
cable supplied with the SDP board to the USB port on the PC.
Note: Do not connect the USB cable to the mini USB connector
on the SDP board at this time.
Test
Apply power to the 6 V supply (or wall wart) connected to
EVAL-CN0150A-SDPZ
circuit board. Launch the evaluation
software and connect the USB cable from the PC to the USB
mini connector on the SDP board.
Once USB communications are established, the SDP board can
now be used to send, receive, and capture serial data from the
EVAL-CN0150A-SDPZ
board.
The data in this circuit note were generated using a Rohde &
Schwarz SMT-03 RF signal source and an Agilent E3631A power
supply. The signal source was set to the frequencies indicated in
the graphs, and the input power was stepped and data recorded
in 1 dB increments.
Temperature testing was performed using a Test Equity Model 107
environmental chamber. The
EVAL-CN0150A-SDPZ
evaluation
board was placed in the chamber via a slot in the test chamber
door, with the SDP evaluation board extending outside.
Information and details regarding how to use the evaluation
software for data capture can be found in the CN0150A
evaluation software readme file.
Information regarding the SDP board can be found in the
SDP
User Guide.
CIRCUIT EVALUATION AND TEST
This circuit uses the
EVAL-CN0150A-SDPZ
circuit board and
the
EVAL-SDP-CB1Z System Demonstration Platform (SDP)
evaluation board. The two boards have 120-pin mating connectors,
allowing for the quick setup and evaluation of the circuit’s
performance. The
EVAL-CN0150A-SDPZ
board contains the
circuit to be evaluated, as described in this note, and the SDP
evaluation board is used with the CN0150A evaluation software to
capture the data from the
EVAL-CN0150A-SDPZ
circuit board.
Equipment Needed
•
PC with a USB port and Windows® XP or Windows Vista®
(32-bit), or Windows 7 (32-bit)
•
EVAL-CN0150A-SDPZ
Circuit Evaluation Board
•
EVAL-SDP-CB1Z SDP
Evaluation Board
•
CN0150A Evaluation Software
•
Power supply: 6 V or 6 V wall wart
•
Environmental chamber
•
RF signal source
•
Coaxial RF cable with SMA connectors
LEARN MORE
CN0150 Design Support Package:
http://www.analog.com/CN0150-DesignSupport
SDP User Guide
MT-031 Tutorial,
Grounding Data Converters and Solving the
Mystery of “AGND” and “DGND,”
Analog Devices.
MT-077 Tutorial,
Log Amp Basics,
Analog Devices.
MT-078 Tutorial,
High Speed Log Amps,
Analog Devices.
MT-101 Tutorial,
Decoupling Techniques,
Analog Devices.
Whitlow, Dana.
Design and Operation of Automatic Gain
Control Loops for Receivers in Modern Communications
Systems.
Chapter 8. Analog Devices Wireless Seminar. 2006.
Getting Started
Load the evaluation software by placing the CN0150A evaluation
software CD in the CD drive of the PC. Using
My Computer,
locate the drive that contains the evaluation software CD and
open the readme file. Follow the instructions contained in the
readme file for installing and using the evaluation software.
Functional Block Diagram
See Figure 1 of this circuit note for the circuit block diagram
and the
EVAL-CN150A-SDPZ-SCH-Rev0.pdf
file for the
circuit schematics. This file is contained in the
CN0150
Design Support Package.
Setup
Connect the 120-pin connector on the
EVAL-CN0150A-SDPZ
circuit board to the CON A connector on the
EVAL-SDP-CB1Z
evaluation (SDP) board. Use nylon hardware to firmly secure
the two boards, using the holes provided at the ends of the 120-pin
connectors. Using an appropriate RF cable, connect the RF signal
source to the
EVAL-CN0150A-SDPZ
board via the SMA RF
input connector. With power to the supply off, connect a 6 V power
supply to the +6V and GND pins on the board. If available, a
Data Sheets and Evaluation Boards
CN-0150 Circuit Evaluation Board (EVAL-CN0150A-SDPZ)
System Demonstration Platform (EVAL-SDP-CB1Z)
AD7887 Data Sheet
AD7887 Evaluation Board
AD8318 Data Sheet
AD8318 Evaluation Board
ADR421 Data Sheet
Rev. C | Page 4 of 5
Circuit Note
REVISION HISTORY
2/12—Rev. B to Rev. C
Changed 70 dB to 60 dB in Circuit Note Title ..............................1
3/11—Rev. A to Rev. B
Added Evaluation and Design Support Section............................1
Added Circuit Evaluation and Test Section...................................4
8/10— Rev. 0 to Rev. A
Changes to the Circuit Function and Benefits Section ................1
Changes to the Circuit Description Section ..................................2
Changes to the Common Variations Section ................................4
4/10—Revision 0: Initial Version
CN-0150
I
2
C refers to a communications protocol originally developed by Philips Semiconductors (now NXP Semiconductors).
(Continued from first page) Circuits from the Lab circuits are intended only for use with Analog Devices products and are the intellectual property of Analog Devices or its licensors. While you
may use the Circuits from the Lab circuits in the design of your product, no other license is granted by implication or otherwise under any patents or other intellectual property by
application or use of the Circuits from the Lab circuits. Information furnished by Analog Devices is believed to be accurate and reliable. However, Circuits from the Lab circuits are supplied
"as is" and without warranties of any kind, express, implied, or statutory including, but not limited to, any implied warranty of merchantability, noninfringement or fitness for a particular
purpose and no responsibility is assumed by Analog Devices for their use, nor for any infringements of patents or other rights of third parties that may result from their use. Analog Devices
reserves the right to change any Circuits from the Lab circuits at any time without notice but is under no obligation to do so.
©2010–2012 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
CN08967-0-2/12(C)
Rev. C | Page 5 of 5
京公网安备 11010802033920号
EEWORLD
