TPSMBJ54CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Transient suppression diode> TPSMBJ54CA

TPSMBJ54CA: DescriptionTVS Diode, 600W, 60.00V, 66.30V, 54.0V, 1uA, 6.89A, 87.1V; CategoryDiscrete semiconductor Transient suppression diode; File Size1MB，3 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric View All

TPSMBJ54CA Overview

TVS Diode, 600W, 60.00V, 66.30V, 54.0V, 1uA, 6.89A, 87.1V

TPSMBJ54CA Parametric

Parameter Name	Attribute value
Case Style	SMB
Ppk(W)	600
MIN_(V)	60.00
MAX_(V)	66.30
Vwm_(V)	54.0
Ir_(uA)	1
Ippm_(A)	6.89
Vc_(V)	87.1
class	Diodes

Preview

Download Datasheet

View All

TPSMBJ Series

Working Voltage: 11 to 170 V

Peak Pulse Power: 600 W

Features

●

Surface Mount

Transient Voltage Suppressors

SMB/ DO-214AA

0.191 [4.85]

0.171 [4.35]

Glass passivated chip

600 W peak pulse power capability with a

10/1000 μs waveform, repetitive rate (duty

cycle):0.01 %

High reliability application and automotive grade

AEC Q101 qualified

Low leakage

Uni and Bidirectional unit

Excellent clamping capability

Very fast response time

RoHS compliant

Case: Molded plastic

Epoxy: UL 94V-0 rate flame retardant

Lead: Solderable per MIL-STD-750, method

2026

Polarity: Color band denotes cathode end

except Bipolar

Mounting position: Any

0.087 [2.20]

0.078 [1.96]

●

0.148 [3.75]

0.130 [3.30]

0.012 [0.30]

0.006 [0.15]

0.096 [2.44]

0.084 [2.13]

0.008 [0.20]

[0.00]

0.217 [5.50]

0.201 [5.10]

0.059 [1.51]

0.030 [0.75]

Mechanical Data

●

Maximum Ratings(T

=25℃ unless otherwise noted)

Parameter

Peak power dissipation with a 10/1000μs waveform

(1)

Peak pulse current with a 10/1000μs waveform

(1)

Power dissipation on infinite heatsink at T

= 75 °C

Peak forward surge current, 8.3 ms single half sine-wave

unidirectional only

(2)

Maximum instantaneous forward voltage at 50 A for

unidirectional only

(3)

Operating junction and storage temperature range

Note:

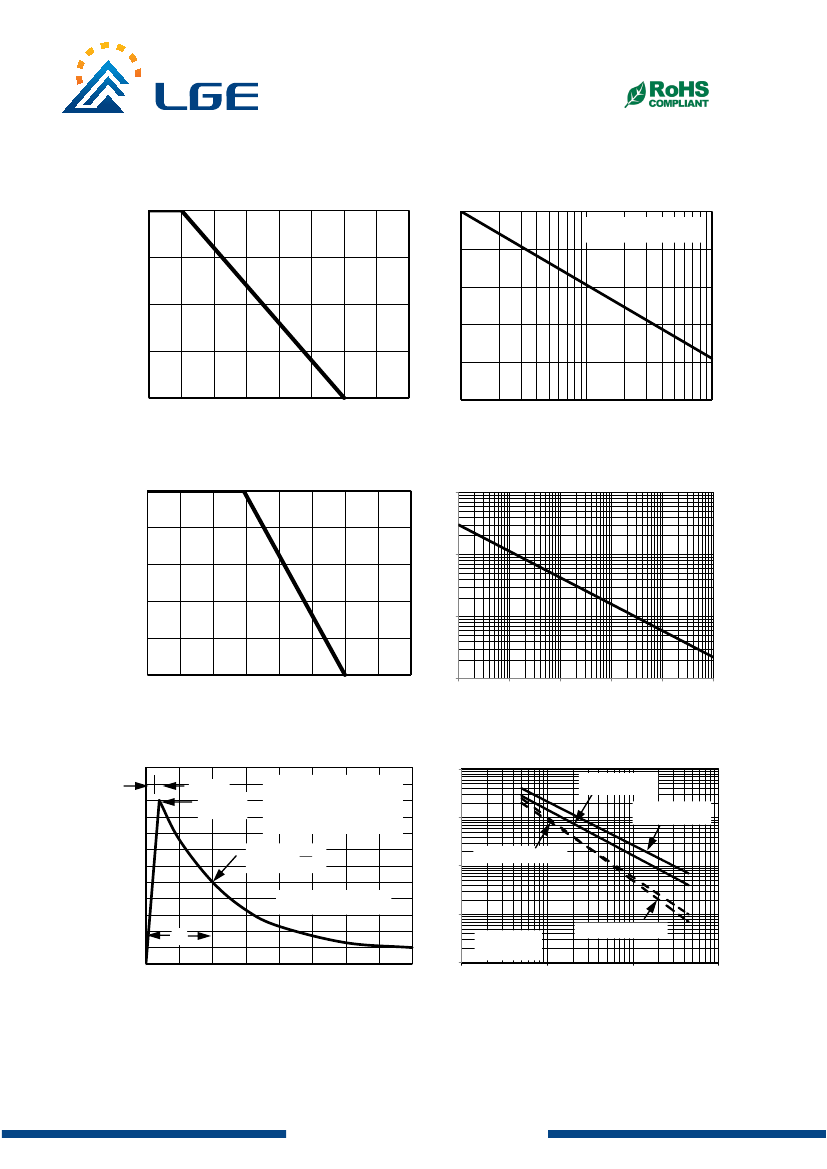

(1)Non-repetitive current pulse per Fig.5 and derated above T

= 25 °C per Fig.1

(2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum

(3)V

<3.5V for devices of V

<200V and V

<5.0V for devices of V

>201V

Symbol

FSM

, T

STG

Value

600

See Next Table

5.0

100

3.5/5.0

- 55 to +150

Unit

°C

Revision:20170701-P1

www.lgesem i

mail:lge@lgesemi.com
