Only One Name Means ProTek’Tion™
MAD Series
ultRA low cAPAcitAnce Multi-line SteeRing DioDe ARRAy
DeScRiPtion
The MAD Series are a low distortion steering diodes. These devices are intended for use in high frequency analog or
digital data I/O ports for protection against Electrostatic Discharge (ESD) and Electrical Fast Transients (EFT). The MAD
Series is connected between rail-to-rail voltage bus or rail-to-ground for clamping and diverting overvoltage transients
for the protection of sensitive network interface circuits.
This series provides low capacitance, which insures signal integrity up to 900MHz, while complete isolation between
adjacent diodes keeps cross-talk to a minimum. The MAD Series is available in a 14 pin DIP and meets the IEC 61000-
4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.

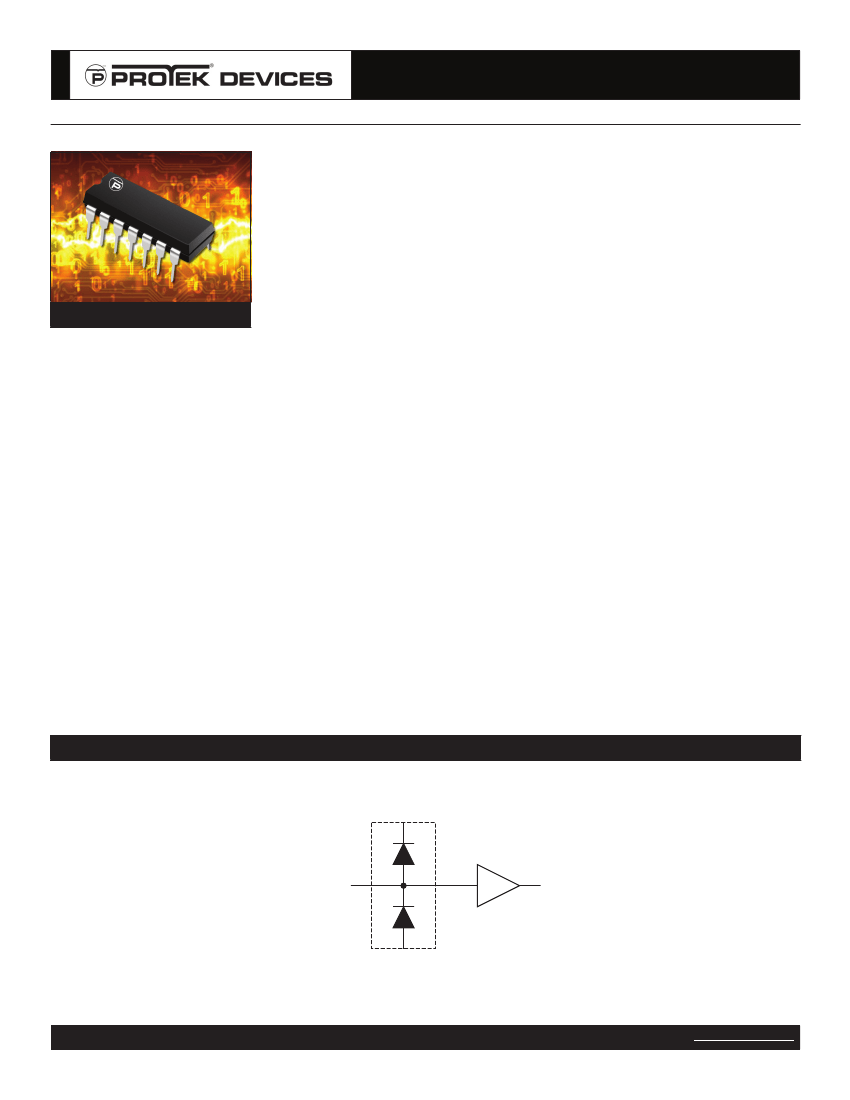

14 Pin DiP PAckAge
FeAtuReS
• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
• Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
• Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line-
Gnd) & Level 3(Line-Line)
• 500 Milliwatt Continuous Power Dissipation
• Monolithic Design
• ESD Protection > 25 kilovolts
• Protects up to 7 to 10 I/O Lines
• Working Voltage > 50 Volts
• Low Leakage Current < 0.1µA
• Ultra Low Capacitance: 5pF per Diode
• RoHS Compliant
• REACH Compliant
APPlicAtionS
•
•
•
•
High Frequency Data Lines
RS-232 & RS-422 Interface Networks
Ethernet 10/100 Base T
Computer I/O Ports
MechAnicAl chARActeRiSticS
Molded 14 Pin Dual-In-Line (DIP) Package
Approximate Weight: 1.2 grams
Lead-Free Pure-Tin Plating (Annealed)
Solder Reflow Temperature:
Pure-Tin - Sn, 100: 260-270°C
• Flammability Rating UL 94V-0
•
•
•
•
ciRcuit DiAgRAM
+
I/O PORT
GND OR (-)
05146.R11 9/12
Page 1
www.protekdevices.com
05146
Only One Name Means ProTek’Tion™
MAD Series

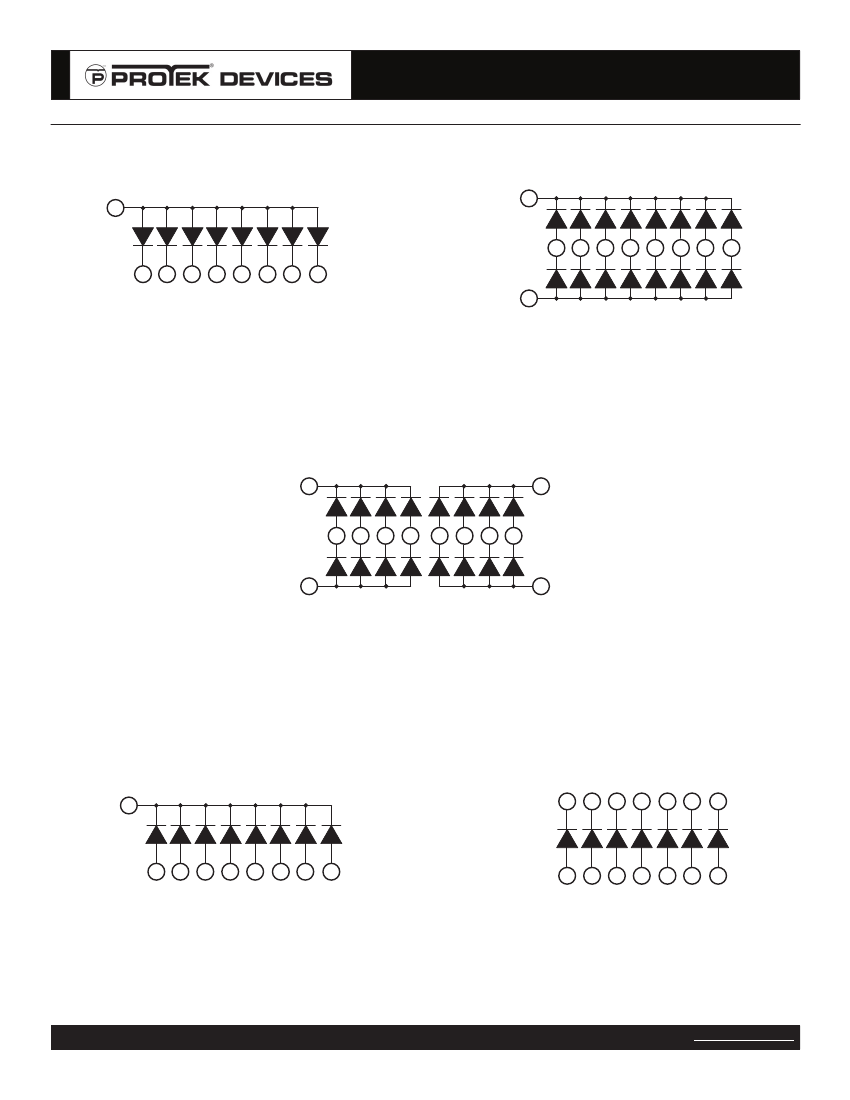

Pin iDentiFicAtion AnD conFiguRAtion
MAD1106
14
1
MAD1103
2
2
3
5
7
8
9
11
12
14
3
5
7
8
9
11
12
8 Diode Common Anode Array
NC Pins 1, 4, 6, 10 & 13
8 Lines of Protection
16 Diode Array
NC Pins 4, 6, 10 & 13
8 Lines of Protection
MAD1107
1
8
2
3
11 12
4
5
9
10
14
Dual 8 Diode Array
NC Pins 6 & 13
8 Lines of Protection
7
MAD1105
14
7
6
MAD1109
5
4
3
2
1
2
3
5
7
8
9
11
12
8
9
10 11
12 13
14
8 Diode Common Cathode Array
NC Pins 1, 4, 6, 10 & 13
8 Lines of Protection
7 Isolated Diode Array
(Independent)
7 Lines of Protection
05146.R11 9/12
Page 2
www.protekdevices.com
05146
Only One Name Means ProTek’Tion™
MAD Series
tyPicAl Device chARActeRiSticS
MAXiMuM RAtingS
@ 25°c unless otherwise Specified
PARAMeteR
Continuous Power Dissipation
Continuous Forward Current (Single Diode)
Repetitive Peak Forward Current @ tp = 5µs, F = 50kHz
Operating Temperature
Storage Temperature
SyMBol
P
PK
I
P
I
FRM
T
A
T
STG
vAlue
500
400
700
-55 to 150
-55 to 150
unitS
Milliwatts
mA
mA
°C
°C
electRicAl chARActeRiSticS PeR line
@ 25°c unless otherwise Specified
PARt
nuMBeR
RePetitive
PeAk
ReveRSe
voltAge
@ 10µA
v
RRM
voltS
MAD1103
MAD1105
MAD1106
MAD1107
MAD1109
50
50
50
50
50
MAXiMuM
FoRwARD
PeAk PulSe
cuRRent
@ 8/20µs
i
FM
AMPS
12
12
12
12
12
MAXiMuM
FoRwARD
voltAge
@ 100mA
v
F
voltS
1.2
1.2
1.2
1.2
1.2
MAXiMuM
ReveRSe
leAkAge
cuRRent
v
RRM
@ 40v
i
R
µA
0.1
0.1
0.1
0.1
0.1
MAXiMuM
cAPAcitAnce
(Per Diode)
@4v, 1Mhz
c
j
pF
5
5
5
5
5
120
i
PP
- Peak Pulse current - % of i
PP
FiguRe 1
PulSe wAve FoRM
t
f
Peak Value I
PP
TEST
WAVEFORM
PARAMETERS
t
f
= 8µs
t
d
= 20µs
100
80
60
40
20
0
0
5
e
-t
t
d
= t/(I
PP
/2)
10
15
t - time - µs
20
25
30
05146.R11 9/12
Page 3
www.protekdevices.com
05146
Only One Name Means ProTek’Tion™
MAD Series
14 Pin DiP PAckAge inFoRMAtion
outline DiMenSionS
DiM
A
B
C
D
E
F
G
H
I
J
K
L
noteS
A
MilliMeteRS
Min
18.16
6.10
7.37
0.20
0°
0.38
3.69
2.92
1.02
1.32
0.38
2.54
incheS
Min
0.715
0.240
0.290
0.008
0°
0.015
0.145
0.115
0.040
0.052
0.015
0.100
MAX
19.56
6.60
7.87
0.38
10°
1.01
4.69
3.43
1.78
2.41
0.53
2.54
MAX
0.770
0.260
0.310
0.015
10°
0.039
0.185
0.135
0.070
0.095
0.021
0.100
D
16 Places
E
G
H
L
J
10 Places
K
14 Places
Orientation
Dot
(Pin #1)
B
C
I
10 Places
F
1. Dimensions are exclusive of mold flash and metal burrs.
2. Dimension “L” is between centers.
oRDeRing inFoRMAtion
BASe PARt nuMBeR
MADxxxx
noteS
leADFRee SuFFiX
-LF
tAPe SuFFiX
n/a
Qty/Reel
n/a
Reel SiZe
n/a
tuBe Qty
25
1. Marking on Part - logo, part number, date code and pin one defined by dot on top of package.
2. This series is only available in a lead-free configuration.
Package outline per document number 06002.R4 10/11.
05146.R11 9/12
Page 4
www.protekdevices.com
05146
Only One Name Means ProTek’Tion™
MAD Series
coMPAny inFoRMAtion
coMPAny PRoFile
In business more than 20 years, ProTek Devices™ is a privately-held company located in Tempe, Arizona, that offers a product line of tran-
sient voltage suppressors (TVS); avalanche breakdown diodes; steering diode TVS arrays and other surge suppressor component products.
These TVS devices protect electronic systems from the effects of lightning, electrostatic discharge (ESD), nuclear electromagnetic pulses
(NEMP), inductive switching and EMI / RFI. ProTek Devices also offers high performance interface and linear products that include analog
switches; multiplexers; LED drivers; audio control ICs; RF and related high frequency products. The analog devices work in a host of con-
sumer; industrial; automotive and other applications.
contAct uS
corporate headquarters
2929 South Fair Lane
Tempe, Arizona 85282
USA
By telephone
General: 602-431-8101
Sales: & Marketing: 602-414-5109
Customer Service: 602-414-5114
Product Technical Support: 602-414-5107
By Fax
General: 602-431-2288
By e-mail:
Sales: sales@protekdevices.com
Customer Service: service@protekdevices.com
Technical Support: support@protekdevices.com
Protek Devices (Asia Pacific) Pte. ltd.
8 Ubi Road 2, #06-19
Zervex
Singapore - 408538
Tel: +65-67488312
Fax: +65-67488313
web
www.protekdevices.com
COPYRIGHT © ProTek Devices 2000 - This literature is subject to all applicable copyright laws and is not for resale in any manner.
SPECIFICATIONS: ProTek reserves the right to change the electrical and or mechanical characteristics described herein without notice.
DESIGN CHANGES: ProTek reserves the right to discontinue product lines without notice and that the final judgement concerning selection and specifications is the buyer’s and that in furnishing engineering
and technical assistance. ProTek assumes no responsibility with respect to the selection or specifications of such products. ProTek makes no warranty, representation or guarantee regarding the suitability of
its products for any particular purpose, nor does ProTek assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability without limitation special,
consequential or incidental damages.
LIFE SUPPORT POLICY: ProTek Devices products are not authorized for use in life support systems without written consent from the factory.
05146.R11 9/12
Page 5
www.protekdevices.com
