KPA-3010P3BT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KPA-3010P3BT

KPA-3010P3BT: DescriptionPhoto Transistor, 3 X 1 MM, 2 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size111KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

KPA-3010P3BT Overview

Photo Transistor, 3 X 1 MM, 2 MM HEIGHT, SMD, 2 PIN

KPA-3010P3BT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3 X 1 MM, 2 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Coll-Emtr Bkdn Voltage-Min	30 V
Configuration	SINGLE
Maximum dark power	100 nA
Infrared range	YES
Nominal photocurrent	0.3 mA
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	PHOTO TRANSISTOR
shape	RECTANGULAR
size	2 mm

Preview

Download Datasheet

View All

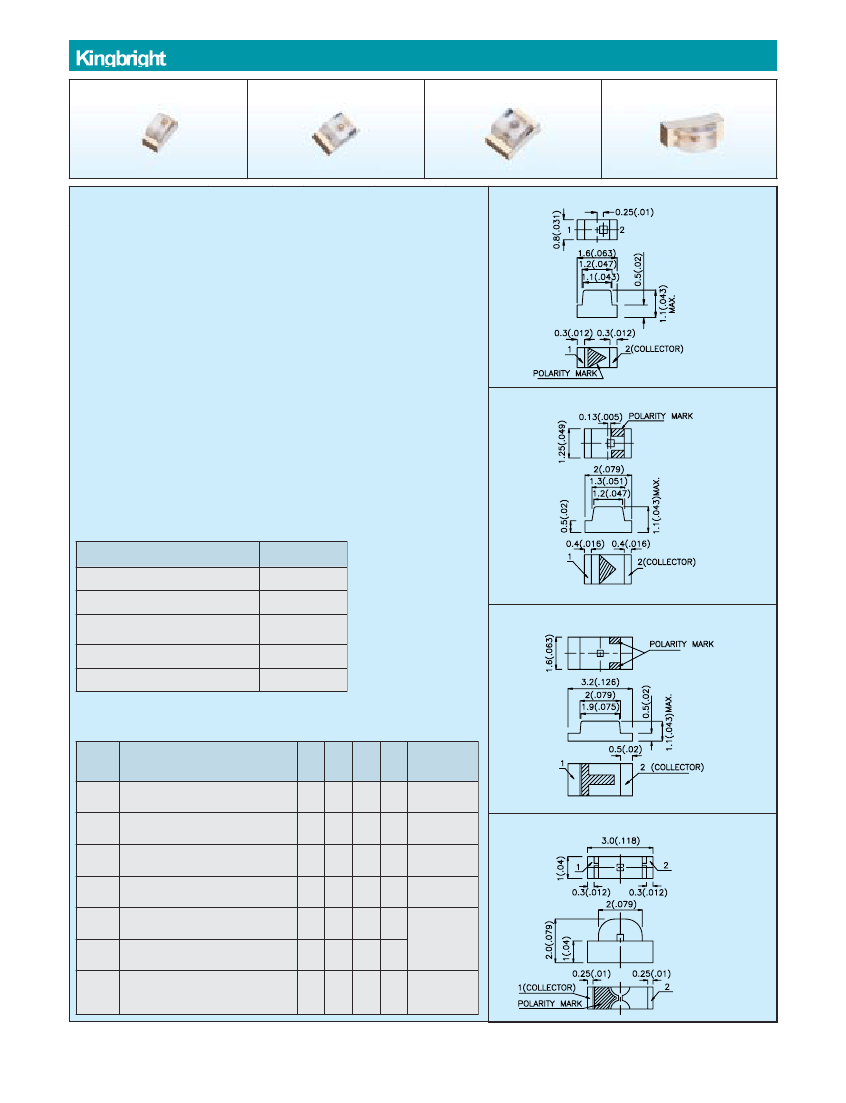

SMD PHOTOTRANSISTORS

KP-1608P1C(0603)

KP-2012P3C(0805)

KP-3216P3C(1206)

KPA-3010P3C(1104)

Part No.

PHOTOTRANSISTORS

Material

(nm)

Lens Type

Iv (mcd)

View ing

@30mA*50mA Angle

Min.

Typ.

2θ 1/2

KP-1608P1

1.6mm x 0.8mm x 1.1mm (0603)

Dimension

1.6mm x 0.8mm x 1.1mm (0603)

KP-1608P1C

KP-1608P1BT

WATER CLEAR LENS

BLUE TRANSPARENT LENS

2.0mm x 1.25mm x 1.1mm (0805)

KP-2012P3C

KP-2012P3BT

WATER CLEAR LENS

BLUE TRANSPARENT LENS

3.2mm x 1.6mm x 1.1mm (1206)

KP-3216P3C

KP-3216P3BT

WATER CLEAR LENS

BLUE TRANSPARENT LENS

Units : mm(inch)

Tolerance :

±0.1(0.004)

KP-2012P3 2.0mm x 1.25mm x 1.1mm (0805)

3.0mm x 1.0mm x 2.0mm (1104)

KPA-3010P3C

KPA-3010P3BT

WATER CLEAR LENS

BLUE TRANSPARENT LENS

ABSOLUTE MAXIMUM RATING T

=25°C

Parameter

Collector-to-Emitter Breakdown Voltage

Emitter-to-Collector Breakdown Voltage

Power Dissipation at (or below) 25

Free Air Temperature

Operating Temperature Range

Storage Temperature Range

Max. Ratings

30V

KP-3216P3 3.2mm x 1.6mm x 1.1mm (1206)

Units : mm(inch)

Tolerance :

±0.1(0.004)

100mW

-40

C ~ +85

°C

-40

C ~ +85

°C

ELECTRICAL AND RADIANT CHARACTERISTICS T

=25°C

Symbol

Parameter

Min. Typ. Max. Unit

Test

Condition

=100

µA

Ee=0mW/cm

=100

µA

Ee=0mW/cm

=2mA

Ee=20mW/cm

=10V

Ee=0mW/cm

=5V

=1mA

=1K

Ω

=5V,

Ee=1mW/cm

=940nm

Units : mm(inch)

Tolerance :

±0.2(0.008)

BR CEO

Collector-to-Emitter Breakdown Voltage

BR ECO

Emitter-to-Collector Breakdown Voltage

CE (SAT)

Collector-to-Emitter Saturation Voltage

CEO

Collector Dark Current

Rise Time (10% to 90%)

Fall Time (90% to 10%)

0.8

100

µs

KPA-3010P3 3.0mm x 1.0mm x 2.0mm (1104)

(ON)

On State Collector Current

0.1

0.3

Units : mm(inch)

Tolerance :

±0.15(0.006)

KPA-3010P3BT Related Products

	KPA-3010P3BT	KP-2012P3BT	KP-1608P1BT
Description	Photo Transistor, 3 X 1 MM, 2 MM HEIGHT, SMD, 2 PIN	Photo Transistor, 2 X 1.25 MM, 1.10 MM HEIGHT, SMD, 2 PIN	Photo Transistor, 1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	3 X 1 MM, 2 MM HEIGHT, SMD, 2 PIN	2 X 1.25 MM, 1.10 MM HEIGHT, SMD, 2 PIN	1.60 X 0.80 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant	compli	compliant
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE
Maximum dark power	100 nA	100 nA	100 nA
Infrared range	YES	YES	YES
Nominal photocurrent	0.3 mA	0.3 mA	0.3 mA
Number of functions	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	PHOTO TRANSISTOR	PHOTO TRANSISTOR	PHOTO TRANSISTOR
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2 mm	1.3 mm	1.2 mm
Maker	Kingbright	-	Kingbright
Coll-Emtr Bkdn Voltage-Min	30 V	-	30 V
