CC065S-B2-33.333TS datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CC065S-B2-33.333TS

Preview

CC065S-B2-33.333TS: DescriptionCMOS/LSTTL Output Clock Oscillator, 33.333MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerCardinal Components; Environmental Compliance

Download Datasheet Parametric View All

CC065S-B2-33.333TS Overview

CMOS/LSTTL Output Clock Oscillator, 33.333MHz Nom, ROHS COMPLIANT PACKAGE-4

CC065S-B2-33.333TS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cardinal Components
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Other features	TRISTATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	CC065S
Installation features	SURFACE MOUNT
Nominal operating frequency	33.333 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL, 15 pF
physical size	7.5mm x 5.1mm x 1.7mm
longest rise time	10 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

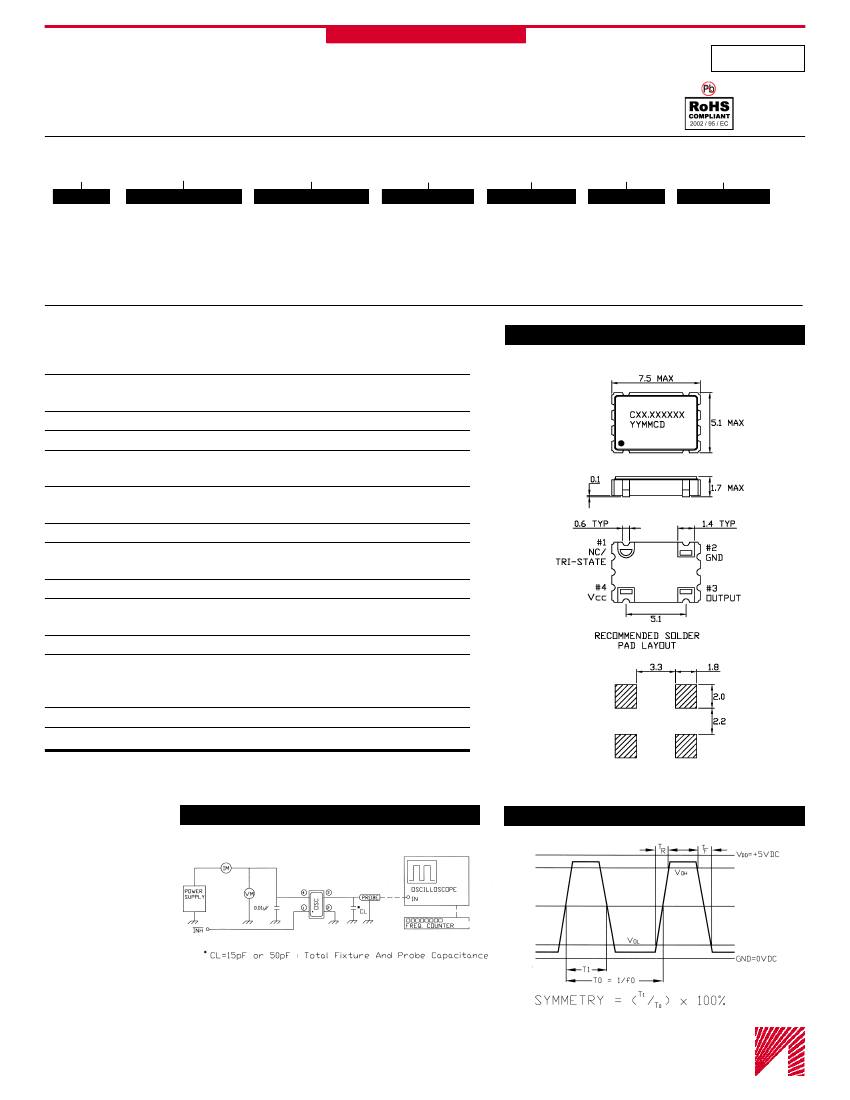

CARDINAL COMPONENTS

Surface Mount Clock Oscillator

• Tristate capable

• 1.7 mm height

Series CC065S

Part Numbering Example: CC065S Z - A2 B2 45 - 33.333 TS

CC065S

SERIES

CC065S

Z

ADDED FEATURES

BLANK = BULK PACK

Z = TAPE AND REEL

A2

OPERATING TEMP.

Blank = 0°C ~

+

70°C

A2

=

-

40°C ~

+

85°C

B2

STABILITY

Blank = ±100 ppm

B2

= ± 50 ppm

45

SYMMETRY

Blank = 40/60%

45 = 45/55%

33.333

FREQUENCY

TS

TRI STATE

Tri State Standard

Specifications:

Frequency Range:

1.8432 MHz to 125.000 MHz

CC065S

Standard

Available Stability Options:

±100 ppm

±50 ppm

Output Series:

Input Voltage:

Operating Temperature

Range Options:

Output Voltage:

Output Load:

Maximum Input Current:

Maximum Rise/Fall Time:

Duty Cycle:

Max. Start-Up Time:

Tristate Input:

HCMOS

+5.0 VDC ±10%

-10°C to +70°C

-40°C to +85°C

V

OL

= 0.5 V Max.

V

OH

= 4.5 V Min.

10 LS TTL, 15 pf CMOS

25 mA (1.8432 to 31.999 MHz)

35 mA (32.000 to 70.000 MHz)

10 ns

40/60%

45/55%

10 ms

+0.80 VDC Max. to Disable

+3.60 VDC Min. to Enable

or open to Enable

-55°C to +125°C

Tape and Reel (1K per Reel)

Standard

Storage Temperature:

Packaging:

TEST CIRCUIT

OUTPUT WAVE FORM

Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053

.

http://www.cardinalxtal.com

E-Mail: cardinal@cardinalxtal.com
